Embarking on an engine rebuild for your cherished classic vehicle is a significant undertaking, yet immensely rewarding. It's a journey that demands patience, precision, and often, the expertise of specialists. Whether you're aiming to restore an engine to its original glory or enhance its performance and longevity with modern upgrades, understanding the foundational steps is crucial. This guide will walk you through the process of starting an engine rebuild, highlighting key areas where professional intervention can make all the difference, ensuring your classic runs as smoothly, if not smoother, than it did when new.
Before any spanners turn, a thorough initial assessment is paramount. What are the symptoms? Excessive smoke, low oil pressure, strange noises, or simply a desire for a refresh? Document everything. This initial diagnosis will dictate the scope of your rebuild. Planning involves more than just identifying problems; it includes setting a budget, sourcing a reliable workshop manual, and deciding whether to tackle parts of the job yourself or entrust the entire process to a professional engine reconditioner. For complex or highly specialised work, engaging a reputable service like SRM Engineering from the outset can save considerable time, money, and headaches. They offer a complete service, from engine removal to refitting and setup.
- Deconstructing Your Engine: The First Steps of a Rebuild
- The Heart of the Matter: Crankshaft Reconditioning
- Cylinder Reconditioning: Bore and Hone for Perfection
- Cylinder Heads: Valves, Seats, and Guides
- Advanced Upgrades: Needle Roller Bearing Conversion
- Bearings, Bushes, and Beyond: Ensuring Quality Components
- How to Start the Rebuild Process with a Specialist
- Frequently Asked Questions About Engine Rebuilds
- Conclusion
Deconstructing Your Engine: The First Steps of a Rebuild
Taking an engine apart might seem daunting, but a methodical approach ensures success. Begin by thoroughly cleaning the exterior of the engine to prevent dirt ingress. Organise your workspace and invest in a good set of tools. As you disassemble, take copious notes, photographs, and bag and label every component. This meticulous documentation will be invaluable during reassembly.
Once stripped, every component needs a rigorous inspection and cleaning. Old oil, carbon deposits, and grime must be removed. This stage often reveals hidden damage or wear that wasn't apparent externally. Components like engine casings, cylinder barrels, and cylinder heads can be cleaned using various methods, from hot washing to bead blasting, preparing them for the next stage: professional reconditioning.
The Heart of the Matter: Crankshaft Reconditioning
The crankshaft is arguably the most critical component in your engine, responsible for converting the pistons' linear motion into rotational energy. Its condition is vital for smooth operation and engine longevity.
Crankshaft Grinding
Worn crankshaft journals are a common issue. At a specialist like SRM, all crankshafts are reground accurately to the correct specification radii. This involves precision machining to restore the journals to a perfectly round and smooth surface. Before grinding, the sludge trap – an internal chamber designed to collect metallic particles and sludge – is meticulously cleaned out to remove any foreign particles which may interfere with the grinding process. After grinding, the main journals are then highly polished to the correct surface finish, ensuring optimal bearing performance and oil film integrity.
Spline Repairs and Shaft Reclamation
Beyond journal wear, crankshafts can suffer from worn splines or general shaft wear. Specialists can carry out repairs to worn splines and also reclaim worn shafts, extending the life of original components that might otherwise be deemed irreparable.
Dynamic Crankshaft Balancing
One of the most significant upgrades you can make during a crankshaft rebuild is dynamic balancing. While static balancing addresses the weight distribution around the crankshaft's circumference, dynamic balancing goes a step further. It addresses not only the circumferential balance but also the balance across the shaft, known as the 'rocking couple'. This is particularly beneficial for vertical twin engines, where it helps to significantly reduce vibration, leading to a much smoother ride and less stress on other engine components. We highly recommend our customers have their dynamical crankshaft balanced as part of their engine rebuilds for the ultimate in refinement.
Static vs. Dynamic Balancing
Understanding the difference between these two balancing methods is key to appreciating the benefits of a dynamically balanced crankshaft:
| Feature | Static Balancing | Dynamic Balancing |
|---|---|---|
| Focus | Weight distribution around a single axis. | Weight distribution across the length of the shaft and around the axis. |
| Method | Crankshaft placed on knife-edges; weights added/removed until it rests without rotating. | Crankshaft spun at high speed on a balancing machine; sensors detect imbalances in multiple planes. |
| Vibration Reduction | Reduces general out-of-balance forces. | Significantly reduces both out-of-balance forces and rocking couples. |
| Result | Improved balance, but some vibration may persist. | Smoothest possible operation, minimal vibration. |
| Cost | Generally less expensive. | More involved and thus higher cost, but superior results. |
Cylinder Reconditioning: Bore and Hone for Perfection
The cylinders are where the combustion process takes place, and their condition directly impacts compression, oil consumption, and power output.
Rebores and Honing
Cylinders often wear oval or tapered over time. Reboring is the process of machining the cylinder bore to a larger, perfectly round, and true dimension, removing wear and damage. At SRM, all cylinders are bored to within 0.002” (thou). Following boring, the cylinders are honed. Honing is a crucial process that uses abrasive stones to create a precise cross-hatch pattern on the cylinder walls. This pattern is essential for retaining oil and allowing the piston rings to "bed in" correctly, ensuring optimal sealing and minimal friction. Our cylinders are honed to an exact size, within two tenths of a thou (0.0002”) tolerance, producing the ideal surface finish for piston ring seating.
Cylinder Heads: Valves, Seats, and Guides
The cylinder head is critical for engine breathing and sealing the combustion chamber. Reconditioning this component is vital for performance and adapting to modern fuels.
Lead-Free Valve Seats
For classic four-stroke engines, running on modern unleaded petrol requires specific modifications to the cylinder head. The intense heat produced around the exhaust valve seat area means that only the exhaust valve seats have to be replaced to run your classic on lead-free petrol. Specialists replace these with a special hardened steel insert, which can withstand the higher temperatures and lack of lead's lubricating properties. Compatible valves are also supplied for these replacement seats. These hardened seats can be fitted to any cast iron and aluminium cylinder head.
Colsibro Valve Guides
Valve guides ensure the valves move smoothly and precisely. Worn guides lead to oil consumption and poor valve seating. Using superior materials for valve guides can significantly enhance engine performance and longevity. At SRM, we use a Colsibro valve guides material for the valve guides. Colsibro, an alloy of copper, nickel, and silicone, resists wear, corrosion, and can cope with rapid temperature changes. This advanced material allows closer tolerances to be used, which produces a cleaner running engine by reducing valve stem wobble and improving heat transfer from the valve.
Advanced Upgrades: Needle Roller Bearing Conversion
Innovation in classic engine rebuilding often comes in the form of addressing original design shortcomings. The BSA engine, for example, had known issues with its crankshaft bush.
Eliminating Timing Side Bush Problems
Our needle roller bearing conversion specifically addresses problems associated with the timing side bush. BSA themselves recognised the shortcomings of the crankshaft bush and developed their crankshaft oil feed system for use with their racing engines. Our conversion takes this concept further. The original bush is replaced by a combined ball and needle roller bearing. This sophisticated bearing arrangement is designed to withstand substantial radial and axial load, offering superior support to the crankshaft.
Benefits of the Conversion
This conversion eliminates end float, a common issue that can lead to excessive wear and noise. It effectively locks the crankshaft to the timing side, resulting in no more shimming of the crankshaft, simplifying future maintenance. Furthermore, the oil ways are altered and re-routed. Oil is now fed directly from the oil pump to the big ends via an oil seal housed in the timing casings and through an end feed quill situated at the end of the crankshaft. This improved lubrication system drastically enhances the longevity and reliability of the big end bearings.
Bearings, Bushes, and Beyond: Ensuring Quality Components
An engine rebuild is only as good as the components used. Even the most meticulous machining can be undermined by substandard parts.
Quality Assurance
All the bearings and bushes that are fitted by professional reconditioners are of the best quality. This commitment to high standards is crucial, as the reliability and longevity of the rebuilt engine depend heavily on these critical components. Reputable rebuilders guarantee the engines they rebuild, which necessitates ensuring all components meet the highest standards.
Other Services
Beyond the core components, a full reconditioning service may include other crucial repairs and aesthetic enhancements:
- Helicoils & Thread Repairs: Essential for fixing stripped or damaged threads in vital components.
- Gas Flowing: Optimising the internal passages of cylinder heads for improved airflow and performance.
- Fin Repairs: Restoring damaged cooling fins on cylinders and heads, crucial for heat dissipation.
- Alloy Polishing: Bringing a gleaming finish to alloy components for a show-quality engine.
- Stove Enamel for Cylinders: A durable finish that protects cylinders and enhances their appearance.

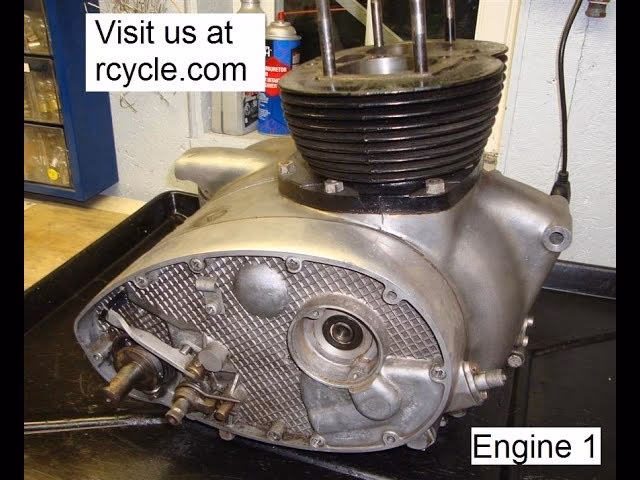

How to Start the Rebuild Process with a Specialist
If you decide to engage a professional engine reconditioner, the process usually begins with preparing your engine for transport.
Packaging Your Engine
If you are sending a complete engine, you will need to package it securely. It is highly recommended to build the engine into a substantial wooden box. This protects the engine from damage during transit and makes handling easier for the courier and the reconditioner.
The Complete Service Option
For those who prefer a completely hands-off approach, some specialists offer a comprehensive service. For instance, SRM Engineering provides a complete service in which they will remove the engine from your vehicle, perform a complete rebuild, and then refit the engine back to the chassis. This eliminates the complexities of engine removal and reinstallation for the owner. Following reinstallation, the vehicle is typically put on a rolling road, where the ignition timing and carburation are meticulously set up to ensure optimal performance and reliability. This end-to-end service provides unparalleled convenience and peace of mind.
Frequently Asked Questions About Engine Rebuilds
Q: How long does an engine rebuild typically take?
A: The duration varies significantly depending on the engine's condition, the extent of work required, and the availability of parts. A full professional rebuild could take anywhere from a few weeks to several months. It's best to discuss timelines with your chosen reconditioner.
Q: Is it cheaper to rebuild an engine or replace it?
A: For classic engines, rebuilding is almost always the preferred and often the only viable option. Finding a suitable replacement engine for an older vehicle can be incredibly difficult and expensive. Rebuilding allows you to retain the original engine, maintaining the vehicle's provenance, and often results in a more reliable unit than an unknown second-hand replacement.
Q: What's the most important part of an engine rebuild?
A: While every component plays a role, precision in machining and assembly, along with the quality of parts used, are arguably the most important aspects. Ensuring critical clearances are correct and that components like the crankshaft and cylinders are machined to exact tolerances is paramount for engine longevity and performance.
Q: Do I need to run in a rebuilt engine?
A: Absolutely. Running in (or breaking in) a newly rebuilt engine is critical for the long-term health and performance of the engine, particularly for piston rings to seat correctly against the cylinder walls. Follow the rebuilder's specific recommendations, which typically involve varying engine speeds, avoiding sustained high RPMs, and changing oil after a short initial period.
Q: Can I just replace worn parts without a full rebuild?
A: While minor repairs are possible, a true "rebuild" implies a comprehensive overhaul where all critical wear items are addressed. Simply replacing one worn part without inspecting and correcting others can lead to premature failure elsewhere. For a reliable and long-lasting classic engine, a full rebuild is usually the best approach.
Conclusion
Starting an engine rebuild is the first step towards revitalising your classic vehicle. It's a complex process that demands attention to detail at every stage, from meticulous disassembly and cleaning to precision machining and reassembly. While some aspects can be tackled by the home mechanic, critical areas like crankshaft grinding, cylinder boring, and cylinder head reconditioning are best left to experienced professionals like SRM Engineering. Their expertise in areas like needle roller bearing conversion and dynamic balancing can transform a good rebuild into an exceptional one, ensuring your classic engine not only runs but truly sings for many years to come. Embrace the journey, and enjoy the unparalleled satisfaction of bringing a piece of automotive history back to its prime.
