Clutch Master Cylinder Replacement: Your Guide

The clutch system in your car is a marvel of engineering, allowing for smooth, effortless gear changes that are essential for a comfortable driving experience. At the heart of this system lies a crucial component: the clutch master cylinder. Often overlooked until problems arise, this part plays a pivotal role in translating the pressure from your foot on the clutch pedal into the hydraulic force needed to disengage the clutch and shift gears seamlessly. Understanding its function, recognising the signs of failure, and knowing what’s involved in its replacement can save you from unexpected breakdowns and ensure your vehicle remains reliable on the road.

Ignoring issues with your clutch master cylinder can lead to a range of driving difficulties, from frustrating gear grinds to a complete inability to shift, leaving you stranded. This comprehensive guide will delve into the intricacies of the clutch master cylinder, helping you identify problems early, understand the repair process, and make informed decisions about your vehicle's maintenance.

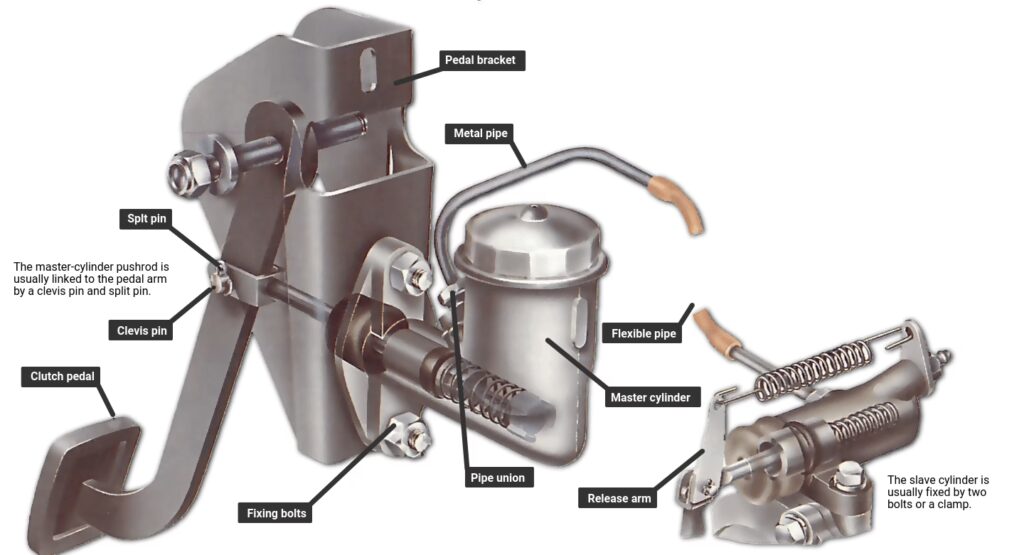

How Does a Clutch Master Cylinder Work?

Imagine a bridge connecting your foot to your gearbox – that's essentially the role of the clutch master cylinder. It's a key part of your car’s hydraulic clutch system, designed to convert mechanical force into hydraulic pressure. When you press the clutch pedal, a piston within the master cylinder moves, pushing clutch fluid (typically brake fluid, like DOT 3 or DOT 4) through a series of lines to the clutch slave cylinder. This hydraulic pressure then acts on the slave cylinder, which in turn disengages the clutch from the engine's flywheel, allowing you to change gears without any grinding or stalling.

The master cylinder also features a small reservoir that stores the clutch fluid. This reservoir ensures there’s always enough fluid in the system for effective operation and allows for minor fluid expansion or contraction due to temperature changes. Over time, like any mechanical component, the internal seals within the master cylinder can degrade and wear out. This wear can lead to a loss of fluid pressure, external leaks, or contamination of the clutch fluid. When this happens, the smooth transfer of power is compromised, leading to noticeable issues with clutch operation.

Recognising the Signs of a Faulty Clutch Master Cylinder

A failing clutch master cylinder will almost always give you warning signs before it completely gives up. Paying attention to these indicators can prevent more severe damage to your transmission and keep you safe on the road. Here are the most common symptoms to look out for:

• Soft or Spongy Clutch Pedal: This is one of the most common and immediate indicators. If your clutch pedal feels unusually easy to press, lacks resistance, or feels spongy underfoot, it's often a sign that the master cylinder isn't effectively building or holding hydraulic pressure. This can be due to internal leaks, worn seals, or air trapped within the hydraulic lines.
• Pedal Sticking or Hard to Press: Conversely, if the clutch pedal is slow to return to its original position after being pressed, or if it becomes unusually hard to push down, it could point to internal friction or a blockage within the master cylinder itself, preventing the fluid from moving freely.
• Difficulty Shifting Gears: Struggling to engage or disengage gears smoothly, or experiencing a grinding noise when shifting, suggests that the clutch isn't fully disengaging. This is a direct consequence of the master cylinder failing to send sufficient hydraulic pressure to the slave cylinder.
• Clutch Slipping: If you press the accelerator and the engine revs up, but the car doesn't accelerate as expected or feels like it's losing power, the clutch might be slipping. This can occur if the master cylinder isn't allowing the clutch to fully engage after a gear change, often due to residual pressure or a partial disengagement.
• Low Clutch Fluid Levels: Regularly checking your clutch fluid reservoir is good practice. A noticeable drop in fluid levels without an obvious external leak could indicate an internal leak within the master cylinder, where fluid might be bypassing the seals or seeping into the footwell.
• Dark or Dirty Clutch Fluid: Fresh clutch fluid is typically clear or light amber. If your fluid quickly turns dark or appears dirty, it can signify internal wear within the master cylinder, where rubber particles from degrading seals are contaminating the fluid. This contamination can also damage other components in the system.
• Pedal Not Returning to Position: If the clutch pedal remains partially depressed or doesn't spring back after you release it, it's a strong indicator of internal failure within the master cylinder or a significant amount of air trapped in the system, preventing proper hydraulic return.

Clutch Master Cylinder Repair vs. Replacement: What's Best?

When faced with a faulty clutch master cylinder, a common question arises: can it be repaired, or does it need to be replaced? In some specific, minor cases, a repair or seal kit might be a viable option. For instance, if there's a very minor external leak from a seal, a kit might temporarily fix the issue. However, this approach is often a short-term solution.

For most significant issues, such as severe internal wear, consistent pressure loss, or extensive fluid contamination, a full replacement of the clutch master cylinder is almost always the recommended course of action. While a repair kit might seem more economical upfront, it doesn't address potential wear on the cylinder bore or other internal components. A partial repair can lead to recurring problems, more downtime, and potentially higher costs in the long run.

Opting for a full replacement provides complete peace of mind, ensuring that your clutch system will function reliably and smoothly for years to come. This is especially true for vehicles with higher mileage where components are naturally more worn, or if the existing part shows significant signs of degradation. A new master cylinder restores the hydraulic integrity of your clutch system, preventing further issues and ensuring safe, consistent performance.

What Does a Clutch Master Cylinder Replacement Job Involve?

Replacing a clutch master cylinder is a job best left to experienced mechanics, as it involves working with hydraulic systems and ensuring no air is introduced. The general process typically includes the following steps:

1. Initial Inspection: The mechanic will begin by thoroughly inspecting the entire clutch system, including the pedal assembly, fluid lines, and the slave cylinder, to accurately diagnose the problem and rule out other potential causes for the symptoms.
2. Fluid Drainage: The existing clutch fluid will be carefully drained from the system to prevent spills and allow for the safe removal of the old master cylinder.
3. Component Removal: The old clutch master cylinder will be carefully disconnected from the clutch pedal linkage and the hydraulic lines, then removed from its mounting point, usually on the firewall.
4. New Part Installation: The new clutch master cylinder is then precisely fitted into place and securely connected to the pedal and the hydraulic lines.
5. Fluid Refill: Fresh, clean clutch fluid (to the manufacturer's specifications) is added to the reservoir.
6. System Bleeding: This is a critical step. The mechanic will bleed the clutch system to remove any trapped air. Air in the hydraulic lines can cause a spongy pedal and prevent the clutch from disengaging properly. This process involves pumping the clutch pedal while opening and closing a bleed screw on the slave cylinder until only fluid, free of air bubbles, emerges.
7. System Checks: The mechanic will check if other parts of the clutch system, like the clutch slave cylinder, show signs of wear or damage that might necessitate their replacement alongside the master cylinder.
8. Test Drive: Once all repairs are complete and fluid levels are correct, the mechanic will perform a test drive to ensure the clutch functions smoothly, engages and disengages properly, and that all gear changes are seamless.

How Much Does a Clutch Master Cylinder Replacement Cost?

The cost of replacing a clutch master cylinder is generally less complex and, therefore, less expensive than replacing the entire clutch assembly (which includes the clutch plate, pressure plate, and release bearing). On average, in the UK, you can expect the cost to range between £140 and £275. However, this can vary significantly depending on several factors:

• Vehicle Make and Model: Some car models have master cylinders that are more difficult to access or require specialised tools, increasing labour time. The cost of the part itself also varies widely between manufacturers.
• Labour Rates: Labour costs differ between garages and regions. Mobile mechanics can sometimes offer competitive rates due to lower overheads.
• Part Quality: The cost of the new master cylinder can vary depending on whether it's an OEM (Original Equipment Manufacturer) part or an aftermarket equivalent. While aftermarket parts can be cheaper, it's often advisable to opt for a good quality component for longevity and reliability.

From our data, most clutch master cylinder replacement jobs typically come in around £200, representing a good balance between parts and labour for a standard vehicle.

Can the Clutch Master Cylinder Be Replaced by a Mobile Mechanic?

Absolutely! The convenience of a mobile mechanic for a clutch master cylinder replacement is a significant advantage. This particular job doesn't typically require heavy lifting equipment or a dedicated workshop environment, making it perfectly suitable for on-site repair at your home or workplace. This flexibility is ideal if you're short on time, prefer to avoid the hassle of dropping off and collecting your car from a garage, or if your vehicle is not safe or driveable.

Many mobile mechanic services, including ClickMechanic, offer collection and delivery if your car isn't driveable, though a small fee may apply in such circumstances. This service ensures that even if your clutch has completely failed, you can still get your vehicle repaired without needing to arrange costly towing.

What Does a ClickMechanic Clutch Master Cylinder Replacement Quote Cover?

When you receive a quote for a clutch master cylinder replacement through services like ClickMechanic, it's designed to be comprehensive and transparent. Unless specifically stated otherwise, your quote will typically cover:

• The cost of the new clutch master cylinder itself, including all necessary fittings.
• The cost of the required hydraulic fluid to refill and bleed the system.
• The convenience of the mechanic coming to your specified location for collection and return delivery (provided the vehicle is still driveable).
• The professional fitting of the new parts by a qualified mechanic.
• The responsible disposal of the old parts (unless you specifically request to keep them).
• Applicable VAT (Value Added Tax) where required.
• A 12-month parts and labour warranty, providing peace of mind for the quality of the repair.

Frequently Asked Questions About Clutch Master Cylinders

How long does a clutch master cylinder typically last?

The lifespan of a clutch master cylinder can vary significantly based on driving habits, vehicle age, and maintenance. Generally, they are designed to last between 60,000 to 100,000 miles. However, exposure to extreme temperatures, aggressive clutch use, or simply the age of the rubber seals can cause premature failure. Regular checks of your clutch fluid and prompt attention to any symptoms can help extend its life.

Is it safe to drive with a failing clutch master cylinder?

No, it is strongly not recommended to drive with a failing clutch master cylinder. While minor symptoms might allow you to limp home, the issue can quickly escalate to a complete loss of clutch function, making it impossible to shift gears. This can lead to dangerous situations, especially in traffic, and could cause further damage to your transmission or other clutch components. It's always best to get it inspected and repaired as soon as symptoms appear.

What's the difference between a clutch master cylinder and a clutch slave cylinder?

Both are integral to the hydraulic clutch system. The clutch master cylinder is connected directly to the clutch pedal and is responsible for converting the mechanical force from your foot into hydraulic pressure. The clutch slave cylinder, located near the gearbox, receives this hydraulic pressure and uses it to move the clutch release fork, which disengages the clutch. They work in tandem; if one fails, the entire hydraulic system is compromised.

Is clutch fluid the same as brake fluid?

In many vehicles, yes, the clutch hydraulic system uses the same fluid as the brake system, typically DOT 3 or DOT 4 brake fluid. This is because both systems rely on similar hydraulic principles. However, it is crucial to always check your car's owner's manual to confirm the correct type of fluid specified for your vehicle, as using the wrong fluid can lead to serious damage to seals and other components.

Can I replace the clutch master cylinder myself?

While some mechanically inclined individuals might attempt this repair, it's generally recommended to have a professional mechanic handle it. The job involves working with hydraulic fluid, ensuring proper bleeding of the system to remove all air, and correctly connecting various components. Incorrect installation or incomplete bleeding can lead to a spongy pedal, poor clutch operation, or even damage to other parts of the transmission. A professional ensures the job is done safely and correctly, often backed by a warranty.

Conclusion

The clutch master cylinder, though a small part, is indispensable for smooth and efficient gear changes in your vehicle. Recognising the early signs of its failure and addressing them promptly is key to maintaining your car's performance and avoiding more significant, costly repairs down the line. Whether you notice a spongy pedal, difficulty shifting, or any other warning sign, opting for a professional replacement ensures your car's clutch system operates reliably. With the convenience of mobile mechanics and clear, comprehensive quotes, getting your clutch master cylinder replaced has never been easier, allowing you to get back on the road with confidence and enjoy those seamless shifts once more.
