Detroit Series 60: A UK Mechanic's Deep Dive

When it comes to heavy-duty diesel engines that have truly stood the test of time, few can rival the esteemed reputation of the Detroit Diesel Series 60. A genuine workhorse that revolutionised the commercial vehicle industry, particularly within the UK's demanding transport sector, this engine has powered countless lorries, buses, and industrial applications for decades. Its innovative design and robust construction have made it a favourite among operators and mechanics alike, a testament to its enduring reliability and performance. But what exactly makes the Series 60 so special, how does it operate, and what should you consider when it comes to maintaining or even replacing one?

The Enduring Legacy of the Detroit Diesel Series 60

The Detroit Diesel Series 60 was not just another engine; it was a pioneer. Launched in 1987, it fundamentally altered the landscape of diesel engine technology by introducing sophisticated electronic controls. Before the Series 60, most diesel engines relied purely on mechanical systems for fuel delivery and timing. Detroit Diesel, however, essentially spearheaded the electronically controlled diesel engine segment with its innovative 'drive-by-wire' system.

At the heart of this ground-breaking system lay an Electronic Control Module (ECM) and an injector driver module. These components worked in tandem to actuate electric solenoids on each individual fuel injector, providing unprecedented precision in fuel delivery. This level of control paved the way for significant advancements, including superior fuel economy, enhanced performance, and a marked reduction in emissions – critical factors that continue to drive engine development today. Furthermore, the electronic system granted vehicles various diagnostic features, making troubleshooting far more efficient than with traditional mechanical setups.

Beyond its electronic prowess, the Series 60 also featured a single overhead camshaft responsible for operating its intake valves, exhaust valves, and fuel injector plungers. This design, while seemingly advanced for its time, did not compromise the engine's inherent robustness or longevity. In an era where new technologies often bring teething problems, the Series 60 demonstrated remarkable reliability, quickly cementing its status as a trusted power unit across diverse applications, from long-haul trucking to stationary power generation.

Technical Specifications: A Deep Dive into the Series 60

The Detroit Series 60 was produced in several displacements, each catering to different power and torque requirements. These included the 11.1L, 12.7L, and the later 14.0L variants, offering a versatile range for various on and off-highway applications. Understanding the core specifications helps to appreciate the engineering marvel that this engine represents.

Below is a comparative table detailing the key specifications across the different Series 60 engine sizes:

It's worth noting the continuous evolution of the Series 60. Significant engine block improvements were introduced over its production run. For instance, after November 30th, 1994, engines with serial number 6R210293 and later featured an improved engine block design. A more substantial upgrade occurred on May 2nd, 1998, with engines bearing serial number 6R408505 and later incorporating a new lubrication circuit. This latter design was particularly important as it allowed for the use of piston cooling jets, enhancing engine longevity and thermal management.

Understanding DDEC: The Brains Behind the Power

The heart of the Detroit Series 60's electronic control system is the Detroit Diesel Electronic Control (DDEC). This sophisticated system manages the Electronic Unit Injector (EUI) fuel injectors, which are fundamental to the engine's operation. The ECM processes a multitude of sensor inputs – from engine speed and load to air temperature and pressure – to precisely control critical injection parameters. These include injector timing, pulse width (determining the amount of fuel injected per event), and injection pump pressure.

The DDEC system itself underwent several iterations throughout the Series 60's production, each bringing enhancements in performance, emissions, and diagnostics:

• DDECI: The first generation utilised an Electronic Distributor Unit (EDU) to physically actuate the injector solenoids. The ECM commanded the injection events, but the EDU carried them out.
• DDECII: This second generation simplified the architecture by eliminating the EDU. The ECM took on the direct task of actuating the injector solenoids, potentially improving reliability and diagnostic capabilities.
• DDECIII & DDECIV: These later generations expanded significantly on diagnostic capabilities, introducing features like the Diagnostic Data Reader (DDR) function, which allowed technicians to easily access critical engine data.

Each DDEC evolution contributed to better emissions control, improved fuel efficiency, and more comprehensive diagnostic functions. A crucial safety feature of the DDEC system is its ability to automatically shut down the engine in emergencies that could lead to severe damage, such as critically low oil pressure, dangerously high engine coolant temperature, or excessive oil temperature. This protective measure has saved countless engines from catastrophic failure.

The EUI injectors themselves are fascinating, possessing properties of both electronic and mechanical unit injectors. While an injection pump supplies pressurised fuel to each individual injector, it is a camshaft-driven plunger that generates the final, extremely high injection pressure. Concurrently, the precisely timed injection events are initiated by the ECM-controlled electric solenoids, showcasing a masterful blend of mechanical force and electronic precision.

What is a Remanufactured Detroit Diesel Series 60 Engine?

When an engine reaches the end of its practical service life, or suffers significant damage, vehicle owners and operators are often faced with a choice: replace it with a new unit, rebuild the existing one, or opt for a remanufactured engine. A remanufactured engine is far more than just a repair or a basic rebuild; it represents a comprehensive restoration to original equipment manufacturer (OEM) specifications, or often, even better.

For a Detroit Diesel Series 60, a remanufacturing process typically involves disassembling the engine completely. Every component is inspected, cleaned, and assessed against strict OEM standards. Worn or damaged parts, such as pistons, rings, bearings, camshafts, crankshafts, cylinder liners, and cylinder heads, are replaced with new or reconditioned components that meet or exceed original specifications. The engine block itself is meticulously inspected for cracks, wear, and alignment, often undergoing machining processes like boring, honing, and deck surfacing to ensure perfect geometric integrity.

Crucially, critical components like the turbocharger, fuel injectors, and the ECM are often replaced with new or remanufactured equivalents that have been thoroughly tested. The process concludes with rigorous dynamometer testing, simulating real-world operating conditions to ensure the engine meets its original horsepower, torque, and emissions specifications before it leaves the facility. This meticulous approach ensures that a remanufactured Series 60 engine offers performance and reliability comparable to a brand-new unit, often at a significantly lower cost.

The benefits of choosing a remanufactured Series 60 are compelling. They offer a cost-effective alternative to new engines, reduce downtime compared to a lengthy in-situ rebuild, and contribute to environmental sustainability by reusing core components. For many in the UK transport industry, a remanufactured Series 60 provides a reliable and economical path to extending the life of their vehicles.

Rebuilding Your Series 60: Kits, Costs, and Considerations

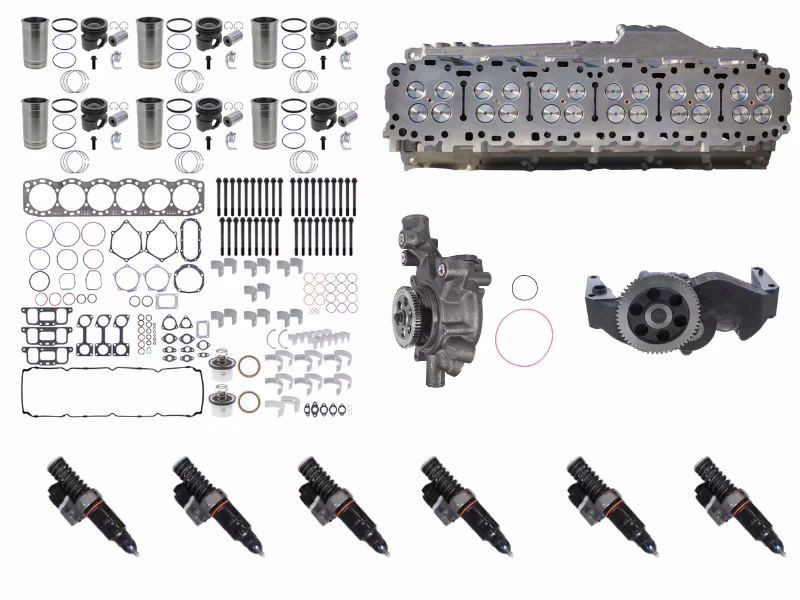

While a remanufactured engine offers a complete solution, rebuilding your existing Detroit Diesel Series 60 is another viable option, particularly if the core engine components are in good condition. A rebuild typically involves replacing worn parts within the engine, rather than completely overhauling every component to 'as new' specifications.

Do You Offer Rebuild Kits for Detroit Diesel Series 60?

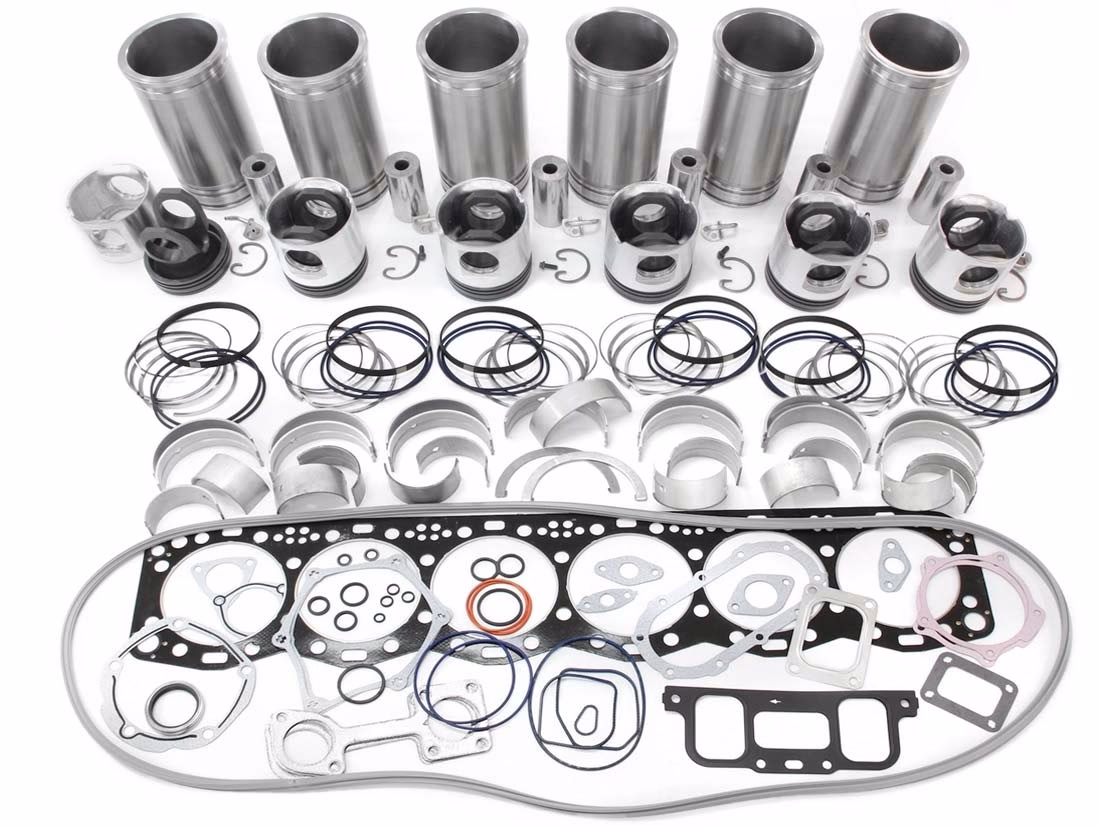

Yes, we understand the critical need for quality parts when undertaking an engine rebuild. We carry a wide selection of parts for Detroit Diesel Series 60 engines, ranging from individual components to comprehensive rebuild kits. These kits typically include essential items such as piston and liner kits, main and rod bearings, gasket sets, and often updated components that address known wear points or improve performance.

If you do not see the specific part or kit you are looking for, we encourage you to use our quote request form or call us directly. Our knowledgeable inside sales staff are adept at navigating the complexities of Series 60 parts and will gladly assist you in finding exactly what you need to get your engine back in top condition.

How Much Does It Cost to Rebuild a Diesel Engine?

The cost of rebuilding a diesel engine, specifically a Detroit Diesel Series 60, can vary significantly depending on several factors. It's not a straightforward figure, as the extent of the damage, the parts required, and labour rates all play a crucial role. Consider a recent scenario one operator faced:

“I had just had my engine oil changed at Speedco in Indianapolis, IN, and received perfect results on the oil analysis. Well, my fuel mileage had been going down for the last quarter, and I couldn't figure out why. A couple of weeks ago, I lost my turbo in Zanesville, OH. After the new turbo was installed, I didn't have any power, couldn't hardly get any turbo boost unless I geared down and tacked it up to about 1800 rpm. I managed to get the truck home, but it turned out my intake valves were badly out of adjustment, the exhaust looked okay, but the fuel injectors were leaking pretty good. So, we're putting in a new six-pack of injectors, doing an overhead adjustment, and planning to keep running it for now, until I see something in the oil. We even removed the alternator drive gear to peek at the bull gear, and it seems really good – no slop and no chipped teeth. This motor has 1,090,000 miles on it!”

This anecdote highlights several key cost drivers:

• Diagnosis: Initial diagnostics, like oil analysis, can prevent major issues. However, when performance drops, further investigation is needed.
• Component Failure: A failed turbocharger is a significant cost. But often, it's a symptom or accompanies other underlying issues.
• Extent of Damage: In the example, misadjusted valves and leaking injectors were discovered. Addressing these immediately (new injectors, overhead adjustment) is crucial. A full rebuild might entail replacing pistons, liners, bearings, and crankshaft work if internal wear is excessive.
• Parts Cost: New injectors, valve train components, and gaskets add up. Opting for genuine Detroit Diesel parts or high-quality aftermarket equivalents will influence the price.
• Labour: The time taken by skilled mechanics to perform the rebuild, including disassembly, inspection, reassembly, and testing, is a major factor. Specialist tooling is often required.
• Ancillary Work: While the bull gear in the example was fine, sometimes other components like the water pump, oil pump, or even the ECM might need attention.

A minor 'in-frame' repair, like replacing injectors and adjusting valves, might cost a few thousand pounds. However, a comprehensive out-of-frame rebuild, involving removing the engine and replacing most internal wear components, can easily run into five figures, potentially rivalling the cost of a remanufactured unit. It's vital to get a thorough diagnosis from a reputable diesel mechanic to understand the true scope of work required before committing to a rebuild.

Decoding Your Engine: The Model Number Breakdown

Every Detroit Diesel Series 60 engine carries an 8-digit model number, typically stamped on the engine block near the engine serial number (also known as the production or build number). While the specific breakdown of each digit can be complex and varies by series and year, this model number is crucial for identifying the exact configuration and specifications of your engine. It helps in ordering correct replacement parts, understanding the engine's original power rating, and verifying any specific design features it might possess. Always refer to your engine's model and serial numbers when seeking parts or technical assistance to ensure accuracy.

Frequently Asked Questions About the Detroit Diesel Series 60

How often should I service my Series 60 engine?

Regular maintenance is paramount for the longevity of any diesel engine, especially a workhorse like the Series 60. Adhere strictly to the manufacturer's recommended service intervals for oil changes (using the correct grade and specification of oil), filter replacements (oil, fuel, air), and coolant checks. Routine valve lash adjustments and injector checks are also crucial, as highlighted by the anecdote above. Proactive maintenance, including regular oil analysis, can help detect potential issues before they become costly failures.

What are common issues with the Detroit Series 60?

Despite its robust design, the Series 60, like any engine, can develop common issues over time. These include:

• Fuel System Issues: Leaking or failing Electronic Unit Injectors (EUIs) are a common culprit for loss of power and poor fuel economy.
• Valve Train Wear: Incorrect valve adjustments can lead to poor performance and eventual damage.
• Turbocharger Failure: As seen in the example, turbos can fail, often due to lack of lubrication or foreign object damage.
• Cooling System Problems: Overheating can occur due to radiator issues, water pump failure, or thermostat problems.
• ECM/Sensor Faults: While the DDEC system is reliable, electronic components can fail, leading to diagnostic codes and performance issues.

Addressing these issues promptly with correct diagnosis and quality parts is key to maintaining engine health.

Is the Detroit Series 60 still a viable engine today?

Absolutely. Despite newer engine designs, the Detroit Diesel Series 60 remains a highly viable and popular engine, particularly in the used commercial vehicle market and for various industrial applications. Its reputation for reliability, coupled with widespread availability of parts and experienced mechanics, makes it a practical and economical choice. Many operators continue to run Series 60 engines well past a million miles, a testament to their inherent durability when properly maintained. The engine's simplicity (relative to modern complex emissions systems) also appeals to many.

What's the difference between a rebuild and a remanufacture?

This is a common point of confusion. A rebuild typically involves repairing or replacing only the worn or failed components within an engine, aiming to restore it to operational condition. It can be done in-frame or out-of-frame, and the scope can vary widely. A remanufacture, on the other hand, is a much more comprehensive process. It involves disassembling the engine completely, inspecting every component against OEM specifications, replacing all wear items (and often critical components like the crankshaft or camshaft if they don't meet new specs), and performing extensive machining and testing. A remanufactured engine is essentially brought back to 'like-new' condition, often with a warranty comparable to a new engine.

The Detroit Diesel Series 60 engine stands as a testament to engineering excellence, a true icon in the world of heavy-duty diesel power. Its pioneering electronic controls, robust mechanical design, and enduring reliability have cemented its place in automotive history. Whether you're considering a rebuild, a remanufactured unit, or simply maintaining your existing Series 60, understanding its intricate workings and available options is crucial for ensuring its continued performance on the roads of the UK and beyond.
