Oil Sump Leaks: Costs, Repairs & DIY Guide

The oil sump, often overlooked until a tell-tale puddle appears under your vehicle, is a critical component of your car's engine. It acts as the reservoir for your engine oil, ensuring vital lubrication flows throughout the engine. When the sump or its gasket fails, it's not just a messy inconvenience; it poses a significant risk to your engine's health, potentially leading to catastrophic damage. Understanding the signs of a failing sump, the costs involved in repair, and even how to tackle the job yourself, can save you a considerable amount of money and prevent far more serious issues down the line.

Understanding the Oil Sump and Its Vulnerabilities

Your engine's oil sump, sometimes referred to as the oil pan, is typically a pressed steel or aluminium component bolted to the bottom of the engine block. Its primary function is to collect and hold the engine oil when the engine is not running, and to allow the oil pump to draw oil from it when the engine is operational. It's a relatively simple part, but its exposed location makes it vulnerable to damage and corrosion.

Over time, especially in the salty, damp climes prevalent across the UK, sumps can suffer from significant corrosion. This is particularly common with steel sumps, which are often fitted to vehicles like the Fiat 1.2 FIRE engine. Manufacturers sometimes use cheaper materials, leading to premature failure. This corrosion can eventually eat through the metal, creating pinholes or cracks that allow engine oil to escape. Furthermore, road debris, speed bumps, or even minor impacts can dent or puncture the sump, leading to sudden and substantial oil loss.

The Cost of a New Sump: OEM vs. Aftermarket

The cost of replacing a corroded or damaged sump can vary significantly depending on whether you opt for an Original Equipment Manufacturer (OEM) part or an aftermarket alternative. For many models, an OEM sump can be quite expensive. For instance, an OEM sump for certain vehicles might set you back the best part of £200.

Thankfully, the aftermarket provides more budget-friendly solutions. For the same vehicle where an OEM sump costs £200, independent suppliers like shop4parts might offer an aftermarket version for a shade over £36. This substantial price difference makes aftermarket sumps a highly attractive option for many vehicle owners, especially given that the job itself is straightforward enough for a competent DIY enthusiast or mechanic.

For Smart cars, a new sump directly from Smart might cost around £25. The advantage of a steel sump, even if it might corrode, is its ability to bend rather than fracture if struck by an object, potentially preventing a sudden and complete loss of oil.

When to Replace Your Sump

Unless your sump is about to fail catastrophically and leave you stranded, it's often sensible to combine its replacement with your next routine oil and filter change. This is because draining the oil is a necessary first step for a sump replacement, so you'll be performing this task anyway. If you're also having your car serviced, it makes perfect sense to replace a suspect sump at the same time. This preventative measure is far less expensive than losing your engine oil while driving, which could lead to severe engine damage or, even worse, cause an accident due to oil on the road.

The Oil Sump Gasket: A Crucial Seal

While the sump itself holds the oil, it's the oil sump gasket that forms the vital, leak-proof seal between the sump and the engine block. Sometimes called the oil pan gasket, its job is to prevent oil from escaping, especially when the engine is running and oil is being pumped under pressure through the system.

Gaskets are typically made from materials like rubber, cork, or rubber-coated metal. In many modern engines, a separate physical gasket isn't used; instead, a liquid sealant (often a high-temperature RTV silicone) is applied directly between the mating surfaces to create the seal. Regardless of the type, these gaskets or sealants are constantly exposed to engine vibrations, temperature fluctuations, and oil pressure, which can cause them to harden, crack, or break down over time. An incorrectly fitted gasket from a previous repair can also lead to premature failure.

How an Oil Sump Gasket Works

The gasket's design allows it to compress slightly when the sump bolts are tightened, filling any microscopic gaps or imperfections between the sump and the engine block. This creates a continuous, flexible barrier that can withstand the dynamic environment of a running engine. When this barrier is compromised, oil leaks occur.

Signs You Need a Sump or Gasket Replacement

Detecting a failing sump or gasket early can prevent significant engine issues. Here are the common signs to look out for:

• Oil Leaks: The most obvious sign. You might see oil seeping directly from the seam where the sump meets the engine block.
• Oil Patches Under Your Car: If you notice dark puddles or stains on your driveway or parking spot, especially under the engine area, a leaking sump or gasket is a likely culprit.
• Warning Lights: A significant oil leak will eventually lead to a low oil level. This can trigger your oil pressure warning light or even the check engine light on your dashboard.
• Unusual Engine Noise: If your engine oil levels drop too low due to a leak, the engine may not receive adequate lubrication. This can manifest as rough running, ticking, or rumbling noises from the engine.
• Reduced Engine Performance: Low oil levels can affect oil pressure and overall engine efficiency, potentially leading to a sluggish or less responsive engine.

If you observe any of these symptoms, it's crucial to have your sump area inspected by a qualified mechanic as soon as possible.

Can You Drive With a Leaking Sump or Gasket?

Driving with a leaking oil sump or gasket is strongly discouraged, even if the leak appears minor. While a small seepage might seem manageable for a short period – provided you regularly check and top up your engine oil – it carries serious risks:

• Engine Damage: If oil levels drop too low, your engine's moving parts will not receive proper lubrication, leading to excessive wear, overheating, and potentially complete engine failure. This is a very expensive repair.
• Fire Hazard: Leaking oil can drip onto hot exhaust components or other engine parts, creating smoke, burning smells, and in severe cases, an engine bay fire.
• Environmental Impact & Safety: Oil leaks are harmful to the environment. Furthermore, oil deposited on the road surface can be a serious hazard to other road users, especially motorcyclists.

For your safety and the longevity of your engine, treat any sump or gasket leak as a high-priority repair.

Oil Sump Gasket Repair vs. Replacement

Once an oil sump gasket is worn or damaged, it cannot be reliably repaired. Gaskets are designed to be a single-use component; they harden, crack, or break down over time due to continuous exposure to heat, oil, and vibrations. While temporary sealants might seem like a quick fix, they rarely provide a durable solution under real driving conditions and often lead to further leaks. To ensure a proper, long-lasting seal and to protect your engine, the gasket must be fully replaced.

Similarly, a corroded or fractured sump cannot be repaired effectively. Any attempt to patch a hole or crack in a sump is a temporary measure at best and highly risky. A full replacement of the sump is the only reliable solution.

DIY Sump Replacement: A Step-by-Step Guide

Replacing a corroded or damaged sump can be a manageable DIY task for those with mechanical aptitude and the right tools. This guide focuses on replacing the entire sump, which often includes replacing the gasket as part of the process.

Tools and Materials You'll Need:

• New Sump (with integral drain plug if desired, or separate drain plug)
• Suitable Gasket Sealant (e.g., Loctite Quick Gasket, compatible with high temperatures and engine oil)
• New Engine Oil
• New Oil Filter
• Oil Extractor or Drain Pan
• Axle Stands
• Jack
• Wheel Chocks
• E8 Torx Socket (for sump bolts)
• Ratchet and Extension
• Scraper Blade (craft knife or similar)
• Fine Grade Sandpaper (wet and dry)
• Degreaser/Cleaner
• Clean Rags
• Torque Wrench
• New Sump Bolts (optional, if old ones are corroded)

The Replacement Process:

1. Preparation and Oil Drainage:
   • Ensure the car is on a flat, stable surface. Chock the front wheels securely.
   • Using a jack, carefully raise the rear of the car to gain sufficient access to the underside. Secure the car firmly with axle stands. Never work under a car supported only by a jack.
   • Drain the old engine oil using a suitable extractor or by removing the drain plug if accessible. This is an ideal time to perform this replacement, aligning it with a routine service.
2. Accessing the Sump:
   • The sump is typically secured by 14 E8 bolts. Five are usually along the bottom edge, with the remaining distributed along the top edge and sides.
   • You may find these bolts are badly corroded. Exercise extreme caution to avoid rounding the heads when removing them. If severely corroded, it's highly recommended to replace them when refitting.
   • To access some of the top bolts, you may need to remove the alternator guard. This often involves pushing it in one direction to unclip it, then lowering and sliding it to release a peg from the alternator tensioner arm.
3. Removing the Old Sump:
   • Once all bolts are removed, the sump will still be held firmly by the old gasket seal.
   • If it doesn't come free with gentle pulling, you'll need to carefully pry it away from the engine block. We recommend prying at a specific corner, often indicated by an arrow or a reinforced section. Prying here minimises the risk of damaging the main engine block, as you'd only be affecting the timing case section.
   • As the sump detaches, ensure you have a suitable container placed underneath to catch any remaining oil within the sump and any drips from the engine's working parts.
   • Carefully lower the sump, being mindful not to damage the oil pickup pipe, which extends down into the sump from the engine.
   • Allow any remaining oil to drain freely from the engine block.
4. Cleaning and Preparation:
   • Before fitting the new sump, it's crucial to remove all traces of the old gasket sealant from the mounting face of the engine block. Carefully use a blade (like a craft knife) to cut the sealant off the face. The goal is a clean, neat finish.
   • Caution: Be extremely careful when using a blade, as a belt (e.g., serpentine belt) may be very close to the mounting face on the left-hand side as you face the underside of the engine.
   • Give the mounting face a final thorough clean with some fine-grade sandpaper (e.g., wet and dry) to ensure a perfectly smooth and clean surface for the new seal.
   • Take your new sump and degrease its mounting face with a suitable cleaner. To enhance the life of your new sump, you might consider painting its outer body with a robust paint like Hammerite before installation.
5. Applying New Sealant:
   • You'll need a suitable gasket sealant designed for high temperatures and engine oil. Products like Loctite Quick Gasket are highly rated for this purpose.
   • Apply a continuous, even bead of sealant all the way around the perimeter of the new sump's mounting face. Ensure the sealant goes around each bolt hole.
   • Do not apply too much sealant; a continuous line is sufficient. Excess sealant will simply squeeze out when the bolts are tightened, potentially creating a mess or even blocking oil passages if it breaks off inside the engine.
6. Refitting the New Sump:
   • Very carefully position the new sump onto the engine block mounting face. Be extremely cautious not to smudge or catch any of the sealant on other components, as this could compromise its effectiveness.
   • Once the sump is in place, hand-fit all 14 bolts.
   • Using a torque wrench, tighten the bolts to the specified torque settings: 12Nm for new bolts or 9Nm if reusing the old ones. Tighten them in a criss-cross pattern to ensure even pressure and a good seal.
   • Finally, refit the alternator belt guard (if removed) to complete the installation.
7. Refill and Test:
   • Refill the engine with the correct type and quantity of new engine oil.
   • Replace the oil filter.
   • Start the engine and let it run for a few minutes. Carefully check around the new sump for any signs of leaks. Turn the engine off, wait a few minutes for the oil to settle, and check the oil level again, topping up if necessary.

Professional Sump Gasket Replacement Service

For those who prefer not to undertake the DIY route, professional mechanics regularly perform oil sump gasket replacements. The process is thorough and ensures your engine is protected.

What a Professional Mechanic Does:

1. Diagnosis: The mechanic will first check for oil leaks around the sump and related components to confirm that the gasket is indeed the source of the problem.
2. Vehicle Preparation: The car is safely raised on a ramp or lift to provide full access to the oil sump, which is located at the bottom of the engine.
3. Oil Drainage: The old engine oil is drained to prevent spills and ensure a clean, safe working environment.
4. Sump Removal and Cleaning: The sump pan is carefully removed. The old gasket (or sealant) is meticulously removed from both the sump and engine block surfaces, which are then thoroughly cleaned and prepared for the new seal.
5. New Gasket/Sealant Application: A new gasket is fitted, or fresh liquid sealant is applied according to the manufacturer's specifications.
6. Reassembly and Refill: The sump is bolted back into place, tightened to the correct torque settings, and the engine is refilled with fresh oil to the correct level.
7. Leak Check: The engine is started and run briefly to build oil pressure, allowing the mechanic to perform a final inspection for any leaks and confirm the new gasket is sealing properly.

This comprehensive process ensures your engine oil stays where it should, supporting proper lubrication, oil pressure, and engine reliability.

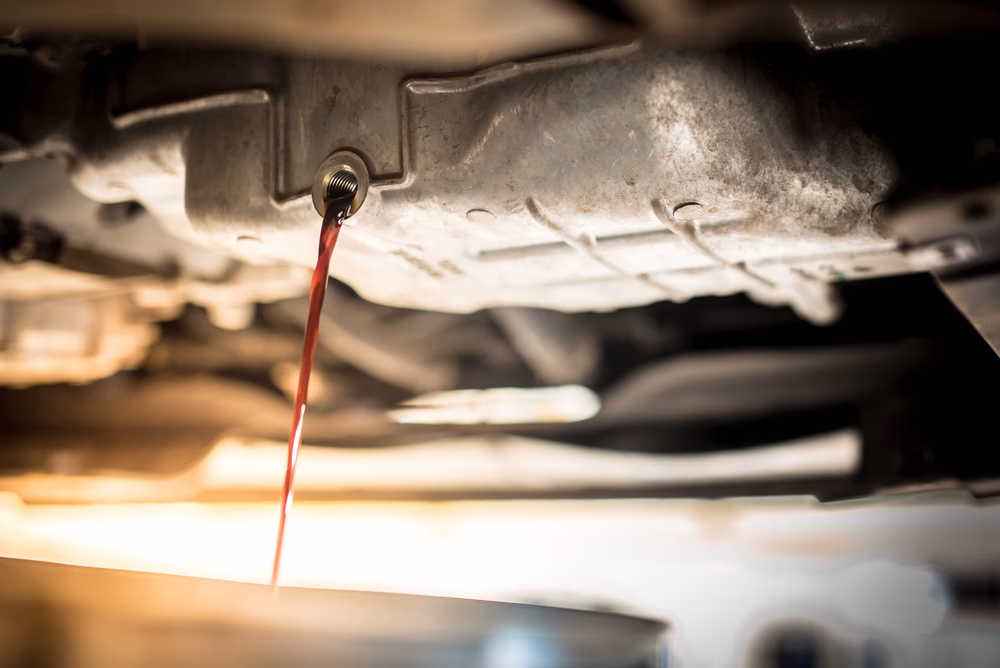

How Much Does an Oil Sump Gasket Replacement Cost?

The cost of replacing an oil sump gasket typically ranges from £130 to £350. This variation depends largely on your vehicle's make and model, as some vehicles require more components to be removed for access, increasing labour time. Labour usually makes up a significant portion of the cost due to the sump's location at the bottom of the engine.

What a Professional Quote Covers:

A typical quote for an oil sump gasket replacement from a reputable service will generally cover:

• The cost of the new sump pan gasket or sealant.
• New engine oil and a new oil filter.
• The labour for fitting all parts.
• Disposal of the old parts (unless you request to keep them).
• Applicable VAT.
• A 12-month parts and labour warranty, providing peace of mind.

Can a Mobile Mechanic Replace the Oil Sump Gasket?

In most cases, yes, a mobile mechanic can replace the oil sump gasket at your home or workplace. The job involves draining the oil and accessing the sump from underneath the car, which is well-suited for mobile repair as long as there is sufficient safe working space. For more complex cases or if specific lifting equipment is needed, some mobile services may offer free collection and delivery of your vehicle to their garage.

Frequently Asked Questions About Oil Sumps and Gaskets

What is the difference between an oil sump and an oil pan?

They are the same component. 'Sump' is the more common term in UK English, while 'oil pan' is typically used in American English. Both refer to the reservoir at the bottom of the engine that holds engine oil.

How long does an oil sump gasket last?

An oil sump gasket is designed to last the lifetime of the vehicle, but factors like engine vibrations, extreme temperature changes, oil contamination, age, and improper installation can cause it to degrade and fail prematurely. It's not uncommon for them to fail after 8-10 years or around 100,000 miles.

Can a minor oil leak from the sump cause engine damage?

Even a minor oil leak, if ignored, can lead to serious engine damage. Small leaks can become larger over time, and consistent oil loss will eventually lead to critically low oil levels. Without proper lubrication, engine components will experience increased friction, heat, and wear, leading to costly repairs or complete engine failure.

Is an aftermarket sump as good as an OEM one?

Aftermarket sumps can be excellent value for money. While OEM parts are made to original specifications, many aftermarket manufacturers produce high-quality components that meet or exceed these standards at a lower cost. As seen with the Fiat 1.2 FIRE example, aftermarket availability often indicates a common issue that the aftermarket has effectively addressed with a cost-effective solution.

How often should I check my engine oil level if I suspect a leak?

If you suspect an oil leak, you should check your engine oil level daily or every time you refuel. This vigilance can help you catch a significant drop in oil level before it causes serious engine damage. Always top up with the correct type of oil as specified in your vehicle's handbook.

Do I need to replace my oil filter when replacing the sump?

Yes, it is highly recommended to replace your oil filter whenever you replace the sump or perform an oil change. Since you're draining all the oil anyway, it's the perfect opportunity to install a new filter, ensuring optimal oil filtration for your newly serviced engine.
