Gearbox Replacement Costs Explained

The Heart of Your Vehicle: Understanding Gearbox Replacement Costs

The gearbox, often referred to as the heart of a vehicle by mechanics and manufacturers alike, plays an absolutely crucial role in a car's performance. It's responsible for the equal distribution of power from the engine to the wheels, ensuring that your vehicle moves as intended, whether you're cruising on the motorway or navigating city streets. A well-functioning gearbox system, comprising a complex array of gears, shafts, and often a clutch mechanism, is vital for controlling your vehicle's speed and optimising its performance across various driving conditions. When this intricate system falters, it can manifest in a range of unpleasant symptoms, from a jarringly bumpy ride to more severe, long-term damage to your car's drivetrain and bodywork. Furthermore, neglecting gearbox issues can significantly impact your vehicle's resale value, making timely repairs and informed decisions essential.

What is a Gearbox and Why is it So Important?

At its core, a gearbox, or transmission, is a mechanical system designed to transmit power from the engine to the driving wheels. It achieves this by using a series of gears of varying sizes that can be engaged or disengaged to alter the torque and speed being delivered. This allows the engine to operate within its optimal speed range, regardless of the vehicle's actual speed. For instance, when you start from a standstill, you need a lot of torque to get the car moving, which is provided by lower gears. As the vehicle gains speed, higher gears are engaged to reduce engine revs and improve fuel efficiency.

A manual transmission typically consists of several key components:

• Clutch Shaft: Connects the engine's flywheel to the gearbox input shaft, allowing for the engagement and disengagement of power.
• Main Shaft (or Output Shaft): Carries the power from the gearbox to the driveshaft and ultimately to the wheels.
• Counter Shaft (or Layshaft): A stationary shaft that has gears fixed to it, which mesh with the gears on the main shaft to provide different gear ratios.
• Interlocking Gears: The various sized gears that slide or rotate on shafts to create different gear ratios.

An automatic transmission is more complex, often utilising a torque converter and a planetary gearset to automatically change gears without driver input. This offers a smoother and more convenient driving experience, but the intricate nature of these systems can also lead to higher repair costs.

Symptoms of a Failing Gearbox

Recognising the signs of a gearbox problem early can save you a significant amount of money and hassle in the long run. Ignoring these symptoms can lead to catastrophic failure, rendering your vehicle undrivable and potentially causing irreparable damage. Here are some common indicators that your gearbox might be on its way out:

• Difficulty Changing Gears: This is one of the most obvious signs. If you find it hard to shift into gear, or the gear selection feels notchy or resistant, it's a strong indication of an issue.
• Unusual Noises: Grinding, whining, or clunking sounds, especially when changing gears or when the clutch is engaged or disengaged, are serious warning signs. These noises can point to worn gears, bearings, or synchronisers.
• Slipping Gears: If your car suddenly drops out of gear, or the engine revs increase without a corresponding increase in speed, the gearbox is likely slipping. This is often due to worn clutch packs or low transmission fluid.
• Burning Smell: An acrid, burning smell, often described as burnt toast, can indicate that the transmission fluid is overheating. This can be caused by low fluid levels, a slipping clutch, or internal damage.
• Leaking Fluid: Reddish or brownish fluid under your car is a tell-tale sign of a transmission fluid leak. Low fluid levels can lead to overheating and increased wear on internal components.
• Clutch Problems (Manual Transmissions): A worn or failing clutch can mimic gearbox issues, making it difficult to engage or disengage gears. It's important to distinguish between clutch problems and internal gearbox faults.
• Check Engine Light: Modern vehicles often have sensors that monitor gearbox performance. If there's a fault, the 'Check Engine' light or a specific transmission warning light may illuminate on your dashboard.

Factors Influencing Gearbox Replacement Costs

The cost of replacing a gearbox is not a one-size-fits-all figure. Several key factors come into play, significantly impacting the final price you'll pay:

1. Type of Transmission: Manual vs. Automatic

Generally, automatic gearbox replacements are more expensive than manual ones. This is due to the increased complexity of automatic transmissions, which often involve more intricate hydraulic systems, electronic controls, and a torque converter. Manual gearboxes, while still complex, have fewer moving parts and are typically simpler to repair or replace.

2. Make and Model of the Vehicle

The specific make and model of your car play a significant role. Luxury vehicles or those with high-performance engines often feature more specialised and robust gearboxes, which can be considerably more expensive to source and fit. Conversely, gearboxes for more common, mass-produced vehicles tend to be more readily available and less costly.

3. New vs. Reconditioned vs. Used Parts

This is perhaps one of the most significant cost-saving variables:

As you can see, opting for a reconditioned gearbox can offer a substantial saving compared to a brand-new unit, while still providing a good level of reliability and often a warranty for peace of mind. Used parts are the most budget-friendly but come with the highest risk.

4. Labour Costs

The cost of labour to remove the old gearbox and fit the new or reconditioned one can vary considerably depending on the garage's hourly rate and the complexity of the job. Experienced mechanics who specialise in transmission work may charge more, but their expertise can prevent further damage.

5. Geographic Location

Labour rates and parts availability can differ depending on where you are located. Garages in major cities or areas with a higher cost of living may charge more for their services.

Average Cost of Gearbox Replacement

Based on the factors above, here's a general breakdown of what you might expect:

• Manual Gearbox Replacement: Expect costs to range from approximately £800 to £2,000 for a reconditioned unit, including labour. New units could push this figure upwards of £2,500 to £4,000+.
• Automatic Gearbox Replacement: Due to their complexity, automatic gearbox replacements typically cost between £1,200 and £3,500 for a reconditioned unit, including labour. Brand-new automatic gearboxes can easily exceed £4,000 and even reach £6,000 or more for premium vehicles.

It's important to note that these are average figures, and your specific situation might fall outside these ranges. Always obtain detailed quotes from multiple reputable garages.

How to Keep Gearbox Replacement Costs Down

While a gearbox replacement is a significant expense, there are ways to manage the cost:

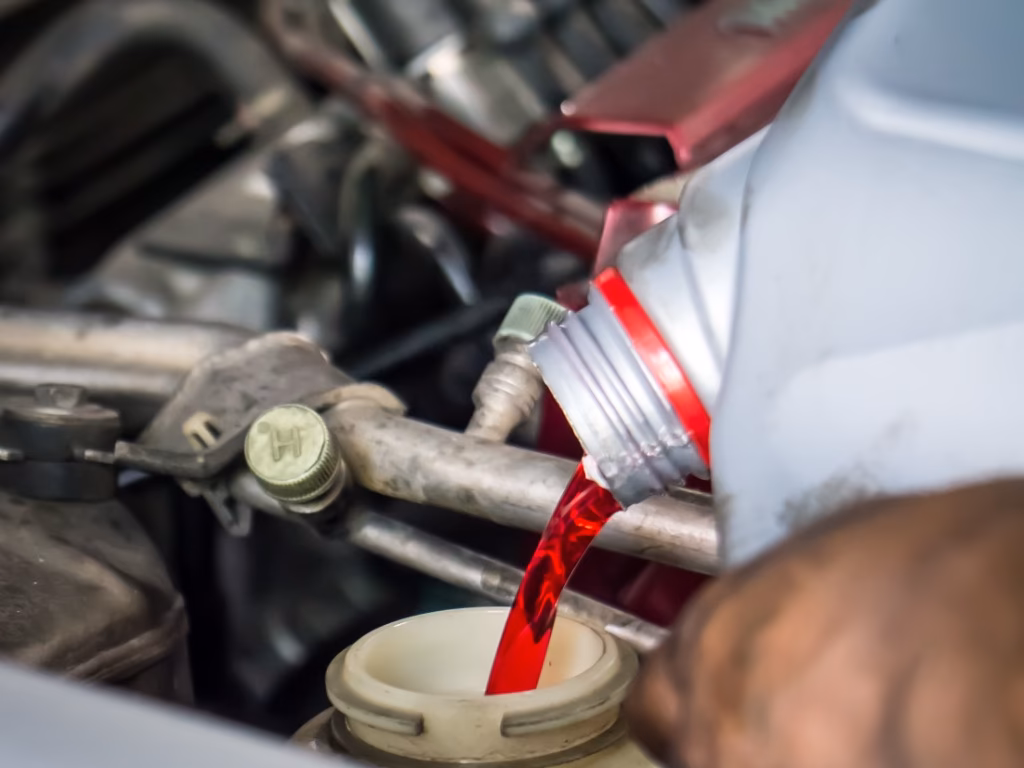

• Regular Maintenance: Adhering to your vehicle's service schedule is paramount. This includes regular checks and changes of transmission fluid, which is crucial for lubrication and cooling.
• Address Issues Promptly: Don't ignore early warning signs. Small problems can escalate into major, costly repairs if left unattended.
• Consider Reconditioned Parts: As discussed, reconditioned gearboxes offer a compelling balance of cost-effectiveness and reliability. Ensure they come with a warranty.
• Shop Around for Quotes: Get at least three quotes from different garages. Compare not only the price but also the warranty offered and the reputation of the mechanic.
• Look for Specialists: Garages that specialise in transmission repair may have more expertise and potentially better pricing on parts.

Frequently Asked Questions (FAQs)

Q1: How long does a gearbox replacement take?

A1: The time taken for a gearbox replacement can vary, but typically it can take anywhere from 4 to 10 hours of labour. Factors like the accessibility of the gearbox on your specific vehicle model and the mechanic's experience will influence the duration.

Q2: Will a gearbox replacement fix my car?

A2: If the gearbox is the sole cause of your car's problems, then a replacement should resolve the issues. However, it's crucial to ensure that a thorough diagnostic has been performed to rule out other potential problems with the drivetrain or engine.

Q3: Can I drive with a faulty gearbox?

A3: It is strongly advised not to drive with a severely faulty gearbox. Doing so can lead to further, more extensive damage, potentially rendering the gearbox irreparable and increasing the overall cost of repair. It can also be a safety hazard.

Q4: What is the difference between a gearbox and a transmission?

A4: In automotive terms, the terms 'gearbox' and 'transmission' are often used interchangeably. Both refer to the system that controls the vehicle's speed and torque by using gears.

Q5: Is a reconditioned gearbox as good as a new one?

A5: A high-quality reconditioned gearbox, rebuilt by reputable professionals using quality parts and backed by a warranty, can offer very similar performance and reliability to a new one. However, a brand-new unit will always have the potential for a slightly longer lifespan due to being completely unused.

Conclusion

Replacing a gearbox is undoubtedly a significant investment in your vehicle's health. By understanding the components involved, recognising the symptoms of a failing system, and being aware of the factors that influence cost, you can make informed decisions. Prioritising regular maintenance and addressing any gearbox-related concerns promptly are the best strategies to ensure your car continues to perform reliably and efficiently for years to come, saving you money and avoiding the stress of unexpected major repairs.
