The Unseen Advantage: Brake System Weight

In the relentless pursuit of automotive excellence, every gram matters. While engine power and aerodynamic efficiency often steal the limelight, the weight of your vehicle's braking system plays a surprisingly critical role in overall performance. Particularly, the concept of unsprung mass is paramount, directly influencing how your car handles, accelerates, and, crucially, how effectively it stops. Reducing weight in components not supported by the suspension – like your wheels, tyres, and brake assemblies – can transform a vehicle's responsiveness and agility, making it feel lighter on its feet and more precise through corners.

When considering the weight of brake components, a common query pertains to the brake lines themselves. While essential for transmitting hydraulic pressure from the pedal to the calipers, the actual weight contribution of brake lines is relatively minimal within the entire braking system. Typically, an axle set comprises two lines, and their construction, often reinforced rubber or braided stainless steel, ensures durability and efficient fluid transfer rather than significant mass. Their primary role is functional integrity, not weight reduction, as the bulk of a brake system's mass resides in the discs and calipers.

Anatomy of a High-Performance Brake System

To truly understand where weight savings are made, it's vital to appreciate the sophisticated engineering behind high-performance braking systems, such as those offered by Brembo. Unlike standard original equipment (OE) setups, these systems are meticulously designed with weight and performance in mind, often utilising advanced materials and multi-component assemblies.

A typical Brembo Performance GT or GT-R big brake system is comprised of several key components, each engineered for optimal function and minimal mass:

• Caliper: The heart of the system, responsible for clamping the pads onto the disc. Brembo utilises advanced materials like 2-piece aluminium alloy, monoblock aluminium alloy, or even billet monobloc aluminium alloy for exceptional rigidity and significant weight reduction compared to traditional cast iron OE calipers.

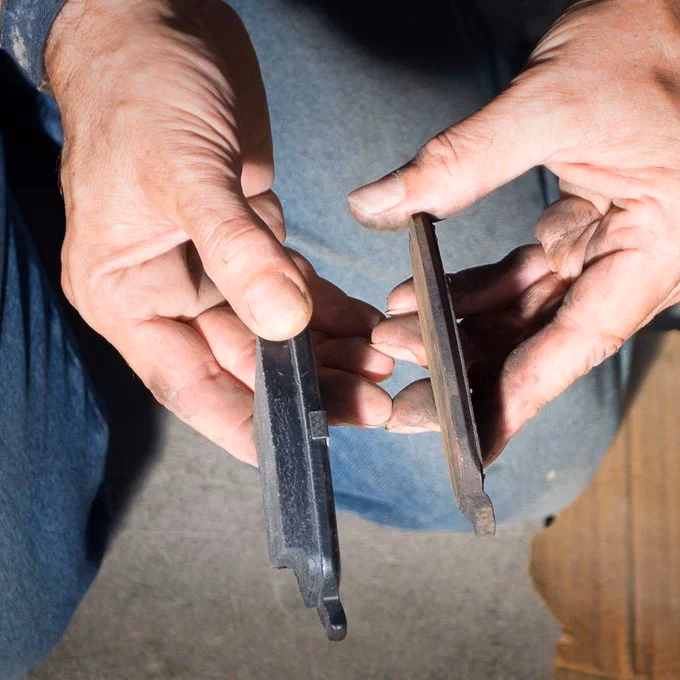

• Brake Pads: Though seemingly small, pads contribute to the overall weight. High-performance systems typically use multiple pads per caliper (often 2 to 4) to ensure even pressure distribution and superior stopping power.
• Rotor/Disc: This is often the heaviest single component. Brembo offers two main types: 1-piece rotors, or more commonly in performance applications, 2-piece discs. The latter features a lightweight billet aluminium centre hat bolted to an outer iron disc, allowing for better heat management and substantial weight savings over a solid 1-piece iron rotor.
• Brake Lines: As mentioned, typically two lines per axle set, designed for precise hydraulic transfer.
• Mounting Brackets: Often overlooked, these billet brackets precisely position the caliper relative to the disc, ensuring optimal performance and contributing to the overall system's integrity. Their billet construction also contributes to weight efficiency.

The Pursuit of Lightness: Real-World Comparisons

It might seem counter-intuitive, but in many cases, a Brembo Performance system, despite often featuring larger diameter discs and multi-piston calipers, can actually result in a weight saving over the original equipment brake systems. This remarkable feat is achieved through superior material selection, advanced design, and precision manufacturing. Let's delve into some real-world comparisons that highlight this engineering prowess.

Comparison 1: Porsche 911/996TT – Size vs. Weight

Our first example pits the factory Porsche 911/996TT's original equipment against a Brembo Performance GT system. The OE setup features a 1-piece rotor measuring 330mm. In contrast, the Brembo Performance GT system upgrades to a 355mm 2-piece disc, which is roughly 6% larger in diameter. Despite this increase in size, the Brembo system demonstrates its lightweight advantage.

Consider the GT 6-piston caliper used in this Brembo system; it weighs approximately 7.5 lbs (around 3.4 kg). While direct OE caliper weight wasn't provided for this specific comparison, the overall system difference often favours Brembo due to the 2-piece disc's design and advanced caliper materials.

Comparison 2: BMW M3 (E90/92) – Component Breakdown

Moving to the BMW M3 (E90/92), we can examine the individual component weights of a used original equipment brake system. This provides a clear baseline for understanding where the mass lies in a standard performance setup.

Note the significant weight of the OE discs, which are typically solid 1-piece iron units. The Brembo front caliper, at 7.75 lbs without its bracket, hints at the potential for overall system weight optimisation when paired with their lightweight discs.

Comparison 3: Honda Civic Si (EK) vs. Lamborghini – The Stark Contrast

This comparison provides a fascinating insight into the vast differences in brake system design and weight. A used Honda Civic Si (EK) steel sliding caliper, pads, line, and a 10.2-inch (260mm) rotor collectively weigh approximately 21.7 lbs (around 9.8 kg). This represents a typical, relatively small, and budget-conscious OE setup.

Now, compare that to the total weight of a rear brake system from a Lamborghini – a vehicle synonymous with extreme performance. This Lamborghini rear system weighs approximately 24.17 lbs (around 10.9 kg) in total, only slightly heavier than the entire Civic Si front system, despite its vastly superior performance capabilities and larger components.

Let's break down the Lamborghini system's weight by component:

• 14-inch (355.6mm) Disc: 15.94 lbs (around 7.23 kg)
• Forged Monobloc Racing Caliper (with pads): 8.24 lbs (around 3.74 kg)

This illustrates how advanced materials and design, such as a large yet relatively light 14-inch disc and a forged monobloc caliper, can deliver immense performance without a commensurate increase in weight, especially when considering the performance disparity.

Comparison 4: Porsche 991 Carrera S – Head-to-Head Component Analysis

Finally, a detailed comparison by Sharkwerks between Brembo Performance and an OE 2013 Porsche 991 Carrera S brake system truly underscores the weight efficiency of aftermarket high-performance setups.

In this comparison, while the Brembo calipers are slightly heavier than their OE Porsche counterparts (likely due to their robust monobloc construction and potentially larger piston count for the application), the significant weight savings are achieved in the discs. The Brembo 2-piece 380mm rear disc is a remarkable 2.6 lbs lighter than the OE 1-piece 19.7 lbs rotor, despite being a much larger diameter (15 inches vs. an unspecified OE size, but typically smaller). This exemplifies how clever design and material choices in the discs can offset caliper weight and still result in an overall lighter, more capable system.

The Magic of Unsprung Mass

Why is this obsession with brake weight, particularly the discs and calipers, so prevalent in performance automotive circles? The answer lies in the concept of unsprung mass. Unsprung mass refers to the weight of the components not supported by the vehicle's suspension system. This includes the wheels, tyres, brake assemblies, and a portion of the suspension arms.

Reducing unsprung mass offers a cascade of benefits for vehicle dynamics:

• Improved Ride Quality: Less mass for the suspension to control results in a smoother ride over bumps and imperfections.
• Enhanced Handling and Grip: The wheels are able to follow the road surface more closely, leading to better tyre contact and increased grip during cornering and braking.
• Faster Acceleration: Lighter wheels and brakes mean less rotational inertia for the engine to overcome, resulting in quicker acceleration off the line.
• Shorter Braking Distances: While counter-intuitive, lighter brake components contribute to better suspension response, which in turn helps the tyres maintain optimal contact with the road under heavy braking, potentially reducing stopping distances.
• Reduced Wear and Tear: Less unsprung mass reduces the stress on suspension components, potentially extending their lifespan.

Investing in lightweight brake systems, therefore, isn't just about showing off; it's about fundamentally improving the driving experience and the car's dynamic capabilities.

Beyond Iron: The Carbon Ceramic Revolution

For the ultimate in weight savings and performance, carbon ceramic matrix (CCM) brake discs represent the pinnacle of current braking technology. These discs are constructed from a blend of carbon fibres and silicon carbide, offering extraordinary heat resistance, incredible durability, and, most notably, significantly reduced weight compared to traditional iron discs.

As the provided information highlights, a Brembo CCM-R (carbon ceramic for street/track/racing) disc can be nearly half the weight of its iron counterpart. This dramatic reduction in mass, particularly in the rotating unsprung mass of the discs, translates into unparalleled improvements in vehicle dynamics. Cars equipped with carbon ceramic brakes exhibit razor-sharp turn-in, astonishing acceleration, and virtually fade-free braking performance, even under the most extreme track conditions. While significantly more expensive, for those seeking the absolute maximum in performance, carbon ceramic systems are the definitive choice.

Frequently Asked Questions (FAQs)

Understanding the nuances of brake system weight can lead to several common questions. Here are some of the most frequent:

Q: Do lighter brakes really make a noticeable difference in driving?

A: Absolutely. The impact of reducing unsprung mass is profound. You'll typically notice improved steering response, a more compliant ride over rough surfaces, and the car feeling more nimble and eager to change direction. For performance driving, the benefits in acceleration and handling are even more pronounced.

Q: Are lighter brakes more expensive?

A: Generally, yes. High-performance, lightweight brake systems utilise advanced materials like aluminium alloys, multi-piece disc designs, and precision manufacturing processes, all of which contribute to a higher cost than standard OE iron setups. Carbon ceramic brakes are at the top end of the price spectrum.

Q: How much weight can I expect to save with aftermarket performance brakes?

A: As seen in the comparisons, savings vary widely depending on the vehicle and the specific system chosen. While individual component savings might seem small, the cumulative effect across all four corners can be substantial. For example, replacing all four OE iron discs with 2-piece lightweight alternatives can often save 15-30 lbs (around 6.8-13.6 kg) or more of unsprung mass, with even greater savings possible with carbon ceramic.

Q: What is the primary benefit of reducing rotational unsprung mass?

A: The primary benefit is the reduction in rotational inertia. It takes less energy for the engine to accelerate a lighter wheel and brake assembly, leading to quicker acceleration. Similarly, it takes less effort for the brakes to slow down a lighter rotating mass, potentially improving braking efficiency and reducing wear.

Q: Are carbon ceramic brakes suitable for daily driving?

A: While technically suitable, carbon ceramic brakes are primarily designed for high-performance and track use. They typically require more heat to operate at their peak, can be noisier at low speeds, and the replacement costs are extraordinarily high. For most daily drivers, a high-quality iron-based performance brake system offers an excellent balance of performance, durability, and cost.

Q: Do brake lines contribute significantly to the overall weight of a brake system?

A: No, brake lines contribute very little to the overall weight of a brake system. Their mass is negligible compared to the calipers and especially the discs. Their importance lies in their hydraulic integrity and resistance to expansion under pressure, not their weight-saving properties.

Q: Can I just upgrade my brake pads for weight savings?

A: While different brake pad compounds have varying densities and minor weight differences, upgrading pads alone will not yield significant overall system weight savings. Pads are a relatively small component in the overall mass of the brake system. Their primary role is friction and heat dissipation.

Conclusion

The weight of your vehicle's braking system is a critical, yet often underestimated, factor in its overall performance envelope. From enhancing handling and ride comfort to improving acceleration and braking efficiency, reducing unsprung mass through advanced brake component design pays dividends. While brake lines themselves contribute minimally to this weight, the sophisticated engineering of multi-piston calipers and, crucially, lightweight 2-piece or carbon ceramic discs, makes a profound difference. Investing in a thoughtfully designed, lightweight brake system is not merely an upgrade; it's a fundamental enhancement to your vehicle's dynamic capabilities, delivering a more engaging and responsive driving experience on every journey.
