When embarking on any landscaping or construction project in the UK – be it a new driveway, a sturdy patio, or even the foundations for an extension – one material consistently sits at the very heart of success: MOT Type 1 aggregate. This versatile crushed stone forms the critical sub-base, providing stability, drainage, and load-bearing capacity. However, a common query that often arises for DIY enthusiasts and professionals alike is: 'How much does a tonne of MOT Type 1 actually cover?' Getting this calculation wrong can lead to costly delays, over-ordering, or worse, an unstable base that compromises your entire project. This comprehensive guide will demystify the coverage rates, help you understand the crucial factors at play, and provide the insights you need to confidently order the correct amount for your next undertaking.
Understanding the properties of MOT Type 1 is the first step towards accurate quantity estimation. Officially known as 'unbound granular material for sub-bases and bases for roads and other paved areas', MOT Type 1 is a specific blend of crushed aggregate, typically limestone, granite, or gritstone. It's characterised by its well-graded particle size distribution, ranging from large stones (up to 40mm) down to fine dust (fines). This specific grading is what allows it to compact extremely well, creating a dense, interlocking, and stable layer that offers excellent load-bearing capabilities and good drainage, preventing water from pooling beneath your finished surface.

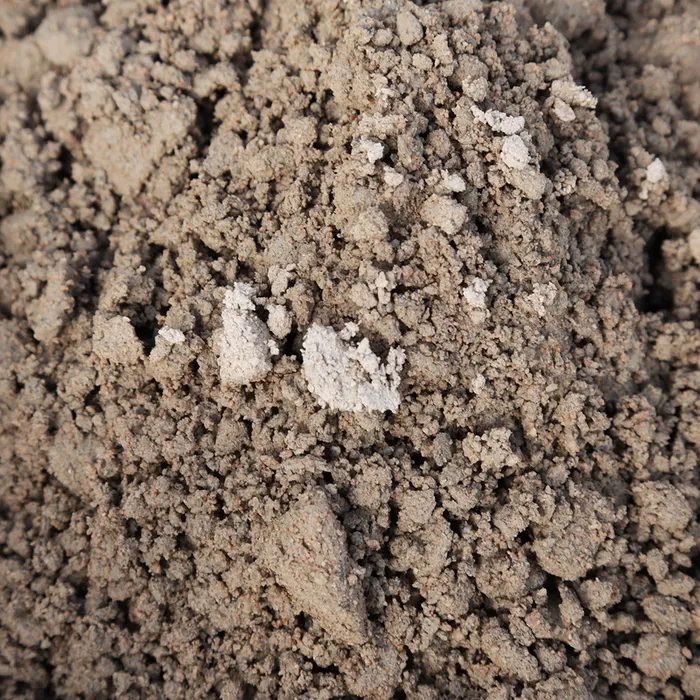

The Core Question: How Much Does a Tonne of MOT Type 1 Cover?
The straightforward answer to how much a tonne of MOT Type 1 covers isn't a single, fixed number because it depends on two primary variables: the required depth of your sub-base and the area you need to cover. However, we can provide a general rule of thumb and then delve into the precise calculations.
As a rough estimate, one tonne of MOT Type 1 will typically cover approximately 5 square metres (m²) at a depth of 100mm (0.1 metres). This is a widely accepted figure for planning purposes for a moderately deep base. For thinner applications, say 50mm, a tonne would cover roughly 10m².
The Science Behind the Numbers: Density and Volume
To calculate more precisely, you need to understand the density of MOT Type 1. On average, the bulk density of compacted MOT Type 1 is around 2 tonnes per cubic metre (2000 kg/m³). This means a 1 cubic metre volume of compacted MOT Type 1 weighs approximately 2 tonnes. Conversely, if you have 1 tonne of MOT Type 1, it will occupy roughly 0.5 cubic metres once compacted.
Calculation Formula:
To determine the volume of aggregate you need:
- Calculate the Volume (m³): Multiply the length (m) by the width (m) by the desired depth (m).
Volume = Length × Width × Depth - Calculate the Weight (Tonnes): Multiply the calculated volume by the density of MOT Type 1 (approx. 2 tonnes/m³).
Weight (Tonnes) = Volume (m³) × 2 (tonnes/m³)
Let's work through some practical examples:
- Example 1: A small patio area
You want to create a patio measuring 3 metres by 4 metres, with a required sub-base depth of 100mm (0.1 metres).
Volume = 3m × 4m × 0.1m = 1.2 m³
Weight = 1.2 m³ × 2 tonnes/m³ = 2.4 tonnes
So, for this patio, you would need approximately 2.5 tonnes of MOT Type 1. - Example 2: A section of driveway
You're building a new driveway section that is 5 metres by 6 metres, requiring a robust sub-base depth of 150mm (0.15 metres).
Volume = 5m × 6m × 0.15m = 4.5 m³
Weight = 4.5 m³ × 2 tonnes/m³ = 9 tonnes
For this driveway section, you would need around 9 tonnes of MOT Type 1.
From these examples, it becomes clear that 1 tonne of MOT Type 1 covers:
- Approximately 10m² at 50mm (0.05m) depth
- Approximately 6.67m² at 75mm (0.075m) depth
- Approximately 5m² at 100mm (0.1m) depth
- Approximately 3.33m² at 150mm (0.15m) depth
Factors That Influence MOT Type 1 Coverage
While the calculation provides a good starting point, several real-world factors can influence the actual coverage you achieve and thus the quantity you should order:
Compaction
This is arguably the most significant factor. The density of 2 tonnes/m³ is for *compacted* MOT Type 1. When delivered, the material is loose. As you compact it with a whacker plate or roller, it will reduce in volume. It's generally recommended to add an extra 10-20% to your calculated quantity to account for this initial compaction. If you need a 100mm compacted depth, you might spread 120mm of loose material to achieve it.
Depth Requirements
The intended use of the surface dictates the required sub-base depth. A lightly used garden path might only need 50-75mm, whereas a domestic driveway will typically require 100-150mm, and a heavy-duty commercial area could need 200mm or more. Deeper bases naturally require more material for the same area.
Waste and Spillage
Even with careful handling, some material will be lost due to spillage, uneven spreading, or simply settling into irregularities in the ground below. Adding a small buffer (e.g., 5%) for waste is always a good idea.
Sub-Grade Condition
If the ground beneath your sub-base is soft, uneven, or has depressions, you might inadvertently use more aggregate to achieve a level surface before compaction. Proper preparation of the sub-grade (the existing ground) is crucial to minimise this.
Supplier Variations
While MOT Type 1 adheres to British Standards (BS EN 13285), slight variations in the exact grading and moisture content between suppliers can subtly affect the bulk density. This is usually negligible but worth noting.
Practical Coverage Table for MOT Type 1 (Compacted)
This table provides a quick reference for common depths and areas, showing the approximate tonnes required. Remember to add a small percentage (e.g., 10-15%) for compaction and waste.
| Area (m²) | Required Depth (mm) | Approx. Volume (m³) | Approx. Tonnes Required (Compacted) |
|---|---|---|---|
| 5 | 50 | 0.25 | 0.5 |
| 5 | 100 | 0.5 | 1 |
| 5 | 150 | 0.75 | 1.5 |
| 10 | 50 | 0.5 | 1 |
| 10 | 100 | 1 | 2 |
| 10 | 150 | 1.5 | 3 |
| 20 | 50 | 1 | 2 |
| 20 | 100 | 2 | 4 |
| 20 | 150 | 3 | 6 |
| 50 | 100 | 5 | 10 |
| 50 | 150 | 7.5 | 15 |
Why MOT Type 1 is the Preferred Choice
MOT Type 1 isn't just any crushed stone; its specific grading makes it ideal for sub-bases due to several key advantages:
- Excellent Compaction: The mix of particle sizes allows for minimal voids when compacted, creating a very dense and stable layer.
- High Load-Bearing Capacity: Its strength makes it suitable for supporting heavy loads, essential for driveways and roads.
- Good Drainage: While it compacts tightly, it still allows water to drain through, preventing issues like frost heave or waterlogging.
- Meets British Standards: Its compliance with BS EN 13285 ensures consistent quality and performance.
- Cost-Effective: It's a widely available and relatively inexpensive material for creating a robust foundation.
Briefly: Other Types of MOT Aggregates
While MOT Type 1 is the most common, it's worth being aware of other MOT-approved aggregates, as they serve different purposes:
- MOT Type 2 (Scalpings): Often a coarser, less well-graded material, typically made from recycled crushed concrete or brick. It's generally cheaper but doesn't compact as well as Type 1 and has poorer drainage. Suitable for very light-duty applications or as a bulk fill before a layer of Type 1.
- MOT Type 3 (Permeable Sub-Base): Also known as 'reduced fines' or 'SUDS aggregate'. This material has very few fine particles, which makes it highly permeable, allowing water to pass through freely. It's used in Sustainable Urban Drainage Systems (SUDS) where water runoff needs to be managed, but its load-bearing capacity is slightly less than Type 1 due to the lack of fines for interlock.
- MOT Type 4: Less common and usually refers to recycled aggregates that meet specific grading but might have a broader size range than Type 1.
| Feature | MOT Type 1 | MOT Type 3 |
|---|---|---|
| Primary Use | General sub-base for roads, driveways, patios | Permeable sub-base for SUDS, areas needing high drainage |
| Particle Size Range | 0-40mm, well-graded with fines | 0-40mm, 'reduced fines' |
| Compaction | Excellent, creates dense, stable layer | Good, but less dense due to fewer fines |
| Drainage | Good | Excellent, highly permeable |
| Load Bearing | Very high | High (slightly less than Type 1) |
| Cost | Standard | Often slightly higher due to specific grading |
Tips for Laying and Compacting MOT Type 1
Even with the correct quantity, proper installation is key to a long-lasting sub-base:
Prepare the Sub-Grade
Ensure the existing ground (sub-grade) is firm, level, and free from organic matter, large stones, or debris. Compact the sub-grade if it's loose or disturbed.
Install a Geotextile Membrane
Laying a heavy-duty geotextile membrane (also known as a weed membrane or ground stabilisation fabric) directly on the sub-grade before adding the MOT Type 1 is highly recommended. It prevents the aggregate from mixing with the underlying soil, maintains the integrity of the sub-base, and inhibits weed growth.
Spread Evenly
Use rakes or shovels to spread the MOT Type 1 evenly across the area. Aim for a consistent depth to avoid weak spots. Use string lines and pegs to guide your depth.
Layer and Compact
For depths greater than 100mm, it's advisable to lay the MOT Type 1 in layers (e.g., two 75mm layers for a 150mm total depth). Compact each layer thoroughly using a vibrating plate compactor (whacker plate). Make multiple passes in different directions until the aggregate is visibly stable and no longer sinking significantly.
Check Levels
Regularly check your levels with a spirit level and straight edge to ensure you're achieving the desired gradient for drainage and a flat surface for subsequent layers.
Consider Edge Restraints
For driveways or patios, consider installing edge restraints (e.g., block paving edgings, timber, or concrete haunching) before or during the aggregate laying. These prevent the sub-base from spreading outwards, maintaining its compaction and shape.
Common Mistakes to Avoid
To ensure your project's success, steer clear of these pitfalls:
- Underestimating Quantity: The most common mistake. Always re-check calculations and add a contingency. It's better to have a little extra than to run out midway through a job.
- Insufficient Compaction: A poorly compacted sub-base will settle unevenly over time, leading to cracks, dips, and structural failure of your top surface. Take your time and use appropriate machinery.
- Incorrect Depth for Application: Using a sub-base that's too thin for the intended load will lead to premature failure.
- Ignoring Sub-Grade Preparation: Laying MOT Type 1 over soft, waterlogged, or uneven ground will compromise its stability and effectiveness.
- Not Using a Membrane: Skipping the geotextile membrane can lead to aggregate contamination and weed issues down the line.
Frequently Asked Questions (FAQs)
- What is a 'whacker plate'?
- A whacker plate, also known as a plate compactor or vibrating plate, is a piece of construction equipment used to compact granular materials like MOT Type 1. It has a heavy base plate that vibrates rapidly, forcing the aggregate particles closer together and expelling air, creating a dense, stable surface.
- Can I use less than the recommended depth of MOT Type 1?
- While you technically can, it's strongly advised against for any area that will bear significant weight (like a driveway). Using an insufficient depth will compromise the structural integrity and longevity of your project, leading to subsidence and cracking over time.
- Do I really need a geotextile membrane?
- Yes, it is highly recommended. The membrane acts as a separator, preventing the MOT Type 1 from sinking into the softer soil beneath and stopping soil particles from migrating up into the aggregate layer. It also provides an excellent weed barrier.
- How long does it take to compact MOT Type 1?
- The time required depends on the area size and the power of your compactor. For typical domestic projects, you should make multiple passes (at least 3-4 in different directions) over each section until the surface feels solid and stable, and the aggregate no longer moves significantly under the compactor.
- Is MOT Type 1 permeable enough for drainage?
- MOT Type 1 offers good drainage, allowing water to pass through. However, if your project requires excellent permeability for managing large volumes of surface water (e.g., in a SUDS-compliant system), MOT Type 3 aggregate with its 'reduced fines' content would be a more suitable choice.
- Can I lay MOT Type 1 directly on top of grass or soil?
- No, not directly. You must first remove all turf and organic matter, then level and compact the underlying soil (sub-grade). Laying aggregate directly onto unprepared ground will lead to instability, uneven settling, and potential weed growth.
Calculating the correct amount of MOT Type 1 is a critical first step in ensuring the success and longevity of your groundwork project. By understanding the density, accounting for depth and compaction, and considering other influencing factors, you can confidently determine your aggregate needs. Remember, a well-prepared and properly compacted sub-base is the unsung hero of any durable surface, providing the stability and support necessary for years of reliable performance. Take the time to plan, calculate, and execute your sub-base installation meticulously, and your finished project will stand the test of time.
