Mini Handbrake MOT Failures

It's a common concern for many Mini owners: will my handbrake pass its MOT? With the annual test looming, ensuring all critical components are in good working order is paramount. The handbrake, or parking brake as it's also known, is a vital safety feature, and its performance is rigorously checked during an MOT. If your Mini's handbrake lever has gradually increased its travel over time, requiring more clicks to engage, you're not alone. This gradual wear is often a sign that some adjustment or attention is needed. This article will delve into the specifics of handbrake functionality, common failure points related to the MOT, and the correct procedures for adjustment to keep your Mini roadworthy.

Understanding Handbrake Operation and MOT Requirements

The handbrake in a Mini, like most vehicles, operates by applying braking force to the rear wheels independently of the main hydraulic brake system. It's designed to hold the vehicle stationary, especially on inclines, and is a crucial part of the overall braking system. During an MOT inspection, the tester will assess the effectiveness and condition of the handbrake. This typically involves:

• Lever Travel: Checking the number of clicks or the distance the lever travels before it effectively holds the vehicle.
• Braking Force: Verifying that the handbrake can adequately stop the vehicle from a set speed or hold it on a simulated gradient.
• Condition of Components: Inspecting the handbrake cable, lever, and any associated mechanisms for wear, damage, or corrosion.

As highlighted by the user's experience and the advice from 'Here2help', a handbrake that engages firmly within a reasonable number of clicks is essential. The guideline of the handbrake being fully engaged by the third click is a good benchmark. If it requires significantly more, it suggests the system is either stretched, worn, or incorrectly adjusted.

Common Reasons for Handbrake Issues in Minis

Several factors can contribute to a handbrake lever's increased travel and reduced effectiveness. Understanding these will help in diagnosing and rectifying the problem:

1. Stretched Handbrake Cables

Over time, the metal cables that operate the handbrake can stretch due to constant tension and use. This is perhaps the most common reason for the lever requiring more clicks. As the cable lengthens, it requires more movement of the lever to pull it taut enough to apply the brakes.

2. Wear on Brake Pads and Discs

While new rear brake pads have been fitted, it's important to consider the state of the brake discs and the mechanism that the handbrake actuates. In many drum-in-disc systems, the handbrake operates via a small drum mechanism inside the rear disc or a separate shoe system. If these components are worn, or if the disc is heavily corroded, it can affect the handbrake's ability to grip effectively, even with properly adjusted cables.

3. Incorrect Adjustment

The handbrake can become improperly adjusted if it hasn't been set up correctly following brake component replacement or if it has been fiddled with without understanding the correct procedure. As the user noted, adjusting at the lever can be a temporary fix, but it's often the rear caliper/drum adjustment that is the more critical and effective method.

4. Cable Binding or Sticking

Corrosion or damage to the outer sheath of the handbrake cable can cause it to bind, making the operation stiff and less predictable. This can lead to uneven braking or a feeling that the handbrake isn't fully releasing.

5. Issues with the Handbrake Mechanism Itself

Less commonly, the handbrake lever mechanism within the cabin, or the actuation points at the rear brakes, could have internal wear or damage, affecting its range of motion and effectiveness.

Will a Mini Handbrake Fail an MOT? The Definitive Answer

Yes, a Mini handbrake can absolutely fail an MOT if it does not meet the required performance standards. The specific reasons for failure often relate to:

• Insufficient Stopping Power: If the handbrake doesn't hold the vehicle with sufficient force on the roller brake tester or if it doesn't meet the minimum braking efficiency requirement for parking brakes.
• Excessive Lever Travel: If the lever requires an excessive number of clicks (generally more than 5-7, but this can vary slightly depending on the specific model and tester's discretion) to achieve effective braking.
• Binding or Sticking: If the handbrake is difficult to release, or if it applies unevenly, it can be a reason for failure.
• Damage or Corrosion: Obvious damage or severe corrosion to the cables or operating mechanisms can also lead to a fail.

The 'Here2help' guidelines provide a good indication of what is considered correct engagement. If your handbrake is only starting to bite at 4-5 clicks and isn't fully locking the wheels until much further up, it's highly likely to be flagged during an MOT inspection.

The Correct Way to Adjust a Mini Handbrake

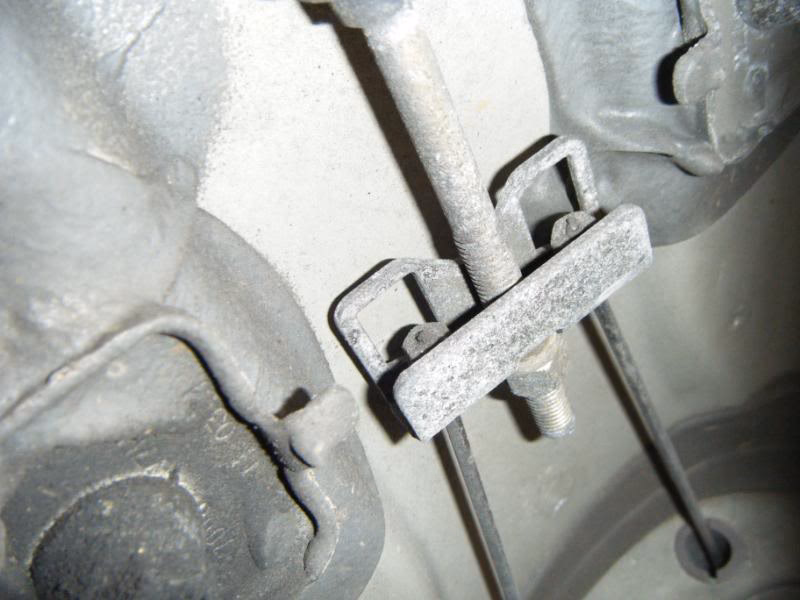

While adjusting the cable at the lever (usually under the gaiter) can take up some slack, the most effective and correct adjustment is typically made at the rear brake calipers or drums. The exact procedure can vary slightly depending on the specific Mini model (e.g., R50, R53, R56, etc.), but the general principles are similar.

Adjustment at the Caliper (Disc Brakes)

Many modern Minis use a system where the handbrake acts on a small drum brake mechanism housed within the rear brake disc hub, or directly via the main caliper mechanism with a separate lever. For systems that actuate via the caliper:

1. Gain Access: You'll typically need to remove the rear wheel(s) to access the caliper and handbrake mechanism.
2. Locate the Adjustment Point: This is often a threaded rod or a specific adjuster screw located on the handbrake cable where it connects to the caliper's handbrake lever.
3. Loosen Locking Nut: There might be a locking nut that holds the adjuster in place. Loosen this nut.
4. Adjust the Cable: Turn the adjuster to either lengthen or shorten the cable. To increase the handbrake's effectiveness (take up slack), you'll generally need to lengthen the cable. This means turning the adjuster in a way that pulls the cable tighter.
5. Check Engagement: Re-check the handbrake lever engagement. A few clicks should start to feel resistance, and by the third click, the wheels should be noticeably harder to turn.
6. Test for Binding: Crucially, ensure that when the handbrake is fully released, the wheels turn freely without any dragging or heat generation. The user's experience of slight rubbing and heat after adjustment at the lever is a clear sign of the handbrake not fully retracting.
7. Tighten Locking Nut: Once the correct adjustment is achieved, tighten the locking nut to secure the adjuster.
8. Re-check: With the wheel back on and tightened, test the handbrake operation again.

Adjustment at the Drum (if applicable)

Some older Minis or specific models might use a more traditional drum brake setup for the handbrake, even with disc brakes on the front. The adjustment here is usually done via an adjuster wheel located inside the drum, accessed by removing the drum itself. This is similar to adjusting the main wheel cylinder for brake shoes.

Disclaimer: If you are not comfortable performing these adjustments, it is highly recommended to have a qualified mechanic do it. Incorrect adjustment can lead to brake binding, premature wear, or ineffective braking.

Troubleshooting and Prevention

If adjusting the cables doesn't resolve the issue, or if the problem is severe, consider these additional troubleshooting steps:

• Inspect Cables: Check the entire length of the handbrake cables for any signs of fraying, corrosion, or damage to the outer sheath. Replace any suspect cables.
• Check Actuation Points: Ensure the lever on the caliper or brake mechanism moves freely and isn't seized. Lubrication might be necessary, but be careful not to get lubricant on the friction surfaces.
• Inspect Handbrake Shoes/Mechanism: If your Mini uses separate handbrake shoes within the rear disc, these may need inspection, cleaning, or replacement if they are worn or contaminated with brake dust or grease.
• Consider a Full Brake Service: If your rear brakes haven't been serviced recently, it might be worth considering a full service, including cleaning and lubricating the caliper slide pins, checking the condition of the discs and pads, and ensuring the handbrake mechanism is functioning correctly.

Frequently Asked Questions (FAQs)

Q1: How many clicks should a Mini handbrake have?
A: While there isn't a universally fixed number, a good indication is that the handbrake should be fully effective by the third to fifth click. Beyond that, it suggests adjustment is needed.

Q2: Can I adjust the handbrake myself?
A: Yes, with the right tools and a basic understanding of mechanics, you can adjust the handbrake cables. However, if you're unsure, it's best left to a professional.

Q3: My handbrake lever feels stiff. What could be the problem?
A: Stiffness often indicates a corroded or binding cable. Inspect the cable's outer sheath and the actuation points for seized components.

Q4: If I adjust the handbrake too tight, what happens?
A: If adjusted too tight, the handbrake will not fully release, causing the rear brakes to drag. This leads to increased fuel consumption, premature wear of brake pads and discs, and can even cause overheating and potential brake failure.

Q5: Does replacing rear brake pads always require handbrake adjustment?
A: Not always, but it's good practice to check and potentially adjust the handbrake after replacing rear pads, especially if the handbrake was already showing signs of increased travel. It ensures optimal performance and helps prevent an MOT failure.

Conclusion

Ensuring your Mini's handbrake is correctly adjusted and functioning effectively is not just about passing the MOT; it's a critical safety measure. By understanding the common causes of handbrake issues and following the correct adjustment procedures, you can keep your Mini performing at its best and driving safely. If you're experiencing increased lever travel, don't delay in addressing it. A proactive approach to maintenance will save you potential headaches, costs, and most importantly, ensure your safety on the road.
