Brake Pads: Unveiling Your Car's Stopping Power

Brake pads are undoubtedly one of the most critical safety components on any vehicle, yet their intricate workings and the sheer variety of designs often go unnoticed. They are the unsung heroes responsible for converting kinetic energy into thermal energy, allowing your vehicle to slow down and stop safely. Whether you drive a humble family saloon or a sophisticated sports car, understanding your brake system, particularly the pads, is fundamental to ensuring optimal performance and, more importantly, your safety on the road. This article will demystify the number of brake pads in a car and delve into the fascinating, high-octane world of Formula 1 braking technology, exploring whether their carbon pads can, or should, be drilled.

How Many Brake Pads Does a Car Have?

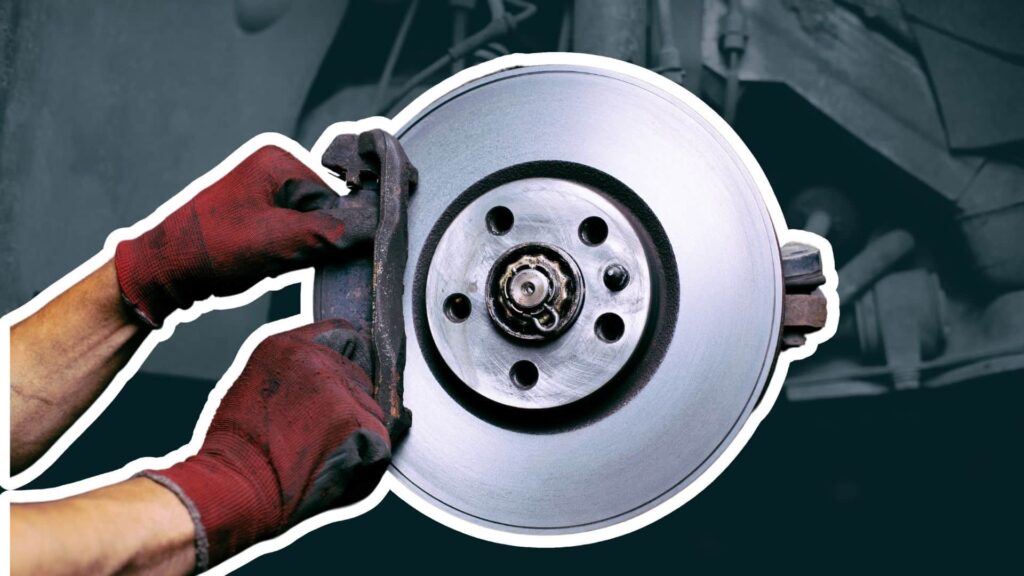

For most standard road vehicles, the answer is straightforward: a car typically has eight brake pads. This configuration consists of two brake pads for each of the four wheels. Each wheel has a brake caliper, and within that caliper, there are two pads – one on each side of the brake disc (rotor). When you press the brake pedal, hydraulic pressure forces the caliper to clamp these pads onto the spinning disc, creating the friction necessary to slow the wheel.

However, this number can vary significantly, especially in high-performance or sports cars. The complexity arises when we consider vehicles equipped with multi-piston calipers. While a standard car might use a single-piston or twin-piston caliper, performance vehicles often feature calipers with four, six, or even eight pistons per caliper. The design of these advanced systems dictates the number of pads. Some designs still utilise just two larger pads per caliper, regardless of the number of pistons, with the pistons pressing on a single, larger pad on each side. Conversely, other high-performance designs, particularly those found in exotic sports cars or track-focused vehicles, employ a 'one pad per piston' philosophy.

Let's consider an extreme, yet illustrative, example: a sports car with six-piston calipers at the front, four-piston calipers at the back, and additional electronic parking brake (EPB) calipers. If these calipers are designed to use one pad per piston, the total count can escalate dramatically. For the front, with six-piston calipers on each of the two front wheels, that would be 6 pads per caliper * 2 calipers = 12 front pads. At the rear, with four-piston calipers on each of the two rear wheels, that translates to 4 pads per caliper * 2 calipers = 8 rear pads. Furthermore, if the electronic parking brake system uses its own dedicated calipers, these would typically add another two pads per wheel, totalling four additional pads. Adding these up (12 front + 8 rear + 4 EPB), such a vehicle could indeed have a staggering total of 24 brake pads. This illustrates the diverse engineering solutions employed to achieve superior stopping power and control, especially under demanding conditions.

Types of Brake Pads for Road Cars

While the focus of this article also touches on F1, it's worth briefly mentioning the common types of brake pads found in road cars, as they influence performance and longevity:

• Organic Non-Metallic (NAO) Pads: These are typically made from a mix of fibres (like glass, rubber, carbon, Kevlar) and resins. They are quiet, gentle on discs, and produce less dust, making them ideal for everyday driving. However, they tend to wear faster and may fade under extreme heat.
• Semi-Metallic Pads: Comprising 30-65% metal (iron, copper, steel wool), these pads offer better braking performance and heat transfer than NAO pads. They are durable but can be noisier, harder on discs, and produce more brake dust.
• Low-Metallic NAO Pads: A hybrid, these contain small amounts of metal to improve braking and heat transfer while trying to reduce noise and dust compared to semi-metallics.
• Ceramic Pads: Made from ceramic fibres, fillers, and bonding agents, these are the premium choice. They are exceptionally quiet, produce very little dust, and are highly durable. They also perform consistently across a wide range of temperatures, making them popular for high-performance road cars.

The Evolution of F1 Braking Systems: Can Brake Pads in F1 Be Drilled?

Formula 1, the pinnacle of motorsport, pushes the boundaries of automotive engineering, and braking systems are no exception. The demands placed on F1 brakes are immense, requiring incredible stopping power from over 200 mph to near-standstill in mere seconds, lap after lap. This extreme environment necessitates highly specialised materials and designs. As part of the significant technical overhaul for the 2021 season, F1 introduced a raft of changes, including a move towards more 'spec' (standardised) parts, primarily aimed at reducing costs and levelling the playing field. These changes had a direct impact on the design and specifications of brake components, including the pads and discs.

F1 Brake System Components

The F1 brake system is a tightly integrated package, traditionally comprising the brake caliper, master cylinder, and the brake-by-wire (BBW) unit. Prior to the 2021 regulations, teams procured these components from a range of high-performance suppliers like Brembo, Akebono, and AP Racing, often customising them for their specific car's hose connections and cooling requirements. The 2021 changes, however, aimed to standardise much of this:

• Brake Calipers: F1 calipers are fixed to a six-piston design. Historically, they were crafted from exotic materials like aluminium-lithium alloys for their exceptional stiffness and light weight. However, the 2021 tender mandated a switch to 2618 or an equivalent aluminium alloy. While this is a cost-reducing measure, it does result in a slight loss of component stiffness, a critical factor for braking effectiveness. Fortunately, the concurrent move to larger diameter wheels (from 13 inches to 18 inches) provides more space, allowing for the design of a physically larger and thus stiffer caliper, particularly in the crucial bridge section connecting its two sides.
• Master Cylinders: F1 cars traditionally use dual master cylinders, one for the front and one for the rear, actuated via a bias bar for front-to-rear brake pressure proportioning. Since 2014, the rear braking has been managed by the BBW unit, allowing for electronic bias adjustment. The 2021 regulations saw a shift to a tandem master cylinder, housing pistons for both front and rear brakes in a single, more compact unit. This change, possible due to the BBW unit still managing rear braking, implies a fixed mechanical front-to-rear bias, with fine-tuning handled electronically.
• Brake-by-Wire (BBW) Unit: This sophisticated hydraulic control system manages the rear braking, factoring in regenerative braking from the ERS-K (Kinetic Energy Recovery System) to maintain consistent braking effort. If the BBW fails, master cylinder pressure is redirected to the rear brakes as a fail-safe. The introduction of a spec BBW unit in 2021 aimed to standardise this complex component, potentially affecting driver feel, which teams previously meticulously tuned.

Brake Material: Discs and Pads in F1

The heart of F1 braking lies in its carbon-carbon composite brake discs and pads. These materials are incredibly expensive and time-consuming to manufacture, contributing significantly to team budgets. Traditionally, suppliers like Brembo, Carbone Industrie, and Hitco have dominated this field.

Regarding the central question: Can brake pads in F1 be drilled? Historically, F1 brake pads could feature internal drilling. The technical regulations allowed for two brake pads per wheel, and these pads "can also be drilled for cooling between the main body of the pad and the area where the caliper piston presses on the pad." This indicated that small cooling holes or channels within the pad material, designed to dissipate the immense heat generated, were permissible. However, with the 2021 spec part tender, a new, specific restriction was introduced: "Additionally, the pad cannot have a drilled rear face." This means that while internal cooling might have been considered, the critical surface of the pad that interfaces directly with the caliper pistons or the backing plate must remain undrilled. This likely ensures structural integrity, consistent performance, and cost reduction by simplifying manufacturing under the new standardised regime.

F1 brake discs also underwent significant changes. Previously, discs were 278mm in diameter and up to 32mm thick, featuring an extreme number of cooling holes – from around 100 in 2005 to some 1,500 by 2020. The 2021 regulations, coupled with the larger wheel sizes, saw disc diameters increase to 320mm or 330mm. Crucially, the extreme number of cooling holes was reduced to cut costs, with the supplier determining the necessary quantity. This led to a requirement for two brake disc specifications: a cheaper, normal-duty disc for most circuits and a heavy-duty disc for high-demand tracks like Singapore, offering greater cooling at a higher cost.

F1 brake pads are also required to be a multi-directional design, meaning a single part can be used on any of the front brake calipers, simplifying logistics and inventory. For the rear brakes, the regulations are less prescriptive. Due to the powerful braking effect of the ERS, rear brakes are less stressed, often running thinner discs and even four-piston calipers, allowing for more flexibility in design.

Comparative Table: Pre-2021 vs. 2021 Spec F1 Braking

Importance of Brake Pad Maintenance for Road Cars

While the intricacies of F1 braking are fascinating, the practical aspect of brake pad maintenance for your daily driver is paramount. Neglecting your brake pads can lead to reduced stopping power, increased stopping distances, and even dangerous brake failure. Here are some key considerations:

Signs of Worn Brake Pads

• Squealing or Grinding Noises: Many pads have a wear indicator, a small metal tab that makes a high-pitched squeal when the pad material is low. Grinding indicates metal-on-metal contact, meaning your pads are completely worn and the disc is being damaged.
• Vibrations: A pulsating brake pedal or steering wheel vibration when braking can indicate warped brake discs, often caused by excessive heat from worn pads or heavy braking.
• Longer Stopping Distances: If your car takes longer to stop than usual, it's a clear sign of brake system inefficiency, likely due to worn pads.
• Brake Warning Light: Some modern vehicles have electronic wear sensors that trigger a dashboard warning light when pads are excessively worn.
• Visible Inspection: Look through your wheel spokes to visually check the thickness of the outer brake pad. Most pads should have at least 3-4mm of friction material remaining.

When to Replace Brake Pads

The lifespan of brake pads varies significantly based on driving style, vehicle type, and pad material. Generally, front brake pads wear out faster than rear pads because they bear the majority of the braking force. As a rule of thumb, most manufacturers recommend checking brake pads every 10,000 to 15,000 miles, with replacement typically occurring between 25,000 and 70,000 miles. However, aggressive driving, heavy city traffic, or frequent towing will accelerate wear. Always consult your vehicle's owner's manual for specific recommendations.

Frequently Asked Questions About Brake Pads

Q: How often should I change my brake pads?

A: There's no fixed interval as it depends heavily on your driving habits, the type of vehicle, and the brake pad material. As a general guideline, front brake pads might need replacing every 25,000 to 40,000 miles, while rear pads can last longer, often 50,000 to 70,000 miles. Regular inspections during services are key to determining their actual wear and tear.

Q: What are the main differences between road car and F1 brake pads?

A: The core difference lies in materials and performance. Road car pads are typically organic, semi-metallic, or ceramic, designed for quiet operation, longevity, and consistent performance across varying temperatures. F1 pads are made from advanced carbon-carbon composites, engineered for extreme friction at very high temperatures, offering immense stopping power but with a much shorter lifespan and significant noise, making them unsuitable for road use.

Q: Do all four wheels have the same number of brake pads?

A: Yes, in standard road cars, each of the four wheels will have two brake pads. However, in performance cars with multi-piston calipers or dedicated parking brake calipers, the total number of pads can vary significantly per wheel or axle, as discussed in the article.

Q: Why are F1 brake discs drilled with so many holes?

A: The numerous holes in F1 brake discs serve a crucial purpose: cooling. Braking from high speeds generates enormous amounts of heat. These holes increase the surface area for heat dissipation and help vent hot gases and debris away from the pad-disc interface, preventing brake fade and ensuring consistent performance. While the number of holes has been reduced for cost savings in 2021, their fundamental role remains cooling.

Q: What is Brake-by-Wire (BBW) in F1?

A: Brake-by-Wire (BBW) is an electronic system used in F1 cars, primarily for the rear brakes. Instead of a direct hydraulic connection from the pedal to the rear calipers, the BBW unit interprets the driver's braking demand and electronically controls the rear brake pressure. This allows it to integrate regenerative braking from the ERS-K system, ensuring a consistent braking feel despite varying energy recovery levels, and also enables electronic adjustment of the front-to-rear brake bias.

Q: Are more pistons always better for braking?

A: While multi-piston calipers often indicate a higher-performance braking system, 'more pistons' isn't always unilaterally 'better' for every application. More pistons generally provide more even pressure distribution across the brake pad, leading to more consistent wear and potentially better modulation. They also allow for larger pads, increasing friction surface area. However, they are heavier, more complex, and more expensive. For everyday road cars, a well-designed single or twin-piston caliper is perfectly adequate and efficient.

Conclusion

From the eight pads on your daily commuter to the potentially 24 sophisticated components on a high-performance sports car, and the meticulously engineered carbon-carbon systems of Formula 1, brake pads are central to a vehicle's ability to stop safely and effectively. The evolution of braking technology, particularly evident in motorsport, highlights the continuous pursuit of efficiency, durability, and controlled stopping power. Understanding how many brake pads your car has and the critical role they play, coupled with diligent maintenance, is fundamental for every driver to ensure both vehicle performance and, most importantly, road safety. So, next time you come to a smooth stop, spare a thought for those unsung heroes working hard within your wheels.
