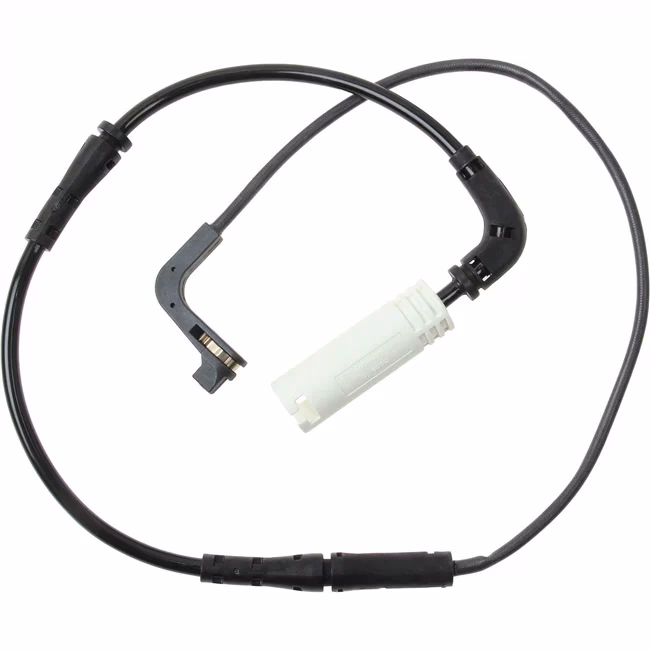

Understanding BMW E60 Wheel Speed Sensors
The Anti-lock Braking System (ABS) and Dynamic Stability Control (DSC) are critical safety features in your BMW E60. At the heart of these systems are the wheel speed sensors. These unsung heroes continuously monitor the rotational speed of each wheel, sending vital data to the car's control modules. This information is crucial for the ABS to prevent wheel lock-up during braking and for the DSC to maintain traction and stability during cornering or in slippery conditions. When a wheel speed sensor malfunctions, it can lead to illuminated ABS and DSC warning lights, and importantly, compromise the effectiveness of these essential safety systems.
BMW E60 models, like many modern vehicles, employ advanced magneto-resistive wheel speed sensors. Unlike older inductive sensors that required a certain vehicle speed to begin functioning, these sensors provide accurate wheel speed readings from a standstill. This means your ABS and DSC systems can offer enhanced control and safety even at very low speeds. The signal output from these sensors is a digital waveform, typically ranging from approximately 1 volt (low) to 4 volts (high), depending on the wheel's rotational speed. Testing these sensors accurately often requires a lab scope, which can visually display this digital signal, making it easier to diagnose issues.
Common Symptoms of a Failing Wheel Speed Sensor
The most obvious sign of a failing wheel speed sensor is the illumination of the ABS and/or DSC warning lights on your dashboard. However, it's important to remember that these warning lights can be triggered by various issues within the ABS/DSC system, not just a faulty sensor. Therefore, the first and most crucial step in diagnosing a potential wheel speed sensor problem is to scan the relevant control modules for fault codes. A diagnostic scan tool will communicate with the ABS/DSC module and retrieve specific error codes indicating which sensor (or other component) is reporting an issue.
Another effective diagnostic technique involves using a scan tool that can display live data from the wheel speed sensors while the vehicle is in motion. By comparing the speed readings from all four wheels, you can often identify a sensor that is reporting a significantly different speed compared to the others. For instance, if three wheels are showing a speed of 30 mph and one is showing 25 mph, it strongly suggests a problem with the sensor on the slower wheel. This comparative analysis is an excellent way to pinpoint the faulty component before resorting to parts replacement.
Tools and Parts You'll Need
Replacing a wheel speed sensor on a BMW E60 is a task that can be undertaken with basic tools and a bit of mechanical aptitude. Here's a list of what you'll typically need:
| Tool/Part | Description |
|---|---|
| Flathead Screwdriver | Useful for prying or releasing clips. |
| 5mm Allen Bit | Commonly used for the sensor retaining bolt. |
| Ratchet with 4" Extension | To access and remove the sensor bolt. |
| ABS Wheel Speed Sensor | Ensure you have the correct part for your specific E60 model (front or rear). |
| Molykote Longterm 2 Grease | A high-performance lubricant recommended for the sensor's seating area. |
Important Note: Always ensure you purchase the correct wheel speed sensor for your specific BMW E60 model and year, as front and rear sensors can differ, and there might be variations between different production runs. It's also wise to have a selection of common socket sizes on hand, as previous repairs might have introduced non-standard fasteners.
Step-by-Step Replacement Guide
1. Safety First and Preparation
Before you begin any work, it's paramount to prioritize your safety. Ensure you are working in a well-lit, well-ventilated area. Wear appropriate personal protective equipment (PPE), including safety glasses and gloves, to protect yourself from brake dust, grime, and potential fluid leaks. If you are working on the electrical system, it is highly recommended to disconnect the vehicle's battery before starting. This prevents accidental short circuits. Always have a suitable container ready to catch any fluids and dispose of them responsibly. If at any point you feel the task is beyond your capabilities, it's best to seek professional assistance.
2. Lift the Vehicle Safely
You will need to lift the axle on the side of the vehicle where you are replacing the wheel speed sensor. Refer to your vehicle's owner's manual or a dedicated guide on safely lifting your BMW E60. Ensure the vehicle is securely supported on jack stands before proceeding. Never work under a vehicle supported only by a jack.
3. Locate the Wheel Speed Sensor
The wheel speed sensor is typically located near the wheel hub or steering knuckle. For front sensors, they are usually found on the suspension upright, close to where the driveshaft enters the hub assembly. Rear sensors are generally located on the rear axle assembly, near the wheel bearing. They are often held in place by a single bolt and have a wiring harness leading away from them, connecting to a module or junction box.

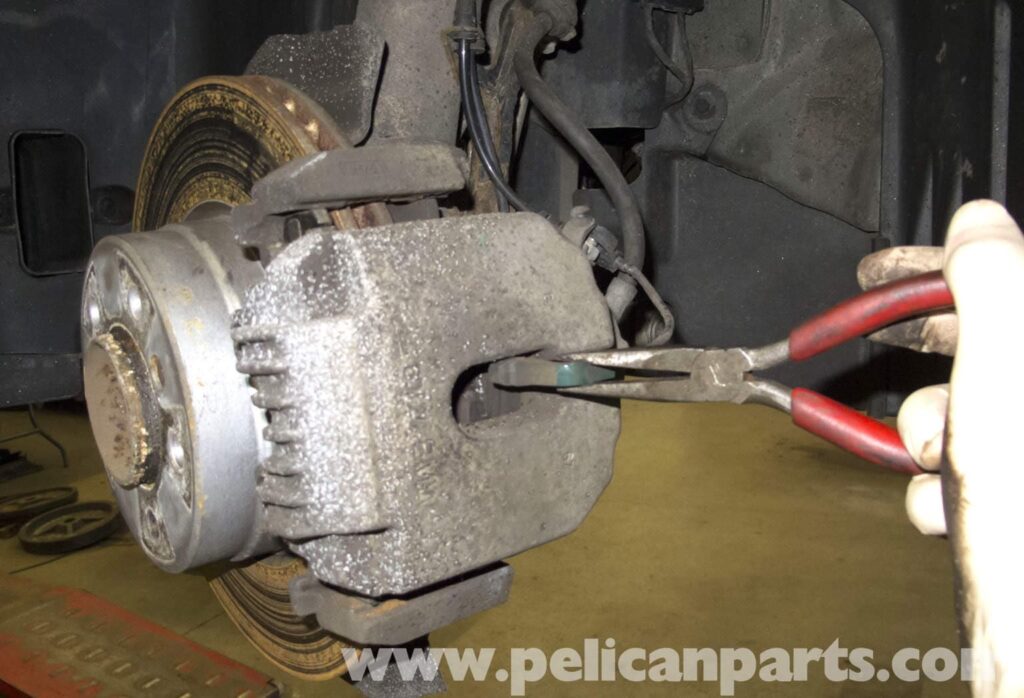

4. Remove the Old Sensor
Once located, you'll need to disconnect the sensor's electrical connector. This might involve pressing a release tab. Then, use your ratchet, extension, and the 5mm Allen bit to remove the retaining bolt that secures the sensor. Once the bolt is removed, you should be able to carefully pull the old sensor out of its mounting hole. It might be a tight fit, and a gentle wiggle or the use of a flathead screwdriver to carefully pry it loose might be necessary. Be cautious not to damage the wiring harness or the sensor's mounting point.
5. Prepare the New Sensor and Mounting Area
Before installing the new sensor, it's advisable to clean the mounting bore where the old sensor was seated. Remove any dirt, corrosion, or debris. Apply a small amount of Molykote Longterm 2 grease to the sealing surface of the new sensor. This specialized grease helps ensure a good seal and facilitates easier future removal, while also preventing seizing.
6. Install the New Sensor
Insert the new wheel speed sensor into its mounting bore. Ensure it is seated correctly. Reinstall the retaining bolt and tighten it securely, but do not overtighten, as this could strip the threads or damage the sensor. Reconnect the electrical connector, making sure it clicks into place.
7. Route Wiring and Secure
Inspect the wiring harness for any signs of damage, chafing, or corrosion. Properly route the wiring, ensuring it is not in a position where it can be snagged or damaged by moving suspension components or road debris. If the original wiring clips are damaged or missing, it's a good idea to replace them to keep the wiring securely in place. This complementary modification ensures the longevity of the repair.
8. Reconnect Battery and Test
Reconnect the vehicle's battery if you disconnected it earlier. Start the engine and check if the ABS and DSC warning lights have gone out. Take the vehicle for a test drive in a safe area, performing gentle braking and turning maneuvers to ensure the ABS and DSC systems are functioning correctly. If the warning lights persist, a further diagnostic scan may be necessary to identify any remaining issues.
Frequently Asked Questions (FAQs)
Q1: How do I know if my BMW E60 wheel speed sensor has failed?
The most common symptom is the illumination of the ABS and/or DSC warning lights on your dashboard. You might also notice a reduction in braking performance or that the ABS/DSC systems are not engaging as they should.
Q2: Can I drive my BMW E60 with a faulty wheel speed sensor?
While the car will likely still be drivable, it is not recommended. Driving with a faulty sensor means that your ABS and DSC systems will not function correctly, significantly compromising your vehicle's safety, especially during emergency braking or in adverse weather conditions.
Q3: Do I need a special tool to replace the wheel speed sensor?
You will need basic hand tools such as a ratchet, extension, and a 5mm Allen bit. A diagnostic scan tool is highly recommended for accurate diagnosis before replacing the sensor.
Q4: Are front and rear wheel speed sensors the same on a BMW E60?
No, generally the front and rear wheel speed sensors are different and specific to their location. Always ensure you purchase the correct part number for your vehicle.
Q5: How long does it take to replace a wheel speed sensor?
With the right tools and experience, replacing a single wheel speed sensor typically takes about 1 to 2 hours.
Q6: What is Molykote Longterm 2 grease used for?
This is a high-performance lubricant designed to provide long-lasting lubrication and protection against seizing and corrosion, particularly in areas with sliding metal-on-metal contact, such as the seating of the wheel speed sensor.
Conclusion
Replacing a faulty wheel speed sensor on your BMW E60 is a manageable DIY task that can restore the functionality of your vital ABS and DSC safety systems. By understanding the sensor's role, recognizing the symptoms of failure, and following a careful replacement procedure, you can ensure your E60 remains safe and reliable on the road. Remember to always prioritize safety, use the correct parts and tools, and don't hesitate to seek professional help if needed. Regular maintenance and prompt attention to warning lights are key to keeping your BMW in peak condition.
