Your Wheels' Silent Guardians: Axle Sensors

Embarking on a DIY car maintenance task, especially something as critical as a brake job, can feel like stepping into the unknown. Just like many of you, our recent reader shared their initial apprehension before tackling their brakes, only to find it surprisingly manageable. Their experience highlights a crucial point: with a bit of research and confidence, you can achieve impressive results. However, modern vehicles are far more complex than their predecessors, bristling with an array of sensors designed to enhance safety, performance, and driver awareness. This article delves into these often-overlooked components, specifically those found on your car’s front and rear axles, shedding light on their functions and their critical role, particularly during a brake service.

When you remove a wheel to inspect or replace brake components, you're not just looking at pads and discs; you're also in close proximity to a sophisticated network of sensors. Understanding what these sensors are, how many there typically are, and what they do is paramount for any DIY mechanic. It ensures not only a successful repair but also the continued optimal functioning and safety of your vehicle. Let's demystify these electronic sentinels.

How Many Sensors Are On Your Axles?

The number of sensors on your car's front and rear axles isn't a fixed figure; it varies significantly depending on the make, model, and year of your vehicle, as well as its specific features (e.g., all-wheel drive, advanced driver-assistance systems). However, there are a few primary types you'll almost certainly encounter:

• Wheel Speed Sensors (ABS Sensors): These are the most common and arguably the most vital sensors located at each wheel, therefore on both front and rear axles. Every modern car equipped with an Anti-lock Braking System (ABS) will have one of these at each wheel – meaning typically four in total, one per corner. They are crucial for a multitude of systems beyond just ABS.
• Brake Pad Wear Sensors: These are less universally present on all four wheels. Many vehicles, especially those in the UK market, will have brake pad wear sensors on the front axle, as the front brakes typically do the majority of the work and wear out faster. Some higher-end or performance vehicles may also feature them on the rear axle. Their purpose is simply to alert the driver when the brake pads have worn down to a critical level.
• Ride Height Sensors: While not directly related to braking, some vehicles with air suspension or adaptive damping systems will have ride height sensors positioned near the axles. These sensors monitor the distance between the chassis and the wheel, informing the suspension control module to adjust the ride height or damping characteristics. You might encounter these if your vehicle is equipped with such a sophisticated suspension system.

So, to answer the question directly: you can expect a minimum of four wheel speed sensors (one per wheel, on both front and rear axles). You will likely have at least two brake pad wear sensors on the front axle, and possibly two more on the rear. Ride height sensors are less common but present on specific vehicle types.

The Critical Role of Wheel Speed Sensors (ABS Sensors)

These small but mighty sensors are the backbone of several critical safety systems in your vehicle. Located typically near the wheel hub or on the steering knuckle, they monitor the rotational speed of each wheel. They work by detecting the passing teeth of a reluctor ring (also known as a tone ring or ABS ring) attached to the wheel hub or driveshaft. As the wheel spins, the sensor sends a series of pulses to the car's Electronic Control Unit (ECU), which interprets these pulses as wheel speed data.

Functions of Wheel Speed Sensors:

• Anti-lock Braking System (ABS): This is their primary and most well-known function. If you brake hard and a wheel starts to lock up, the ABS system, fed by the wheel speed sensor data, rapidly pulses the brake pressure to that wheel, preventing it from skidding and allowing you to maintain steering control.
• Traction Control System (TCS): When accelerating, if a wheel begins to spin excessively (losing traction), the TCS uses wheel speed data to apply brake pressure to that wheel or reduce engine power, helping to regain grip.
• Electronic Stability Control (ESC) / Electronic Stability Program (ESP): This advanced system uses wheel speed sensor data, along with input from a steering angle sensor and yaw rate sensor, to detect if the vehicle is veering off its intended path (understeer or oversteer). It can then selectively apply brakes to individual wheels and/or reduce engine power to help stabilise the vehicle.
• Cruise Control: Many modern cruise control systems rely on wheel speed data for accurate speed maintenance.
• Tyre Pressure Monitoring System (TPMS - Indirect): Some TPMS systems are indirect, meaning they don't use individual pressure sensors in each tyre. Instead, they monitor wheel speed. If a tyre loses pressure, its rolling circumference changes slightly, causing it to rotate at a different speed compared to the other tyres. The wheel speed sensors detect this discrepancy and trigger a warning.

Given their multifaceted importance, it's clear why these sensors are so critical. A faulty wheel speed sensor can illuminate your ABS, TCS, or ESC warning lights and compromise your vehicle's safety features.

Brake Pad Wear Sensors: Your Early Warning System

Brake pad wear sensors are a simpler, yet incredibly useful, type of sensor. Their sole purpose is to alert the driver when the brake pads have worn down to a point where they need replacing. This prevents metal-on-metal grinding, which can severely damage your brake discs and lead to costly repairs.

How They Work:

There are two main types:

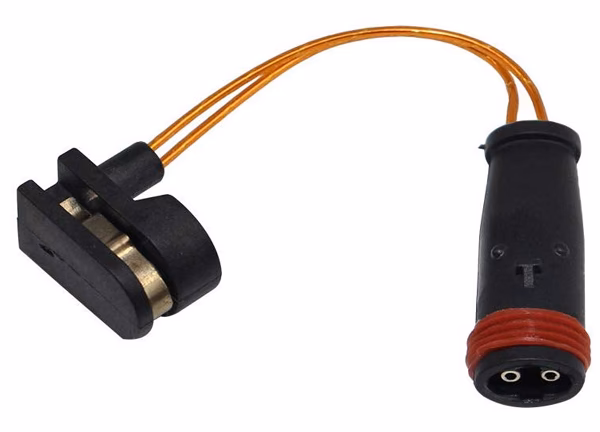

• Electrical Wear Sensors: These are the most common. They consist of a small electrical circuit embedded within the brake pad material or attached to it. As the brake pad wears down, the sensor makes contact with the brake disc, or the embedded wire itself wears through and breaks the circuit. This broken circuit triggers a warning light on your dashboard, usually a yellow or orange symbol resembling a circle with dashed lines on either side.
• Mechanical Wear Indicators: While not an electronic sensor, many brake pads still incorporate a mechanical wear indicator – a small metal tab that scrapes against the brake disc when the pad is low, producing a distinctive squealing sound. This serves the same purpose as an electronic sensor but without the dashboard light.

When performing a brake job, especially on the front axle, it's crucial to check for these sensors. If your old pads had them, your new pads should also come with them, or you may need to purchase new sensors separately and ensure they are properly connected. Failing to connect them will either leave the warning light on or prevent it from ever coming on when the pads wear, leaving you without a vital alert.

The Brake Job: Sensor Awareness is Key

Our reader's experience of a 40-minute per side brake job for their first time, and a projected 20 minutes for subsequent attempts, is a testament to the fact that with good preparation, this is a very achievable DIY task. However, being aware of the sensors significantly enhances the quality and safety of your work.

Steps for a DIY Brake Job with Sensor Considerations:

1. Safety First: Always start by parking on a level surface, engaging the handbrake, and chocking the wheels not being worked on. Loosen the wheel nuts slightly. Jack up the car safely using appropriate jack points and place axle stands underneath. Never rely solely on the jack.
2. Remove the Wheel: Fully remove the wheel nuts and take off the wheel (or "tyre" as we say in the UK).
3. Initial Inspection: Before touching anything, take a moment to observe the brake assembly. Locate the brake caliper, brake pads, and disc. Crucially, look for any wires leading to the brake pads (wear sensors) and wires leading to the wheel hub area (ABS sensors). Note their routing.
4. Disconnect Sensors (if present): If your brake pads have wear sensors, carefully follow the wire back to its connector and disconnect it. This connector is usually a small plastic plug. Be gentle, as old plastic can be brittle. For ABS sensors, unless you are replacing the sensor itself, you generally won't need to disconnect it for a standard pad and disc replacement, but be mindful of its location and avoid bending or stressing the wire.
5. Compress the Caliper Piston: Using a suitable tool (e.g., a C-clamp and old brake pad, or a dedicated caliper piston compression tool), slowly and evenly push the caliper piston back into its bore. This creates space for the new, thicker pads.
6. Remove Caliper Bolts: Locate the two guide pin bolts (often with rubber boots) that hold the caliper to the caliper bracket. Loosen and remove these bolts.
7. Remove Caliper and Old Pads: Carefully slide the caliper off the disc. You may need to wiggle it slightly. Support the caliper (e.g., with a bungee cord or wire) so it doesn't hang by the brake hose, which can damage the hose. Now you can easily remove the old brake pads from the caliper bracket.
8. Remove the Brake Disc (if replacing): If you're replacing the disc, there might be a small retaining screw holding it to the hub. Remove this, then pull the disc off. If it's stuck, a few taps with a rubber mallet on the rear side can help.
9. Clean the Hub: Use a wire brush or sandpaper to clean any rust or debris from the wheel hub surface where the new disc will sit. This ensures proper seating and prevents disc run-out.
10. Install New Brake Disc: Place the new disc onto the hub, ensuring it sits flush. Reinstall any retaining screws.
11. Install New Brake Pads and Sensors: Slide the new brake pads into the caliper bracket. If your new pads have wear sensors, ensure they are correctly fitted into the designated slot on the pad.
12. Connect New Sensors: Carefully connect the new brake pad wear sensor wires to their corresponding connectors. Ensure the routing of the wires is correct and they are secured away from any moving parts or hot surfaces.
13. Reinstall Caliper: Slide the caliper back over the new pads and disc. Ensure the guide pins align with their holes. Reinstall and tighten the caliper guide pin bolts to the manufacturer's specified torque.
14. Bleed Brakes (if necessary): For a standard pad and disc replacement, bleeding is usually not required unless you opened the brake lines or pushed the pedal while the caliper was off. However, if the pedal feels spongy after the job, a bleed is essential.
15. Reinstall Wheel: Place the wheel back on the hub, hand-tighten the wheel nuts, lower the car until the wheel just touches the ground, then fully tighten the wheel nuts in a star pattern to the correct torque specification.
16. Final Checks: Before driving, pump the brake pedal several times until it feels firm. This reseats the caliper pistons against the new pads. Check the brake fluid reservoir level. Take a slow test drive, listening for unusual noises and checking for any warning lights on the dashboard.

Table 1: Common Axle Sensors and Their Functions

Table 2: Brake Job Steps & Sensor Considerations

Frequently Asked Questions About Axle Sensors and Brake Jobs

Q1: Will my ABS light come on if I damage a wheel speed sensor during a brake job?

A1: Absolutely. If a wheel speed sensor is damaged, disconnected, or its wiring is compromised, the Anti-lock Braking System (ABS) will detect a fault. This will almost certainly illuminate the ABS warning light on your dashboard, and often the Traction Control System (TCS) and Electronic Stability Control (ESC) lights as well, as these systems rely heavily on wheel speed data. Your regular hydraulic brakes will still function, but without the ABS safety features.

Q2: Do I need to replace brake pad wear sensors every time I do a brake job?

A2: If your vehicle has electrical brake pad wear sensors, yes, it's highly recommended to replace them when you replace your brake pads. This is because the sensor itself is designed to wear down or break its circuit when the pads are low. Reusing an old sensor means it might already be compromised or will fail to function correctly with the new, thicker pads. Many new brake pad sets come with new sensors, or they are available separately.

Q3: My brake warning light is on after my DIY brake job. What should I check?

A3: First, check the brake fluid level. If you compressed the calipers without opening the bleed nipple, the fluid level might have risen too high or perhaps was low to begin with. Second, and most importantly for this discussion, check the connections of any brake pad wear sensors you disconnected or installed. Ensure they are fully seated and not damaged. If the light persists, or if it's an ABS/TCS/ESC light, you may need to check the wheel speed sensor connections or have the fault codes read with a diagnostic scanner.

Q4: Can I drive my car with a faulty ABS sensor?

A4: While your vehicle's fundamental hydraulic braking system will still work, driving with a faulty ABS sensor means your Anti-lock Braking System, Traction Control System, and Electronic Stability Control systems are likely disabled. This significantly reduces your vehicle's safety in emergency braking situations or on slippery surfaces, as the wheels could lock up or spin out of control. It is strongly advised to have it checked and repaired as soon as possible.

Q5: How can I tell if a wheel speed sensor is faulty?

A5: The most common symptom is the illumination of the ABS, TCS, or ESC warning lights on your dashboard. Sometimes, you might also notice erratic speedometer readings or issues with cruise control. A definitive diagnosis usually requires a diagnostic scan tool that can read fault codes from the ABS module and monitor live data from each wheel speed sensor.

Q6: Are axle sensors difficult to replace?

A6: Replacing brake pad wear sensors is generally straightforward, as they are usually plug-and-play. Wheel speed sensors can be a bit more involved. They might be bolted in place and sometimes seize due to rust, requiring some persuasion to remove. The wiring harness can also be intricate. However, with the right tools and patience, many DIY mechanics can tackle them. Always ensure you get the correct part for your specific vehicle model.

Conclusion

The modern automobile is a marvel of engineering, and much of its safety and performance relies on a sophisticated network of electronic sensors. The sensors on your front and rear axles – primarily wheel speed sensors and brake pad wear sensors – are silent guardians, constantly monitoring critical aspects of your vehicle's operation. Understanding their function and being mindful of them during maintenance tasks like a brake job is no longer just for professional mechanics; it's an essential part of being an informed and capable DIY enthusiast. By paying attention to these small but mighty components, you not only ensure the longevity of your repairs but, more importantly, the continued safety and reliability of your vehicle on the road. Embrace the knowledge, and your next car maintenance project will undoubtedly be even smoother and more confident.
