Head Gasket Replacement: Time, Cost & Process

A blown head gasket can be one of the most daunting issues for any car owner. It’s a serious problem that requires immediate attention and, unlike many minor repairs, it’s far from a quick fix. Understanding the intricacies of a head gasket replacement, from its function to the detailed process and the time your vehicle will be off the road, is crucial for managing expectations and ensuring a lasting repair.

What is a Cylinder Head Gasket and Why is it So Crucial?

At the very heart of your engine's combustion process lies the cylinder head gasket, a vital component providing the essential seal between the engine block and the cylinder head. Its primary role is twofold: firstly, to maintain the precise compression required for your engine to run efficiently, and secondly, to prevent the catastrophic mixing of engine oil and coolant. Without a robust seal, your engine's internal fluids could cross-contaminate, leading to severe damage, and the combustion gases could escape, causing a significant loss of power.

Modern cylinder head gaskets are typically engineered as multi-layer steel (MLS) gaskets, comprising several thin layers, usually of steel and elastomer. This advanced construction allows them to withstand the extreme pressures and temperatures within the engine. The gasket is meticulously positioned between the mating surfaces of the cylinder block and the cylinder head. Once in place, the cylinder head bolts are tightened to a manufacturer-specified torque, compressing the gasket to create an impermeable seal that effectively joins the upper and lower halves of your engine.

Spotting a Faulty Head Gasket: Key Symptoms

While some symptoms of a failing cylinder head gasket can be subtle, most are quite apparent and demand immediate investigation. Recognising these signs early can prevent further, more extensive engine damage:

• Cream-like consistency in oil or coolant: Often described as 'mayonnaise' or 'sludge', this visible mixing of oil and coolant can be found on your engine oil dipstick or inside the coolant header tank. It’s a definitive sign of internal leakage.
• Coolant overflowing from the header tank: This can indicate combustion gases entering the cooling system, creating excessive pressure that forces coolant out.
• Unexplained loss of coolant: If your coolant levels are consistently dropping without any visible external leaks, the coolant may be burning off internally or mixing with the oil.
• Difficulty in starting the engine: Coolant leaking into a cylinder can hydrolock the engine, making it hard to turn over.
• Evidence of exhaust gases in the cooling system: A specialist test can confirm the presence of combustion gases in your coolant, a clear indicator of a gasket breach.
• Poor engine compression: A compromised seal will lead to a loss of compression in one or more cylinders, resulting in reduced engine power and efficiency.

The Cylinder Head Gasket Replacement Process: A Step-by-Step Guide

Replacing a cylinder head gasket is a complex and labour-intensive task that varies slightly between different engine designs but generally follows a core set of procedures. It's not a job for the faint-hearted or inexperienced DIY enthusiast.

1. Initial Assessment & Diagnosis: The mechanic will first confirm that the head gasket is indeed the culprit, often via compression tests or cooling system pressure tests.
2. Fluid Drainage: Both the engine oil and coolant will be completely drained to prevent spillage and contamination during disassembly.
3. Component Removal: Numerous components, including the rocker cover, intake manifold, exhaust manifold, and various hoses and wiring, must be carefully removed to gain access to the cylinder head bolts.
4. Engine Timing Lock: The engine's timing (camshaft and crankshaft positions) is precisely locked using specialised pins and tools to ensure correct reassembly.
5. Timing System Disassembly: The timing belt will be removed, or the timing chain loosened and moved off the camshaft sprockets.
6. Cylinder Head Removal: The cylinder head bolts are unfastened in a specific, manufacturer-prescribed sequence to prevent warping of the head. Once all bolts are out, the cylinder head is carefully lifted from the engine block.
7. Surface Preparation: All residue from the old gasket is meticulously cleaned from both the cylinder head and engine block surfaces. This step is absolutely critical for a successful new seal.
8. Pressure Testing and Skimming: In the vast majority of cases, the removed cylinder head will need to be sent off to a specialist engineering shop for a pressure test and a process called 'skimming' (or resurfacing). The pressure test verifies the head's structural integrity, ensuring there are no hidden cracks. Skimming then ensures the mating surface where the new gasket will sit is perfectly flat and clean, removing any distortion caused by overheating or the failed gasket. This is a non-negotiable step for a durable repair.
9. Reassembly with New Gasket: Once the cylinder head is returned from skimming, the engine is carefully reassembled with a brand-new cylinder head gasket.
10. Timing System Reinstallation: If the engine uses a timing belt, a new one will always be fitted, along with a new water pump if it's on the timing belt circuit. Timing chains are typically reused unless specified otherwise.
11. Fluid Replenishment & Filtration: The cooling system is refilled, and the engine oil is replenished with a new oil filter. If contamination occurred, an additional oil or coolant flush may be necessary.
12. Engine Run-up & Testing: The mechanic will start the engine, checking for leaks, proper operation, and ensuring all systems are functioning correctly.
13. Road Test & Final Checks: A thorough road test confirms everything works as it should under various conditions. Any diagnostic error codes are then cleared and re-checked.

It's important to reiterate that this is a general overview; each engine has its unique requirements and potential complexities.

How Long Does a Head Gasket Replacement Take?

The question of "how long" is often at the forefront of a car owner's mind when faced with a head gasket failure. This is not a repair that can be rushed or completed in a single day. The process involves multiple stages, some of which require external specialist services. Here’s a typical breakdown of the time your car will be out of action:

Typical Timeline for Head Gasket Replacement

The overall duration for a head gasket replacement can vary, but generally, you should expect your vehicle to be off the road for several days. This accounts for both the mechanic's labour and the crucial time needed for external engineering work on the cylinder head.

While the mechanic's hands-on labour might be completed within 48-72 hours, the crucial step of sending the cylinder head for pressure testing and skimming adds significant time to the overall process. This external work is paramount for ensuring the longevity of the repair and cannot be skipped.

Understanding the Cost and What's Included

A cylinder head gasket replacement is typically a medium to high-cost repair. The exact figure will largely depend on your specific car model, its engine type, and the manufacturer's recommended parts. However, a reputable quote for this repair should generally cover the following:

• The cost of all necessary parts for your vehicle, including the new gasket.
• The mechanic's labour, including coming to your location if it's a mobile service.
• The crucial process of removing, cleaning, and sending the cylinder head away for pressure testing and skimming.
• The fitting of all new and reconditioned parts.
• Disposal of the old parts (unless you specifically request to keep them).
• VAT (if applicable).
• A 12-month parts and labour warranty, providing peace of mind.

When comparing quotes, always ensure they explicitly include the cylinder head pressure test and skimming. These steps are often overlooked in cheaper quotes but are vital for a lasting repair, and can add significant unexpected costs later if not included upfront.

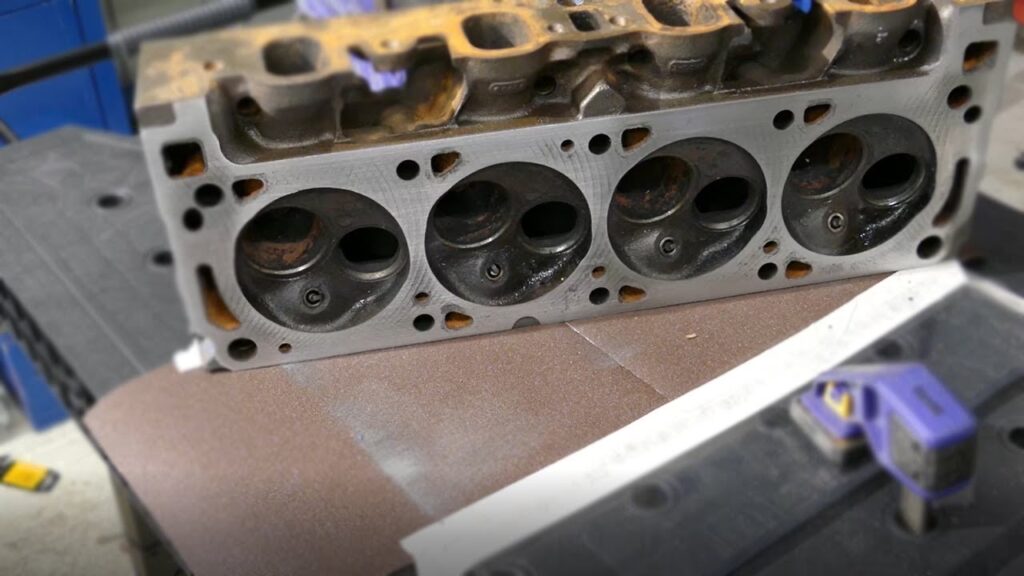

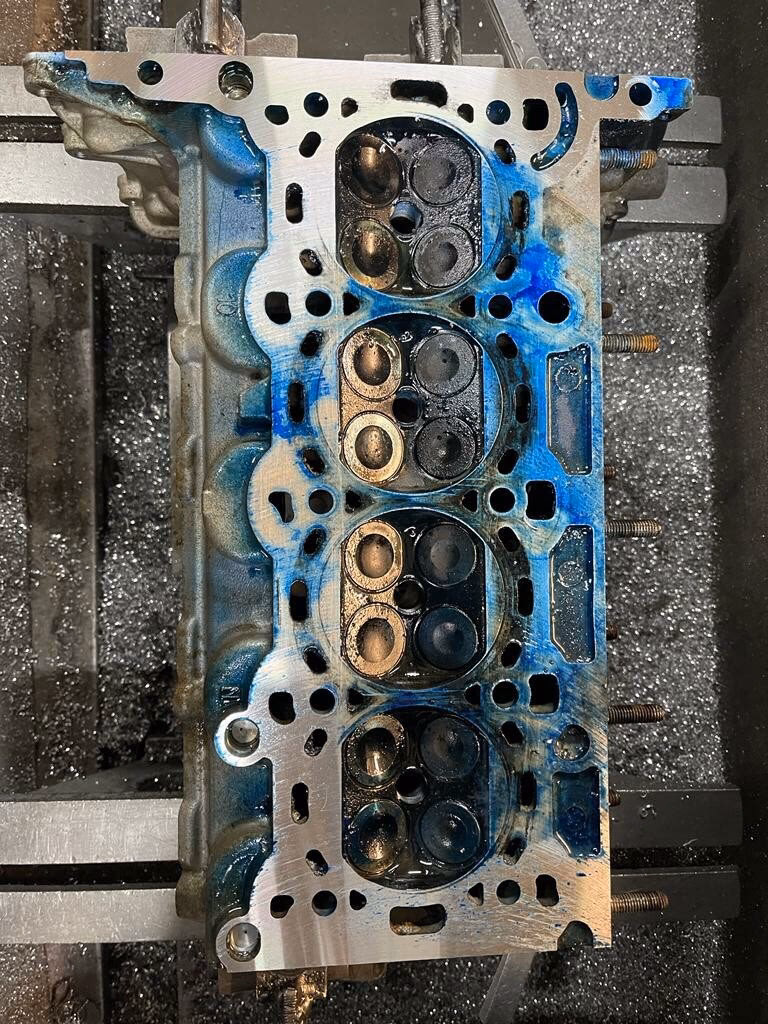

Why Skimming Your Cylinder Head is Non-Negotiable

The importance of skimming (or resurfacing) your cylinder head after a head gasket failure cannot be overstated. When an engine overheats, or a head gasket blows, the extreme heat and pressure can cause the cylinder head, particularly aluminium heads, to distort or warp. Even a distortion equivalent to less than a hair's thickness can be enough to prevent a new gasket from sealing correctly.

Experiences from seasoned mechanics and car enthusiasts consistently highlight this point. Aluminium heads are particularly prone to warping when subjected to a 'run of heating'. If a distorted head is refitted without being skimmed, it is highly likely that the newly installed head gasket will fail again, often within a short period. Skimming creates a perfectly flat surface, allowing the new gasket to form a complete and durable seal between the head and the block. Without this, you're essentially building on a faulty foundation.

Beyond warping, cylinder heads can also suffer from corrosion, especially around coolant passages. This is common in older cast iron heads and can also occur in aluminium heads due to incorrect coolant usage or prolonged exposure to escaping coolant from a blown gasket. Corrosion can lead to small porous areas, which compromise the seal. Pressure testing before skimming helps identify these issues, ensuring that the head is in sound condition to be reused.

Even if there's no obvious sign of a blown gasket, but the head has been removed (e.g., after a timing belt failure causing valve damage), it's still advisable to skim it. Any slight distortion over time, invisible to the naked eye, could lead to future problems. Investing in a skim at this stage can save significant time and money down the line, preventing a potential future head gasket failure.

Frequently Asked Questions (FAQs)

I have another quote which is quite a bit different from yours. Why?

When comparing quotations for a head gasket replacement, it's absolutely crucial to ensure that all quotes include the cylinder head pressure test and skimming. Furthermore, if your engine is driven by a timing belt, confirm that its replacement is also quoted. Not all companies will include these vital steps upfront, often adding them as additional costs once work has commenced and they advise you they are necessary. Always get a detailed breakdown of what's covered.

Does my cylinder head get tested and skimmed?

Unless specifically stated to the contrary, any reputable head gasket replacement service will include a pressure test and surface skimming of your cylinder head. Without performing these steps, the mechanic cannot be certain that the head is in good enough condition to be reused, significantly increasing the risk of premature failure of the new gasket.

How long will my car be out of action for?

As with all major, invasive engine work, this repair cannot be rushed. The initial strip-down is typically performed on the first day. There will then be a period of 2-4 days while the cylinder head is sent off for testing and preparation (skimming) at a specialist engineering shop. Following its return, the final day is dedicated to reassembly and thorough testing. Replacing a cylinder head gasket is definitively not a simple, same-day repair.

Can you reuse my timing belt?

Under no circumstances can a timing belt be refitted, regardless of how recently it was changed. Even the slightest nick or stretch in the belt can lead to catastrophic engine failure within a few miles if reused. A new timing belt is a mandatory replacement during a head gasket job if your engine utilises one.

I have only just had my water pump changed. Can it be reused?

If your water pump was very recently changed and is driven by the timing belt, then, at the mechanic's discretion, it may be reused. However, given the labour involved, many mechanics will still recommend replacement as a preventative measure to avoid future issues.

Will a new timing chain be fitted?

Unless specifically requested as part of your quote, the timing chain and its guides will generally not be replaced during a standard head gasket job. Timing chains are designed for the life of the engine, unlike belts, and typically only require replacement if they show signs of wear or stretch.

Can I supply my own parts?

Generally, no. Most reputable repair services will not fit customer-supplied parts unless they are a brand-new item, purchased directly from a dealership, with a valid receipt as proof of purchase. This strict policy is in place due to insurance and warranty issues, ensuring the quality and compatibility of components used for the repair.

What happens if the mechanic finds that the head gasket doesn’t require changing and the problem is due to another issue?

In this scenario, the mechanic will provide a no-obligation quote for the correct repair. Should you accept this, the booking can be altered accordingly. If you decide not to proceed with the alternative repair, the booking will be adjusted to a call-out and diagnostic service, with charges applied based on the time spent with the vehicle and the call-out fee.

A cylinder head gasket replacement is a significant undertaking, but a professional and thorough repair will restore your vehicle's reliability and performance. Understanding the process, the time involved, and the necessity of steps like skimming will empower you to make informed decisions and ensure your car is back on the road safely and efficiently.
