Oil Pan Gasket Replacement: A Complete Guide

Understanding and Replacing Your Oil Pan Gasket

Over time, the inevitable wear and tear on a vehicle can lead to various issues, and oil leaks are a common symptom of an aging engine. Among these, leaks originating from the oil pan gasket are particularly frequent. The oil pan gasket, a crucial seal between the oil pan and the engine block, ensures that your engine's vital lubricating oil stays contained. When this gasket degrades, often due to drying and cracking with age and mileage, oil can escape, leading to those tell-tale stains on your driveway. Fortunately, replacing an oil pan gasket is a manageable task for most DIY enthusiasts with basic mechanical skills and a standard set of tools.

How Long Does It Typically Take?

For many vehicles, the actual process of replacing an oil pan gasket is surprisingly quick. In most scenarios, the time spent gathering your supplies and safely lifting the vehicle to gain access to the underside will actually take longer than the repair itself. You can generally expect to complete an oil pan gasket replacement in under an hour. However, it's important to acknowledge that some car models present a more complex challenge. In these instances, components of the steering or suspension system may need to be removed to allow the oil pan to be dropped. If your vehicle falls into this category, the repair could take significantly longer. This is precisely why consulting a model-specific service manual is highly recommended before you begin.

Essential Tools and Materials for the Job

To ensure a smooth and efficient oil pan gasket replacement, having the correct tools and materials on hand is paramount. Here's a comprehensive list of what you'll need:

Step-by-Step Guide to Replacing Your Oil Pan Gasket

Follow these detailed steps to successfully replace your vehicle's oil pan gasket:

Step 1: Safely Lift the Vehicle

For most cars and vans with limited ground clearance, raising the vehicle is necessary to access the oil pan. Use a reliable floor jack to lift the vehicle, and then secure it with jack stands placed at the manufacturer-recommended support points. Alternatively, you can use automotive ramps. Ensure the vehicle is stable before proceeding.

Step 2: Verify Vehicle Stability

Before you even think about crawling underneath, double-check that your jack stands are firmly in place and that the vehicle is completely stable and secure. Your safety is the absolute priority.

Step 3: Drain the Old Engine Oil

Position your oil drain pan beneath the oil pan's drain plug. Remove the drain plug using the appropriate wrench or socket and allow all the old engine oil to drain completely. Once drained, reinstall the drain plug, ensuring it's snug but not overtightened. Remember to dispose of the used oil responsibly, adhering to all local and state environmental regulations.

Step 4: Remove Any Obstructions

On some vehicles, you might find additional brackets, exhaust components, or starter motor parts that obstruct access to the oil pan bolts. Carefully remove these components as needed. Keep track of all bolts and their locations; using a labelled container or a magnetic tray can be very helpful.

Step 5: Lower the Oil Pan

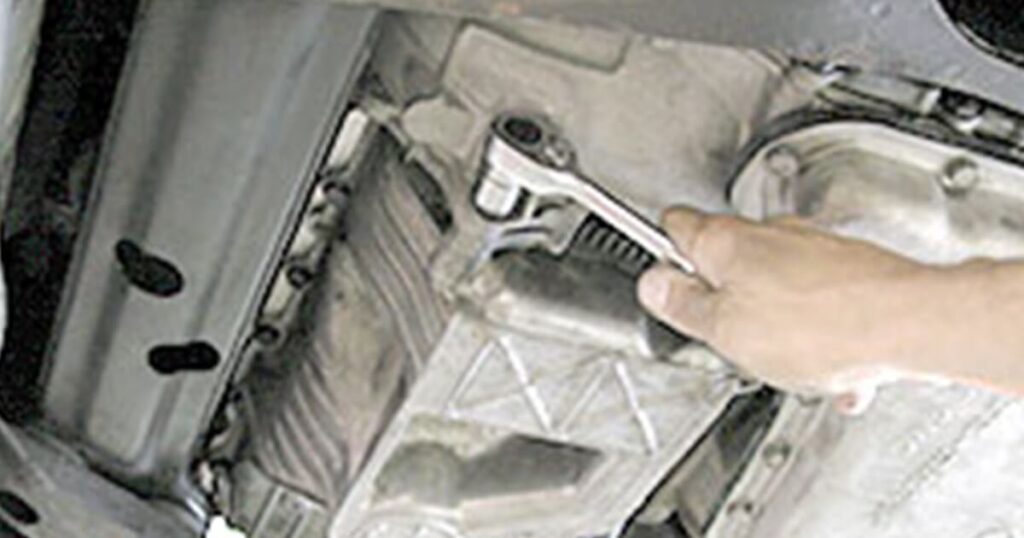

Using your ratchet and socket set or wrenches, begin to loosen and remove the oil pan bolts. It's often a good idea to leave a couple of bolts partially threaded in on opposite sides of the pan. This allows the pan to hang slightly, enabling any residual oil to drain out before you fully remove it. Once you're sure all oil has drained, remove the remaining bolts and carefully lower the oil pan from the engine block. Be prepared for a small amount of oil to still drip out.

Step 6: Clean the Mating Surfaces

This is a critical step for ensuring a good seal. Using your gasket scraper, meticulously remove all traces of the old gasket material and any sealant residue from both the engine block's mounting surface and the flange of the oil pan itself. Be careful not to gouge or scratch these surfaces, as damage can lead to new leaks. A clean, smooth surface is essential for the new gasket to perform effectively.

Step 7: Install the New Gasket and Reassemble

Apply a thin bead of RTV silicone sealant or the manufacturer-recommended sealant to the oil pan flange or the engine block, as specified in your service manual. Carefully position the new oil pan gasket onto the oil pan or the block, ensuring it aligns correctly with the bolt holes. Some gaskets have small locating pins or adhesive backing to help keep them in place. Re-attach the oil pan to the engine block, making sure the gasket remains properly seated. Install the oil pan bolts and tighten them progressively in a criss-cross or star pattern. This even tightening ensures the gasket is compressed uniformly. Finally, torque the bolts to the manufacturer's specified torque value using a torque wrench. Overtightening can damage the gasket or the oil pan, while undertightening can lead to leaks.

Step 8: Refill with Fresh Engine Oil

With the oil pan securely reinstalled, lower the vehicle back to the ground. Open the bonnet and locate the oil fill cap. Using a funnel, pour the correct type and amount of fresh engine oil into the crankcase as specified in your owner's manual. Once filled, replace the oil fill cap and start the engine. Let it run for a few minutes, checking for any leaks around the new gasket. After a short run, shut off the engine, wait a few minutes for the oil to settle, and then check the oil level on the dipstick, topping up if necessary. Keep an eye out for any leaks over the next few days.

Frequently Asked Questions (FAQs)

Q1: Can I just use RTV sealant instead of a gasket?
While RTV sealant can be used in conjunction with some gaskets or as a replacement in specific applications (as per manufacturer recommendations), it's generally not a complete substitute for a proper gasket. Gaskets provide a more consistent and reliable seal, especially under varying temperatures and pressures.

Q2: How tight should I torque the oil pan bolts?
Always refer to your vehicle's service manual for the exact torque specifications. Overtightening can strip threads or crack the oil pan, while undertightening will cause leaks. Using a torque wrench is the best way to ensure accuracy.

Q3: What if I damage the oil pan while removing it?
If the oil pan is significantly bent or damaged, it may need to be replaced. Minor bends on the flange might be carefully straightened with a mallet and block of wood, but ensure the mating surface remains flat for a proper seal.

Q4: Do I need to replace the oil filter at the same time?
While not strictly necessary for an oil pan gasket replacement, it's good practice to change your oil filter whenever you change your engine oil. If you're draining the oil anyway, this is the perfect opportunity to do so.

When to Call a Professional

While this is a very doable DIY job for many, there are instances where seeking professional help might be wiser. If your vehicle requires extensive disassembly of other components to access the oil pan, if you lack the necessary tools (especially a torque wrench), or if you're simply not comfortable working under your vehicle, a qualified mechanic can perform the replacement efficiently and correctly. Driving with a significant oil leak can lead to severe engine damage, so addressing the issue promptly is always recommended.
