How Much MOT Type 1 Hardcore Do You Need?

Embarking on any construction project, whether it's a new driveway, a pristine patio, or a sturdy shed base, requires a solid foundation. And when it comes to creating that foundation, MOT Type 1 hardcore is often the unsung hero. Getting the quantity right isn't just about saving money; it's about ensuring the structural integrity and longevity of your entire project. Too little, and you'll face delays and potential instability; too much, and you're left with surplus material and wasted funds. So, how do you determine precisely how much MOT Type 1 hardcore you need?

This comprehensive guide will demystify the process, from understanding what MOT Type 1 is to providing practical calculation methods and essential tips for a flawless sub-base. Let's dig in!

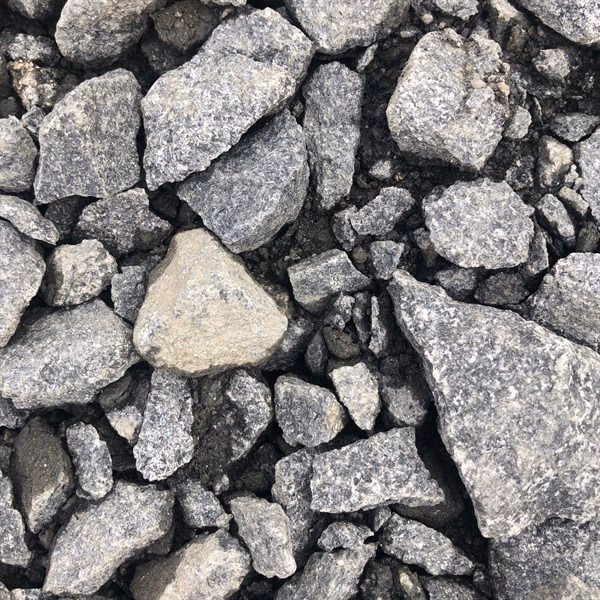

What Exactly is MOT Type 1 Hardcore?

MOT Type 1 hardcore is a specifically approved granular sub-base material, meticulously engineered to meet stringent standards set by the Department of Transport's Specification for Highway Works. This means it's not just any old crushed material; it's a carefully graded product designed for maximum strength, stability, and load-bearing capabilities.

Primarily, MOT Type 1 is composed of crushed concrete, a sustainable choice derived from recycled construction materials. However, its composition can also include other robust aggregates such as limestone, gritstone, and granite. This blend of hard stone and finer particles (like sand) ensures that when compacted, it forms an incredibly dense, stable, and interlocking layer. It's this precise composition that makes it ideal for creating a flat, even, and highly supportive surface, ready to receive a final top coating of asphalt, concrete, shingle, or block paving.

The 'MOT' in its name refers to its compliance with the Ministry of Transport's standards, assuring you that it's fit for purpose, particularly for high-traffic areas like roads and public pathways. Its ability to withstand significant loads and provide excellent drainage, especially when limestone is present, makes it a top-tier choice for a variety of applications.

Why is MOT Type 1 the Go-To Sub-Base Material?

The versatility and robust properties of MOT Type 1 hardcore make it an indispensable material in numerous construction scenarios. Its hardwearing nature provides a stable, load-bearing layer that is crucial for the longevity of any overlaid surface. Here are some of its primary uses:

• Roads and Driveways: It forms the critical sub-layer beneath tarmac or block paving, distributing the weight of vehicles evenly and preventing subsidence.
• Patios and Pathways: For garden spaces, it provides a firm, level foundation that prevents paving slabs from shifting or cracking over time.
• Artificial Grass Bases: A layer of MOT Type 1, properly compacted, offers excellent drainage and a stable base for artificial lawns, preventing dips and ensuring a smooth surface.
• Shed and Outbuilding Bases: It creates a solid, level footing that protects structures from damp and provides a secure anchor point.
• Building Foundations: In some cases, it can be used as a sub-base for smaller building foundations, providing crucial support.

Crucially, while it is inherently a hard material, it must be thoroughly compacted. This process eliminates voids and gaps, significantly enhancing its supportive quality and ensuring a truly solid foundation for any subsequent layers. Without proper compaction, even the best MOT Type 1 will compromise its potential.

The Million-Dollar Question: How Much MOT Type 1 Do You Actually Need?

Calculating the correct quantity of MOT Type 1 is simpler than you might think, but it requires accurate measurements and an understanding of a key factor: compaction. Aggregates like MOT Type 1 will compact down, reducing their initial volume. A good rule of thumb is to account for approximately 20-25% compaction. This means if you want a final compacted depth of 100mm, you'll need to order enough material for an uncompacted depth of around 120-125mm.

The Basic Calculation Formula

The fundamental formula for calculating the volume of material needed is:

Length (m) × Width (m) × Desired Compacted Depth (m) = Volume in Cubic Metres (m³)

Once you have this volume, you need to add the allowance for compaction. A straightforward way to do this is to multiply your calculated volume by 1.25 (to account for 20% compaction) or 1.3 (for 23% compaction, a common figure for Type 1). Let's use 1.25 for simplicity, meaning you'll order 25% more than your final desired compacted volume.

Example 1: A Small Patio

• Area: 4 metres long x 3 metres wide
• Desired Compacted Depth: 0.1 metres (100mm)

Calculation:

1. Volume (compacted): 4m × 3m × 0.1m = 1.2 m³
2. Add compaction allowance (1.25 multiplier): 1.2 m³ × 1.25 = 1.5 m³

You would need to order approximately 1.5 cubic metres of MOT Type 1.

Example 2: A Medium Driveway

• Area: 10 metres long x 4 metres wide
• Desired Compacted Depth: 0.15 metres (150mm)

Calculation:

1. Volume (compacted): 10m × 4m × 0.15m = 6 m³
2. Add compaction allowance (1.25 multiplier): 6 m³ × 1.25 = 7.5 m³

You would need to order approximately 7.5 cubic metres of MOT Type 1.

Understanding Bulk Bag Coverage

Many suppliers offer MOT Type 1 in convenient bulk bags. The typical coverage for a standard bulk bag (often around 800-1000kg) is approximately 15 square metres at a depth of 5cm (0.05m). Let's convert this to cubic metres to see the volume per bag:

15m × 1m × 0.05m = 0.75 m³

So, one bulk bag typically contains about 0.75 cubic metres of material. If your calculation yields, say, 3 m³, you would need 3 / 0.75 = 4 bulk bags. Always check the specific volume or weight of the bulk bags offered by your supplier, as they can vary.

Handy Quantity Guide Table (Approximate, including compaction allowance)

Note: These figures include a 25% compaction allowance. Always measure your specific area accurately.

Factors Influencing Your MOT Type 1 Needs

While the basic calculation provides a solid starting point, several other factors can influence the precise amount of MOT Type 1 you'll need:

• Project Type and Load: A pedestrian pathway will require a shallower sub-base than a driveway supporting heavy vehicles. Driveways typically need 150-200mm (6-8 inches) compacted depth, whereas patios might be 100-150mm (4-6 inches) and shed bases 50-100mm (2-4 inches).
• Existing Ground Conditions: If your ground is very soft, boggy, or unstable, you might need a deeper sub-base or an additional layer of geotextile membrane beneath the MOT Type 1 to prevent it from sinking into the soil.
• Desired Finished Level: Always factor in the thickness of your top layer (paving slabs, tarmac, decking frame) when excavating and calculating your sub-base depth. You want your finished surface to be flush with surrounding areas or at the correct height for drainage.
• Compaction Method: While we account for typical compaction, the method used can slightly alter the final density. A heavy-duty plate compactor will achieve better compaction than a hand tamper.
• Waste and Spillage: It's always wise to add a small contingency (e.g., 5-10%) to your final calculated amount to account for minor spillage, uneven ground, or last-minute adjustments. It’s far better to have a little extra than to run short mid-project.

The Importance of Proper Compaction

Ordering the right amount of MOT Type 1 is only half the battle; proper compaction is equally, if not more, important. Without it, your sub-base will remain loose, leading to subsidence, uneven surfaces, and ultimately, the failure of your top layer. Here's why and how:

• Increased Density and Strength: Compaction removes air voids, interlocking the aggregate particles and significantly increasing the material's density and load-bearing capacity.
• Reduced Settlement: A well-compacted sub-base is less prone to settling over time, preventing dips and cracks in your finished surface.
• Improved Drainage: While MOT Type 1 inherently drains well, proper compaction ensures uniform water flow through the material, preventing waterlogging in areas.
• Even Surface: Compaction helps create a truly flat and even surface, which is critical for laying paving slabs or asphalt smoothly.

To achieve optimal compaction, you'll typically need a plate compactor (often called a 'wacker plate'). Lay your MOT Type 1 in layers (often called 'lifts') of no more than 100-150mm at a time, compacting each layer thoroughly before adding the next. This multi-layer approach ensures deep and consistent compaction throughout the entire sub-base.

Sourcing Your MOT Type 1 Hardcore

When it comes to sourcing aggregates, quality and reliability are paramount. Here at Grundy & Co Excavations Ltd, we understand the importance of a robust foundation. We provide an extensive range of recycled aggregates for the construction trade, including high-quality MOT Type 1. Our sub-base material is produced on-site at our yard in Widnes, Cheshire, ensuring consistent quality and an affordable price.

We deliver our aggregates across Merseyside and cover areas including Chester, The Wirral, St Helens, Warrington, and Runcorn. For any queries or to get a precise quote for your project, don't hesitate to get in touch. Call us on 0151 257 8816 or email [email protected], and our team will be happy to assist you.

Frequently Asked Questions About MOT Type 1 Hardcore

Q: Can I use something else instead of MOT Type 1?

A: While other materials like Type 3 (finer, for permeable surfaces), scalpings, or general crushed concrete exist, MOT Type 1 is specifically graded and approved for its superior load-bearing and compaction properties. For most sub-base applications, especially those supporting weight or requiring a very stable foundation, MOT Type 1 is the recommended choice due to its consistent performance and compliance with highway standards. Using an unapproved material might compromise the longevity and stability of your project.

Q: What depth should I use for a driveway vs. a patio?

A: For a typical domestic driveway, a compacted depth of 150mm (6 inches) to 200mm (8 inches) of MOT Type 1 is generally recommended, especially if it will see regular vehicle traffic. For a patio or pathway, a compacted depth of 100mm (4 inches) to 150mm (6 inches) is usually sufficient. Always consider the expected load and ground conditions. For artificial grass, a compacted depth of 50mm to 100mm is often adequate.

Q: Do I need a membrane under the MOT Type 1?

A: It is highly recommended to lay a geotextile membrane (often called a 'terram' or 'weed membrane') underneath your MOT Type 1. This serves two main purposes: it acts as a separation layer, preventing the aggregate from sinking into soft sub-grade soil, and it helps to prevent weeds from growing through your finished surface. It's a small additional cost that provides significant long-term benefits.

Q: How long does MOT Type 1 take to settle?

A: If properly compacted with a plate compactor, MOT Type 1 settles almost immediately. There should be very little, if any, further settlement once the compaction process is complete. If you experience significant settlement after compaction, it indicates insufficient compaction or unsuitable ground conditions beneath.

Q: What tools do I need to lay and compact MOT Type 1?

A: You'll need:

• Shovel and Rake: For spreading the material evenly.
• Tape Measure and Spirit Level: For checking depths and ensuring a level surface.
• Plate Compactor (Wacker Plate): Essential for proper compaction. These can often be hired from local tool hire shops.
• Wheelbarrow: For transporting the material.
• String Line and Stakes: For setting out your levels and boundaries accurately.

Q: Can I lay paving slabs directly on MOT Type 1?

A: No, you should not lay paving slabs directly on MOT Type 1. The hardcore provides the essential sub-base, but you need an intermediate layer, typically a 30-50mm layer of sharp sand or a sand and cement mix (a 'bedding layer'), on top of the compacted MOT Type 1. This bedding layer allows for fine adjustments to the slab levels and provides a stable, permeable base for the paving.

Conclusion

Getting the quantity of MOT Type 1 hardcore right for your project is a critical step towards success. By understanding the material, accurately measuring your area, accounting for compaction, and considering the specific needs of your project, you can ensure a robust, long-lasting foundation. Remember, a well-prepared sub-base is the backbone of any durable construction. Don't cut corners on this crucial stage, and your project will stand the test of time.
