Unveiling Hydraulic Car Lifts: A Deep Dive

In the bustling environment of any modern automotive workshop, one piece of equipment stands out for its sheer utility and often-overlooked engineering brilliance: the car lift. These indispensable machines transform the way mechanics and enthusiasts access the underside of vehicles, making repairs, inspections, and maintenance tasks safer and significantly more efficient. But have you ever paused to consider the intricate science and robust mechanics that allow these powerful devices to effortlessly hoist tons of metal into the air? This comprehensive guide delves deep into the workings of car lifts, particularly focusing on the ingenious hydraulic systems that power the vast majority of them.

The Core of Elevation: Understanding Hydraulic Car Lifts

At the heart of most car lifts lies a sophisticated hydraulic mechanism, a system renowned for its ability to generate immense force from relatively small inputs. This capability is fundamentally rooted in a principle discovered centuries ago by the French polymath Blaise Pascal, known simply as Pascal's Principle.

Pascal's Principle: The Foundation of Hydraulic Power

Pascal's Principle dictates that when pressure is applied to a confined fluid, that pressure is transmitted equally and undiminished in all directions throughout the fluid. In practical terms, this means a small force applied over a small area can create a much larger force over a larger area. Imagine pushing a tiny syringe: the force you apply to the plunger (small area) is converted into a much greater force acting on a wider piston within a hydraulic cylinder, enabling it to lift a substantial weight like a car.

This elegant principle is the cornerstone of all hydraulic machinery, from industrial presses to aircraft landing gear. Its application in car lifts allows for the smooth, controlled, and immensely powerful elevation of vehicles, transforming what would otherwise be an arduous and dangerous task into a routine operation.

Fluid Mechanics in Action: The Hydraulic Circuit

A typical hydraulic car lift operates through a closed-loop system involving several key components:

• Hydraulic Fluid Reservoir: This tank stores the hydraulic fluid, typically a specialised oil, which is incompressible and resistant to temperature changes.
• Pump: An electric motor drives a hydraulic pump (often a gear pump or piston pump) that draws fluid from the reservoir.
• Valves: A series of control valves direct the flow of the pressurised fluid. These include directional control valves to raise or lower the lift, and relief valves to prevent over-pressurisation.
• Hydraulic Cylinders: These are the workhorses of the system. Pressurised fluid is pumped into the cylinder, forcing a piston rod to extend, which in turn lifts the vehicle platforms.
• Return Lines: When the lift is lowered, fluid is allowed to flow back from the cylinders to the reservoir, typically under controlled release to ensure a smooth descent.

When you activate the lift, the pump begins to pressurise the hydraulic fluid. This fluid then flows into the hydraulic cylinders, extending the piston rods. As these rods extend, they push against the lift's arms or platforms, elevating the vehicle. To lower the car, a valve is opened, allowing the fluid to slowly release from the cylinders and return to the reservoir, bringing the vehicle gently back down to the ground. This precise control is crucial for both safety and operational efficiency.

Anatomy of a Car Lift: Components Beyond Hydraulics

While the hydraulic system is undeniably the heart of a car lift, these complex machines comprise a multitude of other components – mechanical, electronic, and safety-related – all working in concert to ensure reliable and secure operation.

Mechanical Components

Beyond the hydraulic cylinders and fluid lines, the mechanical structure of a car lift is robustly engineered to handle significant loads. This includes:

• Lift Arms/Platforms: These are the primary contact points with the vehicle, designed to distribute weight evenly and securely.
• Columns/Posts: The vertical structures that house the hydraulic cylinders and guide the lift arms or platforms during ascent and descent.
• Cables/Chains: In many two-post and four-post lifts, steel cables or chains are used in conjunction with the hydraulic cylinders to synchronise the lifting of multiple posts, ensuring the vehicle remains level.
• Locking Mechanisms: Crucial for safety, these mechanical locks engage at various heights, preventing the lift from inadvertently lowering even if hydraulic pressure is lost.

Electronic and Control Systems

Modern car lifts are far more than just pumps and cylinders. Electronic components enhance their precision, ease of use, and most importantly, safety:

• Control Panels: User interfaces with buttons or joysticks to raise, lower, and activate safety features.
• Limit Switches: Sensors that detect when the lift has reached its maximum or minimum height, automatically cutting power to prevent damage or accidents.
• Synchronisation Systems: Electronic sensors and control units monitor the height of each post or arm, ensuring they move in unison. If one side lags, the system can pause or adjust to maintain level lifting.
• Diagnostic Systems: Some advanced lifts include self-diagnostic capabilities to alert operators to potential issues.

Prioritising Safety: Integrated Measures in Car Lifts

Given the significant weights involved, safety is paramount in car lift design and operation. Contemporary lifts integrate a range of advanced features to protect both the operator and the vehicle. These are known as Enhanced Safety Measures.

• Automatic Safety Locks: These are mechanical locking mechanisms that engage automatically as the lift rises, catching the lift arms or platforms at various predetermined heights. This means that once the desired working height is reached, the vehicle is supported by these mechanical locks, not solely by hydraulic pressure. This is a critical redundancy.
• Pressure Relief Valves: Integrated within the hydraulic system, these valves prevent over-pressurisation of the fluid lines, which could otherwise lead to system failure or component damage.
• Flow Control Valves: These regulate the speed of descent, ensuring a smooth and controlled lowering of the vehicle, preventing sudden drops.
• Emergency Stop Buttons: Clearly marked and easily accessible, these buttons immediately cut all power to the lift in an emergency situation.
• Overhead Shut-off Bars: On many two-post lifts, a bar or sensor at the top prevents vehicles from being lifted too high and striking the workshop ceiling.
• Arm Restraints: Mechanisms that lock the lift arms into position once they are under the vehicle, preventing them from swinging outwards during lifting.

These enhanced safety measures are not merely optional extras; they are fundamental to safe operation, providing peace of mind and significantly reducing the risk of accidents in a busy workshop environment.

The Undeniable Advantages of Utilising Car Lifts

Investing in a car lift, whether for a professional garage or a serious home enthusiast, brings a multitude of benefits that extend far beyond simply elevating a vehicle.

• Enhanced Safety: Working under a vehicle supported by a dedicated lift is infinitely safer than using jack stands or ramps, which can be unstable or prone to collapse.
• Improved Ergonomics and Comfort: Mechanics no longer need to crouch, kneel, or lie on their backs for extended periods. Lifts allow vehicles to be raised to a comfortable working height, reducing strain, fatigue, and the risk of musculoskeletal injuries.
• Increased Efficiency and Productivity: With easy, unobstructed access to the vehicle's underside, tasks can be completed much faster. Technicians can move around freely, access components easily, and bring tools directly to the work area.
• Thorough Inspections: Full underbody access allows for more comprehensive and accurate inspections of suspension components, exhaust systems, fluid leaks, and structural integrity.
• Space Optimisation: While lifts occupy floor space, some designs, like four-post lifts, can be used for vehicle storage, effectively allowing two cars to occupy the footprint of one. In-ground lifts are even more space-efficient, disappearing when not in use.
• Versatility: Modern lifts come in various configurations suitable for different vehicle types and tasks, from small cars to heavy trucks.

Navigating the Options: Choosing the Right Car Lift

With a clearer understanding of how car lifts operate, the next logical step is discerning which type best suits specific needs. The market offers a diverse range, each with unique advantages and considerations.

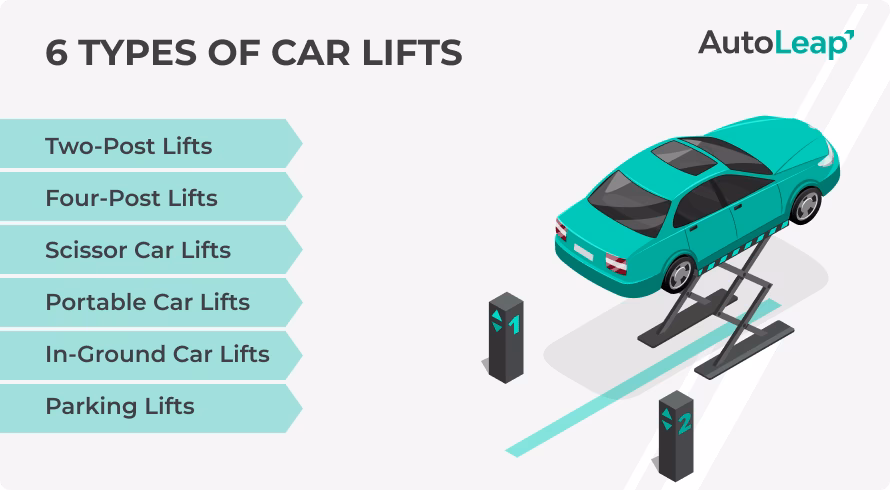

Common Types of Car Lifts and Their Applications

While the hydraulic principle remains consistent, the mechanical configuration of lifts varies:

• Two-Post Lifts: These are perhaps the most common type in professional workshops. They lift a vehicle by its frame at four points, leaving the wheels and undercarriage completely unobstructed. Ideal for wheel service, brake jobs, exhaust work, and general maintenance.
• Four-Post Lifts: Often seen in alignment shops or for vehicle storage. These lifts support the vehicle on four runways, allowing it to be driven onto the lift. They are excellent for oil changes, transmission work, and particularly for vehicle storage.
• Scissor Lifts: Characterised by their criss-crossing support arms, these lifts offer a compact footprint. They can be full-rise, mid-rise, or low-rise, making them suitable for tyre service, detailing, or quick inspections where full underbody access isn't required.
• In-Ground Lifts: Installed flush with the floor, these lifts offer the ultimate in space-saving and aesthetic appeal. They are often found in high-end service centres due to their complex installation.

Key Considerations for Selection

When selecting a car lift for your workshop or home garage, several critical factors must be weighed:

• Lifting Capacity: This is paramount. Ensure the lift can safely handle the heaviest vehicle you intend to service. Capacities typically range from 3,000 kg for passenger cars to over 10,000 kg for commercial vehicles.
• Space Constraints: Measure your ceiling height, bay width, and overall garage dimensions. A two-post lift requires more width, while a four-post needs more length. Scissor lifts are often best for limited space.
• Vehicle Types: Consider the range of vehicles you'll be working on. A lift suitable for a small saloon might not be appropriate for a large SUV or van.
• Power Requirements: Most hydraulic lifts operate on either 230V single-phase or 400V three-phase power. Ensure your electrical supply can accommodate the lift's demands.
• Safety Features: While all modern lifts have safety features, compare the robustness of mechanical locks, redundancy systems, and certifications (e.g., CE marking in Europe).
• Installation: Some lifts require professional installation and a specific concrete floor thickness. Factor this into your decision and budget.
• Budget: Car lifts represent a significant investment. Balance your budget with quality, durability, and the features you need. Prioritising cheaper options over safety and reliability is a false economy.

Hydraulic car lifts are undoubtedly popular due to their efficiency, versatility, and robust performance. However, making an informed decision requires a thorough assessment of your specific needs, the types of vehicles you'll be working on, and the physical constraints of your workspace. By carefully considering these factors, you can select a lift that not only meets your requirements but also enhances the safety and productivity of your automotive work.

Maintenance and Longevity of Hydraulic Car Lifts

To ensure a car lift remains safe, efficient, and extends its operational lifespan, regular maintenance is absolutely crucial. Neglecting simple checks can lead to costly repairs, diminished performance, and, most critically, safety hazards.

• Regular Fluid Checks: The hydraulic fluid is the lifeblood of the system. Check fluid levels regularly and top up as needed with the manufacturer-recommended fluid. Look for discoloration or contaminants, which could indicate internal wear.
• Leak Inspection: Routinely inspect all hydraulic lines, fittings, and cylinders for any signs of leaks. Even small leaks can compromise performance and indicate potential issues.
• Lubrication: Moving parts, such as cables, pulleys, and sliding surfaces, require regular lubrication to prevent wear and ensure smooth operation.
• Cable/Chain Inspection: On lifts that use cables or chains for synchronisation, inspect them for fraying, rust, or excessive slack. Adjust tension as per manufacturer guidelines.
• Safety Lock Functionality: Periodically test the automatic safety locks to ensure they engage correctly at all designated positions.
• Electrical System Check: Inspect wiring for damage and ensure all control buttons and limit switches are functioning properly.
• Anchor Bolts: For lifts bolted to the floor, periodically check that all anchor bolts are secure and torqued to the manufacturer's specifications.
• Professional Servicing: Schedule regular professional inspections and servicing by qualified technicians. They can identify subtle issues, perform necessary adjustments, and ensure the lift complies with safety standards.

Adhering to a stringent maintenance schedule not only safeguards your investment but, more importantly, ensures the safety of everyone working around the lift.

Comparative Table of Common Car Lift Types

Frequently Asked Questions About Car Lifts

Q: How much space do I need for a car lift?

A: The space required varies significantly by lift type. Two-post lifts need adequate width and ceiling height (typically 3.5-4 metres). Four-post lifts require more length and height. Scissor lifts are more compact. Always consult the manufacturer's specifications and measure your available space carefully before purchasing.

Q: Are hydraulic car lifts safe for home use?

A: Yes, absolutely, provided they are installed correctly, operated according to the manufacturer's instructions, and regularly maintained. Many models are specifically designed for home garage use, offering excellent safety features.

Q: What kind of maintenance does a hydraulic car lift require?

A: Regular maintenance includes checking hydraulic fluid levels, inspecting for leaks, lubricating moving parts, checking cables and chains for wear, testing safety locks, and ensuring all electrical connections are secure. Annual professional servicing is also highly recommended.

Q: Can I install a car lift myself?

A: While some smaller, lighter-duty lifts might be manageable for a competent DIY enthusiast, professional installation is strongly recommended for most car lifts, especially larger two-post and four-post models. Correct installation is critical for safety and proper operation, often requiring specialised tools and knowledge of concrete floor requirements.

Q: How long do car lifts last?

A: With proper installation, regular maintenance, and adherence to manufacturer guidelines, a high-quality hydraulic car lift can last for 20 years or even longer in both professional and home environments. Durability is a key consideration when making your purchase.

Q: What is the maximum weight a car lift can typically handle?

A: Car lifts come in various capacities. Standard capacities for passenger vehicles range from 3,000 kg to 5,000 kg. Heavy-duty lifts for commercial vehicles, trucks, and buses can handle capacities exceeding 10,000 kg.

Understanding the intricate engineering and the fundamental principles behind hydraulic car lifts empowers both professional mechanics and automotive enthusiasts. By harnessing the power of Pascal's Principle and integrating robust mechanical and electronic systems, these lifts provide a safe, efficient, and ergonomic solution for vehicle maintenance and repair. Investing in the right car lift, coupled with diligent maintenance, can truly elevate the capabilities of any garage or workshop.
