Understanding and Fixing Car Vapor Lock

Vapor lock is a frustrating phenomenon that can bring your motoring to an abrupt halt, particularly in older vehicles or those subjected to sweltering conditions. This issue, where the fuel in your car's lines or carburettor turns into vapour, can lead to your engine stalling or refusing to start altogether. Understanding the intricacies of vapor lock – its tell-tale signs, root causes, and how to remedy it – is paramount to preventing these inconvenient breakdowns and ensuring your vehicle performs optimally.

What Exactly is Vapor Lock?

At its core, vapor lock is a mechanical issue that occurs when the fuel in the fuel lines or carburettor boils and turns into vapour. This is more common in vehicles with carburetted engines, though it can affect fuel-injected systems too. The vapour forms an 'air pocket' within the fuel delivery system. This pocket acts as a barrier, preventing the fuel pump from effectively pushing liquid fuel to the engine, much like trying to pump air instead of water. Consequently, the engine either sputters and dies or fails to ignite entirely.

The Mechanism Behind the Malady

The process leading to vapor lock involves a combination of heat and the inherent properties of fuel. Fuel is continuously circulated from the fuel tank to the engine via the fuel lines. While the engine is running, the constant flow of fuel helps to dissipate the heat generated by the engine itself. However, when the engine is switched off, or even when idling for extended periods in high heat, the ambient temperature around the fuel lines and carburettor can rise significantly. If this temperature exceeds the boiling point of the fuel within those components, it will vaporise. This is exacerbated if the fuel lines are routed too close to hot engine parts, such as the exhaust manifold, or if the fuel pump is struggling to maintain adequate pressure. The resulting vapour pocket is the direct cause of fuel starvation to the engine.

Spotting the Signs: Symptoms of Vapor Lock

Recognising the symptoms of vapor lock is the first step towards diagnosis and repair. These can manifest in several ways, often causing confusion for drivers:

• Engine Stalling: This is perhaps the most common and alarming symptom. Your engine might suddenly cut out while driving, especially during hot weather or after prolonged periods of idling. The loss of fuel flow causes the engine to stop running.
• Difficulty Starting: If your car is hard to start, particularly after it has been sitting in the sun or after a long drive, vapor lock could be the culprit. The fuel may have already vaporised in the lines, making it challenging for the engine to ignite.
• Hesitation or Loss of Power: You might notice your engine hesitating or a distinct loss of power while accelerating, especially on an incline or under load. This is due to the intermittent fuel supply caused by the vapour pockets.
• Engine Runs Rough: The engine might run unevenly or 'cough' as the vapour pockets disrupt the smooth flow of fuel to the cylinders.

If you experience any of these symptoms, it's crucial to have your vehicle inspected by a qualified mechanic. Ignoring these signs can lead to more significant damage to your fuel system or engine.

Unravelling the Causes of Vapor Lock

Several factors can contribute to the onset of vapor lock. Understanding these causes allows for targeted preventative measures and repairs:

1. High Ambient and Engine Temperatures

This is the most significant contributor. When the outside temperature is high, or the engine compartment becomes excessively hot (due to heavy traffic, climbing hills, or a malfunctioning cooling system), the fuel's boiling point can be reached more easily. The heat soak from a hot engine after it's been turned off can also cause fuel in the lines to vaporise.

2. Fuel System Design and Component Placement

Older vehicle designs, particularly those with carburettors, are more susceptible. If fuel lines are routed too close to hot engine components like the exhaust manifold or turbocharger, they act as heat sinks, increasing the likelihood of fuel vaporisation. Insufficient ventilation in the engine bay can also trap heat, exacerbating the problem.

3. Fuel Pressure Issues

Low fuel pressure can be a contributing factor. If the fuel pump is weak or failing, it might not be able to maintain sufficient pressure in the fuel lines. Lower pressure means the fuel will vaporise at a lower temperature, making it more susceptible to boiling in hot conditions.

4. Fuel Volatility

The volatility of the fuel itself plays a role. Fuels with a higher Reid Vapor Pressure (RVP) are more prone to vaporisation. In many regions, fuel blends are adjusted seasonally, with higher volatility fuels used in cooler months and lower volatility fuels in warmer months to prevent issues like vapor lock. However, using a fuel with an inappropriate volatility rating for the conditions can increase the risk.

5. Clogged Fuel Lines or Filters

While less common as a direct cause, a partially blocked fuel filter or fuel line can restrict fuel flow, leading to lower fuel pressure and increased susceptibility to heat-induced vaporisation.

Preventative Measures: Staying Ahead of the Problem

Proactive maintenance and a few smart modifications can significantly reduce the risk of experiencing vapor lock:

Regular Vehicle Maintenance

A well-maintained vehicle is less prone to vapor lock. This includes:

• Cooling System Check: Ensure your radiator, coolant levels, thermostat, and cooling fans are all functioning correctly. An overheating engine dramatically increases the risk.
• Fuel Filter Replacement: Regularly replace your fuel filter as per your vehicle's service schedule.
• Fuel Pump Inspection: Have your fuel pump's performance checked during routine servicing.

Fuel Line Insulation and Rerouting

Consider insulating the fuel lines, especially those running close to the exhaust or other heat sources. High-temperature sleeving or heat wrap can make a significant difference. In some cases, a mechanic might be able to reroute fuel lines to a cooler part of the engine bay.

Fuel Additives

In specific situations, especially with older vehicles or during heatwaves, using fuel additives designed to increase the fuel's octane rating or contain alcohol (like isopropyl alcohol) can help raise the fuel's boiling point, thus inhibiting vaporisation.

Consider an Electric Fuel Pump

For older carburetted vehicles, upgrading from a mechanical fuel pump to an electric one, particularly one designed for cooler operation, can be beneficial. Electric pumps often provide more consistent pressure and can be mounted in a cooler location.

Solutions for Existing Vapor Lock Issues

If you suspect your car is suffering from vapor lock, here are some immediate and longer-term solutions:

Immediate Fixes

If your car stalls due to suspected vapor lock on a hot day:

• Allow it to Cool: Park the vehicle in the shade if possible and let the engine bay cool down for 15-30 minutes. This allows any vapour in the fuel lines to dissipate, and the fuel to return to a liquid state.
• Wet the Fuel Lines: Some classic car owners have had success by carefully dousing the fuel lines and carburettor with cool water. This rapidly cools the components, condensing any vapour back into liquid fuel. Be cautious not to spray water on hot electrical components.

Upgrading Fuel System Components

For a more permanent solution, consider these upgrades:

• High-Volume Fuel Pump: A fuel pump with higher capacity and better pressure regulation can overcome minor vapourisation issues.
• Larger Fuel Lines: In some performance applications, larger diameter fuel lines can improve fuel flow and reduce the impact of minor vapourisation.
• Fuel Cooler: Installing a fuel cooler, similar to an oil cooler, can reduce the temperature of the fuel before it reaches the carburettor or injectors.
• Electric Fan for Carburettor: In some carburetted setups, a small electric fan can be installed to blow air over the carburettor, helping to keep it cool.
• Fuel Injection Conversion: For older carburetted vehicles, converting to a modern fuel injection system can eliminate many of the issues associated with vapor lock, as fuel injection systems generally operate under higher pressure and are less susceptible to heat-related fuel problems.

Fuel Selection

Ensure you are using the correct fuel for your vehicle. If you suspect your fuel might be too volatile for the current conditions, try a fuel with a lower octane rating (which generally has lower volatility) or one specifically blended for summer use, if available.

Comparison of Causes and Solutions

Here's a quick summary to help you pinpoint the problem and its fix:

Frequently Asked Questions

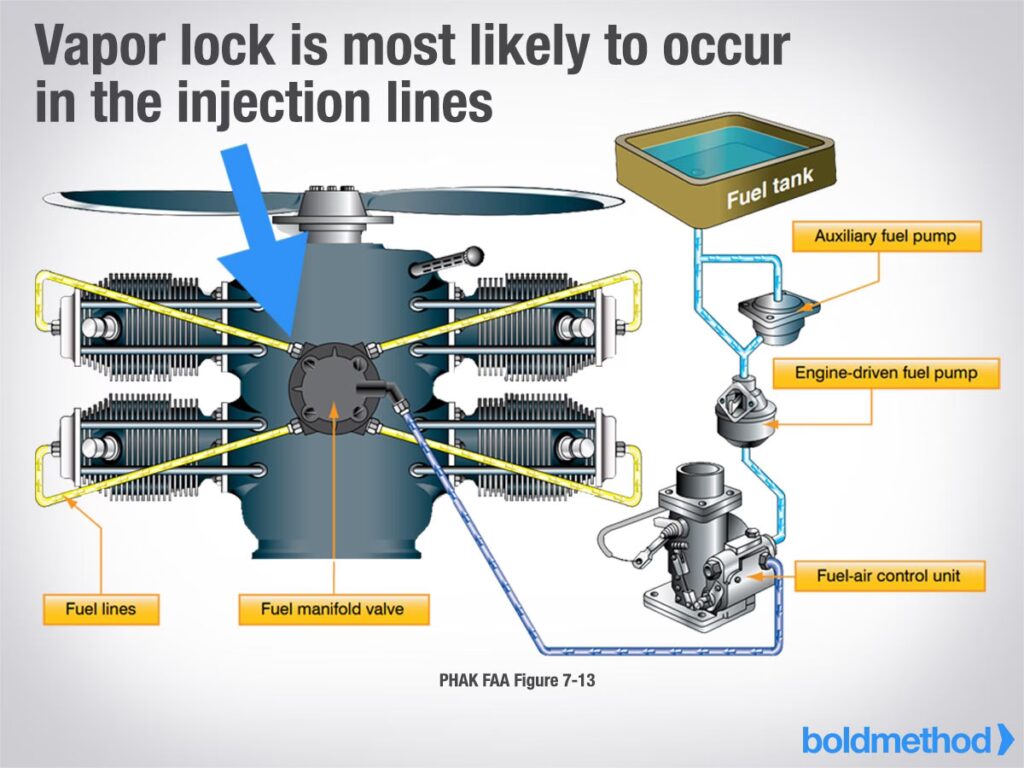

Q1: Can vapor lock happen in modern fuel-injected cars?

While less common due to higher fuel pressures and more efficient fuel system designs, vapor lock can still occur in fuel-injected vehicles, particularly in extreme heat or if there are issues with the fuel pump or fuel pressure regulator.

Q2: Is it safe to drive with vapor lock?

Driving with vapor lock can be dangerous as it leads to unpredictable stalling. It's best to pull over safely and let the vehicle cool down or seek professional assistance.

Q3: How much does it cost to fix vapor lock?

The cost can vary significantly. Simple preventative measures like insulation might be relatively inexpensive. However, replacing a fuel pump or converting to fuel injection can be a more substantial investment.

Q4: What is the difference between vapor lock and fuel starvation?

Fuel starvation is a broader term for any condition where the engine doesn't receive enough fuel. Vapor lock is a specific type of fuel starvation caused by fuel vaporising in the fuel lines.

By understanding the causes and symptoms of vapor lock, and by implementing preventative maintenance and suitable upgrades, you can significantly reduce the likelihood of this troublesome issue impacting your driving experience. Regular checks and a keen ear for your vehicle's performance are your best allies.
