Ducato Gearbox Oil Guide

When it comes to maintaining your Fiat Ducato, particularly the robust 2.5TD model, ensuring the correct gearbox oil is paramount. Many owners find themselves in a quandary when it comes to selecting the right type and quantity of oil, often encountering conflicting advice. This guide aims to demystify the process, providing clear, actionable information to keep your gearbox running smoothly and efficiently for years to come. We'll delve into the specifics of oil grades, capacities, and the importance of using the correct lubricant.

Understanding Your Ducato's Gearbox Oil Needs

The gearbox is a complex piece of engineering, and it relies on the right type and amount of oil to function optimally. Gearbox oil, also known as transmission fluid, lubricates the moving parts, reduces friction, dissipates heat, and protects against wear and corrosion. Using the incorrect oil can lead to premature wear, poor gear changes, and ultimately, costly repairs. For your Fiat Ducato 2.5TD, the consensus from various owner forums and technical resources points towards a specific capacity and a range of suitable oil specifications.

How Much Gearbox Oil Does a Ducato 2.5TD Take?

The most frequently cited capacity for the Fiat Ducato 2.5TD gearbox is 1.9 litres. It's essential to remember that this is a guideline, and the exact amount might vary slightly depending on how the gearbox was last serviced or if there have been any specific modifications. Always aim to fill the gearbox to the correct level, which is typically indicated by a filler plug. When checking or topping up, the oil should reach the level of the filler plug hole. Overfilling can be just as detrimental as underfilling, leading to increased pressure within the gearbox and potential seal damage.

Choosing the Right Gearbox Oil: Type and Grade

This is where much of the confusion arises. The choice of oil can be influenced by a variety of factors, including the age of the vehicle, the specific gearbox model, and even the climate you drive in. For the Fiat Ducato 2.5TD, you'll commonly see recommendations for the following:

Commonly Recommended Oil Specifications

• 75W/80 GL5: This is a very common recommendation. The '75W' indicates its viscosity at low temperatures, ensuring good lubrication during cold starts, while '80' refers to its viscosity at operating temperatures. The 'GL5' specification denotes the level of extreme pressure (EP) additives present, which are crucial for protecting the highly stressed gears within the gearbox.
• EP80W90 Semi-synthetic: Another frequently mentioned option. 'EP80W90' signifies a slightly thicker oil at operating temperatures compared to 75W/80, and again, the 'EP' highlights the presence of extreme pressure additives. 'Semi-synthetic' oils offer a balance between conventional mineral oils and full synthetics, providing enhanced protection and performance over standard mineral oils.

Why the Difference?

The variations in recommendations often stem from different interpretations of Fiat's original specifications or from owners finding success with alternative lubricants. While both 75W/80 GL5 and 80W90 GL5 are generally suitable for manual transmissions of this era, the specific formulation and brand of oil can sometimes lead to subtle differences in gear change feel or longevity. It is always best to consult your vehicle's owner's manual if you have it, or a reputable Fiat specialist for the most definitive recommendation.

The Impact of Using the Wrong Oil

Using the incorrect gearbox oil can have serious consequences:

• Increased Wear: Oils with insufficient EP additives or the wrong viscosity can lead to accelerated wear on gears, bearings, and synchronisers.
• Poor Gear Changes: The wrong viscosity can make shifting gears stiff or notchy, especially when the gearbox is cold.
• Overheating: Inadequate lubrication can cause the gearbox to overheat, leading to component damage.
• Seal Damage: Certain oil additives can degrade rubber seals, leading to leaks.
• Corrosion: The absence of proper additives can leave internal components vulnerable to rust and corrosion.

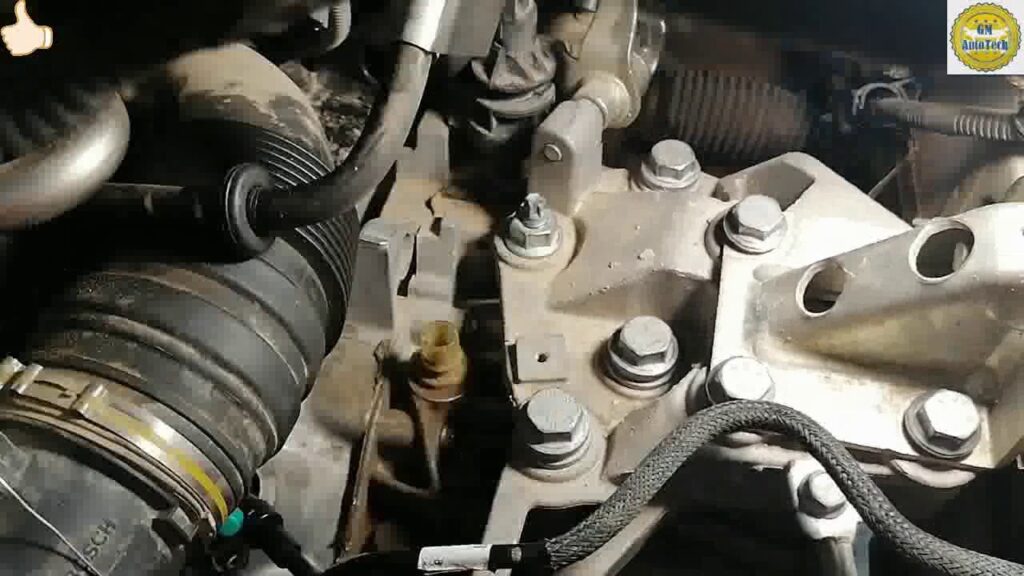

Locating the Filler and Drain Plugs

Your mechanic's initial difficulty in locating the filler plug is not uncommon. Gearbox filler plugs are often discreetly positioned. For many Fiat Ducato models, the filler plug is typically found on the side of the gearbox casing. It's usually a square-headed plug or a hex bolt. The drain plug is almost always located at the lowest point of the gearbox casing to allow all the old oil to be drained out. It's crucial to have the vehicle safely supported on jack stands and to locate the correct plugs before attempting any work.

Tips for Locating Plugs:

• Consult a Manual: If you have the vehicle's workshop manual, it will pinpoint the exact location of both plugs.
• Visual Inspection: Carefully inspect the gearbox casing, particularly on the side and bottom, for any plugs that look like they are meant to be removed for fluid access.
• Ask a Specialist: If in doubt, a mechanic experienced with Ducatos will know immediately where to find them.

Gearbox Oil Change Procedure (General Overview)

While your mechanic will be performing this, understanding the process can be helpful:

1. Warm Up the Engine: Run the engine for a few minutes to warm the gearbox oil. Warm oil flows more easily, but be cautious as components can be hot.
2. Locate and Remove Drain Plug: Position a suitable drain pan underneath and carefully remove the drain plug. Allow the old oil to drain completely.
3. Replace Drain Plug: Clean the drain plug and its sealing washer (if applicable) and refit it securely.
4. Locate and Remove Filler Plug: Find the filler plug, usually on the side of the gearbox. Remove it.
5. Fill with New Oil: Using a pump or a funnel with a flexible hose, fill the gearbox with the specified amount of new oil (around 1.9 litres for your 2.5TD) until it starts to dribble out of the filler hole.
6. Replace Filler Plug: Refit the filler plug securely.
7. Check for Leaks: After running the engine briefly, check around the drain and filler plugs for any signs of leakage.

Comparison of Oil Grades

Here’s a simplified comparison of the commonly discussed oil grades:

Frequently Asked Questions

Q1: Can I use a fully synthetic gearbox oil?
A: While synthetic oils generally offer superior protection, it's essential to ensure they are compatible with your specific gearbox and meet the required GL rating. Some older gearboxes can be sensitive to synthetic oils, so sticking to a known compatible grade is often safest unless advised otherwise by a specialist.

Q2: What happens if I don't change my gearbox oil?
A: Over time, gearbox oil degrades, losing its lubricating properties and becoming contaminated with metal particles. This can lead to increased wear, poor performance, and eventual gearbox failure.

Q3: Is it okay to mix different brands of gearbox oil?
A: It is generally not recommended to mix different brands or types of gearbox oil, as their additive packages may not be compatible, potentially leading to performance issues or damage.

Q4: My mechanic suggested a different oil than what I've researched. What should I do?
A: Discuss your research with your mechanic. They may have specific knowledge or experience with your vehicle model that leads them to recommend a particular product. If you remain unsure, it's always wise to seek a second opinion from another qualified mechanic or a Fiat dealership.

Conclusion

Maintaining the correct gearbox oil level and specification is a relatively straightforward but vital aspect of keeping your Fiat Ducato 2.5TD on the road. By adhering to the recommended capacity of approximately 1.9 litres and choosing a reputable 75W/80 GL5 or 80W90 GL5 oil, you can ensure the longevity and optimal performance of your gearbox. Always prioritise quality and consult reliable sources or professionals if you have any doubts.
