Electric Handbrake Pads: The UK Guide

The importance of proper brake maintenance cannot be overstated. Brake pads are a crucial component of your vehicle’s braking system, and worn-out or damaged brake pads can lead to reduced braking performance, increased stopping distances, and even dangerous situations. In modern vehicles, electric handbrakes have become increasingly common, offering a more convenient and efficient alternative to traditional mechanical handbrakes. However, changing brake pads on a vehicle equipped with an electric handbrake requires a slightly different approach than traditional setups. This comprehensive guide will walk you through the specifics of maintaining your electric handbrake system, ensuring your vehicle’s continued safety and optimal performance. We’ll specifically address the common query: can you use traditional brake pads on an electric handbrake?

Understanding Electric Handbrakes (EPB)

Electric handbrakes, often referred to as EPBs (Electronic Parking Brakes) or e-brakes, represent a significant advancement in vehicle braking technology. Unlike conventional mechanical handbrakes that use a cable to physically engage the rear brakes, EPBs utilise an electric motor to apply and release the braking force. This design offers several advantages, including improved reliability, reduced wear and tear on cables (as there are none!), increased convenience through features like hill-hold assist, and a cleaner, more minimalist interior design.

Most EPB systems operate in one of two ways: either with a motor integrated directly into the brake caliper, which pushes the piston to engage the pads, or via a central electric motor that pulls cables connected to the calipers. The former, motor-on-caliper system, is by far the most prevalent in modern vehicles and is what primarily dictates the specific requirements for brake pad replacement. These systems are commonly found across a wide range of modern vehicles, from compact cars to large SUVs.

Can You Use Traditional Brake Pads on an Electric Handbrake?

This is a critical question, and the unequivocal answer is: No, it is not recommended to use traditional brake pads on an electric handbrake system. While brake pads might appear similar at first glance, those designed for vehicles with an Electric Parking Brake (EPB) are fundamentally different in several key aspects that make them incompatible with traditional pads.

Why Specialised Pads Are Essential

• Mechanism Differences: EPB calipers, particularly the motor-on-caliper type, have an integrated electric motor that directly pushes the brake piston to apply the parking brake. This direct mechanical action requires brake pads designed to withstand specific forces and provide a consistent, reliable grip for the parking function. Traditional pads are designed primarily for hydraulic pressure from the foot brake.
• Material Composition: Although the friction material might seem similar, EPB-specific pads are engineered to integrate seamlessly with the electronic system. Using incorrect pads can lead to premature wear, excessive noise, reduced braking efficiency, and crucially, can trigger fault codes within the vehicle's onboard computer, illuminating the EPB warning light.
• Fitment and Sensors: EPB pads often come with specific cut-outs, mounting points, or integrated wear sensors that are unique to the electronic system. Traditional pads simply won't fit correctly, and if they do, they won't communicate properly with the vehicle's Electronic Control Unit (ECU). This can prevent the EPB from functioning correctly or even from being put into 'service mode' for maintenance.
• Safety and Performance: The EPB is an integral part of your vehicle's overall braking system. Using the wrong pads compromises not only the parking brake function but also the general braking performance and safety of your vehicle. Always opt for high-quality replacement brake pads specifically designed for your vehicle's electric handbrake system.

Putting Your Electric Handbrake into Service Mode

Before you even think about removing brake pads on a vehicle with an EPB, you must put the system into 'service mode' or 'maintenance mode'. This is perhaps the most crucial step that differentiates EPB pad replacement from traditional systems. Failing to do so can cause significant damage to the EPB motor or the caliper itself, leading to costly repairs.

The Process Explained:

1. Consult Your Vehicle Manual: Always start by checking your vehicle’s owner’s manual or a reputable repair manual. Some vehicles have a manual procedure (e.g., a combination of button presses) to enter service mode, though this is becoming less common.
2. Use a Diagnostic Scan Tool: For most modern vehicles with an EPB, a diagnostic scan tool (OBD-II scanner with EPB functionality) is absolutely essential. This tool allows you to electronically retract the caliper pistons.
3. Connect and Navigate: Connect the scan tool to your vehicle's OBD-II port. Navigate through the tool's menu to the Electronic Parking Brake (EPB) or Brake System section.
4. Select Service Mode: Choose the 'Service Mode', 'Maintenance Mode', or 'Piston Retraction' function. The tool will then electronically retract the caliper pistons, creating enough space to remove the old pads and install the new ones.
5. Confirm Retraction: Listen for the sound of the motors retracting and confirm on the scan tool that the process is complete. Do NOT attempt to manually force the pistons back without this step.
6. Disable Service Mode: After completing the pad replacement, use the diagnostic tool to exit service mode. This will allow the EPB system to recalibrate and extend the pistons back to the pads.

Warning: Never try to compress an EPB caliper piston using a standard wind-back tool or C-clamp without first electronically retracting it via service mode. This can severely damage the integrated motor and gearing.

Preparing for the Job

Once the EPB is in service mode, you can proceed with the physical preparation. Proper preparation is key to a smooth and safe brake pad replacement.

• Gather Your Tools: You'll need a good quality jack and axle stands, wheel nut spanner, appropriate spanners or sockets for caliper bolts, a brake caliper wind-back tool (even for EPB, it might be needed for final seating or if the system uses a manual wind-back in service mode), wire brush, brake cleaner, and a torque wrench.
• Replacement Pads: Ensure you have the correct, specialised replacement brake pads specifically designed for your vehicle's electric handbrake. Check the part numbers against your vehicle's specifications.
• Safety First: Park your vehicle on a flat, level surface. Engage the parking brake (if it's a separate lever and not the EPB you're working on, otherwise ensure wheels are chocked), and chock the wheels that will remain on the ground.
• Loosen Wheel Nuts: Before jacking up the vehicle, slightly loosen the wheel nuts on the wheel you’ll be working on.
• Jack Up and Secure: Jack up the vehicle and place sturdy axle stands under the vehicle's designated jacking points. Never work under a vehicle supported only by a jack.
• Remove Wheel: Fully remove the wheel nuts and carefully take off the wheel.
• Disconnect Battery (Optional but Recommended): For added safety and to prevent accidental activation of any electronic systems, you may consider disconnecting the negative terminal of your vehicle's 12V battery.

Removing the Old Brake Pads

With the vehicle safely supported and the EPB in service mode, you can now proceed to remove the worn pads.

1. Locate Caliper Bolts: Identify the caliper guide pin bolts or mounting bolts. These are typically at the rear of the caliper.

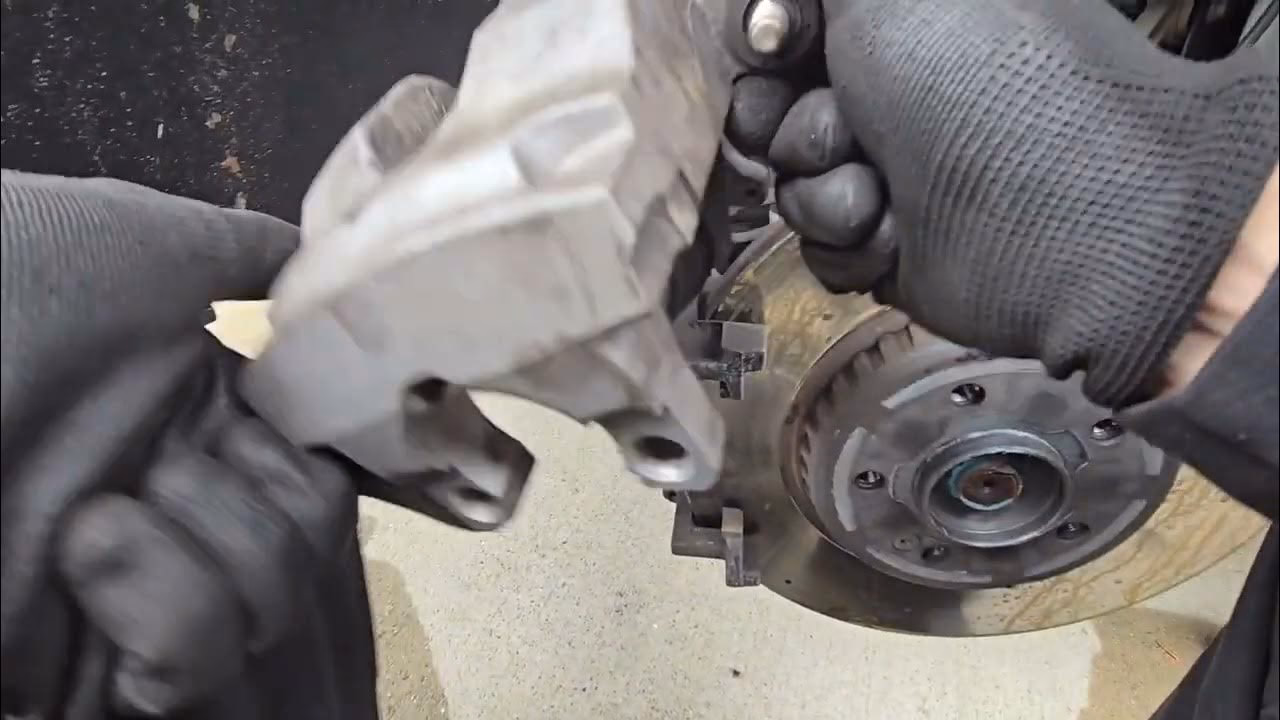

2. Remove Caliper: Using the appropriate spanner or socket, loosen and remove the caliper bolts. Carefully slide the caliper off the brake disc. Do not let the caliper hang by the brake hose, as this can damage the hose. Support it with a wire hook or rest it on a suitable surface.
3. Remove Old Pads: The old brake pads will either slide out of the caliper carrier or be held in place by retaining clips/springs. Remove these clips/springs if present, then slide out the old pads. Note their orientation for reference.
4. Remove Wear Sensors: If your vehicle has electronic brake wear sensors, carefully disconnect and remove them from the old pads. These are often one-time use and will need to be replaced with new ones that come with your new pads.
5. Clean Caliper Carrier: Use a wire brush to clean any rust or brake dust from the caliper carrier (the part the pads slide into). This ensures the new pads can move freely.

Installing the New Brake Pads

Installing the new brake pads is a straightforward process once the old ones are out and the caliper piston is retracted.

1. Apply Brake Grease: Apply a thin layer of high-temperature brake grease to the contact points where the brake pads slide in the caliper carrier and to the back of the brake pads where they contact the caliper piston and outer caliper body. Avoid getting grease on the friction material.
2. Install New Pads: Carefully insert the new brake pads into the caliper carrier. Ensure they are properly seated and can slide freely within their guides.
3. Attach Wear Sensors: If applicable, connect and secure the new brake wear sensors to the new pads. Ensure the wiring is routed correctly and won't be pinched.
4. Re-position Caliper: Carefully slide the caliper back over the new brake pads and disc assembly. Ensure it aligns correctly with the mounting points.
5. Re-install Caliper Bolts: Insert and hand-tighten the caliper guide pin bolts or mounting bolts.
6. Torque Bolts: Using your torque wrench, tighten the caliper bolts to the manufacturer's specified torque settings. This is crucial for safety. Refer to your vehicle's repair manual for these specifications.

Reassembling and Testing the System

With the new pads in place, it's time to put everything back together and test the system.

1. Re-attach Wheel: Place the wheel back onto the hub, hand-tighten the wheel nuts, and then lower the vehicle until the tyre just touches the ground. Fully tighten the wheel nuts in a star pattern to the manufacturer's specified torque.
2. Remove Axle Stands and Lower Vehicle: Fully lower the vehicle to the ground and remove the jack.
3. Reconnect Battery: If you disconnected the negative battery cable, reconnect it now.
4. Exit Service Mode: Using your diagnostic scan tool, exit the EPB service mode. The caliper pistons will now extend and seat themselves against the new brake pads. You might hear the EPB motors operate.
5. Pump Brake Pedal: Before driving, get into the vehicle and pump the foot brake pedal several times until it feels firm. This helps to fully seat the pads against the disc and restore normal pedal feel.
6. Test EPB Function: Engage and disengage the electric handbrake a few times to ensure it operates correctly. Check for any warning lights on the dashboard.
7. Road Test: Perform a careful road test in a safe area. Drive slowly at first, gently applying the brakes to bed in the new pads. Avoid hard braking for the first 100-200 miles to allow the pads to properly mate with the discs.

Additional Tips and Considerations

• Quality Matters: Always use high-quality, OEM-equivalent, or genuine replacement brake pads designed specifically for your vehicle's electric handbrake. Compromising on quality can affect safety and performance.
• Brake Discs: Inspect your brake discs for wear, scoring, or excessive rust. If they are worn below the minimum thickness or heavily scored, they should also be replaced. New pads on worn discs will not perform optimally.
• Brake Fluid: Check your brake fluid level. As you retract the pistons, fluid will be pushed back into the reservoir. Ensure the level is between the MIN and MAX marks. Never overfill.
• Professional Help: If you're not comfortable using a diagnostic scan tool or performing brake work, it's always best to have a qualified professional mechanic carry out the job. Brakes are a critical safety component.
• Bedding In: Properly bedding in new brake pads is vital for optimal performance and longevity. Follow the pad manufacturer's recommendations, typically involving a series of moderate stops from varying speeds.

Comparative Table: Traditional vs. Electric Handbrake Pads

Frequently Asked Questions (FAQs)

Q: What are the benefits of electric handbrakes?

A: Electric handbrakes offer several benefits over traditional mechanical systems. These include improved reliability due to fewer moving cables, reduced wear and tear, increased convenience with features like automatic release and hill-hold assist, and a more precise and consistent braking performance. They also free up interior space by replacing the traditional handbrake lever with a small button.

Q: How do I know if my car has an electric handbrake?

A: The easiest way to tell is to look for the parking brake control inside your vehicle. If you have a small button or switch on the centre console or dashboard instead of a large lever, it's almost certainly an electric handbrake. Most modern cars manufactured after the mid-2000s are likely to feature an EPB system, especially higher trim levels.

Q: How often should I change my brake pads?

A: The frequency of brake pad replacement depends on various factors, including your driving style (aggressive vs. gentle), typical driving conditions (city vs. motorway), vehicle type, and the quality of the brake pads themselves. As a general guideline, it's recommended to have your brake pads inspected every 10,000 to 15,000 miles or at every service interval. Replacement is typically needed every 25,000 to 70,000 miles, but this can vary wildly. Always replace them when they reach their minimum thickness or if the wear sensor indicates they are worn.

Q: What happens if I don't put the EPB into service mode before changing pads?

A: Attempting to change brake pads on an EPB system without first putting it into service mode is highly risky and can lead to significant damage. The electric motor integrated into the caliper is sensitive; forcing the piston back without electronically retracting it can strip gears, damage the motor, or cause internal caliper failure. This will result in a non-functional EPB, illuminated warning lights, and potentially a very expensive repair bill.

Q: Can I change my brake pads myself on an EPB system?

A: While it is possible for a competent DIY mechanic to change brake pads on an EPB system, it requires specific knowledge and tools, most notably a diagnostic scan tool capable of putting the EPB into service mode. If you are not comfortable with electronic systems, interpreting diagnostic tools, or working on critical safety components, it is strongly recommended to have a professional mechanic perform the job. The consequences of incorrect installation can be severe.

Q: What are the consequences of not changing my brake pads?

A: Neglecting to change worn brake pads can lead to severe consequences. Initially, you'll experience reduced braking performance and increased stopping distances, making your vehicle unsafe. As pads wear further, the metal backing plate can contact the brake disc, causing irreparable damage to the disc, leading to costly repairs. Furthermore, excessive heat from worn pads can damage calipers, wheel bearings, and other suspension components. Ultimately, severely worn brakes can lead to a complete loss of braking ability, significantly increasing the risk of an accident.
