Clock Movement Lubrication Guide

Mechanical clocks, those intricate marvels of engineering that grace our homes as grandfather clocks, mantel clocks, or even smaller carriage clocks, rely on a delicate interplay of mainsprings, levers, and gears to keep ticking accurately. Central to their enduring operation is a crucial, yet often overlooked, aspect: lubrication. Over time, the constant motion of these finely crafted components generates friction, which, if left unchecked, can lead to wear and eventual failure. Understanding how and when to lubricate your clock's movement is paramount to preserving its functionality and the sentimental value it holds.

Why Lubrication is Essential

The heart of any mechanical clock lies within its movement, a complex assembly of gears, springs, and escapement mechanisms. Within this intricate system, numerous pivots – the small, precisely engineered ends of the shafts (arbors) that support the wheels – rotate within corresponding pivot holes drilled into the clock's brass plates. These pivots are designed to be minuscule to minimise friction, often measuring less than a millimetre in diameter in smaller clocks. Without adequate lubrication, these metal-on-metal contact points will experience accelerated wear. This wear can manifest in several ways, each with its own set of consequences:

The Dangers of Neglect: Wear and Tear

• Elongation of Pivot Holes: Insufficient or improper lubrication is the primary culprit behind the gradual widening or elongation of pivot holes. As the metal rubs against metal without a lubricating barrier, microscopic particles are abraded, leading to an enlarged opening.
• Improper Gear Meshing: Once a pivot hole becomes elongated, the wheel it supports can no longer sit perfectly centred. This slight misalignment causes the teeth of that wheel to mesh incorrectly with the teeth of the adjacent wheel. Initially, this might lead to a slight loss of accuracy or an irregular tick.
• Tooth Bending and Damage: If the gear meshing problem is left unaddressed, the force from the mainspring can exert undue pressure on the misaligned teeth. This can lead to the bending or even breaking of the delicate teeth, a far more serious and costly repair.
• Pivot Wear or Loss: The pivot itself is not immune to wear. Prolonged friction can wear down the pivot's diameter, or in severe cases, cause it to break off entirely. Replacing a damaged pivot often involves drilling out the arbor and fitting a new one, along with re-bushing the pivot hole to match.

These issues highlight why regular and correct lubrication is not merely a recommendation but a necessity for the long-term health of your mechanical clock. An oil service, ideally performed every three to five years, can prevent these escalating problems and save you significant repair costs down the line.

When to Re-oil Your Clock Movement

The frequency of clock servicing is a topic that sometimes sparks debate among horologists. While some advocate for more frequent overhauls, particularly for highly valuable or antique pieces, a general guideline for most well-maintained mechanical clocks is an oil service every three to five years. However, if your clock is kept properly lubricated, a full strip-down and cleaning may not be necessary more often than once every ten years. The key takeaway is that consistent lubrication is more critical than infrequent, exhaustive servicing.

Choosing the Right Lubricant

The choice of lubricant is critical. Using the wrong type of oil can be as detrimental as not oiling the clock at all. It is imperative to use synthetic clock oil specifically designed for horological applications. Avoid common household lubricants like 3-in-One oil or, even worse, WD40. These products are not formulated for the unique demands of clock movements:

• Synthetic Clock Oil: Modern synthetic clock oils are engineered for longevity and stability. They resist breaking down over time, ensuring consistent lubrication for extended periods. They also often contain rust inhibitors to protect the brass and steel components.
• Avoid Mineral or Vegetable Oils: Older types of mineral or vegetable-based oils can degrade over time, becoming gummy or drying out, which can impede the clock's movement and attract dust and debris.

Tools of the Trade: Oiling Instruments

Applying clock oil requires precision. Over-oiling can be as problematic as under-oiling. Ideally, you'll want to use a specialised clock oiler. These tools are designed to deliver a minuscule, controlled amount of oil exactly where it's needed. Common options include:

• Clock Oiler Needles/Syringes: These resemble fine hypodermic syringes and allow for precise application, reaching into tight spaces without contaminating adjacent parts. Reputable brands like AF (Albert Froidevaux & Fils SA) specialise in such tools. These are generally suitable for pallets and small to medium-sized pivots.
• Dipping Pins: Alternatively, you can pour a small amount of clock oil into a tiny, clean dish and dip a clean steel pin into it. The key is to only pick up a tiny bead of oil on the tip of the pin.

It's worth noting that larger pivots, such as those found on winding arbors, often require a thicker lubricant, such as a specific clock grease, rather than a light oil. Always consult the specific needs of your clock or seek expert advice.

Where to Apply the Oil

Strategic application of clock oil is crucial. The primary points of lubrication are the pivot holes and the pallets of the escapement. Let's break down the process:

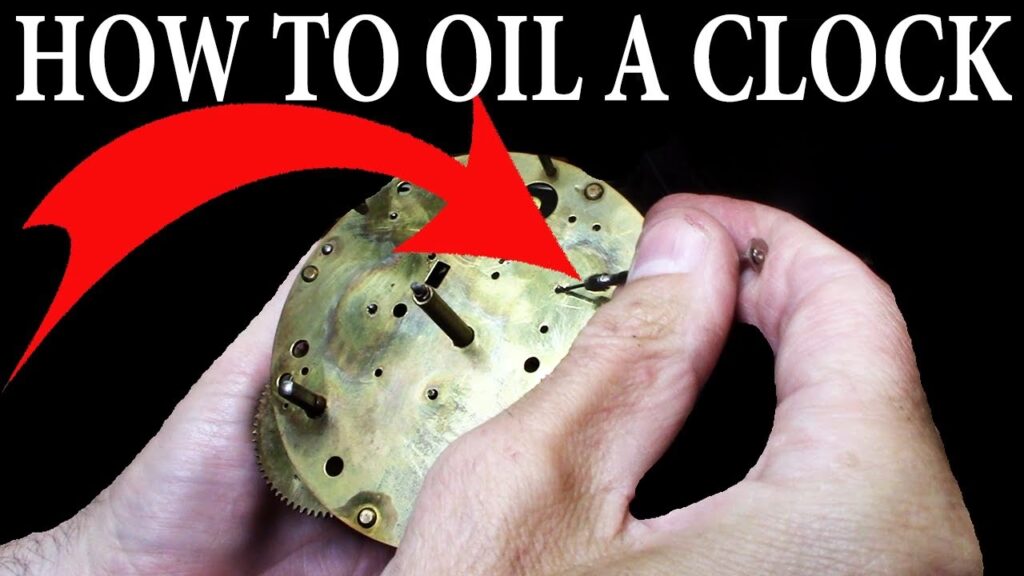

Lubricating the Pivot Holes

The process is best performed with the clock laid face down to allow the oil to settle correctly within the pivot holes.

1. Locate the Pivot Holes: Examine the clock's movement. You'll see the ends of the pivots protruding from the brass plates. The pivot holes themselves are often slightly cupped or countersunk to create a small reservoir for the oil.
2. Apply Oil to the Pivot Hole: Using your chosen oiler or dipped pin, apply a single, tiny drop of clock oil into the cupped end of each pivot hole. You should see the end of the pivot resting within this oiled 'well'.
3. Allow for Permeation: Let the oil sit for a short while to allow it to permeate into the bearing surface.
4. Avoid Over-Oiling: Crucially, do not apply too much oil. If the countersink fills completely and oil begins to drain out, it can, through a process known as osmosis, draw the oil out of the pivot hole, leaving it drier than before.

A typical 8-day timepiece will have at least four sets of pivot holes. Striking clocks, with their additional mechanisms, will have significantly more. Don't forget to address all the essential pivot points.

Lubricating the Escapement Pallets

The escapement is the part of the clock that controls the release of energy from the mainspring and regulates the timekeeping. It consists of the escape wheel and the pallet fork. A tiny spot of oil is also applied to the pallets where they engage with the escape wheel teeth. This ensures that the teeth of the escape wheel can 'escape' with minimal friction as they interact with the pallets.

What NOT to Oil

It is equally important to know where not to apply oil. Avoid oiling the teeth of the wheels or the pinions. These surfaces are designed to engage and disengage, and excess oil can attract dust and debris, hindering their function and potentially causing wear.

The Challenge of the Front Plate

While oiling the rear plate pivots might seem manageable, the front plate presents a greater challenge. The pivot holes in the front plate are often not as accessible, and the countersinks may not retain oil effectively if not approached correctly. To properly lubricate the front pivots, you will typically need to:

• Remove the clock's hands.
• Carefully remove the dial to expose the front plate.
• Access and lubricate the pivot holes as described previously.

This process requires a delicate touch and potentially specialised tools. If you are not confident in your ability to perform this task without risking damage to the hands, dial, or movement, it is advisable to entrust this to a professional clock repairer.

Summary of Lubrication Points

Here's a quick reference for where oil should be applied:

Frequently Asked Questions

Q1: Can I use any household oil for my clock?

No, absolutely not. Household oils like 3-in-One or WD40 are not suitable for clock movements and can cause significant damage. Always use a dedicated synthetic clock oil.

Q2: How much oil should I use?

Less is more. You only need a tiny drop of oil for each pivot hole or pallet. Over-oiling can attract dust and cause lubricants to migrate where they shouldn't.

Q3: How often should I lubricate my clock?

A general guideline is every three to five years for an oil service. However, regular checks and ensuring the lubrication is still effective are key.

Q4: What happens if I don't lubricate my clock?

Lack of lubrication leads to increased friction, wear on pivots and pivot holes, potential gear damage, and eventually, the clock stopping altogether.

Q5: Is it difficult to lubricate a clock myself?

Oiling the rear plate pivots can be a manageable DIY task with the right tools and care. Lubricating the front plate often requires more skill and disassembly, making it a task best left to professionals if you are not experienced.

By understanding the principles of lubrication and applying the correct techniques, you can ensure your cherished mechanical clock continues to provide the comforting rhythm of time for generations to come. Remember, precision and the right materials are your allies in this delicate task.
