The braking system is, without doubt, the most critical safety feature in any vehicle. A driver's confidence and, more importantly, the safety of all road users hinge on its reliability. At the heart of this system lie the brake pads, components responsible for converting kinetic energy into thermal energy through friction, ultimately bringing a vehicle to a halt. For decades, asbestos was the material of choice for brake pads due to its excellent heat resistance and durability. However, the severe health risks associated with asbestos dust led to its widespread prohibition in the automotive industry. This ban propelled extensive research into alternative, safer, and equally effective materials. Today, the focus is firmly on sustainable, eco-friendly options, particularly those derived from agricultural waste, which are proving to be commercially viable and environmentally sound.
The Composition of Brake Pads: A Foundation for Performance
Modern brake pads are intricate composite materials, meticulously engineered to perform under extreme conditions of temperature, pressure, and speed. They are typically composed of several layers, each serving a vital function. The backplate provides the necessary rigidity and mounting points to the caliper. An underlayer, positioned between the backplate and the friction material, helps to dampen vibrations and reduce noise during braking. The most crucial layer, however, is the friction material itself, which directly contacts the brake disc.
This friction material is a complex blend of various ingredients, broadly categorised into four main groups:
- Binders: These are the 'glue' that holds all the other components together. They must exhibit a stable and high friction coefficient, possess excellent resistance to high temperatures and rapid temperature changes, and be lightweight. Historically, phenolic resins have been widely used due to their thermosetting properties.
- Reinforcement: Fibrous materials added to enhance the mechanical qualities and durability of the brake pad. While asbestos was once a prime choice for its strength and heat resistance, it has been replaced by safer alternatives.
- Fillers: These materials are used to fill the gaps between other components, influencing density, cost, and processing characteristics.
- Abrasives: Included to modify and enhance the coefficient of friction between the pad and the disc. Common examples include steel, refractory oxides, cast iron, quartz, or silicates.
Additionally, friction modifiers and lubricants are often incorporated to fine-tune braking performance, ensuring a stable coefficient of friction and reduced wear rates across diverse operating conditions.
The Shift to Natural, Eco-Friendly Materials
The imperative to replace asbestos has spurred remarkable innovation in brake pad material science. Researchers are now extensively exploring biomass derived from agricultural waste, which offers a compelling combination of high strength, eco-friendliness, affordability, abundance, and sustainability. These natural raw fibres are proving to be excellent reinforcement materials for polymer composites.
A wide array of agricultural waste products are being investigated, including but not limited to:
- Coconut Fibre/Shell Powder (CNS): Highly researched due to its renewability, low cost, biodegradability, and high compressive strength. Studies have shown that CNS can be an excellent alternative to asbestos, contributing to good wear resistance and a stable friction coefficient. For instance, formulations with specific percentages of coconut shell powder have demonstrated comparable mechanical qualities to commercial brake pads, yielding low wear rates and high friction coefficients. Its cellulose content also contributes to better water absorption and wear resistance, and when burned during production, it creates a porous material that lowers density and reduces braking noise.
- Palm Kernel Shell (PKS): Similar to coconut shell, PKS has shown great promise. Research indicates that PKS particles can improve abrasion resistance, thermal stability, and sliding wear resistance.
- Wood Powder/Sawdust: Hardwood sawdust, when processed to smaller particle sizes, has been shown to improve density, hardness, compressive strength, and wear properties of brake pads.
- Bamboo Fibre: Offers good mechanical properties and contributes to acceptable wear rates and friction coefficients.
- Cow Bone Powder: Primarily composed of CaCO3, it's being explored for its potential in bioceramic and biocomposite applications for brake pads.
- Candlenut Shell Powder: Used in conjunction with other natural fibres, it contributes to desirable hardness and wear resistance.
- Sugarcane Bagasse/Powder: Another promising natural fibre that can enhance the friction coefficient and reduce wear rates.
- Kenaf Fibres: Known for increasing heat resistance and strength due to their inherent properties.
- Banana Fibre and Rice Husk: These are also being incorporated into bio-composite brake pads, affecting properties like Young's modulus, compressive strength, and wear rates based on their fibre content.
- Periwinkle Shells: Studies indicate that specific particle sizes of periwinkle shells can provide excellent wear resistance and friction coefficients comparable to automotive standards.
- Oil Bean Stalk: Investigated for its potential as a reinforcement material, contributing to specific gravity and mechanical properties.
The overarching goal is to achieve a stable friction coefficient and reduced wear rates under diverse operating conditions, including varying temperatures, pressures, and speeds, while ensuring environmental sustainability.
Critical Factors Affecting Brake Pad Performance
Beyond the choice of raw materials, several other parameters significantly influence a brake pad's overall performance and durability:
Material Composition and Proportions
The precise blend and ratio of binders, reinforcement, fillers, and abrasives are paramount. A slight alteration in composition can dramatically change the pad's characteristics. For instance, the type of reinforcing material greatly influences durability. The right combination is essential to achieve a low wear rate and a stable friction coefficient. Natural fibres, with their excellent adherence to resin, offer good wear resistance for composites.
Particle Size of Eco-Friendly Materials
Research consistently shows that the particle size of the eco-friendly materials used as fillers or reinforcement has a profound impact on performance. Generally, smaller particle sizes lead to:
- Greater Density: Tightly packed smaller particles result in a denser material.
- Stronger Bonding: Improved surface area allows for better adhesion to the resin binder, leading to a more cohesive structure.
- Enhanced Mechanical Properties: Higher hardness, compressive strength, and improved wear properties are often observed with smaller particles.
- Reduced Wear Rate: Smaller particles are less prone to breaking away under force, contributing to better wear resistance.
- Improved Fade Resistance: The ability of the brake pad to maintain its friction performance at high temperatures.
For example, studies on palm kernel and coconut shell powders, sawdust, and rice husk have consistently demonstrated that finer particle sizes (e.g., 0.25 mm to 0.35 mm, or 100 μm to 250 μm) yield superior wear resistance and bond strength compared to larger particles.
Manufacturing Process

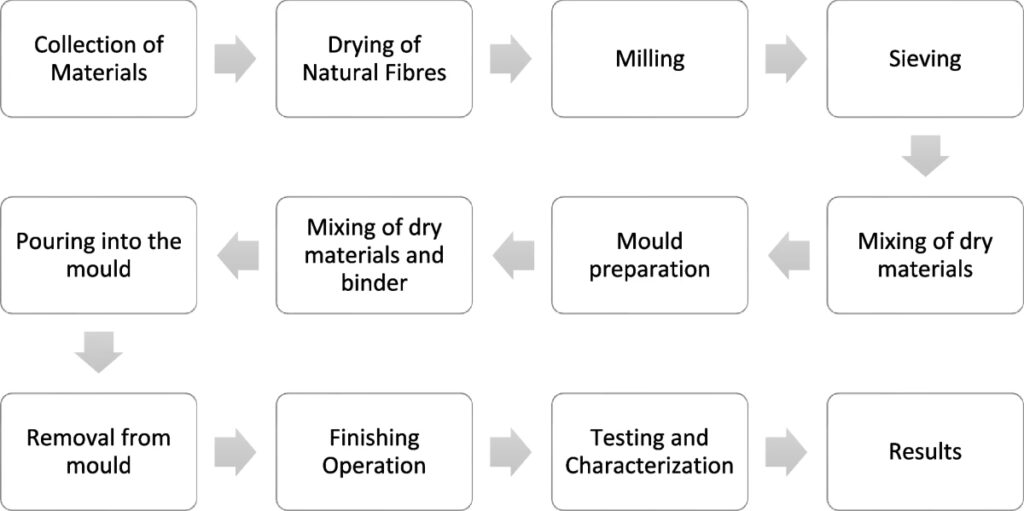

The fabrication method, including hot compression moulding, hand lay-up, applied pressure, and curing/heat treatment times, plays a crucial role. These processes influence the material's compaction, bonding, and final microstructure, directly impacting properties like ultimate tensile strength, hardness, friction coefficient, and wear rate.
Thermal Management
Braking generates significant heat. Excessive thermal loading can lead to issues like brake judder (disc thickness variations), surface cracking on the pads, and severe wear. High temperatures can also compromise brake fluid, seals, and other system components, leading to malfunctions. Therefore, brake pad materials must be designed to withstand and dissipate heat effectively. A low thermal conductivity is desirable, indicating the pad's ability to resist heat transfer to other braking system components.
Testing and Evaluation of Brake Pad Performance
Developing effective brake pads, especially with new materials, requires rigorous testing to ensure they meet stringent safety and performance standards. These tests assess various mechanical, thermal, and tribological properties:
- Specific Gravity and Density: These tests determine the mass-to-volume ratio, indicating how lightweight or dense the material is. Lower specific gravity often translates to lighter components, which can be advantageous.
- Water Absorption Test: Critical for assessing how well the pad material performs in wet conditions. A low water absorption rate is highly desirable to prevent swelling, degradation, or corrosion of metallic constituents, ensuring consistent performance in rain or through puddles.
- Compressive Strength Analysis: Measures the material's ability to withstand compressive loads without deforming or failing. For brake materials, a recommended range is typically 70–125 MPa. Many eco-friendly composites have demonstrated compressive strengths within or even superior to this range compared to commercial asbestos pads.
- Hardness Test: Assesses the material's resistance to permanent indentation or plastic deformation. Various scales (Vickers, Shore D, Rockwell) are used. Higher hardness generally correlates with better wear resistance.
- Thermal Conductivity Test: Determines how efficiently heat travels through the material. For brake pads, a low thermal conductivity is preferred to prevent excessive heat transfer to the brake fluid and other components, thus maintaining system integrity and preventing brake fade.
- Wear Test: Measures the amount of material lost from the pad surface due to friction and abrasion over time. Often conducted using a pin-on-disc method, a low wear rate signifies a longer service life for the brake pad.
- Coefficient of Friction (COF): Quantifies the friction between the pad and the disc. A stable and appropriate COF (typically between 0.21 and 0.55 for dry conditions) is crucial for consistent and effective braking. Higher COF values allow for strong braking force with less pedal pressure.
- Microstructural Analysis (SEM/EDX): Scanning Electron Microscopy (SEM) and Energy-Dispersive X-ray Spectroscopy (EDX) are used to visualise the material's microstructure, assess particle dispersion, bond formation, and identify elemental composition. This helps in understanding how different materials interact and contribute to the overall properties.
Comparative Performance of Non-Asbestos Brake Pads
Numerous studies have focused on developing non-asbestos brake pads using various natural reinforcements, comparing their performance against commercial asbestos-based pads. The goal is to achieve comparable or superior properties, particularly in terms of wear rate and friction coefficient.
Here's a simplified overview of how different natural reinforcements compare in key performance areas based on extensive research:
| Type of Reinforcement | Hardness (Approx. Range) | Wear Rate (Relative) | Coefficient of Friction (Relative) |
|---|---|---|---|
| Commercial Asbestos-based | Moderate to High | Reference (e.g., 3.8 mg/m) | Reference (e.g., 0.3-0.4) |
| Coconut Shell Powder | Good (e.g., 60-70 Shore D) | Low (often better than asbestos) | High (often better than asbestos) |
| Palm Kernel Shell | Moderate to Good (e.g., 2-3 HRC) | Low | Moderate to High |
| Wood Powder + Coconut Fibre + Cow Bone | Moderate (e.g., 23-35 HV) | Moderate | Moderate (e.g., 0.38-0.47) |
| Bamboo Fibre | Moderate (e.g., 37 HRB) | Comparable to Commercial | Comparable to Commercial (e.g., 0.45) |
| Kenaf Fibre | Good (e.g., 87 HRB) | Low to Moderate | Stable (e.g., 0.43) |
| Banana Fibre + Coconut Coir + Rice Husk | Moderate (e.g., 45 Shore D) | Lower than Commercial (at certain speeds) | Moderate (e.g., 0.6) |
It's important to note that the specific performance values depend heavily on the exact formulation, manufacturing process, and test conditions. However, the general trend indicates that a wide range of agricultural wastes, when correctly processed and combined, can yield brake pads with wear rates and friction coefficients comparable to, or even superior to, traditional asbestos-based materials. The superior adhesion of natural fibres to resins plays a significant role in achieving good wear resistance.
Frequently Asked Questions About Brake Pad Materials
What is asbestos and why is it banned from brake pads?
Asbestos is a naturally occurring silicate mineral known for its excellent strength, durability, flexibility, and resistance to heat and corrosion. It was widely used in brake pads due to these properties and its low cost. However, the International Agency for Research on Cancer (IARC) and World Health Organization (WHO) classified asbestos as carcinogenic. Inhaling asbestos dust can cause severe lung diseases, including cancer, leading to its prohibition in automotive and many other industries globally.
What are the main components of a brake pad's friction material?
The friction material in a brake pad typically consists of four main categories: binders (to hold components together, e.g., phenolic resin), reinforcement fibres (to provide mechanical strength and durability, e.g., natural fibres like coconut or bamboo), fillers (to occupy space and influence properties), and abrasives (to modify the friction coefficient).
Why are natural fibres preferred as alternative brake pad materials?
Natural fibres derived from agricultural waste (such as coconut shells, palm kernels, rice husks, and bamboo) are increasingly preferred because they are renewable, biodegradable, recyclable, abundant, and relatively inexpensive. They offer high strength and stiffness, contribute to reduced environmental impact, and can achieve performance characteristics comparable to traditional materials, making them a sustainable and eco-friendly alternative to asbestos.
How does the particle size of materials affect brake pad performance?
The particle size of the raw materials, especially fillers and reinforcement fibres, significantly impacts brake pad performance. Smaller particle sizes generally lead to a denser material, stronger bonding with the binder, higher hardness, improved compressive strength, and better wear resistance. This is because smaller particles allow for a greater surface area for adhesion and create a more robust internal structure, making them less likely to break away under stress.
What makes a good brake pad material?
An ideal brake pad material must possess a stable and high coefficient of friction across various operating conditions (temperature, pressure, speed), exhibit a low wear rate for extended durability, have good thermal stability to resist fade and prevent damage to other braking components, absorb minimal water, and be environmentally friendly. The right combination and processing of its constituent materials are crucial to achieving these properties.
The Road Ahead: Sustainable Braking
The journey from asbestos-dominated brake pads to the sophisticated, eco-friendly composites of today highlights a remarkable evolution in automotive materials science. The intensive research into natural fibres and agricultural waste products has not only addressed critical health and environmental concerns but has also pushed the boundaries of performance. With ongoing advancements in material selection, formulation, and manufacturing techniques, the future of braking promises even safer, quieter, and more sustainable solutions for vehicles worldwide. The success of these bio-composite brake pads demonstrates that high performance and environmental responsibility can indeed go hand in hand on our roads.
