Optimal MOT Type 1 Sub-Base Depths Explained

When embarking on any landscaping or construction project, be it a new driveway, a charming patio, or a sturdy shed base, the foundation you lay is paramount. This foundation often involves a sub-base, and for many in the UK, MOT Type 1 aggregate is the material of choice. But a common question that arises, and one that holds significant weight (pun intended), is: "How deep should my MOT Type 1 sub-base be?" Getting this depth right isn't just about following guidelines; it's about ensuring the longevity, stability, and overall success of your project.

Understanding the correct depth is crucial for various reasons, including adequate load distribution, effective drainage, and preventing future subsidence or cracking. A sub-base that is too shallow will inevitably fail under stress, leading to costly repairs, whilst one that is excessively deep might be an unnecessary expense. Let's delve into the specifics to ensure your project stands the test of time.

The Critical Role of Sub-Base Depth

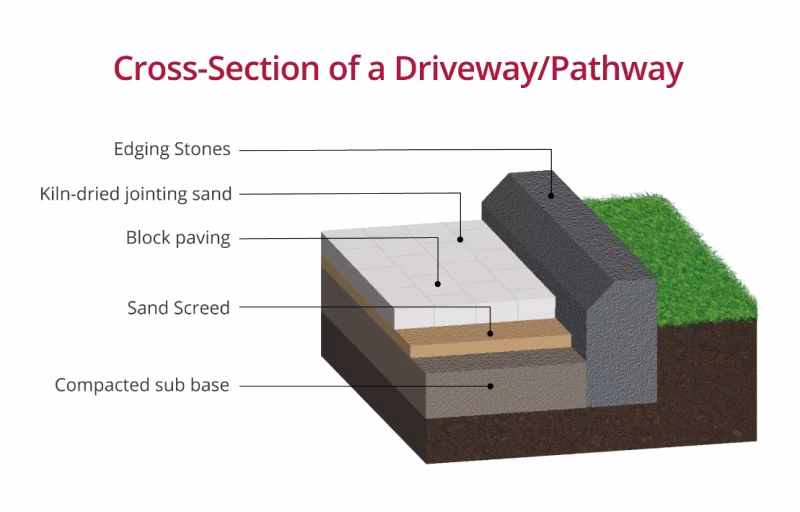

The sub-base serves as the crucial intermediary layer between the natural ground (known as the subgrade) and your final surface material, whether that's paving slabs, tarmac, or block paving. Its primary function is to provide a stable, load-bearing platform that distributes weight evenly across the underlying soil. Without a properly constructed and adequately deep sub-base, the weight of vehicles, foot traffic, or even the structure itself would concentrate on small areas, leading to depressions, cracks, and eventual failure of the surface layer.

The depth of the sub-base directly influences its ability to perform this load-bearing function. A deeper sub-base provides a larger volume of compacted material, which means the weight is spread over a wider area, reducing the pressure on the subgrade. This is particularly important for areas that will experience heavy loads, such as driveways. Furthermore, a well-laid sub-base, especially with MOT Type 1's excellent grading, aids in drainage, preventing water from pooling and undermining the structure from beneath. Proper compaction of the sub-base at the correct depth is also vital; it interlocks the aggregate particles, maximising their strength and stability.

Standard Depths for Various Applications

The ideal depth for your MOT Type 1 sub-base isn't a one-size-fits-all answer. It largely depends on the intended use of the area and the expected loads it will bear. Here are some common applications and their typical sub-base depth recommendations:

Driveways: Built to Last

For driveways, which will regularly support the weight of vehicles, a robust sub-base is essential. Typically, a depth of 150mm (6 inches) is recommended for domestic driveways. In some cases, especially for heavier vehicles or areas with particularly soft subgrade, this could extend to 200mm. This substantial depth ensures the sub-base can effectively distribute the vehicle's weight, preventing rutting and sinking over time.

Patios: Stable Foundations for Outdoor Living

Patios, while not subject to the same heavy vehicular loads as driveways, still require a stable foundation to prevent movement and cracking of paving slabs. A common recommendation for patios is a sub-base depth of 100mm (4 inches). This provides ample support for foot traffic, garden furniture, and occasional heavier items, ensuring your outdoor living space remains level and attractive for years.

Footpaths & Light Applications: Less is Sometimes More

For lighter applications such as garden paths, pedestrian walkways, or areas that will only experience very light foot traffic, a shallower sub-base might suffice. Depths of 50mm to 75mm (2-3 inches) can be considered. However, it's crucial to assess the underlying ground conditions and expected usage carefully. For any doubt, opting for a slightly deeper sub-base is always a safer bet to ensure longevity.

Shed Bases: A Solid Stand

When constructing a shed base, the goal is to provide a level and stable platform that prevents the shed from sinking or twisting. For most garden sheds, a sub-base depth of 100mm (4 inches) is generally adequate. This ensures a firm foundation that can support the weight of the shed and its contents, protecting it from ground moisture and promoting airflow underneath.

Factors Influencing Your Sub-Base Depth

Beyond the general application, several other factors can influence the optimal depth of your MOT Type 1 sub-base:

• Subgrade Conditions: The existing soil beneath your project plays a significant role. If you have particularly soft, clayey, or unstable soil, a deeper sub-base will be required to bridge the gap and provide sufficient stability. Conversely, well-draining, firm sandy or gravelly soils might allow for slightly shallower depths, though standard recommendations should still be followed.
• Anticipated Traffic/Weight: As discussed, the heavier the load, the deeper the sub-base needs to be. Consider not just the type of traffic (pedestrian vs. vehicular) but also the frequency and maximum weight.
• Drainage Requirements: While MOT Type 1 drains well, the overall site drainage strategy can impact sub-base depth. In areas prone to waterlogging, a deeper, well-compacted sub-base can help manage water flow.
• Final Surface Material: The type of surface you lay on top can also subtly influence sub-base requirements. While most paving types benefit from similar depths, very thin or flexible surfaces might demand a more robust sub-base for overall stability.

Calculating Your MOT Type 1 Requirements

Once you've determined the ideal depth, calculating the amount of MOT Type 1 you'll need is straightforward. The basic formula for calculating volume is:

Length (metres) x Width (metres) x Depth (metres) = Volume (cubic metres)

For example, if you have a driveway that is 10 metres long by 3 metres wide, and you've decided on a 0.15 metre (150mm) sub-base depth, the calculation would be:

10m x 3m x 0.15m = 4.5 cubic metres (m³)

To convert this volume into tonnes, you'll need to know the typical density of MOT Type 1. On average, MOT Type 1 weighs between 1.6 and 1.8 tonnes per cubic metre. Using an average of 1.7 tonnes/m³:

4.5 m³ x 1.7 tonnes/m³ = 7.65 tonnes

It's always wise to add a small percentage (e.g., 5-10%) for wastage and to ensure you don't run short, especially as compaction will reduce the initial volume.

Quick Coverage Guide (Approximate)

The following table provides a general guide for how much area a given weight of MOT Type 1 might cover at specific depths. These are approximate figures and can vary based on the material's moisture content and final compaction levels.

Installation Best Practices for a Durable Sub-Base

Laying the sub-base correctly is just as important as getting the depth right. Here's a brief overview of best practices:

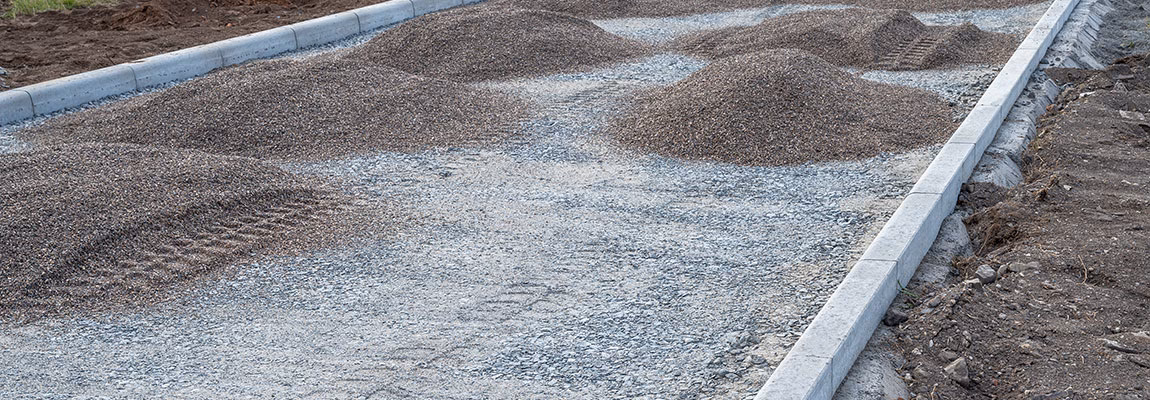

1. Site Preparation: Excavate the area to the required depth, ensuring the bottom is level and free of any organic matter or large debris. The subgrade should then be thoroughly compacted using a plate compactor to create a firm, stable base.
2. Geotextile Membrane: While not always mandatory, laying a geotextile membrane (also known as a weed membrane or ground stabilisation fabric) directly on the compacted subgrade is highly recommended. This permeable fabric prevents the sub-base material from mixing with the underlying soil, maintains the integrity of the sub-base, and acts as a barrier against weed growth.
3. Laying the Type 1: Spread the MOT Type 1 aggregate evenly across the area in layers, typically no more than 100-150mm thick per layer, even if your total depth is greater. This allows for more effective compaction.
4. Wetting and Compaction: Before compacting, lightly dampen the MOT Type 1. This helps the fines within the aggregate bind together, improving the overall compaction and stability. Then, use a vibrating plate compactor to thoroughly compact each layer. Pass over the surface multiple times in different directions until the material is firm and no longer significantly settling.

Frequently Asked Questions (FAQs)

Here are answers to some of the most common questions regarding MOT Type 1 sub-base:

How do you calculate Type 1 sub-base?

To calculate the volume of Type 1 sub-base needed, you multiply the length, width, and desired depth of the area to be filled. Ensure all measurements are in metres. For example, Length (m) x Width (m) x Depth (m) = Volume (m³).

How much type 1 per square metre?

The amount of Type 1 sub-base required per square metre depends entirely on the specified depth. For instance, at a depth of 100mm (0.1m), you would need 0.1 cubic metres of Type 1 per square metre. If you plan for 150mm (0.15m) depth, it would be 0.15 cubic metres per square metre.

How much sub-base will I need?

The total amount of sub-base needed depends on the total area to be covered (length x width) and the desired depth of the sub-base layer. Always calculate the total volume in cubic metres and then convert to tonnes using an average density of 1.7 tonnes per cubic metre.

What is the weight of Type 1 sub-base per m3?

The weight of Type 1 sub-base per cubic metre can vary slightly due to factors like moisture content and specific aggregate composition, but it typically ranges from 1,600 to 1,800 kilograms (1.6 to 1.8 tonnes) per cubic metre when compacted.

How much does 1 tonne of Type 1 cover?

Assuming a compacted depth of around 100 millimetres (0.1m), 1 tonne of Type 1 sub-base can cover approximately 7 to 8 square metres. For other depths, you can use the calculation: Coverage (m²) = 1000kg / (Density kg/m³ * Depth m).

How deep should MOT Type 1 be?

MOT Type 1 sub-base is typically laid at a depth of around 100 to 150 millimetres for driveways and patios, providing adequate support and stability. For lighter applications like footpaths, 50-75mm might suffice, but for heavy loads, deeper layers might be necessary.

How much does 800kg MOT Type 1 cover?

With a compacted depth of around 100 millimetres (0.1m), 800 kilograms of MOT Type 1 sub-base can cover approximately 5 to 6 square metres. This is proportional to the 1-tonne coverage.

How many square metres does a tonne of Type 1 cover?

As mentioned, with a compacted depth of around 100 millimetres (0.1m), 1 tonne of Type 1 sub-base can cover approximately 7 to 8 square metres.

How much does 800kg of MOT Type 1 cover?

Similar to the previous answer, 800 kilograms of MOT Type 1 sub-base will cover approximately 5 to 6 square metres when laid at a compacted depth of 100 millimetres.

Is 50mm sub-base enough?

A 50-millimetre (2-inch) sub-base may be sufficient for very light applications such as purely decorative garden paths or areas with extremely minimal foot traffic. However, for driveways, patios, or any area expecting moderate to heavy loads, a deeper sub-base (100-150mm) is strongly recommended to ensure long-term stability and prevent settlement.

How deep should MOT type 1 be for a patio?

For a patio, MOT Type 1 sub-base is typically laid at a compacted depth of around 100 to 150 millimetres. This range provides excellent support for paving slabs and withstands general foot traffic and outdoor furniture without issues.

How much does it cost to lay Type 1?

The cost of laying Type 1 sub-base can vary significantly. Factors include the cost of the material itself (which fluctuates by region and supplier), delivery charges, labour rates if hiring professionals, and the complexity or size of the area. It is always best to obtain multiple quotes from local aggregate suppliers and contractors for an accurate estimate specific to your project.

How thick is MOT Type 1 sub-base?

MOT Type 1 sub-base is typically laid at a compacted thickness of around 100 to 150 millimetres (4 to 6 inches) for most hard landscaping applications like driveways and patios, depending on the specific load requirements and ground conditions.

How many m3 is a Type 1 bulk bag?

A standard bulk bag (or 'tonne bag') of Type 1 sub-base typically contains around 0.6 to 0.8 cubic metres of material. It's important to check the supplier's exact specifications, as bag sizes can vary.

What is mot type 1 sub-base made of?

MOT Type 1 sub-base is typically made of crushed granite, limestone, or other suitable hard rock. It is a 'graded' aggregate, meaning it contains a mixture of particle sizes ranging from 40 millimetres down to dust (fines). This grading allows for excellent interlock when compacted, creating a very stable and dense layer that drains well and provides strong load-bearing capabilities. It meets the specifications outlined by the Department of Transport (MOT) standard.

How much is 15 ton of Type 1?

The cost of 15 tonnes of Type 1 sub-base will vary based on your location, the supplier, and current market prices. You should contact several local aggregate suppliers for accurate quotes, as delivery charges for such a large quantity can also be a significant factor.

Can I use MOT Type 1 for driveway?

Yes, absolutely. MOT Type 1 sub-base is the most commonly recommended and used material for driveways in the UK. Its excellent compaction properties, stability, and drainage make it ideal for creating a durable and long-lasting foundation that can withstand regular vehicular traffic.

Can you use MOT Type 1 as a shed base?

Yes, MOT Type 1 sub-base is an excellent choice for a shed base. It provides a stable, level, and well-draining foundation, which is crucial for the longevity of your shed. It helps prevent damp issues and ensures the shed structure remains level over time.

Should you wet Type 1 before compacting?

Yes, it is generally recommended to lightly dampen or wet the Type 1 sub-base before compacting it. A slight amount of moisture helps the smaller particles (fines) bind together with the larger aggregates, which significantly improves the effectiveness of the compaction and leads to a denser, more stable base. However, be careful not to over-wet it, as excessive moisture can hinder compaction.

Do I need a membrane under Type 1?

While not strictly essential for every single project, a geotextile membrane (or weed membrane) is highly recommended under Type 1 sub-base. It serves two main purposes: it prevents the sub-base material from contaminating and mixing with the underlying subgrade (especially if the subgrade is soft or clayey), and it provides an additional layer of stability and weed suppression.

Should you compact soil before laying sub-base?

Yes, it is crucial to compact the existing soil (the subgrade) before laying the sub-base. This ensures that you are building on a firm, stable foundation. Compacting the subgrade prevents future settlement and ensures the entire structure, from the ground up, is as stable as possible.

Is there a cheaper alternative to MOT Type 1?

Yes, there can be cheaper alternatives, though their suitability depends on the application. Crushed concrete (Type 1 Recycled) or other recycled aggregates can sometimes be more cost-effective, especially if sourced locally. However, always ensure that any alternative material meets the required specifications for your project's load-bearing needs and drainage properties.

Does MOT Type 1 drain well?

Yes, MOT Type 1 sub-base is designed to provide good drainage. Its graded particle sizes allow water to percolate through the material efficiently, preventing water from pooling within the sub-base layer and helping to maintain the stability of the structure above.

Does MOT Type 1 stop weeds?

MOT Type 1 sub-base itself does not actively stop weeds from growing, as weed seeds can still germinate within the aggregate if conditions are right. However, its dense compaction makes it harder for weeds to establish deep roots. To effectively prevent weed growth, it is highly recommended to lay a geotextile membrane beneath the Type 1 sub-base and consider using a bedding layer and jointing compound that inhibit weed growth on the final surface.

Can you lay slabs on Type 1?

Yes, you can lay paving slabs directly on top of a well-compacted Type 1 sub-base. However, it is standard practice and highly recommended to lay a thin layer (typically 25-50mm) of sharp sand or a permeable bedding mortar on top of the compacted Type 1 before placing your slabs. This creates a perfectly level and stable bed for the slabs.

Can you use stones as a sub-base?

Yes, crushed stones or gravel can be used as a sub-base material. However, it's essential to ensure that the stones are properly graded (like MOT Type 1) to allow for good compaction and interlock, providing a stable, load-bearing foundation. Randomly sized stones or pea gravel are generally not suitable as they don't compact effectively.

How thick should Type 1 be?

MOT Type 1 is typically laid at a compacted thickness of around 100 to 150 millimetres (4 to 6 inches) for driveways, patios, or other hard landscaping applications. The specific thickness depends on the intended use and anticipated loads.

How much does a bulk bag of MOT Type 1 cover?

A standard bulk bag of MOT Type 1 sub-base, which typically contains 0.6 to 0.8 cubic metres of material, will cover approximately 4 to 6 square metres at a compacted depth of 150mm, or 7 to 8 square metres at a compacted depth of 100mm.

How much is sub-base per ton?

The cost of sub-base per tonne varies widely depending on the material type (e.g., MOT Type 1, crushed concrete), your geographic location, and the specific supplier. It's crucial to obtain quotes from several local suppliers to get the most accurate and competitive price.

What is Type 1 MOT aggregate?

Type 1 MOT aggregate refers to a specific type of graded crushed aggregate material that conforms to the Department of Transport's (MOT) Specification for Highway Works, Clause 803. It's known for its excellent compaction properties, good drainage, and strength, making it ideal for sub-bases in various construction and landscaping projects.

Can sub-base be too thick?

While a thicker sub-base generally provides greater stability and load-bearing capacity, excessively thick sub-base layers can be unnecessarily costly and lead to material wastage. There's a point of diminishing returns where additional depth provides little practical benefit for typical domestic applications. Adhering to recommended depths for your specific project is usually the most cost-effective and structurally sound approach.

Can I use 20mm gravel as a sub-base?

20mm gravel on its own is generally not ideal as a primary sub-base material for heavy-duty applications like driveways. While it offers good drainage, it lacks the fine particles (fines) necessary for effective interlock and strong compaction, which are crucial for load-bearing stability. It might be suitable for very light footpaths or as a drainage layer, but for robust foundations, a graded aggregate like MOT Type 1 is superior.

How deep is a Type 1 driveway?

A Type 1 driveway typically features a sub-base layer of MOT Type 1 aggregate laid at a compacted depth of around 150 millimetres (6 inches). This is then followed by a bedding layer (e.g., sharp sand) and the final surface material such as block paving, tarmac, or concrete.

Can you mix MOT Type 1 with cement?

Yes, mixing MOT Type 1 aggregate with cement (and water) can create a cement-bound material (CBM) or a stabilised sub-base. This process enhances the strength and rigidity of the sub-base, making it suitable for applications requiring even greater load-bearing capacity or where a highly rigid base is desired, such as under concrete slabs or heavily trafficked areas.

Can you lay a patio on Type 1?

Yes, you can confidently lay a patio on top of a well-prepared and compacted Type 1 sub-base. It provides a stable and level foundation for your paving slabs, ensuring they remain in place and resist sinking or movement over time.

How thick should Type 1 patio be?

The compacted thickness of Type 1 sub-base for a patio typically falls within the range of 100 to 150 millimetres (4 to 6 inches). The exact depth chosen depends on factors such as the expected foot traffic, the type of paving, and the stability of the underlying subgrade.

Do you need to compact MOT Type 1?

Absolutely, yes. Compaction is one of the most critical steps when laying MOT Type 1 sub-base. Using a vibrating plate compactor (whacker plate) to thoroughly compact the material in layers ensures the aggregate particles interlock tightly, creating a dense, stable, and strong foundation that can effectively bear loads and resist settlement. Without proper compaction, the sub-base will remain loose and prone to failure.

What is the depth of Type 1 base?

The depth of a Type 1 base (sub-base) depends on its intended use, the conditions of the ground, and the load-bearing requirements. Common depths range from 100mm for patios and shed bases to 150mm for driveways, with lighter applications sometimes using 50-75mm.

What size is Type 1 sub-base stone?

Type 1 sub-base stone is a graded aggregate material that includes a range of particle sizes, typically from 40 millimetres down to fine dust. This specific grading is what allows it to compact so effectively and create a strong, interlocked layer.

What size is Type 1 MOT stone?

Type 1 MOT stone is synonymous with Type 1 sub-base stone. It consists of crushed aggregate material with particle sizes ranging from 40 millimetres down to fine dust, meeting the Department of Transport's specifications for use as a sub-base.

What is the minimum thickness of a subbase?

The absolute minimum thickness of a sub-base layer for any practical application is generally considered to be around 50 millimetres. However, this is only suitable for very light pedestrian traffic or non-load-bearing areas. For most domestic projects like patios and driveways, the minimum recommended thickness is 100mm or more.

How many m3 are in a tonne of Type 1?

The density of Type 1 sub-base can vary slightly due to moisture content and specific composition, but on average, there are approximately 0.55 to 0.62 cubic metres in a tonne of Type 1 aggregate (or conversely, 1.6 to 1.8 tonnes per cubic metre).

How much does a 25kg bag of Type 1 cover?

A 25kg bag of Type 1 aggregate is a relatively small quantity. Its coverage depends on the depth, but at a compacted depth of 50 millimetres, it would typically cover approximately 0.25 to 0.3 square metres. These bags are generally more suited for very small repairs or minor levelling tasks rather than significant sub-base projects.

What is the difference between Type 1 and MOT Type 1?

There is no difference between 'Type 1' and 'MOT Type 1'; they refer to the exact same graded aggregate material. 'MOT' simply indicates that the material meets the specifications outlined in the Department of Transport's (Ministry of Transport) standard for sub-base materials used in highway construction. The terms are used interchangeably in the UK.

What is the difference between Type 1 and Type 2 sub-base?

Information regarding the difference between Type 1 and Type 2 sub-base was not provided, therefore it cannot be included in this article.

Conclusion

The depth of your MOT Type 1 sub-base is not merely a number; it's a critical engineering decision that underpins the success and longevity of your entire project. From high-traffic driveways demanding a robust 150mm to charming patios comfortably supported by 100mm, understanding the nuances of sub-base depth ensures optimal load-bearing, effective drainage, and sustained stability. By carefully assessing your project's needs, calculating your material requirements accurately, and adhering to best installation practices, you can lay a foundation that will serve you well for many years to come, avoiding the pitfalls of premature failure and costly repairs. Invest the time in getting the depth right, and your hard landscaping will truly endure.
