ATV Oil Change Guide

Keeping your All-Terrain Vehicle (ATV) in top condition is crucial for enjoying those off-road adventures. One of the most fundamental and vital maintenance tasks you can perform is a regular oil change. Fresh oil lubricates the engine's moving parts, reduces friction, prevents wear, and helps to dissipate heat. Neglecting this simple procedure can lead to premature engine damage and costly repairs. This guide will walk you through the process of changing the oil on your ATV, ensuring your machine runs smoothly and reliably for years to come.

Why Regular Oil Changes Are Essential

Engine oil is the lifeblood of your ATV. Over time, it degrades due to heat and contamination. Contaminants like dirt, metal shavings, and combustion by-products build up in the oil, reducing its lubricating properties. Old, dirty oil can cause increased friction, leading to overheating and excessive wear on critical engine components such as the crankshaft, pistons, and valves. Regularly changing the oil with the correct type and viscosity ensures that your engine's internal components are adequately protected, leading to:

• Improved Engine Performance: Clean oil allows for optimal lubrication, resulting in a more efficient and powerful engine.
• Extended Engine Life: By reducing wear and preventing overheating, fresh oil significantly contributes to the longevity of your ATV's engine.
• Better Fuel Economy: A well-lubricated engine operates more efficiently, which can translate to improved fuel consumption.
• Reduced Emissions: Properly functioning engines with clean oil tend to produce fewer harmful emissions.

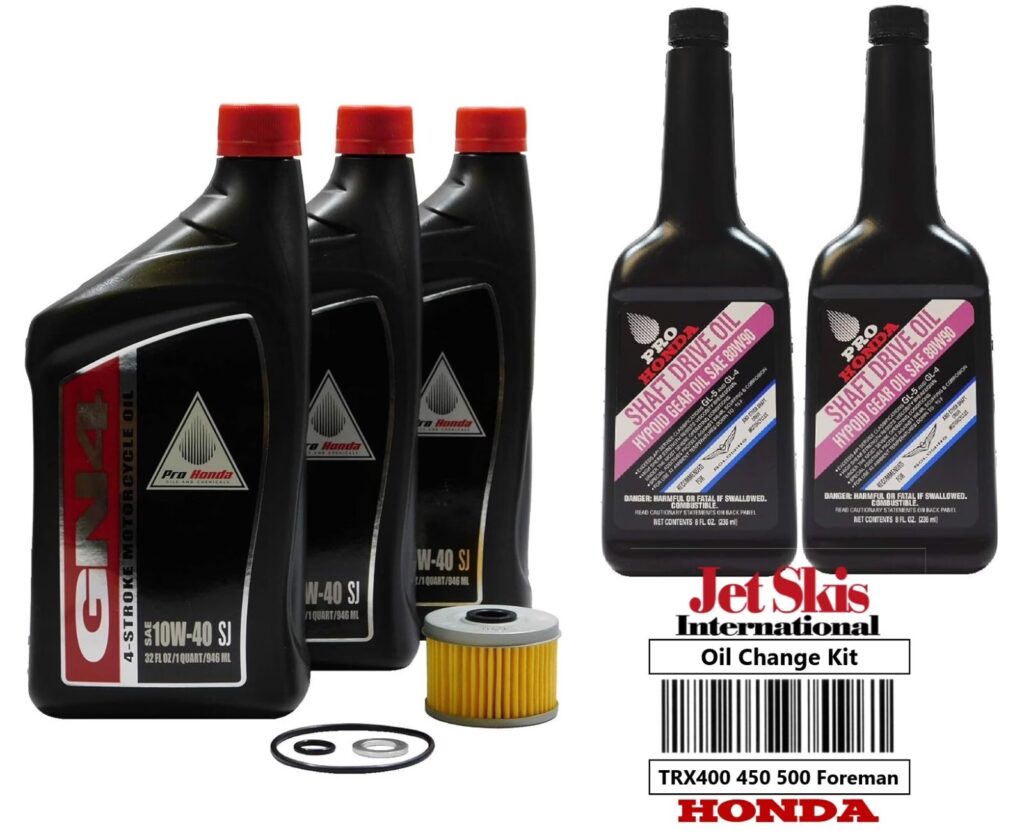

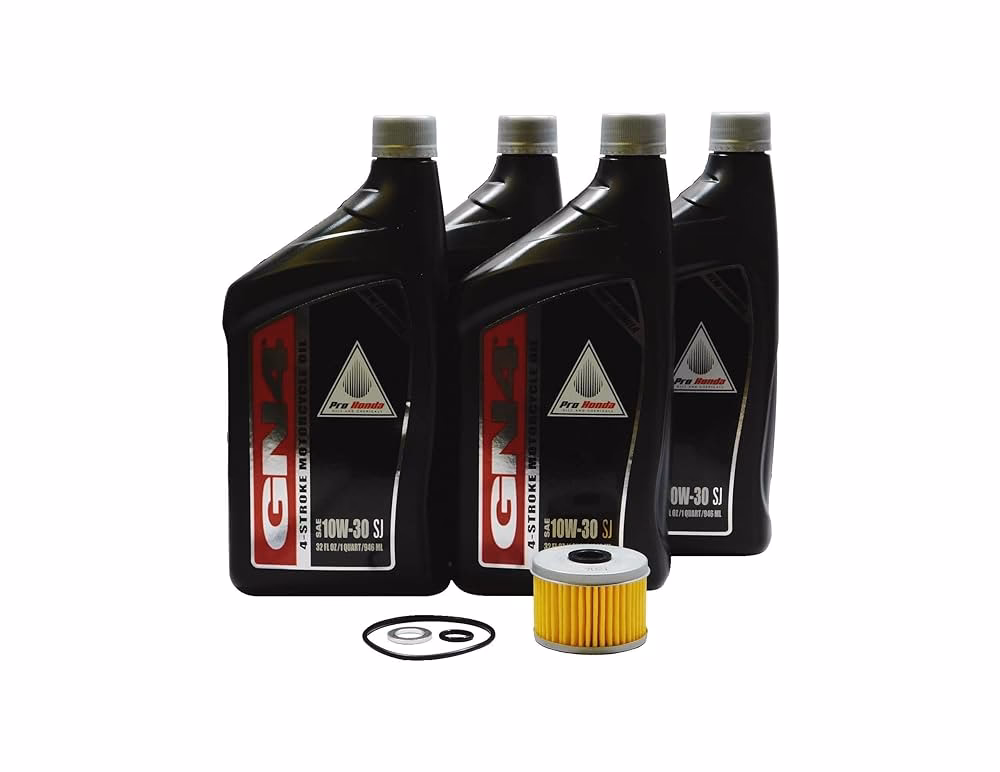

Gathering Your Supplies

Before you begin, ensure you have all the necessary tools and materials. Having everything ready will make the process smoother and more efficient. You will need:

• New Engine Oil: Consult your ATV's owner's manual for the recommended oil type and viscosity (e.g., SAE 10W-40). Using the wrong oil can damage your engine.
• New Oil Filter: Ensure you have the correct oil filter for your specific ATV model.
• Oil Drain Pan: A pan with sufficient capacity to hold all the old oil.
• Wrench Set: To remove the drain plug and oil filter. A socket wrench with an extension is often helpful.
• Funnel: For adding the new oil cleanly.
• Rags or Paper Towels: For cleaning up spills and wiping components.
• Gloves: To protect your hands from hot oil and dirt.
• Oil Filter Wrench: A specialised tool to remove stubborn oil filters.
• New Drain Plug Sealing Washer: It's good practice to replace this each time to ensure a proper seal.

Step-by-Step Oil Change Procedure

The general procedure for changing the oil on most ATVs is similar, but always refer to your owner's manual for specific instructions related to your model. The information provided here is a general guideline.

1. Warm Up the Engine

Start your ATV and let the engine run for 5-10 minutes. This warms the oil, making it thinner and allowing it to drain more completely and rapidly. Park your ATV on a firm, level surface to ensure accurate oil level readings later and to prevent the oil from spilling unevenly.

2. Locate and Prepare for Draining

Identify the location of the oil drain plug and the oil filter. These are typically found on the lower part of the engine. Place an oil drain pan directly underneath the oil drain plug. It’s a good idea to place some old rags or cardboard under the pan to catch any accidental drips or spills.

3. Drain the Old Oil

Carefully remove the oil fill cap (often labelled with an oil can symbol or 'OIL'). This helps to create a vacuum that allows the oil to drain more freely. Next, using the appropriate wrench, slowly and carefully loosen and remove the oil drain bolt. Be prepared for the hot oil to flow out immediately. Allow the oil to drain completely into the pan. This may take several minutes. While the oil is draining, inspect the drain plug and its sealing washer. If the washer is damaged or looks worn, replace it with a new one.

Important Note: The drain bolt might be secured with a locking tab or wire on some models. If so, you'll need to carefully bend or cut this before removing the bolt.

4. Replace the Drain Plug

Once the oil has finished draining, clean the drain plug threads with a rag. Install the new sealing washer onto the drain plug. Reinsert the drain plug into the engine crankcase and tighten it securely with your wrench. Do not overtighten, as this can strip the threads in the engine case. Refer to your owner's manual for the specific torque specification if you have a torque wrench.

5. Remove the Old Oil Filter

Locate the oil filter. You may need an oil filter wrench to loosen it. Place the drain pan underneath the oil filter, as some oil will likely spill out when it’s removed. Unscrew the old oil filter and remove it. Again, be mindful of hot oil.

6. Prepare and Install the New Oil Filter

Before installing the new oil filter, take a small amount of new engine oil on your fingertip and lubricate the rubber gasket on the new filter. This helps to create a good seal and makes it easier to remove the filter at the next service. Screw the new oil filter on by hand until the gasket makes contact with the engine case. Then, tighten it an additional 3/4 to one full turn by hand. Again, consult your owner's manual for specific tightening instructions, as over-tightening can damage the filter or its seal.

7. Add New Engine Oil

Remove the oil fill cap again. Insert a clean funnel into the oil fill opening. Pour in the correct amount of new engine oil, as specified in your owner's manual. It's often a good idea to add slightly less than the full amount, then check the level and add more as needed.

8. Check the Oil Level

Replace the oil fill cap. Start the engine and let it run for a minute or two. This circulates the new oil and fills the new oil filter. Shut off the engine and wait for a few minutes to allow the oil to settle back into the crankcase. Locate the oil level dipstick or sight glass. Remove the dipstick, wipe it clean, reinsert it fully, and then remove it again to check the oil level. The oil level should be between the 'MIN' and 'MAX' marks. Add more oil if necessary, checking the level after each small addition. Never overfill the engine with oil.

9. Final Checks and Cleanup

Inspect the drain plug and oil filter areas for any leaks. If you see any, tighten them slightly, but be careful not to overtighten. Clean up any spilled oil with rags or paper towels. Dispose of the old oil and filter responsibly. Most auto parts stores and recycling centres accept used motor oil and filters.

Troubleshooting Common Issues

Sometimes, things don't go exactly as planned. Here are a few common issues and how to address them:

Issue: The drain plug is stuck.

Solution: Ensure you are using the correct size wrench. Sometimes, a penetrating oil spray can help loosen a stubborn plug. If it's severely seized, you might need to consult a professional mechanic.

Issue: The oil filter is difficult to remove.

Solution: An oil filter wrench is designed for this. Ensure you're turning it in the correct direction (counter-clockwise to loosen). If it's extremely tight, a strap wrench or even carefully tapping the filter with a hammer to loosen it might work, but be cautious not to puncture the filter.

Issue: I accidentally overfilled the oil.

Solution: If you've only slightly overfilled, it might not cause immediate issues, but it's best to correct it. You'll need to drain a small amount of oil from the drain plug until the level is correct. This is why adding oil gradually is recommended.

ATV Oil Types: A Quick Comparison

Choosing the right oil is paramount. While your owner's manual is the ultimate authority, here's a general overview of common ATV oil types:

Always check your owner's manual for the recommended viscosity grade (e.g., 10W-40, 20W-50) and any specific API service classifications or JASO standards required for your ATV.

Frequently Asked Questions (FAQs)

Q1: How often should I change the oil on my ATV?

A1: This depends on your ATV's model and how you use it. A general guideline is every 100 hours of use or every 6 months, whichever comes first. However, check your owner's manual for the manufacturer's specific recommendations, especially if you ride in dusty or severe conditions.

Q2: Can I use car oil in my ATV?

A2: It's generally not recommended. ATV engines often have wet clutches (where the clutch plates are lubricated by the engine oil), and car oils may contain friction modifiers that can cause clutch slippage. Always use oil specifically designed for motorcycles or ATVs.

Q3: What is the TRX500FA6?

A3: The TRX500FA6 is a specific model of Honda FourTrax Foreman ATV. Like any ATV, it requires regular maintenance, including oil changes, to ensure optimal performance and longevity. The general steps outlined in this guide would apply to this model, but always consult its specific owner's manual for precise details.

Q4: Do I need to change the oil filter every time?

A4: Yes, it is highly recommended to replace the oil filter with every oil change. A clogged filter can restrict oil flow and reduce its effectiveness, negating the benefits of fresh oil.

Q5: What happens if I don't change my ATV's oil?

A5: Over time, the oil will break down, become contaminated, and lose its lubricating properties. This can lead to increased friction, overheating, accelerated wear on engine components, reduced performance, and potentially catastrophic engine failure.

Conclusion

Performing a regular oil change is a straightforward yet critical piece of maintenance for your ATV. By following these steps and using the correct products, you can significantly extend the life of your engine and ensure it's always ready for your next adventure. Remember to always consult your ATV's owner's manual for the most accurate and model-specific information. Happy riding!
