Locating Electrical Plugs on Your Honda TRX680FA

The robust 2007 Honda TRX680FA, affectionately known as the Rincon, is a workhorse of an ATV, renowned for its reliability and advanced features. However, like any complex machine, it relies on an intricate network of electrical components to function correctly. When an issue arises, particularly with a specific switch or sensor, locating its associated plug can be a challenging task for even seasoned enthusiasts. While pinpointing the exact location of every single electrical plug without a detailed, model-specific wiring diagram is often difficult, understanding the general layout of an ATV's electrical system and employing systematic troubleshooting methods can significantly aid your search.

This guide aims to provide a comprehensive approach to understanding and locating electrical connections on your TRX680FA, focusing on common areas where 'select switch' plugs might reside. Whether you're dealing with a gear selector issue, a 2WD/4WD engagement problem, or simply performing routine maintenance, a methodical approach is key to success.

Understanding Your TRX680FA's Electrical Anatomy

Before diving into the hunt for a specific plug, it's crucial to grasp the fundamental architecture of your ATV's electrical system. The TRX680FA, with its advanced automatic transmission and selectable drive modes, incorporates several key electrical components:

• Battery: The primary power source, typically located under the seat.
• Fuse Box: Protects circuits from overcurrent, often found near the battery or within the front cowl.
• Wiring Harness: The intricate 'nervous system' that carries electrical signals throughout the ATV.
• Engine Control Unit (ECU): The 'brain' that manages engine performance, transmission shifts, and other critical functions.
• Sensors: Inputs that provide data to the ECU (e.g., speed sensor, gear position sensor, temperature sensors).
• Switches: User-actuated controls (e.g., ignition switch, light switch, drive mode select switch, gear selector switch).
• Relays: Electrical switches that allow a low-power signal to control a high-power circuit.

The 'select switch plug' you're looking for likely pertains to a component that allows you to choose a specific operational mode or gear. On a TRX680FA, this most commonly refers to the gear position switch (for Drive, Neutral, Reverse) or the 2WD/4WD selector switch. Both are critical for the ATV's operation and have dedicated wiring and plugs.

Common Locations for Electrical Switches and Plugs

Electrical plugs, especially those associated with user-controlled switches or critical sensors, are typically situated in logical, accessible, yet protected, areas. Here are the most common zones to investigate on your TRX680FA:

1. Handlebar and Dashboard Area

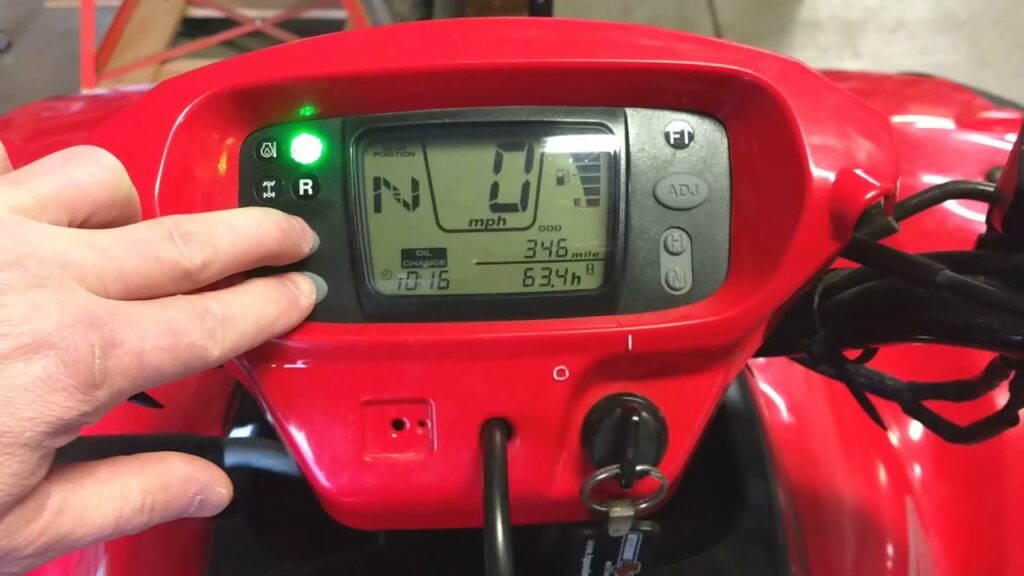

Many 'select switches' are directly accessible to the rider. The plugs for these switches are often located within the handlebar housing, under the front cowl, or behind the dashboard panel. This area typically houses:

• 2WD/4WD Selector Switch: Often a toggle or button on the left or right handlebar cluster. Its wiring will run down the handlebars into the main wiring harness, with its plug potentially located near the steering stem or behind the front plastics.
• Ignition Switch: While not a 'select switch' in the same sense, its wiring is part of this network.
• Headlight/Accessory Switches: Similarly, their plugs are in this general vicinity.

Accessing these plugs usually requires removing the front plastic shrouds or the dashboard panel. Look for bundles of wires leading from the switch into the main harness. The plug itself will be a multi-pin connector, often secured with a clip.

2. Under the Seat and Fuel Tank Area

The area beneath the seat and around the fuel tank is a central hub for the main wiring harness. The ECU, fuse box, and various relays are often found here. Plugs for components further down the chassis will often route through this area. While less likely for a direct 'select switch' plug, it's a vital area for tracing wires.

3. Near the Transmission and Engine

This is a prime location for the gear position switch. On the TRX680FA, the gear position sensor (which the select switch sends signals to, or is itself the 'select switch' in terms of position sensing) is typically mounted directly to the transmission case. Its wiring will lead to a plug that connects to the main harness. This plug can be:

• Directly on the transmission: Look for wires emerging from the transmission casing.
• Tucked away near the engine block: Due to heat and vibration, these plugs are often secured and sometimes difficult to spot without moving other components.
• Underneath the ATV: Requiring the ATV to be lifted or put on a stand for access.

These plugs are often exposed to dirt, water, and debris, making them susceptible to corrosion or damage. They usually have robust seals to protect the connections.

4. Front Differential Area (for 4WD Actuation)

If your 'select switch' pertains to the 2WD/4WD system, the wiring might also lead towards the front differential, where the 4WD engagement mechanism (often an electric motor or solenoid) is located. There will be plugs associated with this actuator. Tracing the wires from the 2WD/4WD switch on the handlebars will eventually lead you towards this area or the ECU that controls it.

Systematic Troubleshooting and Location Strategy

Given the challenge of pinpointing an exact plug without a service manual, a methodical approach is crucial:

1. Identify the Malfunctioning System: What function is failing? Is it gear selection? 4WD engagement? This helps narrow down which 'select switch' you're looking for.
2. Visual Inspection: Begin with a thorough visual inspection. Look for loose wires, disconnected plugs, corroded terminals, or damaged insulation. Pay close attention to areas where wires might rub against the frame or hot engine parts.
3. Follow the Wires: Start at the switch itself (e.g., the 2WD/4WD switch on the handlebars or the gear selector linkage). Carefully follow the wire bundle away from the switch. Wires are typically routed along the frame, secured with clips or zip ties.
4. Remove Obstructions: You will almost certainly need to remove plastic body panels, the seat, and potentially the fuel tank to gain proper access to the main wiring harness and its various branches.
5. Consult a Service Manual (if available): While not provided here, a Honda service manual for the 2007 TRX680FA would contain detailed wiring diagrams and component location illustrations, which are invaluable.
6. Use a Multimeter: If you're trying to diagnose a fault, a multimeter can help you test for continuity, voltage, and resistance, confirming if the switch itself or its wiring is the issue.

Tools You Might Need:

• Basic hand tools (screwdrivers, wrenches, socket set) for panel removal.
• Wire cutters/strippers (for repairs, if needed).
• Electrical tape or heat shrink tubing.
• Dielectric grease (for protecting connections).
• A multimeter for electrical testing.
• A good light source (headlamp or flashlight).

Preventative Maintenance for Electrical Connections

Once you've located or repaired a plug, it's an excellent opportunity to perform some preventative maintenance. Electrical issues on ATVs are often caused by environmental factors:

• Corrosion: Water, mud, and humidity can lead to corrosion on terminals, increasing resistance and hindering current flow.
• Vibration: Constant vibration can cause terminals to loosen or wires to fray.
• Dirt and Debris: Can get into plugs, leading to poor contact.

To mitigate these issues:

• Clean Connections: Disconnect plugs, clean terminals with electrical contact cleaner, and use a small brush if necessary.
• Apply Dielectric Grease: A thin layer of dielectric grease on the terminals before reassembly helps seal out moisture and prevent corrosion without impeding electrical flow.
• Secure Wiring: Ensure all wiring harnesses are properly secured with clips or zip ties to prevent chafing and excessive movement.
• Inspect Regularly: Make visual inspections of visible wiring and connections part of your regular maintenance routine.

Comparative Table: Common Electrical Issues and Symptoms

Frequently Asked Questions (FAQ)

Q1: What does a 'select switch plug' usually look like?

A: A 'select switch plug' is typically a multi-pin plastic connector, often rectangular or oval, with male and female halves that securely clip together. The number of pins will vary depending on the complexity of the switch it serves. They often have a locking tab or mechanism to prevent accidental disconnection.

Q2: Can I repair a damaged plug or do I need to replace the entire harness?

A: Often, individual wires and terminals within a plug can be repaired or replaced using specialized crimping tools and new terminals. If the plastic housing of the plug is severely cracked or broken, you might be able to find a replacement connector kit. Replacing the entire wiring harness is usually a last resort due to cost and complexity.

Q3: How do I know if the problem is the switch itself or the wiring/plug?

A: A multimeter is your best friend here. You can test the continuity of the switch (does it open and close the circuit when operated?) and test for voltage at the plug to see if power is reaching it. If the switch tests good but there's no power at the plug, the wiring leading to the plug is suspect. If there's power at the plug but the switch doesn't function when connected, the switch itself is likely faulty.

Q4: Is it safe to use generic electrical connectors for repairs?

A: While generic connectors might physically fit, it's always best to use OEM (Original Equipment Manufacturer) or high-quality automotive-grade connectors that are designed for the specific electrical loads and environmental conditions of your ATV. Using incorrect connectors can lead to poor connections, overheating, and further electrical problems.

Q5: What are the biggest challenges when troubleshooting ATV electrical issues?

A: The biggest challenges include limited access to wiring, the complexity of modern ATV electrical systems (especially with ECUs), and the harsh environment (water, mud, vibration) that can cause intermittent faults. Patience, a systematic approach, and the right tools are essential for successful diagnosis.

While finding a specific 'select switch plug' on your 2007 Honda TRX680FA can be a quest, understanding the general layout of your ATV's electrical system, knowing where to typically look for such components, and employing sound troubleshooting techniques will significantly improve your chances of success. Always prioritise safety by disconnecting the battery before working on electrical components, and remember that a well-maintained electrical system is crucial for the overall reliability and performance of your Honda Rincon.
