Diagnose & Replace Your Lawn Mower Clutch Cable

There's nothing quite as frustrating as a lawn mower that refuses to cooperate, especially when its self-propelled feature decides to take an unexpected holiday. If your trusty machine is struggling to pull itself forward, or perhaps isn't moving at all, the humble clutch cable might be the root of your woes. This vital component, often overlooked until it fails, is responsible for engaging the drive system that propels your mower across the lawn. Understanding when and how to replace it can save you both time and money, ensuring your mowing tasks remain a breeze.

A common indicator that your clutch cable needs attention is a malfunctioning self-propelled drive. This could manifest as the mower moving sluggishly, engaging intermittently, or failing to engage altogether. Before you rush to replace it, however, it's crucial to rule out other simpler issues like a stretched or misadjusted cable. But once you've determined a replacement is necessary, performing the task yourself is a manageable endeavour, provided you approach it with care and follow the correct safety procedures.

Understanding Your Lawn Mower's Clutch Cable

The clutch cable on a self-propelled lawn mower acts as the crucial link between the operator's control (usually a bail bar or lever on the handle) and the mower's drive system. When you squeeze the bail bar, the cable pulls a lever or mechanism that engages the drive belt, which in turn spins the wheels, propelling the mower forward. Over time, these cables can stretch, fray, or even snap, leading to a loss of the self-propelled function. Recognising the symptoms early can prevent further frustration and potential damage to other components.

Key Symptoms Indicating Clutch Cable Failure:

• Self-Propelled Feature Not Engaging: This is the most obvious sign. You squeeze the bail bar, but the wheels don't turn, or only turn very slowly.
• Intermittent Engagement: The drive engages sporadically, perhaps working fine for a few minutes then cutting out.
• Slipping Drive: The mower moves, but the drive feels weak, as if it's slipping, especially on inclines.
• Excessive Play in Bail Bar: If the bail bar feels unusually loose or requires a lot of travel before the drive engages, the cable may be stretched.
• Visible Damage: Inspect the cable for signs of fraying, kinks, or a broken outer casing.
• Grinding Noises: While less common for the cable itself, if the drive is trying to engage but not quite making it, you might hear unusual noises from the drive system.

Safety First: Preparing for Replacement

Before you even think about reaching for your tools, safety must be your absolute priority. Working on any machinery, especially one with sharp blades and a combustion engine, carries inherent risks. Neglecting these crucial steps could lead to serious injury. Always perform maintenance in a well-lit, clear area, and take your time.

1. Ensure the Engine is Cooled: Never work on a hot engine. Components can be extremely hot and cause severe burns. Allow ample time for the engine and exhaust system to cool down completely. This might mean waiting for several hours after the last use.
2. Disconnect the Spark Plug: This is perhaps the single most important safety step. Remove the wire and boot from the spark plug. This prevents the engine from accidentally starting while you're working, which could lead to devastating injuries, especially if your hands are near the blade or drive mechanism. Tuck the boot away from the spark plug to ensure it cannot accidentally re-connect.
3. Close the Fuel Valve: If your lawn mower has a fuel shut-off valve, turn it to the 'off' position. This prevents fuel from leaking or spilling during the repair process, reducing the risk of fire. If your mower doesn't have a valve, try to work in a well-ventilated area and minimise tilting the mower if possible to avoid fuel spillage.
4. Remove the Key (if applicable): Some modern mowers, particularly ride-on models, have an ignition key. Always remove it and keep it in your pocket to prevent accidental starting.
5. Secure the Blade: While not strictly necessary for cable replacement, if you anticipate needing to tilt the mower significantly or work near the blade, consider blocking the blade with a piece of wood to prevent it from rotating.

Tools You'll Need

Gathering your tools before you start will make the job much smoother. Most of these are common household items:

• Combination spanners or an adjustable wrench
• Pliers (needle-nose or standard)
• Screwdrivers (Phillips and/or flathead, depending on your mower)
• Work gloves (optional, but recommended for grip and protection)
• New replacement clutch cable (ensure it's the correct part for your specific mower model)
• Zip ties or cable ties (optional, for securing the new cable)
• Penetrating oil (e.g., WD-40, for stubborn connections)

Step-by-Step Replacement Guide

With safety precautions in place and tools at the ready, you can now proceed with replacing the clutch cable. Take your time, and if anything feels stuck, don't force it – apply penetrating oil and be patient.

1. Accessing the Cable

The clutch cable typically runs from the operator's handle down to the mower's drive system, usually located near the engine or under the deck. You may need to remove a plastic cover or shroud to gain full access to the cable's attachment points. On some models, the cable might be clipped to the handle assembly or run through a guide on the side of the mower chassis.

2. Disconnecting the Cable from the Handle End

Locate where the clutch cable attaches to the bail bar or control lever on the handle. This connection usually involves a Z-bend, a barrel nipple, or a small eyelet that hooks into a hole or slot on the lever. You might need to:

• Squeeze the bail bar to create slack in the cable.
• Gently unhook the Z-bend or barrel nipple from its slot.
• If there's a spring, carefully unhook it.
• Note how the cable is routed and secured along the handle – you'll need to re-route the new cable similarly. There may be clips or cable ties holding it in place.

3. Disconnecting the Cable from the Engine/Transmission End

This end of the cable is usually more complex as it connects directly to the drive engagement mechanism. You'll likely need to:

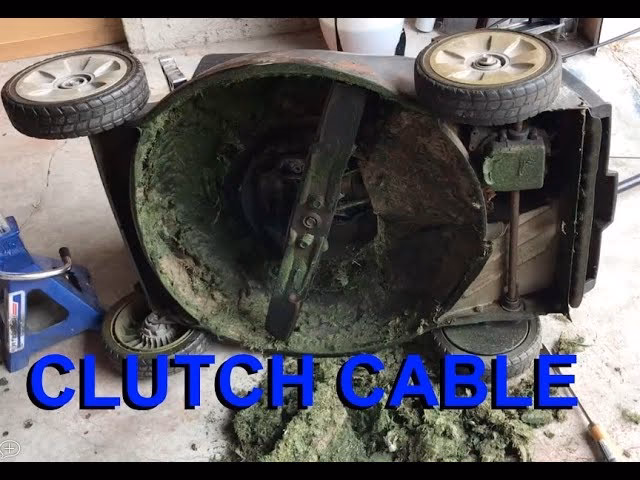

• Carefully tilt the mower onto its side (with the air filter facing upwards to prevent oil/fuel leakage).
• Locate the other end of the cable, which typically attaches to a lever or pulley system near the transmission or engine.
• There might be an adjusting nut or a spring that needs to be loosened or removed. Pay close attention to how it's assembled, perhaps taking a photo for reference.
• Unhook the cable from the lever. It might be a Z-bend, a barrel nipple, or a threaded end that passes through a bracket.
• Once both ends are disconnected, you can carefully pull the old cable free from any clips or guides that secure it along the mower's chassis.

4. Installing the New Clutch Cable

Installation is essentially the reverse of removal. Ensure you have the correct replacement cable – they are often specific to make and model due to length and attachment types.

• Route the New Cable: Carefully thread the new cable along the same path as the old one, ensuring it passes through all the original clips and guides. Proper routing prevents snagging or damage during operation.
• Connect to the Engine/Transmission End First: Attach the new cable to the drive engagement lever. If there's an adjusting nut, thread it on but don't tighten it fully yet. Ensure any springs are correctly re-attached.
• Connect to the Handle End: Attach the other end of the cable to the bail bar or control lever on the handle. Again, ensure any springs or clips are correctly seated.

5. Adjusting the Cable Tension

This is a critical step for proper operation. Most clutch cables have an adjustment point, usually a threaded barrel or nut near one of the attachment points (often the engine end). The goal is to achieve the correct tension:

• Too Loose: The drive won't engage fully, or will slip. The bail bar might feel too slack.
• Too Tight: The drive might always be partially engaged, or the bail bar will be very stiff and hard to squeeze. This can also lead to premature wear on the drive belt or transmission components.

To adjust:

1. With the spark plug still disconnected, squeeze the bail bar. You should feel tension.
2. Adjust the nut or barrel until the drive mechanism (you might see a pulley or lever move) fully engages when the bail bar is squeezed, but disengages completely when released.
3. There should be a small amount of free play in the bail bar before the drive engages, but not excessive slack. Consult your mower's owner's manual for specific adjustment guidelines, as some manufacturers specify a certain amount of free play.
4. Once adjusted, tighten any lock nuts to secure the adjustment.

6. Testing the Mower

After adjusting the cable, it's time for a cautious test.

1. Reconnect the spark plug boot and wire.
2. Open the fuel valve (if applicable).
3. Start the engine.
4. With the engine running, slowly squeeze the bail bar. The mower should begin to move forward smoothly and consistently.
5. Release the bail bar. The mower should stop moving immediately. If it continues to creep, the cable is too tight and needs further adjustment. If it doesn't move at all, it's too loose or there's another issue.
6. Perform a few short test runs on your lawn to ensure the drive engages and disengages reliably under load.

Troubleshooting Common Issues After Replacement

Even with a new cable, you might encounter issues. Here's a quick troubleshooting guide:

Maintaining Your Clutch Cable for Longevity

While clutch cables are wear items, a little preventative maintenance can significantly extend their lifespan and ensure reliable operation:

• Keep it Clean: Periodically clean any dirt, grass, or debris from around the cable, especially where it enters its casing or attaches to moving parts.
• Lubricate Pivot Points: Apply a light lubricant (like silicone spray or a dry lubricant) to the pivot points of the bail bar and the drive engagement lever. This reduces friction and makes the cable's job easier. Avoid heavy grease, which can attract dirt.
• Inspect Regularly: Before each mowing season, or every few months during heavy use, visually inspect the cable for any signs of fraying, cracking in the outer casing, or kinks. Early detection can prevent complete failure.
• Correct Adjustment: Ensure the cable tension is always correctly adjusted. An overly tight cable can wear out prematurely, while a loose one can cause slipping and strain other drive components.

Frequently Asked Questions (FAQs)

Q1: How long do lawn mower clutch cables typically last?

The lifespan of a clutch cable can vary greatly depending on usage, environmental conditions, and maintenance. Generally, you can expect a cable to last anywhere from 3 to 7 years. Heavy commercial use or neglect can shorten this, while proper maintenance can extend it.

Q2: Can I repair a frayed clutch cable instead of replacing it?

It is strongly advised not to repair a frayed or damaged clutch cable. A frayed cable is a weakened cable, and it could snap unexpectedly during operation, leaving you without a self-propelled function in the middle of a job. Furthermore, a temporary repair might not hold up to the constant tension and movement, leading to safety issues. Replacement is always the safest and most reliable option.

Q3: My lawn mower isn't self-propelled. Does it have a clutch cable?

No, if your lawn mower is a push mower without a self-propelled feature, it will not have a clutch cable for the drive system. Clutch cables are specific to models that have a powered drive to the wheels.

Q4: Is replacing a clutch cable a difficult DIY job?

For most DIY enthusiasts with basic mechanical aptitude and tools, replacing a lawn mower clutch cable is a moderately easy task. The most challenging parts are often identifying the correct replacement cable and ensuring proper cable tension adjustment. Following a clear guide and prioritising safety makes it very manageable.

Q5: What if I replace the cable and the mower still doesn't self-propel?

If you've replaced the clutch cable and properly adjusted it, but the self-propelled feature still isn't working, the issue likely lies elsewhere. Common culprits include a worn or broken drive belt, a seized or faulty transmission, or issues with the drive pulley. At this point, it may be beneficial to consult your mower's service manual or seek assistance from a professional lawn mower repair technician.

Replacing your lawn mower's clutch cable is a straightforward repair that can significantly extend the life and usability of your self-propelled machine. By understanding the symptoms of failure, adhering strictly to safety protocols, and following a methodical replacement process, you can restore your mower's full functionality and keep your lawn looking pristine with minimal fuss. Regular inspection and a little preventative maintenance will ensure your new cable, and your mower, serve you well for many seasons to come.
