Replacing Front Brake Pads on Your Honda HR-V

Maintaining your Honda HR-V's braking system is paramount for safety and driving confidence. Over time, brake pads naturally wear down, leading to reduced stopping power, increased stopping distances, and potentially costly damage to other brake components like rotors. Replacing front brake pads is a common maintenance task that many DIY enthusiasts can tackle, provided they have the right tools, a clear understanding of the process, and a strong commitment to safety. This guide will walk you through the essential steps for changing the front brake pads on your Honda HR-V (2016 onwards, petrol and diesel models), ensuring your vehicle maintains its optimal braking performance.

Understanding Your HR-V's Braking System

Before diving into the replacement process, it's helpful to understand the basic components of your HR-V's front braking system. It typically consists of a brake caliper, which houses the brake pads, and a rotor (or disc). When you press the brake pedal, hydraulic pressure forces the caliper piston to push the brake pads against the spinning rotor, creating friction that slows the wheel. Genuine Honda brake pads, such as part number 45022T8MG01, are specifically designed to meet Honda's high standards for performance and longevity.

Essential Tools and Materials

To successfully replace your front brake pads, gathering all necessary tools and materials beforehand is crucial. This will ensure a smooth and efficient process, preventing interruptions once you begin the job.

• New Front Brake Pads: Ensure you have the correct genuine Honda parts (e.g., 45022T8MG01 for 2016+ HR-V models).
• Hydraulic Jack: Strong enough to lift your vehicle safely.
• Jack Stands: Absolutely essential for supporting the vehicle once lifted. Never work under a vehicle supported only by a jack.
• Wheel Chocks: To prevent the vehicle from rolling.
• Lug Wrench or Breaker Bar with Socket: To loosen and tighten wheel nuts.
• Socket Set: Specifically, a socket for the caliper guide pin bolts (often 12mm or 14mm, but check your specific model).
• Torque Wrench: Critical for tightening wheel nuts and caliper bolts to the manufacturer's specified torque settings.
• C-Clamp or Brake Caliper Piston Compression Tool: To push the caliper piston back into its bore.
• Wire Brush: For cleaning the caliper bracket and hub.
• Brake Cleaner: To clean components and remove grease/dust.
• Gloves and Safety Glasses: For personal protection against brake dust and chemicals.
• Flathead Screwdriver or Pry Tool: For removing old pads and clips.
• Bungee Cord or Strong Wire: To support the brake caliper once removed.
• Shop Rags or Old Towels: For cleaning up spills.
• Anti-Seize Lubricant: For guide pins and hub mating surfaces (optional but recommended).

Safety First: Non-Negotiable Steps

Working on your vehicle's braking system requires strict adherence to safety protocols. Neglecting these steps can lead to serious injury or damage.

1. Park on a Flat, Level Surface: Ensure the vehicle is on stable ground.
2. Engage Parking Brake: Fully engage the handbrake/parking brake.
3. Chock Rear Wheels: Place wheel chocks behind the rear wheels (if working on the front) to prevent any movement.
4. Loosen Front Wheel Nuts: While the vehicle is still on the ground, use your lug wrench to slightly loosen the wheel nuts on the front wheels. Do not remove them yet.
5. Lift and Secure Vehicle: Use the hydraulic jack to lift the front of the vehicle at the designated jacking points. Once lifted, immediately place sturdy jack stands under the vehicle's frame or designated support points. Slowly lower the vehicle onto the jack stands. Never rely solely on the jack.
6. Remove Front Wheels: Once the vehicle is securely on jack stands, fully remove the loosened wheel nuts and take off the front wheels. Set them aside safely.

Step-by-Step Brake Pad Replacement Guide

1. Inspecting the Current Setup

With the wheel off, you'll have a clear view of the brake caliper and rotor. Take a moment to inspect the old brake pads for wear. Note their thickness – if they are less than 3mm thick, they are due for replacement. Also, check the brake rotor for deep grooves, scoring, or warping. If the rotor shows significant wear, it should be replaced or machined by a professional to ensure optimal braking performance with the new pads.

2. Removing the Brake Caliper

The caliper holds the brake pads in place. You'll need to remove it to access the pads.

• Locate the two guide pin bolts on the back of the brake caliper. These are typically 12mm or 14mm.
• Using your socket wrench, remove the bottom guide pin bolt first.
• Pivot the caliper upwards on the top guide pin, or remove both bolts if necessary to fully detach the caliper.
• Important: Do not let the caliper hang by the brake hose. This can damage the hose and lead to brake fluid leaks or failure. Use a bungee cord or strong wire to hang the caliper securely from the suspension spring or another sturdy component.

3. Removing the Old Brake Pads

Once the caliper is out of the way, you can easily remove the old brake pads. They usually slide out of the caliper bracket. Pay attention to any shims or clips that may be present, as you'll need to transfer them to the new pads or use new ones provided with the genuine Honda pads.

4. Cleaning the Caliper Bracket

Brake dust and corrosion can build up on the caliper bracket, preventing the new pads from seating correctly and moving freely. Use a wire brush to thoroughly clean any rust or debris from the areas where the brake pads slide. Apply a thin layer of anti-seize lubricant to these contact points, ensuring smooth movement of the new pads.

5. Compressing the Caliper Piston

As brake pads wear, the caliper piston extends outwards. To accommodate the thicker new pads, you must push the piston back into its bore. This is a critical step.

• Place an old brake pad (or a piece of wood) against the piston to protect it.
• Use a C-clamp or, preferably, a dedicated brake caliper piston compression tool to slowly and steadily push the piston back into the caliper.
• As you compress the piston, the brake fluid level in the master cylinder reservoir will rise. Keep an eye on it to ensure it doesn't overflow. If it's close to overflowing, you may need to remove a small amount of fluid using a syringe, but avoid spilling it on painted surfaces as it can damage paint.

6. Installing the New Brake Pads

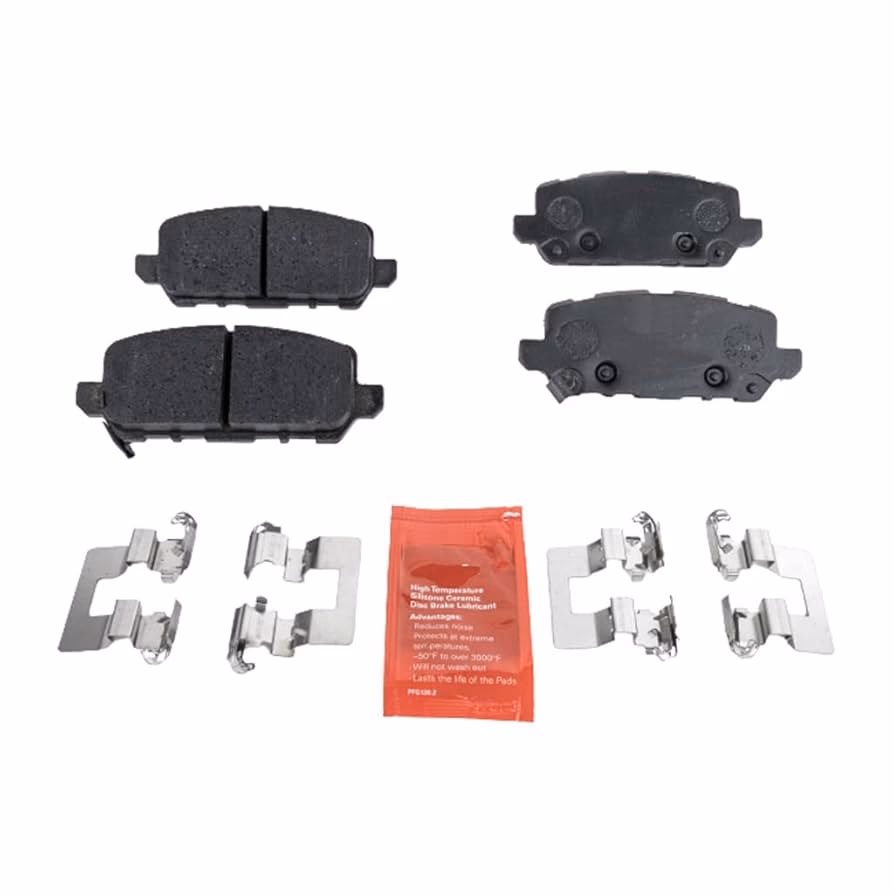

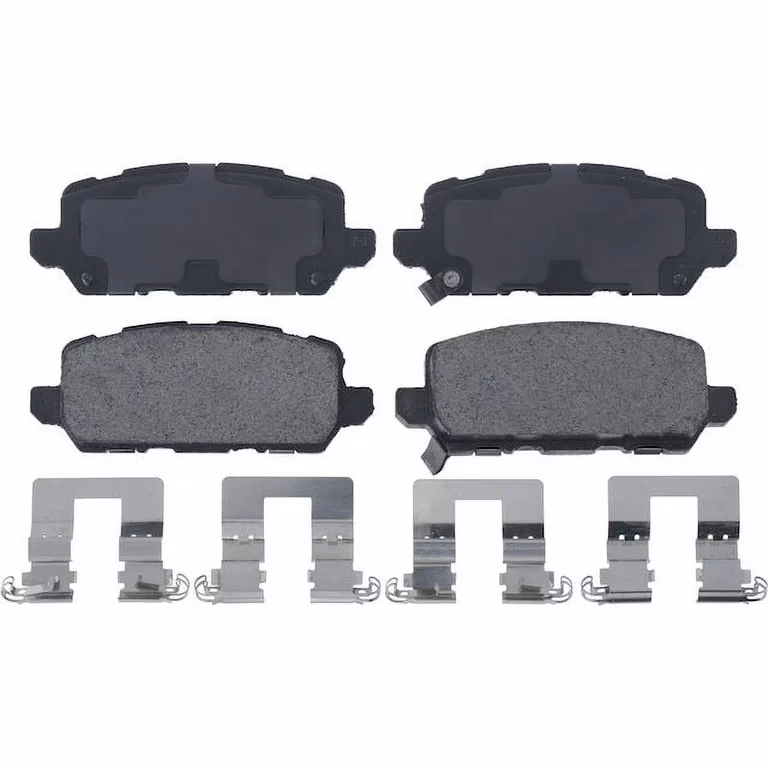

Now it's time to install your shiny new genuine Honda brake pads (45022T8MG01). Ensure they are oriented correctly – some pads have wear indicators that must be on the correct side (typically towards the top or inner edge). Apply any shims or anti-rattle clips as per the instructions provided with your new pads. Lightly lubricate the back of the pads (where they contact the caliper piston and fingers) with a small amount of brake grease or anti-squeal compound, avoiding the friction material itself.

7. Reinstalling the Brake Caliper

Carefully swing the brake caliper back into position over the new pads and rotor. Align the guide pin bolts and thread them in by hand to avoid cross-threading. Once both bolts are started, use your socket wrench to tighten them. Finally, use your torque wrench to tighten the caliper guide pin bolts to the manufacturer's specified torque (consult your HR-V's service manual for precise values, but typically around 25-35 Nm). Do not overtighten.

8. Reinstalling the Wheel

Place the wheel back onto the hub, aligning it with the wheel studs. Hand-tighten the wheel nuts. Lower the vehicle slightly until the tyre just touches the ground, then use your torque wrench to tighten the wheel nuts in a star pattern to the specified torque (typically 108 Nm for Honda HR-V). This ensures even pressure and prevents warping of the brake rotor or wheel. Once tightened, fully lower the vehicle and remove the jack and jack stands.

9. Final Checks and Bedding In

Repeat the entire process for the other front wheel. Once both sides are complete, perform these crucial final steps:

• Pump the Brake Pedal: Before starting the engine, get into the vehicle and slowly pump the brake pedal multiple times until it feels firm. This pushes the caliper pistons back out, seating the new pads against the rotors. Do not skip this step!
• Check Brake Fluid Level: Verify the brake fluid level in the master cylinder reservoir. Top up if necessary with the correct DOT fluid specified by Honda.
• Test Drive: Take your HR-V for a gentle test drive in a safe area. Avoid hard braking initially. The new pads need to be 'bedded in' to the rotors. This process involves a series of moderate stops from varying speeds (e.g., 8-10 stops from 60 km/h down to 15 km/h, allowing some cooling time between stops) to transfer a thin layer of pad material onto the rotor surface, optimising performance and preventing noise. Follow the specific bedding-in procedure recommended by the brake pad manufacturer.

Table: Signs of Worn Brake Pads vs. New Pads

Frequently Asked Questions (FAQs)

How often should I replace my Honda HR-V's front brake pads?

Brake pad life varies significantly based on driving style, road conditions, and pad material. Generally, front brake pads on an HR-V might last anywhere from 30,000 to 70,000 miles (approximately 48,000 to 112,000 km). It's best to inspect them every 10,000 to 15,000 miles (16,000 to 24,000 km) or annually.

What are the common signs that my brake pads need replacing?

Look out for a high-pitched squealing sound when braking (often from a wear indicator), a grinding noise (metal-on-metal, indicating severe wear), a pulsating brake pedal (could be warped rotors or uneven pad wear), increased stopping distances, or if the brake pedal feels spongy or goes closer to the floor than usual.

Do I need to replace my brake rotors when I change the pads?

Not always, but it's highly recommended if the rotors show signs of significant wear (deep grooves, scoring, warping, or if they are below the manufacturer's minimum thickness specification). New pads need a perfectly flat and smooth surface to bed in properly and provide optimal braking performance. If rotors are warped or severely grooved, new pads will wear out quickly and braking performance will be compromised. If you're unsure, have a professional inspect them.

How long does it take to replace front brake pads on a Honda HR-V?

For someone with moderate DIY experience, replacing front brake pads on an HR-V can take anywhere from 1 to 2 hours per side, assuming no complications. For a first-timer, it might take longer as you familiarise yourself with the process and tools.

Can I replace brake pads myself if I'm not very experienced with car maintenance?

While brake pad replacement is a common DIY task, it involves critical safety components. If you're completely new to car maintenance, it's advisable to watch several instructional videos, read multiple guides, and consider having an experienced friend or professional guide you through the first time. If you feel uncomfortable at any point, it's always best to consult a qualified mechanic.

What does 'bedding in' new brake pads mean?

Bedding in, also known as 'burnishing', is the process of gently wearing in new brake pads to match the surface of the rotors. This transfers a thin layer of friction material from the pad to the rotor, creating a more uniform contact surface. Proper bedding in reduces noise, improves braking performance, and extends the life of both pads and rotors. Failing to bed in pads correctly can lead to reduced braking efficiency, squealing, and premature wear.

Conclusion

Replacing the front brake pads on your Honda HR-V is a rewarding maintenance task that can save you money and give you a deeper understanding of your vehicle. By following this comprehensive guide, prioritising safety, and using genuine Honda parts like the 45022T8MG01, you can ensure your HR-V continues to offer the reliable and confident stopping power you expect. Remember, if at any point you feel unsure or encounter unexpected difficulties, do not hesitate to seek professional assistance. Your safety on the road is paramount.
