Honda GL1000 Goldwing: From Tourer to Cafe Racer

The Unexpected Cafe Racer: Honda GL1000 Goldwing

When one thinks of a cafe racer, images of lightweight, nimble machines with a stripped-down aesthetic often spring to mind. However, the world of custom motorcycles is one of constant evolution and surprising reinterpretations. The Honda GL1000 Goldwing, a motorcycle renowned for its prowess as a king of long-distance touring, has begun to shed its touring skin and reveal a hidden potential as a compelling cafe racer platform. While it may seem an unlikely candidate, the early models, particularly the robust four-cylinder GL1000 and its successor, the GL1100, are increasingly finding favour among custom builders. These builders are stripping away the fairings and luggage, revealing the inherent beauty and surprising performance of these once-grand tourers. The result is a machine that, when lean and mean, can hold its own in both style and substance.

Unveiling the GL1000's Performance Heritage

It might come as a surprise to many, but the original 1974 Honda GL1000 was no slouch in the performance department. Powered by an 80-hp flat-four engine, it was a formidable machine in its era. In fact, in the quarter-mile drag races of 1974, it was second only to the legendary Kawasaki Z1, a testament to its potent power plant and well-engineered chassis. This performance heritage is a key factor in its growing appeal for cafe racer conversions. Builders are not just focusing on aesthetics; they are tapping into the bike's inherent capability, transforming it into a machine that is as exhilarating to ride as it is pleasing to the eye.

The Heart of the Goldwing: Engine Specifications

At the core of the Honda GL1000 Goldwing lies a sophisticated 1000cc, water-cooled boxer-style engine. This horizontally opposed four-cylinder engine was a marvel of engineering for its time, offering smooth power delivery and a distinctive sound. It's paired with a robust 5-speed transmission, ensuring riders have the right gear for any situation. The power is transmitted to the rear wheel via a reliable shaft drive, a feature that contributes to the Goldwing's touring comfort and reduces the maintenance associated with chain drives. This combination of a powerful engine, smooth gearbox, and low-maintenance shaft drive makes the GL1000 a solid foundation for a custom build, even one aimed at a more spirited riding style.

To Rebuild or Not to Rebuild: Engine Considerations

For those looking to undertake a GL1000 cafe racer project, a crucial consideration is the state of the engine. The question of whether to rebuild the original engine is often a complex one, with economic factors playing a significant role. Unfortunately, the economics of a full engine rebuild for these classic Goldwings can be quite challenging. Several factors contribute to this:

Challenges with Rebuild Parts Availability

One of the primary hurdles is the limited availability of genuine Honda rebuild parts, especially for internal engine components. Finding “oversizes” for pistons, rings, and bearings can be a significant undertaking. While some specialist vendors may have a limited stock of obsolete New Old Stock (NOS) parts, these are often scarce and can be expensive. This scarcity makes a comprehensive internal engine rebuild a costly and time-consuming endeavour.

The Savvy Alternative: Sourcing Used Engines

Given the difficulties in sourcing new internal engine parts, a more practical and often more economical approach is to source a good, low-mileage used engine from a reputable salvage dealer. These engines are still available in reasonable numbers, and many salvage yards offer a limited warranty or return policy, providing a degree of assurance. This approach allows builders to acquire a functional engine without the prohibitive cost and difficulty of a full rebuild.

Where to Find Salvage Engines and Parts

Several resources can assist in the search for suitable used engines and parts:

Additionally, keep an eye on the classified sections of GoldWing enthusiast forums, such as the NGW Club. These platforms often feature private sellers offering good deals on used engines. For the truly adventurous, platforms like eBay and Craigslist can occasionally yield excellent bargains, sometimes requiring the purchase of a whole bike just to salvage the engine, which can still be a cost-effective strategy.

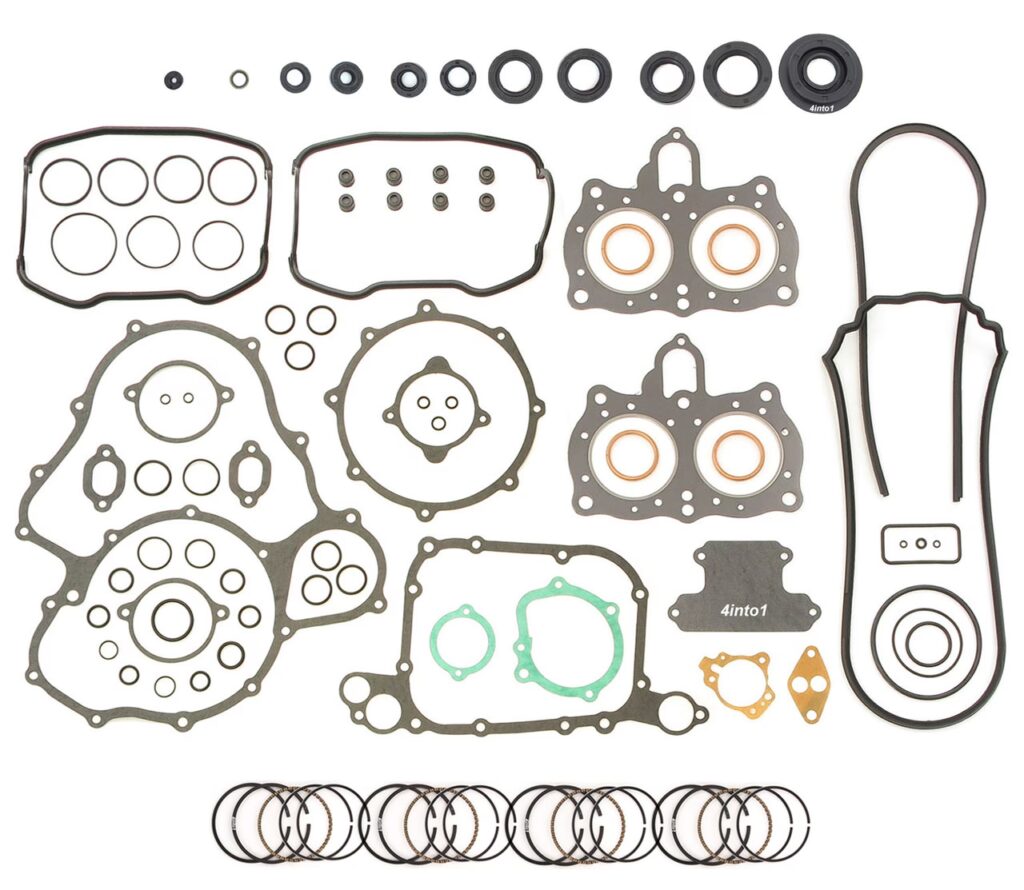

Gasket Recommendations: Quality Matters

When it comes to engine gaskets, quality is paramount. For personal builds, using OEM Honda gaskets is highly recommended. While they need to be purchased individually, which can be a minor inconvenience, the superior quality and fit are well worth the effort. For aftermarket options, Vesrah is a brand that stands out for producing good quality gasket sets. It is advisable to avoid other brands of aftermarket gasket sets due to potential issues with fitment and sealing.

The Cafe Racer Transformation: What to Expect

Transforming a GL1000 Goldwing into a cafe racer involves a significant aesthetic and functional overhaul. The process typically includes:

• Stripping Down: Removal of all touring-related components such as fairings, saddlebags, and large seats.
• Chassis Modifications: Often involves modifying or replacing the subframe to accommodate a more traditional cafe racer tail section and seat.
• Handlebar Swap: Replacing the original touring handlebars with lower-set clip-ons or clubman bars for a more aggressive riding posture.
• Exhaust System: Fitting a new, often shorter and louder, exhaust system to enhance both the sound and the visual appeal.
• Wheels and Tyres: While the original wheels are robust, some builders opt for lighter, spoked wheels and period-correct or performance-oriented tyres.
• Lighting and Electrics: Upgrading or replacing headlights, taillights, and indicators with smaller, more minimalist units. Simplifying the wiring loom is also a common practice.
• Fuel Tank: While some builders retain the original fuel tank, others opt for a more classic teardrop or flattened tank to enhance the cafe racer silhouette.

Frequently Asked Questions

Is the Honda GL1000 a good donor bike for a cafe racer?

Yes, the early Honda GL1000 is becoming increasingly popular as a donor bike for cafe racer builds due to its strong four-cylinder engine, shaft drive, and the availability of parts (though internal engine parts can be challenging). Its substantial frame can be visually appealing when stripped down.

What are the main challenges when converting a GL1000 to a cafe racer?

The main challenges include the significant weight of the stock bike, the cost and availability of internal engine rebuild parts, and the extensive modifications required to achieve the desired cafe racer aesthetic and handling.

What kind of performance can I expect from a GL1000 cafe racer?

A well-built GL1000 cafe racer can offer surprisingly brisk acceleration, especially given its engine size. While it may not be as nimble as a smaller European cafe racer, its power and stability on straights make it a capable machine for both spirited riding and longer journeys.

Are there any specific resources for GL1000 cafe racer builds?

Online forums dedicated to Goldwing enthusiasts and custom motorcycle building are excellent resources. Websites like the NGW Club and various custom bike building blogs often feature detailed build logs and advice specific to the GL1000.

Conclusion: A New Lease on Life for a Classic

The Honda GL1000 Goldwing, once solely defined by its touring capabilities, is proving to be a versatile and rewarding platform for custom motorcycle enthusiasts. Its powerful engine, reliable shaft drive, and the sheer presence of its boxer-four motor provide a unique foundation for a cafe racer build. While the path to conversion requires careful planning, particularly regarding engine work and sourcing parts, the end result is a motorcycle that blends classic engineering with a timeless, stripped-down aesthetic. The transformation from highway behemoth to stylish cafe machine is a testament to the enduring appeal of well-engineered motorcycles and the creativity of the custom building community. The GL1000's journey into the cafe racer realm is a compelling chapter in the ongoing story of motorcycle customization, proving that even the most unlikely candidates can be reborn with passion and ingenuity.
