The Honda EU20i inverter generator is a highly popular choice for its portability, quiet operation, and reliable power output. Generating a respectable 2000 watts peak and 1600 watts continuous, a single EU20i is often sufficient for many applications, from camping trips to powering tools on a job site. However, there are times when you simply need more power – perhaps to run a larger appliance, a more demanding set of tools, or even to provide robust backup power for a small home. This is where the ingenious capability of parallel operation comes into play, allowing you to link two EU20i units together to effectively double your available wattage.
Connecting two EU20i generators is not only possible but also a remarkably straightforward process, provided you have the correct equipment. This method offers significant advantages, including increased power without the bulk of a single, larger generator, enhanced flexibility, and even a degree of redundancy. Let's delve into why and how you can achieve this powerful setup, ensuring you get the most out of your Honda generators.
Why Connect Two Honda EU20i Generators in Parallel?
The decision to link two EU20i units isn't merely about getting more watts; it's about optimising your power solution for various scenarios. Here are the key benefits:
- Increased Power Output: This is the most obvious advantage. By connecting two EU20i generators, you can achieve up to 4000 watts of peak power and 3200 watts of continuous power. This expanded capacity opens up possibilities for running larger appliances like air conditioners, electric heaters, or multiple tools simultaneously, which would be impossible with a single unit.
- Enhanced Flexibility: You have the option to run just one generator for lighter loads, saving fuel and reducing noise. When heavy power is required, simply connect the second unit. This modular approach is far more versatile than owning a single, oversized generator that might be inefficient for smaller tasks.
- Redundancy and Reliability: In a parallel setup, if one generator encounters an issue or runs out of fuel, the other can often continue to provide power (though potentially overloading if the load is too high for a single unit). This built-in redundancy can be crucial in critical situations, offering a level of reliability that a single generator cannot.
- Portability: While 4000 watts of power in a single generator can be quite heavy and cumbersome, two EU20i units are individually lightweight and easy to transport. This makes them ideal for situations where a large, single generator would be impractical to move.
- Fuel Efficiency (for variable loads): For fluctuating power demands, running two smaller generators can sometimes be more fuel-efficient than running one large generator that is constantly under-loaded. The EU20i's Eco-Throttle system helps optimise fuel consumption, and having two units allows each to operate closer to its optimal load point.
What You'll Need for Parallel Operation
To successfully connect your two Honda EU20i generators, you'll need one crucial piece of equipment:
- Two Honda EU20i Generators: Ensure both units are in good working condition and have been regularly serviced. It's recommended that they are the same model for optimal compatibility, though the EU22i can also parallel with an EU20i using the correct cable.
- Honda Parallel Cable Kit (Honda Part Number: 08E92-ZT3-0000A or similar): This is an absolute necessity. You cannot simply use any electrical cables. The Honda parallel cable kit is specifically designed to safely and correctly link the generators, ensuring proper synchronisation of their electrical outputs. It typically includes the parallel cables and a 30-amp twist-lock receptacle.
- Appropriate Fuel: Ensure both generators have a full tank of fresh, unleaded petrol.
- Safety Equipment: Gloves, eye protection, and a fire extinguisher are always good to have on hand when working with generators.
- Grounding Rod (Optional but Recommended): For enhanced safety, especially for prolonged use or sensitive electronics, a grounding rod connected to a common ground point for both generators is advisable.
Step-by-Step Guide to Connecting Your EU20i Generators
Follow these steps carefully to ensure a safe and effective parallel connection:
1. Preparation and Positioning
- Read Your Manuals: Always refer to the owner's manuals for both your generators and the parallel kit for specific instructions and safety warnings.
- Choose a Safe Location: Place both generators outdoors in a well-ventilated area, away from windows, doors, and vents to prevent carbon monoxide build-up. Ensure they are on a level, stable surface. Maintain at least 1 metre of clearance around each generator.
- Check Fuel and Oil: Before starting, ensure both generators have adequate fuel and oil levels. Low oil can prevent a generator from starting or cause it to shut down.
- Ensure Generators are OFF: Make absolutely certain both generators are turned off, and their engine switches are in the 'OFF' position. Disconnect any loads from their outlets.
2. Connecting the Parallel Cables
- Locate Parallel Ports: On the front panel of each EU20i generator, you'll find dedicated parallel connection ports, often covered by rubber caps.
- Connect the Cables: Take the Honda parallel cable kit. It typically consists of two cables: one for the AC connection and one for the ground connection. Connect the appropriate cables to the corresponding parallel ports on each generator. The connectors are usually keyed to prevent incorrect insertion. Ensure they are firmly seated.
- Connect the Receptacle: The parallel kit usually includes a dedicated 30-amp receptacle that plugs into one of the generators (or a specific port on the parallel kit itself). This is where you will plug in your high-power appliances.
3. Starting the Generators
- Start One Generator: Turn the engine switch of the first EU20i to the 'ON' position and start it as you normally would. Allow it to warm up for a minute or two.
- Start the Second Generator: Once the first generator is running smoothly, turn the engine switch of the second EU20i to the 'ON' position and start it.
- Verify Operation: Both generators should now be running and their green indicator lights (power output indicator) should be on, indicating they are producing power. The parallel kit automatically synchronises their output.
4. Connecting the Load
- Use the Parallel Kit's Receptacle: Plug your desired load (appliance, extension cord, etc.) into the 30-amp twist-lock receptacle provided with the parallel kit. Do NOT plug high-load appliances directly into the individual 15-amp outlets on the generators themselves when operating in parallel, as this bypasses the combined power output.
- Monitor Load: Keep an eye on the generator's overload indicators. If an overload occurs, the generators may shut down to protect themselves. Reduce the load if this happens.
5. Shutting Down the System
- Disconnect Load First: Always disconnect the load from the parallel kit's receptacle before shutting down the generators.
- Turn Off Generators: Turn off both generators by switching their engine switches to the 'OFF' position.
- Disconnect Parallel Cables: Once the generators have cooled, you can safely disconnect the parallel cables.
Technical Considerations and Safety Precautions
- Output Compatibility: The Honda parallel kit ensures that the two generators' outputs (voltage, frequency, and phase) are perfectly synchronised, allowing them to share the load safely and efficiently.
- Grounding: While the parallel kit connects the generators electrically, for safety, especially if powering a house through a transfer switch, consult a qualified electrician regarding proper grounding. A single, common ground rod is generally recommended for the entire system.
- Carbon Monoxide (CO): Generators produce lethal carbon monoxide gas. Always operate them outdoors, far from any occupied buildings. Consider investing in battery-operated CO detectors for indoor use if you are powering a structure.
- Overload Protection: Both EU20i generators have built-in overload protection. If the combined load exceeds their capacity, they will shut down. Reduce the load and restart them.
- Fuel Management: It's crucial that both generators have sufficient fuel. If one runs out, the other will attempt to carry the entire load, potentially leading to an overload shutdown.
- Electrical Safety: Ensure all connections are secure. Use heavy-duty, outdoor-rated extension cords appropriate for the load. Never operate generators in wet conditions.
Troubleshooting Common Issues
- Generators Not Starting: Check fuel levels, oil levels, spark plugs, and air filters. Ensure the engine switch is 'ON'.
- No Power Output: Check if the circuit breaker on the generator is tripped. Ensure the parallel cables are securely connected. The Eco-Throttle switch should be 'ON' (or 'OFF' for full power if troubleshooting).
- Overload Indicator On: The combined load is too high. Disconnect some appliances, then restart the generators.
- One Generator Shuts Down: Check fuel and oil levels for that specific generator. It might be due to low oil or an internal fault. The other generator may continue to run but could be overloaded.
Maintenance for Parallel Units
Maintaining two generators isn't significantly different from maintaining one, but it's important to keep both in top condition for optimal parallel performance:

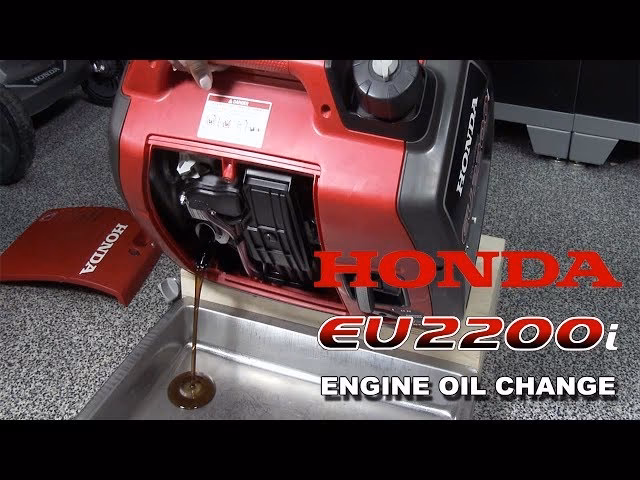

- Regular Oil Changes: Follow Honda's recommended oil change intervals for both units.
- Air Filter Cleaning/Replacement: A clean air filter is crucial for efficient operation.
- Spark Plug Inspection/Replacement: Ensure spark plugs are clean and properly gapped.
- Fuel System Care: Use fresh fuel and consider a fuel stabiliser, especially during storage. Drain the carburettor if storing for extended periods.
- Cable Inspection: Regularly inspect your parallel cables for any signs of wear, damage, or corrosion. Replace them if they are compromised.
- Load Balancing: While the parallel kit handles this automatically, ensure you are not consistently running one generator significantly harder than the other if you have control over how loads are distributed.
Comparison: Single EU20i vs. Two EU20i (Parallel)
Understanding the trade-offs can help you decide if parallel operation is right for you:
| Feature | Single Honda EU20i | Two Honda EU20i (Parallel) |
|---|---|---|
| Max Power Output | 2000 Watts | 4000 Watts |
| Continuous Power | 1600 Watts | 3200 Watts |
| Weight | Approx. 21 kg | Approx. 42 kg (combined) |
| Portability | Excellent (single person) | Good (two lightweight units, but two trips) |
| Fuel Efficiency | Very High (for its output) | Very High (for higher loads, can be more efficient than one large unit) |
| Noise Level | Extremely Quiet (53-59 dB(A)) | Still Quiet (but two engines running) |
| Initial Cost | Lower | Higher (two generators + cable kit) |
| Versatility | Good for light to moderate loads | Excellent for variable and heavy loads |
| Maintenance | Simpler (one unit) | More complex (two units to maintain) |
Frequently Asked Questions (FAQs)
Q: Can I use any parallel cable to connect my EU20i generators?
A: No, you must use the genuine Honda parallel cable kit or an approved aftermarket kit specifically designed for the EU20i. Using unapproved cables can damage your generators or pose a severe safety risk.
Q: Can I parallel a Honda EU20i with a different Honda model, like an EU3000i?
A: Generally, no. Honda generators are typically designed to be paralleled only with identical models, or in some specific cases, a compatible model (like the EU20i with an EU22i) using the correct cable. Always check your owner's manual for compatibility.
Q: Do both generators need to be grounded separately when in parallel?
A: The parallel kit connects the two generators electrically, creating a common ground. However, for overall system safety, especially when connecting to a building's electrical system via a transfer switch, it's generally recommended to establish a single, common ground point for the entire generator setup.
Q: What happens if one generator runs out of fuel while running in parallel?
A: If one generator runs out of fuel, the other generator will attempt to carry the entire load. If the load is too high for a single generator, it will likely trip its overload protection and shut down, leaving you without power.
Q: Is it more fuel-efficient to run two EU20i generators in parallel than one larger generator for the same load?
A: Often, yes. For a given load, two smaller, inverter generators running in their Eco-Throttle mode can be more fuel-efficient than a single larger, conventional generator that is significantly oversized for the load. The EU20i's highly efficient engine and inverter technology contribute to this.
Q: Can I plug my RV directly into the parallel kit's outlet?
A: Yes, the 30-amp twist-lock receptacle on the parallel kit is typically designed to accept standard RV shore power cords (NEMA L5-30P), allowing you to power your RV's 30-amp system.
Connecting two Honda EU20i generators in parallel is an excellent way to significantly boost your portable power capabilities. It offers a powerful, flexible, and reliable solution for a wide range of applications, from powering larger recreational vehicles to providing robust emergency backup. By understanding the simple setup process, utilising the correct Honda parallel cable kit, and adhering to crucial safety guidelines, you can confidently unlock the combined potential of your EU20i units, ensuring you have ample power whenever and wherever you need it.
