Honda 300 Fourtrax Transfer Case Oil Guide

Your Honda 300 Fourtrax is a robust and reliable workhorse, designed to tackle challenging terrains and demanding tasks. At the heart of its capability lies the drivetrain, and a critical, often overlooked, component of that system is the transfer case. Proper lubrication of this unit is paramount to its longevity and the overall performance of your ATV. Just like the engine, the transfer case requires the correct type and amount of oil to function efficiently, protect its intricate gears, and prevent premature wear.

Ignoring transfer case oil maintenance can lead to a host of expensive problems, from noisy operation and difficult shifting to complete component failure. This guide will demystify the oil requirements for your Honda 300 Fourtrax transfer case, walk you through the change process, and provide crucial insights to keep your trusty ATV in top condition for years to come.

Understanding Your Honda 300 Fourtrax Transfer Case

The transfer case on your Honda 300 Fourtrax is responsible for distributing power from the transmission to both the front and rear drive shafts, enabling four-wheel drive capability. It contains a series of gears, bearings, and shafts that operate under significant load and friction. The oil within the transfer case serves several vital functions:

• Lubrication: It reduces friction between moving parts, preventing wear and heat buildup.
• Cooling: It helps dissipate heat generated by the gears and bearings.
• Cleaning: It carries away microscopic metallic particles and contaminants, keeping the internal components clean.
• Corrosion Protection: It coats internal surfaces, protecting them from rust and corrosion.

Given these critical roles, it becomes clear why using the correct oil and maintaining it diligently is not just recommended, but absolutely essential for the operational health of your ATV.

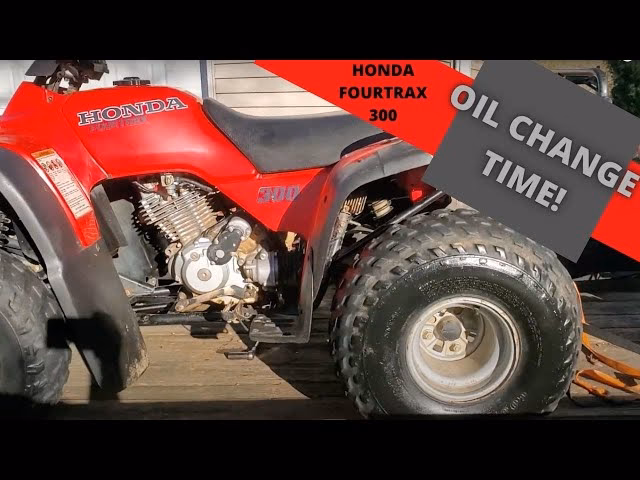

The Right Oil for Your Honda 300 Fourtrax Transfer Case

When it comes to selecting the oil for your Honda 300 Fourtrax transfer case, precision is key. Honda, as the manufacturer, specifies the exact type of lubricant that is best suited for their engineering. For the Honda 300 Fourtrax transfer case, the recommended oil is Honda GN4 10W-40 motorcycle oil. While it might seem counter-intuitive to use an engine oil for a transfer case, this specific formulation is designed to meet the unique demands of Honda's ATV powertrains.

Why Manufacturer's Recommendations Matter

Using the manufacturer-recommended oil is not merely a suggestion; it's a critical aspect of proper maintenance. Honda's engineers design their components, including the transfer case, to operate optimally with specific oil properties. These properties include:

• Viscosity: The 10W-40 rating indicates the oil's flow characteristics at different temperatures. '10W' refers to its viscosity at cold temperatures (Winter), ensuring easy flow during start-up, while '40' refers to its viscosity at operating temperature, providing adequate film strength to protect components under load.
• Additives: GN4 oil contains a specific blend of additives that provide excellent wear protection, corrosion resistance, and thermal stability, all crucial for the demanding environment within a transfer case.
• Friction Modifiers: Unlike some automotive engine oils, motorcycle oils like GN4 are formulated to be compatible with wet clutches and gears, which often share the same oil bath or are designed with similar lubrication principles.

Deviating from the recommended oil type, such as using standard automotive engine oil or gear oil not specified by Honda, can lead to inadequate lubrication, increased friction, premature wear of gears and bearings, and ultimately, costly repairs. Automotive oils often contain friction modifiers that can be detrimental to components designed for a different lubrication profile.

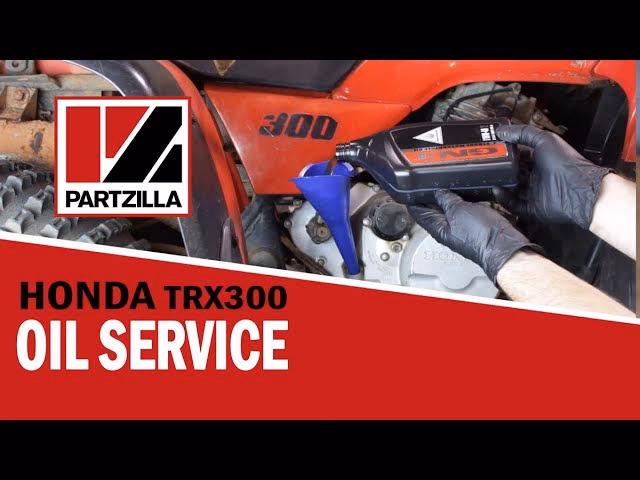

How Much Oil Does a Honda TRX300 Require?

Knowing the correct oil type is only half the battle; the correct quantity is equally important. An underfilled transfer case will suffer from insufficient lubrication and cooling, leading to excessive wear and heat. An overfilled transfer case can lead to increased internal pressure, foaming of the oil, seal leaks, and potential damage to components due to hydraulic lock or splashing rather than smooth lubrication.

For a complete oil change, the Honda TRX300 (which encompasses the Fourtrax 300 models) requires approximately 2.3 quarts of 10W-40 motorcycle oil. It's always a good practice to have slightly more on hand than the exact specified amount, just in case of minor spills or to ensure you can top up if needed after an initial run. Remember, this specification is for a full drain and refill. Always refer to your ATV's owner's manual for the most precise and up-to-date specifications for your specific model year, as minor variations can sometimes occur.

Oil Capacity at a Glance

Performing a Honda 300 Fourtrax Transfer Case Oil Change

Changing the transfer case oil on your Honda 300 Fourtrax is a relatively straightforward maintenance task that most DIY enthusiasts can accomplish with basic tools. Regular oil changes are vital to remove contaminated and degraded oil, ensuring your transfer case remains in optimal condition. Aim to change the transfer case oil as part of your regular maintenance schedule, typically every 100 operating hours or annually, whichever comes first, or more frequently if you operate in extremely dusty, wet, or demanding conditions.

Tools and Materials You'll Need:

• New Honda GN4 10W-40 motorcycle oil (2.3 quarts/approx. 2.2 litres)
• Drain pan or suitable container for old oil
• Socket wrench set (likely 17mm or 19mm for drain/fill plugs)
• Funnel (with a flexible hose if possible, for easier filling)
• Clean rags or shop towels
• New crush washers for drain and fill plugs (recommended)
• Torque wrench (optional, but highly recommended for proper plug tightening)
• Gloves and safety glasses

Step-by-Step Procedure:

1. Prepare the ATV: Park your Honda 300 Fourtrax on a level surface. It's often beneficial to run the engine for a few minutes before draining the oil. This warms the oil, making it less viscous and allowing it to drain more completely, carrying away more contaminants.
2. Locate the Drain Plug: Position your drain pan directly underneath the transfer case drain plug. The transfer case is typically located towards the front of the ATV, behind the engine and transmission. The drain plug is usually on the bottom or lower side of the case.
3. Remove the Fill Plug First: Before removing the drain plug, it's a good practice to loosen or remove the fill plug. This equalises pressure and ensures that if the fill plug is seized, you won't be left with a drained transfer case you can't refill. The fill plug is usually on the upper side of the transfer case.
4. Drain the Old Oil: Carefully remove the drain plug, allowing the old oil to flow into your drain pan. Be prepared for the oil to be dark and potentially thick, indicating it's done its job and collected contaminants. Allow ample time for all the oil to drain, typically 10-15 minutes.
5. Inspect and Clean: While the oil is draining, inspect the drain plug for any metal shavings attached to its magnetic tip (if it has one). A small amount of fine sludge is normal, but larger pieces of metal could indicate internal wear. Clean the drain plug thoroughly.
6. Replace Crush Washer: Always replace the crush washer on both the drain and fill plugs. These washers create a tight seal and are designed to deform upon tightening, preventing leaks. Reusing old ones risks leaks.
7. Reinstall Drain Plug: Once the oil has completely drained, reinstall the drain plug with a new crush washer. Tighten it securely, but do not overtighten, as this can strip the threads in the transfer case casing. If you have a torque wrench, refer to your service manual for the correct torque specification (typically around 15-20 lb-ft or 20-27 Nm).
8. Refill with New Oil: Using your funnel, carefully pour the new Honda GN4 10W-40 oil into the fill hole. Pour slowly to avoid air pockets and allow the oil to settle. Fill until the oil just begins to seep out of the fill hole. This indicates the correct level. For the Honda 300 Fourtrax, this should be approximately 2.3 quarts.
9. Reinstall Fill Plug: Once filled, reinstall the fill plug with a new crush washer. Tighten it securely, again being careful not to overtighten.
10. Clean Up and Check for Leaks: Wipe away any spilled oil from the transfer case and surrounding areas. Start the ATV and let it run for a few minutes, then shut it off and inspect for any signs of leaks around the drain and fill plugs.
11. Dispose of Old Oil: Properly dispose of the used oil. Never pour it down drains or onto the ground. Most auto parts stores or recycling centres accept used motor oil for free.

Common Mistakes to Avoid

Even a seemingly simple task like an oil change can go wrong if proper care isn't taken. Here are some common pitfalls to avoid:

• Using the Wrong Oil: As emphasised, this is the most critical mistake. Using automotive oil, gear oil, or an incorrect viscosity will severely compromise the transfer case's lifespan.
• Overfilling or Underfilling: Both scenarios are detrimental. Too little oil means inadequate lubrication and cooling; too much can cause foaming, seal damage, and increased pressure.
• Not Replacing Crush Washers: A common oversight that almost guarantees a leak. Crush washers are single-use components.
• Overtightening Plugs: Stripping the threads on the transfer case casing can be a very expensive repair. Always use a torque wrench if you're unsure, or tighten firmly but without excessive force.
• Not Draining Completely: Rushing the draining process leaves old, contaminated oil in the system, diluting the new oil's effectiveness.
• Ignoring the Fill Plug First Rule: Always ensure you can open the fill plug BEFORE draining. Imagine draining all the oil only to find you can't get new oil in!

Frequently Asked Questions (FAQs)

Can I use car engine oil in my Honda 300 Fourtrax transfer case?

No, absolutely not. While the transfer case might use an oil with a similar viscosity rating (like 10W-40), car engine oils are formulated differently, often containing friction modifiers that are not suitable for the gears and internal components of an ATV transfer case. Always stick to the manufacturer's recommendation, which is Honda GN4 10W-40 motorcycle oil.

What happens if I don't change the transfer case oil?

Neglecting transfer case oil changes can lead to several severe problems. The oil will break down over time, losing its lubricating and protective properties. This results in increased friction, excessive heat buildup, accelerated wear of gears and bearings, noisy operation, difficult shifting, and eventually, catastrophic failure of the transfer case, leading to very costly repairs or replacement.

How often should I check the transfer case oil level?

While the transfer case isn't as prone to consumption as an engine, it's good practice to check the level periodically, perhaps every 50 hours of operation or at least once a season. Look for any signs of leaks around the drain and fill plugs or seals. A consistent drop in level indicates a leak that needs immediate attention.

Is changing the transfer case oil a DIY job, or should I take it to a mechanic?

For most Honda 300 Fourtrax owners with basic mechanical skills and tools, changing the transfer case oil is a straightforward DIY task. The process is similar to an engine oil change. However, if you are unsure, lack the necessary tools, or prefer professional service, taking it to a qualified ATV mechanic is always a safe option.

What are the signs of bad transfer case oil or a failing transfer case?

Signs of an issue with your transfer case or its oil can include unusual noises like whining, grinding, or clunking sounds, especially when engaging four-wheel drive or during acceleration/deceleration. Difficult or rough shifting, vibrations, or a burning smell (indicating overheating oil) are also strong indicators that something is wrong. If you notice any of these symptoms, it's crucial to inspect the transfer case oil immediately and address any issues.

Conclusion

Maintaining the transfer case oil on your Honda 300 Fourtrax is a relatively simple yet profoundly important aspect of ATV ownership. By understanding the correct oil type – Honda GN4 10W-40 motorcycle oil – and adhering to the recommended capacity of 2.3 quarts, you're providing your ATV's drivetrain with the specific lubrication it needs to operate efficiently and reliably. Regular oil changes, coupled with careful attention to detail during the process, will significantly extend the life of your transfer case, ensuring your Fourtrax continues to deliver its legendary performance on every adventure. Don't underestimate the power of proper lubrication for the longevity of your machine!
