Honda EU1000i Generator: Essential Maintenance Guide

The Honda EU1000i is a popular choice for portable power, cherished for its quiet operation and reliable performance during camping trips, tailgating events, and emergency backup situations. While its fully enclosed design helps to minimise noise, it's also designed with the owner in mind, making routine maintenance straightforward. By following a consistent maintenance schedule, you can ensure your EU1000i remains in peak condition, ready to deliver power whenever you need it. This guide will walk you through the essential maintenance tasks, from oil checks to spark plug replacements, empowering you to keep your Honda generator in excellent working order.

Understanding Your Honda EU1000i Maintenance Schedule

A proactive approach to maintenance is key to the longevity and performance of your Honda EU1000i. Honda provides a clear schedule, and most of these tasks are easily manageable for the average owner. Adhering to these intervals will prevent premature wear and tear, ensuring your generator operates efficiently and reliably.

Regular Maintenance Intervals

Here’s a breakdown of the recommended maintenance schedule:

Professional Maintenance Recommendations

While many tasks are DIY-friendly, Honda recommends professional servicing for certain critical components:

Fueling Your EU1000i Correctly

Proper fuel management is crucial for any engine. Using the correct fuel and handling it appropriately will prevent issues and ensure optimal combustion.

Fuel Quality and Storage

For best results, use fuel within one month of purchase. If you use a fuel stabilizer, the usable period can be extended up to three months. This is important because stale fuel can lead to starting problems and internal engine deposits.

Refuelling Procedure

When adding fuel:

• Do not fill the fuel tank past the red mark indicated inside the filler neck. Overfilling can lead to fuel spillage and potential fire hazards.
• Locate the lever on the top of the fuel cap. This lever controls a vent in the cap.
• Ensure the vent is open while the engine is running and during the cool-down period immediately after use. This allows for proper airflow and prevents a vacuum from forming in the fuel tank.
• Once the generator has completely cooled down, close the vent by turning the lever. This prevents fuel leakage during transport or storage.

Accessing the Engine for Maintenance

The Honda EU1000i is designed for easy access to its key components. Familiarising yourself with the locations of the maintenance covers will make your servicing tasks much simpler.

Maintenance Cover Locations:

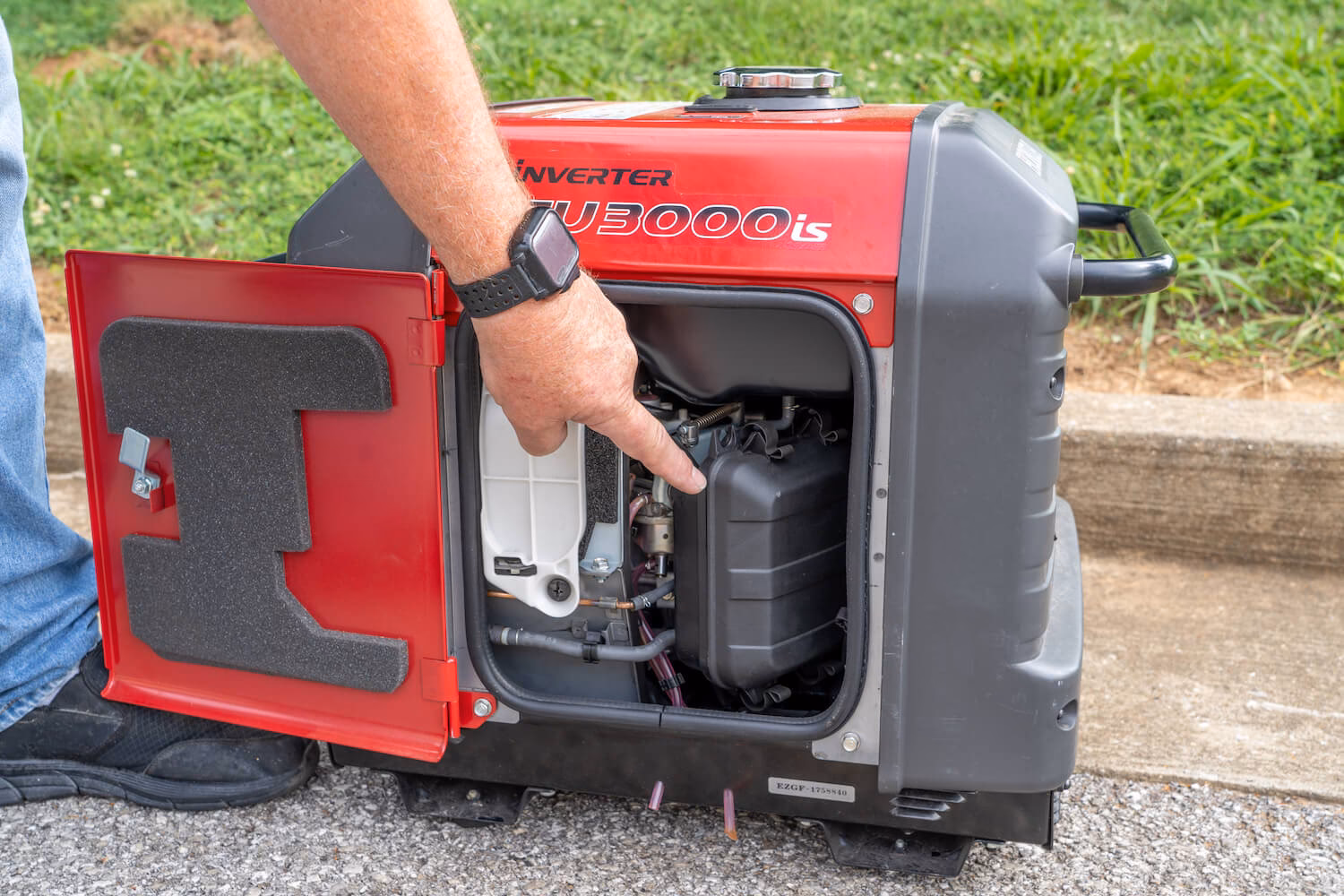

• Left Side Cover: Removing this cover grants access to the oil dipstick, the air filter, and the engine oil drain plug. To remove it, turn the cover screw counter-clockwise and gently lift the cover upwards.
• Top Access Cover: Situated next to the generator’s carrying handle, this cover provides access to the spark plug.
• Rear Cover: This cover provides access to the muffler and spark arrester. It is secured by four 5 mm screws.

Engine Oil: The Lifeblood of Your Generator

Regular oil checks and changes are arguably the most critical maintenance tasks for your Honda EU1000i. Engine oil lubricates moving parts, cools the engine, and cleans away contaminants.

Recommended Oil Types

Honda recommends the following oil types for the EU1000i:

• 10W30 and 5W30 are suitable for all operating conditions.
• SAE 30 can be used when ambient temperatures are consistently above 50°F (10°C).

Always ensure the oil you use meets or exceeds the API SJ service classification or a later equivalent.

Understanding Oil Alert

Your EU1000i is equipped with Honda’s Oil Alert system. This safety feature automatically shuts off the engine if the oil level drops below a safe minimum. A warning light on the control panel will illuminate to indicate that the Oil Alert system has been activated. While this protects the engine from catastrophic failure, it’s essential to maintain the correct oil level to avoid unnecessary shutdowns.

Checking the Oil Level

Perform this check before each use:

1. Ensure the generator is on a level surface and the engine is off and cool.
2. Locate the oil filler neck, typically on the bottom left of the engine casing.
3. Remove the dipstick from the filler neck.
4. Wipe the dipstick clean with a lint-free cloth.
5. Reinsert the dipstick into the filler neck, but do not screw it in. It should just rest in the opening.
6. Remove the dipstick again and check the oil level against the markings on the dipstick. The oil level should be between the upper and lower marks.

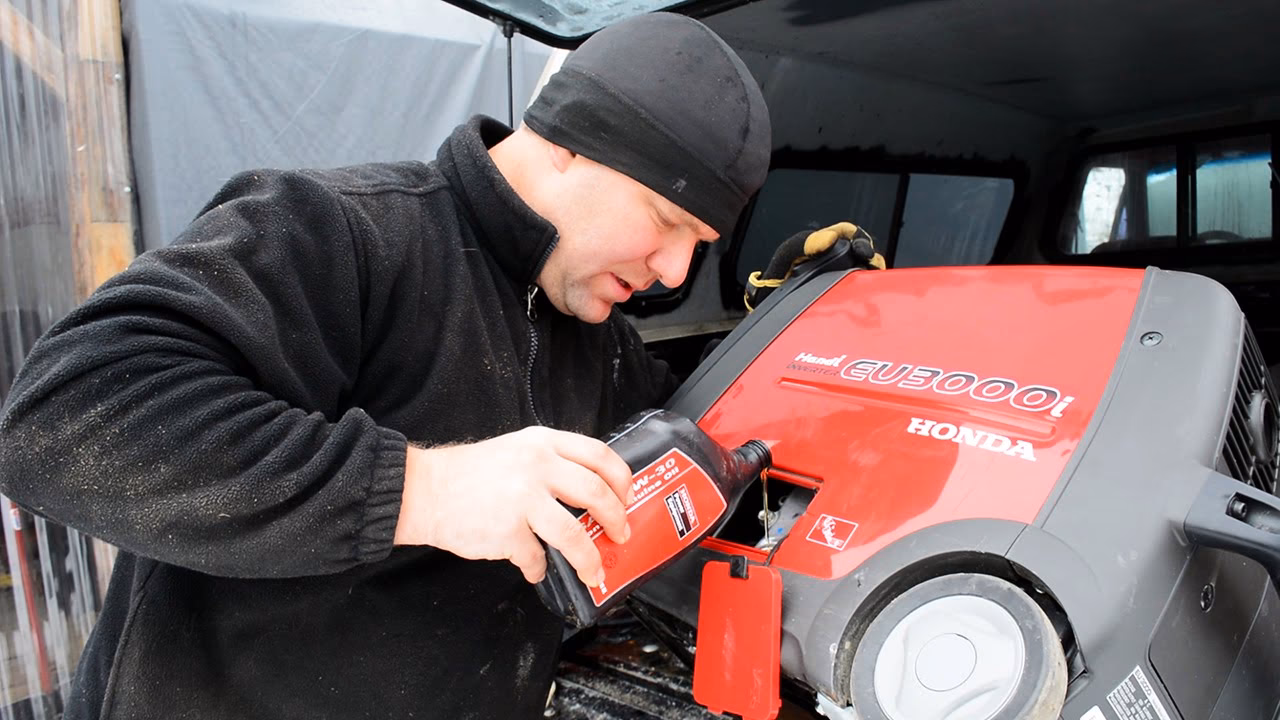

Changing the Engine Oil

Follow these steps for an oil change:

1. Ensure the engine is warm but not hot. Running the engine for a few minutes will help the oil flow more freely.
2. Turn off the engine switch and close the fuel filler cap vent.
3. Remove the dipstick.
4. Locate and remove the oil drain plug, usually found at the base of the engine casing. Place a suitable container underneath to catch the used oil.
5. Carefully tilt the generator towards the drain plug, allowing the old oil to flow out completely. You might need to tilt it in a specific direction, often guided by a channel on the casing, to direct the oil into your container.
6. Once all the old oil has drained, reinstall the drain plug securely.
7. Add the correct type and amount of new engine oil through the filler neck. The EU1000i typically requires about 8 ounces (0.25 litres) of oil.
8. With the generator resting on a level surface, add oil until it reaches the very edge of the filler neck opening when the dipstick is inserted without screwing it in.
9. Reinstall the dipstick and ensure the filler cap is securely tightened.

Air Filter Maintenance

A clean air filter is vital for proper engine performance and fuel efficiency. A clogged filter restricts airflow, making the engine work harder and potentially causing it to run rich.

Accessing the Air Filter

The air filter is housed within the air box, typically located to the right of the engine. To access it:

1. Locate the tab at the top of the air box cover.
2. Push down on this tab.
3. Lift the air box cover straight up.
4. Carefully remove the air filter element.

Cleaning and Oiling the Air Filter

The EU1000i uses a foam air filter that requires specific cleaning and oiling procedures:

1. Wash the filter element in warm, soapy water. Gently squeeze out the dirty water; avoid twisting or wringing the filter, as this can damage the foam.
2. Rinse the filter thoroughly with clean water.
3. Allow the filter to air dry completely. Do not attempt to use the generator with a wet air filter.
4. Once dry, lightly coat the filter with clean engine oil (the same type used in the engine).
5. Gently squeeze the filter again to distribute the oil evenly throughout the foam. Excess oil should be squeezed out. A good tip for a cleaner process is to place the filter and a small amount of oil into a plastic bag and massage it through.
6. Reinstall the filter into the air box, ensuring it is seated correctly.

Spark Plug Care and Replacement

The spark plug ignites the fuel-air mixture. A worn or fouled spark plug can lead to misfires, rough running, and reduced power.

Accessing the Spark Plug

As mentioned earlier, the spark plug is accessible through the maintenance cover located on the top of the generator, near the handle.

Checking and Adjusting the Spark Plug Gap

The correct spark plug gap is crucial for efficient ignition. For the Honda EU1000i, the recommended gap is between 0.024-0.028 inches (0.6-0.7 mm). Use a feeler gauge to check the gap. If it’s outside the specified range, carefully adjust it by gently bending the ground electrode. Always check the spark plug’s condition: replace it if the insulator is cracked, the electrode is significantly worn down, or the sealing washer is damaged.

Replacing the Spark Plug

When installing a spark plug:

1. First, thread the new or cleaned spark plug into the cylinder head by hand. This prevents cross-threading and ensures it’s seated correctly.
2. Once hand-tight, use a spark plug wrench to tighten it further. If you are reinstalling a used plug, tighten it an additional quarter turn (¼). If you are installing a new plug that crushes the washer, tighten it half a turn (½) to properly seat the washer. Overtightening can damage the cylinder head or the plug itself.

Spark Arrester Maintenance

The spark arrester prevents sparks from escaping the exhaust, reducing the risk of fires, especially in dry conditions. It’s located within the muffler.

Cleaning the Spark Arrester

1. After removing the rear cover, you’ll need to unbolt the muffler from the engine’s exhaust port. This usually involves removing three 6 mm bolts.
2. Carefully remove the muffler. It should come away with the spark arrester and the exhaust gasket still attached.
3. Gently pull the spark arrester out of the muffler.
4. Use a wire brush to scrub off any accumulated carbon deposits from the spark arrester screen.
5. Inspect the spark arrester and the exhaust gasket for any signs of damage. If either is damaged, they should be replaced to ensure proper function and sealing.
6. Reassemble the muffler, spark arrester, and gasket in the reverse order of removal, ensuring all bolts are tightened securely.

Fuel System Maintenance (Professional Recommended)

While not typically a DIY task for everyone, maintaining the fuel system is crucial for reliable operation.

Fuel Tank and Filter Cleaning

Honda recommends having the fuel tank and fuel filter cleaned annually. Over time, sediment can build up in the tank, and the filter can become clogged, restricting fuel flow.

Fuel Line Inspection

Every two years, it’s advised to have the fuel lines inspected for any signs of cracking or deterioration. Damaged fuel lines can lead to leaks, which are a significant safety hazard.

Troubleshooting Common Issues

Understanding common problems and their solutions can save you time and money.

Generator Won't Start

Possible causes include:

• No fuel or stale fuel.
• Incorrect fuel-oil mixture (if applicable, though EU1000i is 4-stroke).
• Low oil level (Oil Alert may have shut it down).
• Clogged air filter.
• Fouled or improperly gapped spark plug.
• Fuel valve closed.

Generator Runs Rough or Lacks Power

Possible causes include:

• Clogged air filter.
• Partially fouled spark plug.
• Stale fuel.
• Engine overheating.

FAQ: Your Honda EU1000i Questions Answered

Q1: How much oil does the Honda EU1000i take?
The Honda EU1000i has an oil capacity of approximately 8 ounces (0.25 litres). Always check the level using the dipstick after refilling.

Q2: What type of oil should I use in my Honda EU1000i?
Honda recommends SAE 10W-30 or 5W-30 for general use. SAE 30 can be used in temperatures above 50°F (10°C). Ensure the oil meets API SJ classification or later.

Q3: Can I connect two Honda EU1000i generators together?
Yes, you can connect two EU1000i generators for parallel operation to increase power output. This requires a Honda-approved parallel operation cable, which is an optional accessory available from authorised dealers.

Q4: How often should I clean the air filter?
The air filter should be cleaned every three months or approximately 50 hours of use. If operating in dusty conditions, it may need more frequent cleaning.

Q5: What is the correct spark plug gap for the EU1000i?
The recommended spark plug gap is between 0.024–0.028 inches (0.6–0.7 mm).

Conclusion

Maintaining your Honda EU1000i generator is a straightforward process that pays dividends in reliable performance and extended lifespan. By diligently following the recommended maintenance schedule, using the correct fluids, and performing regular checks, you can ensure your generator is always ready to provide power for your adventures. Remember to consult your owner's manual for specific details and always prioritize safety when working with fuel and running engines.
