Honda CRF250R Crankshaft Play Explained

The Honda CRF250R is a formidable motocross machine, renowned for its potent engine and agile handling. As with any high-performance off-road motorcycle, understanding the nuances of its engine is crucial for maintaining optimal performance and longevity. One area that often sparks questions among owners is crankshaft play. Is a little bit of movement in the crankshaft of your CRF250R normal, or is it a sign of impending doom? This article will delve into the intricacies of crankshaft play on the Honda CRF250R, explaining what it is, why it occurs, how to check for it, and what constitutes an acceptable tolerance.

Understanding Crankshaft Play

Crankshaft play, often referred to as crankshaft end float or radial play, refers to the permissible amount of movement within the crankshaft assembly. The crankshaft is the heart of your engine, converting the linear motion of the pistons into rotational motion that ultimately powers your rear wheel. It's supported by bearings, which allow it to spin freely at incredibly high speeds. However, even the best bearings have a small tolerance for movement, and this is what we call play.

There are generally two types of play to consider:

• End Float: This is the axial movement of the crankshaft – how much it can move back and forth along its length.
• Radial Play: This is the sideways or up-and-down movement of the crankshaft within its main bearings.

In the context of a high-performance engine like the CRF250R, understanding these tolerances is vital. Excessive play in either direction can lead to inefficient power delivery, increased vibration, premature wear of other engine components, and ultimately, catastrophic engine failure.

Why Does Crankshaft Play Occur?

Crankshaft play is not necessarily a sign of a faulty part from the outset. It's a natural consequence of the forces and conditions a crankshaft operates under. Over time, several factors can contribute to the development of crankshaft play:

• Bearing Wear: The main bearings and rod bearings are subjected to immense pressure and friction. As these bearings wear down, the clearance between the crankshaft journals and the bearing surfaces increases, leading to play.
• Lubrication Issues: Inadequate or contaminated lubrication can accelerate bearing wear. Running the engine low on oil, using the wrong type of oil, or having debris in the oil can all compromise the protective oil film between the bearing and the crankshaft, leading to increased wear.
• Over-Revving: Exceeding the engine's designed RPM limit can place excessive stress on the crankshaft and its bearings, leading to accelerated wear and potential damage.
• Improper Assembly: During engine rebuilds, incorrect installation of bearings or the crankshaft itself can introduce or exacerbate play.
• Component Fatigue: Over extended periods of use, the metal components of the crankshaft and bearings can experience fatigue, leading to a gradual increase in clearances.

Checking for Crankshaft Play on a Honda CRF250R

Diagnosing crankshaft play requires a systematic approach and often the removal of certain engine components. Here’s a general guide on how you might check for play, though it's important to consult your specific Honda CRF250R service manual for precise procedures and specifications:

Tools You Might Need:

• Feeler gauges
• Dial indicator
• Pry tools (use with extreme caution to avoid damage)
• Torque wrench
• Service manual for your specific CRF250R model year

Procedure (General):

1. Engine Disassembly: Accessing the crankshaft typically involves removing the cylinder head, cylinder, and in some cases, splitting the engine cases. This is a task best suited for experienced mechanics or those comfortable with extensive engine work.
2. Checking Radial Play: With the connecting rod in place (but ideally detached from the piston for easier access), you can attempt to gently move the crankshaft up and down or side to side. A more precise method involves using a dial indicator. Mount the dial indicator securely to the crankcase, with its probe touching a crankshaft journal. Gently try to move the crankshaft radially. The reading on the dial indicator will indicate the amount of radial play.
3. Checking End Float: To check for end float, you'll need to measure the axial movement. Again, a dial indicator is the most accurate tool. Mount the dial indicator so its probe is touching the end of the crankshaft. Gently push and pull the crankshaft axially. The dial indicator will register the amount of end float.

Important Note: It is crucial to perform these checks with the engine at a stable temperature and with all necessary components properly seated. Referencing your service manual for the exact procedure and acceptable tolerances is paramount.

Acceptable Tolerances: What's Normal?

This is where the specific model year of your Honda CRF250R becomes critical. Honda, like all manufacturers, specifies acceptable tolerances for crankshaft play. These tolerances are typically very small, measured in thousandths of an inch or hundredths of a millimetre.

For the Honda CRF250R, typical specifications for crankshaft radial play might be in the range of 0.001 to 0.003 inches (0.025 to 0.076 mm). End float specifications are often even tighter, perhaps around 0.0008 to 0.002 inches (0.020 to 0.050 mm).

Crucially, these are general figures. You MUST consult the official Honda service manual for your specific CRF250R model year to obtain the exact factory specifications. Using incorrect specifications can lead to either unnecessary repairs or overlooking a critical issue.

Signs of Excessive Crankshaft Play

If your CRF250R's crankshaft has developed excessive play, you might notice several symptoms:

• Knocking or Ticking Noises: A distinct knocking or ticking sound from the engine, especially when accelerating or decelerating, can indicate the crankshaft is hammering against its bearings.
• Increased Vibrations: You might feel more pronounced vibrations through the handlebars and footpegs, as the unbalanced movement of the crankshaft affects the engine's smooth operation.
• Loss of Power: Excessive play can lead to inefficient power transfer and a noticeable reduction in engine performance.
• Difficulty Starting: In severe cases, significant crankshaft play can make it harder for the engine to turn over and start.
• Visible Damage (During Inspection): If you've disassembled the engine, you might see scoring or pitting on the crankshaft journals or the inside of the bearings, indicating wear.

Consequences of Ignoring Crankshaft Play

Ignoring crankshaft play, especially if it exceeds the factory tolerances, can have severe repercussions:

• Connecting Rod Damage: Excessive radial play can cause the connecting rod to hammer against the crankshaft, leading to damage to both components.
• Bearing Failure: The bearings themselves will wear out much faster if there's excessive play, potentially leading to complete seizure.
• Piston and Cylinder Damage: The increased movement can cause the piston to rock in the cylinder, leading to scoring and premature wear of the piston rings and cylinder walls.
• Crankshaft Failure: In the most extreme cases, a severely worn crankshaft can fracture, resulting in catastrophic engine damage that often requires a complete engine replacement.
• Transmission Damage: The vibrations and forces generated by a damaged crankshaft can also transmit to the transmission, leading to further component failure.

When to Seek Professional Help

While some basic checks can be performed by a diligent owner, diagnosing and rectifying crankshaft play is often a complex and precision-dependent task. You should consider seeking professional help from a qualified motorcycle mechanic if:

• You are not comfortable with extensive engine disassembly.
• You do not have the specialized tools required for precise measurement.
• You are unsure about the acceptable tolerances for your specific model.
• You have identified symptoms of excessive play and want a definitive diagnosis and repair.

A professional mechanic will have the experience, tools, and access to genuine Honda parts to ensure your CRF250R's engine is repaired correctly.

Preventative Maintenance Tips

While some wear is inevitable, good preventative maintenance can significantly extend the life of your CRF250R's crankshaft and bearings:

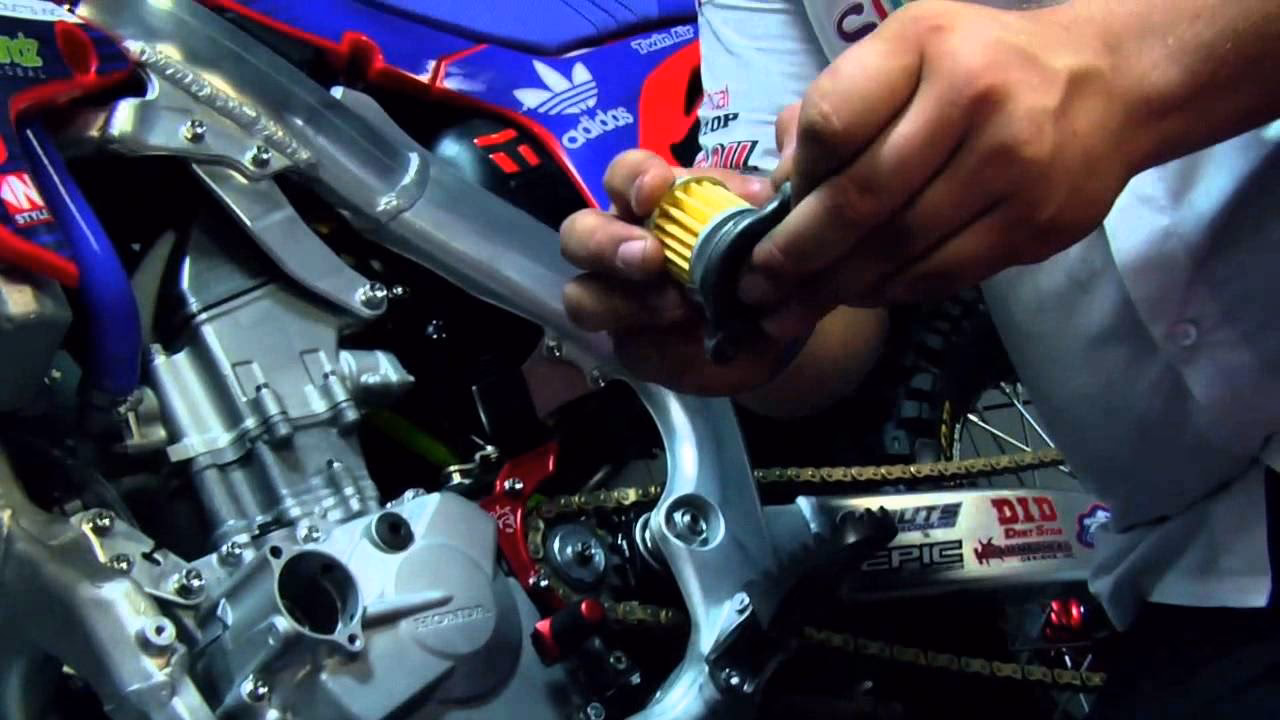

• Regular Oil Changes: Adhere to Honda's recommended oil change intervals and use the correct type and grade of oil. Ensure the oil is always clean and free of contaminants.
• Check Oil Levels: Regularly check your engine oil level and top it up as necessary. Running the engine with low oil is a major contributor to bearing wear.
• Avoid Over-Revving: While the CRF250R is built for performance, respecting its rev limits will help prevent undue stress on the crankshaft.
• Proper Warm-up: Allow the engine to warm up properly before riding hard. This ensures the oil circulates and lubricates all components effectively.
• Listen to Your Engine: Pay attention to any unusual noises or vibrations. Addressing minor issues early can prevent them from escalating into major problems.
• Quality Rebuilds: If you're rebuilding your engine, ensure you use high-quality replacement parts and follow the service manual precisely.

Frequently Asked Questions (FAQs)

Q1: Is any crankshaft play normal on a Honda CRF250R?

A1: Yes, a very small amount of play within the manufacturer's specified tolerances is normal due to bearing clearances. However, any play exceeding these tolerances is problematic.

Q2: How often should I check for crankshaft play?

A2: Checking for crankshaft play is typically done during major engine rebuilds or if you suspect an issue due to symptoms like knocking noises or significant vibration.

Q3: Can I ride my CRF250R if I suspect slight crankshaft play?

A3: It's best to have it checked. While slight play within tolerance might be acceptable, if you suspect it's exceeding limits, continuing to ride could cause further damage.

Q4: What is the cost of replacing crankshaft bearings?

A4: The cost can vary significantly depending on labour rates and whether you use genuine Honda parts or aftermarket alternatives. It's a labour-intensive job, so expect a few hundred pounds/dollars for labour alone, plus parts.

Q5: Where can I find the exact crankshaft play specifications for my CRF250R?

A5: The most reliable source is the official Honda service manual specific to your CRF250R model year. You can often purchase these online or from Honda dealerships.

Conclusion

Maintaining your Honda CRF250R involves understanding its critical components, and the crankshaft is undeniably one of the most vital. A small amount of crankshaft play is inherent in the design, thanks to the necessary clearances in its bearings. However, this play must remain within the precise tolerances set by Honda. Excessive play is a clear indicator of wear and tear that, if left unaddressed, can lead to extensive and costly engine damage. By understanding how to check for play, recognizing the symptoms of excessive wear, and adhering to a diligent preventative maintenance schedule, you can help ensure your CRF250R's engine continues to deliver exhilarating performance for seasons to come. Always refer to your specific service manual for accurate specifications and procedures, and don't hesitate to seek professional assistance when needed.
