MOT Undertrays: A Tester's Dilemma?

Few things cause more head-scratching for motorists than the perceived inconsistencies in MOT test results. You might take your vehicle for its annual check-up, only to find an advisory note for something your neighbour’s identical car sailed through with flying colours. One particularly common point of contention, and the source of many a tester’s grumble, involves the humble undertray. Why does this seemingly innocuous plastic or composite panel often lead to advisories, or even outright complaints, from MOT testers across the UK? Let’s delve into the murky depths beneath your car to uncover the reasons behind these anomalies and what you, as a motorist, need to know.

What Exactly is an Undertray and Why Does Your Car Have One?

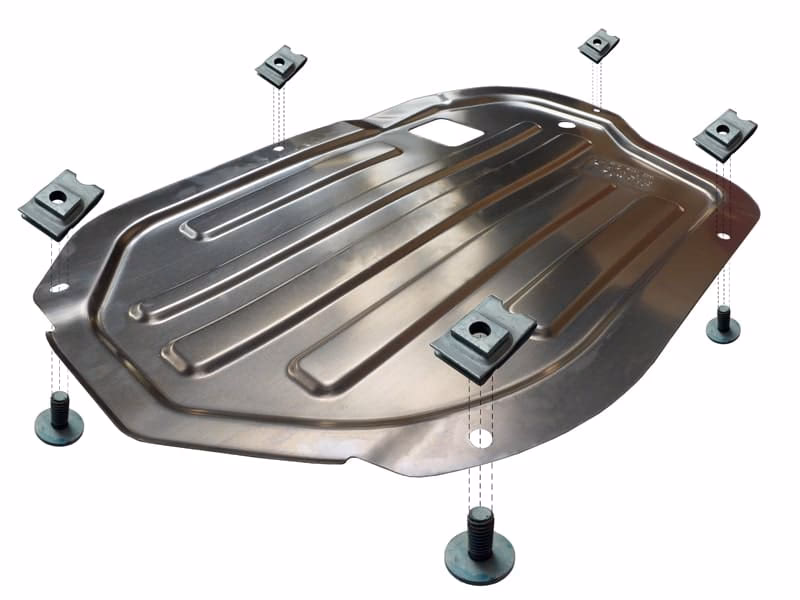

Before we dissect the MOT implications, it’s worth understanding the purpose of the undertray itself. Often made of plastic, fibreglass, or a composite material, the undertray is a large panel or series of panels fitted to the underside of your vehicle. It typically covers the engine bay, gearbox, and sometimes extends further back along the chassis.

Key Functions of an Undertray:

• Aerodynamics: Modern car design places a significant emphasis on aerodynamics to improve fuel efficiency and stability. An undertray creates a smoother underbody, reducing drag and turbulence as air flows beneath the vehicle.
• Protection: It acts as a shield, protecting vital components like the engine, transmission, oil sump, and various sensors from road debris, stones, water, and road salt. This protection can significantly extend the lifespan of these expensive parts.
• Noise Reduction: Undertrays can help to dampen noise generated by the engine and transmission, contributing to a quieter cabin experience for occupants.
• Thermal Management: In some designs, undertrays can play a role in directing airflow to aid cooling or, conversely, in retaining heat to help the engine reach optimal operating temperature more quickly.

Given these benefits, it’s clear why manufacturers fit them. But these protective qualities can become a double-edged sword when it comes to the stringent requirements of the MOT test.

The MOT Inspection and the Undertray: The Official Stance

The MOT (Ministry of Transport) test is a mandatory annual inspection of vehicles over three years old in the UK, designed to ensure they meet minimum road safety and environmental standards. The MOT Inspection Manual, a comprehensive guide for testers, outlines precisely what needs to be checked. When it comes to the underside of the vehicle, testers must inspect critical components such as:

• Suspension components (springs, shock absorbers, wishbones, bushes)
• Steering components (rack, tie rods, ball joints)
• Brake lines and hoses
• Chassis and structural integrity (corrosion, damage)
• Exhaust system (security, leaks)
• Driveshafts and gaiters

The crucial point here is that for a proper inspection, these components must be visible and accessible. The manual states that if a component cannot be inspected, it may result in an advisory or, in severe cases where a defect is suspected but not confirmed due to obstruction, a refusal to test or even a fail. This is where the undertray becomes a potential issue.

Why Do MOT Testers Complain About Undertrays?

The core of the issue lies in the conflict between the undertray’s protective purpose and the MOT’s requirement for thorough inspection. Here are the primary reasons testers voice their concerns:

1. Obscured View of Critical Components

This is by far the most significant complaint. Many undertrays are designed to cover large sections of the vehicle's underside, directly blocking the visual inspection of vital safety components. A tester cannot confidently pass a vehicle if they cannot see the condition of suspension bushes, brake lines, or chassis rails. The MOT test relies heavily on visual inspection, and an obscured view compromises the integrity of the assessment.

2. Time Constraints and Labour

An MOT test is a timed procedure, and the fee is set. Removing and refitting an undertray, especially if it’s secured by numerous bolts or unusual clips, adds significant time to the process. This extra labour is generally not accounted for in the standard test fee. Testers are often under pressure to complete tests efficiently, and time spent wrestling with an undertray can disrupt their schedule and profitability.

3. Risk and Liability

MOT testers carry a significant responsibility. If they pass a vehicle without being able to adequately inspect a component due to an undertray, and that component later fails, leading to an accident, the tester could face serious repercussions, including fines, licence suspension, or even legal action. This inherent liability drives testers to err on the side of caution. If they cannot see it, they cannot guarantee its condition, leading to an advisory.

4. Potential for Damage During Removal/Refitting

Undertrays, especially older or more brittle ones, can be fragile. Clips can break, and mounting points can strip during removal or refitting. If a tester damages the undertray or its fixings, they might be held responsible, leading to disputes with the vehicle owner. This risk also contributes to a reluctance to remove them unnecessarily.

5. Variation in Undertray Design

Not all undertrays are created equal. Some are simple, easily removable panels, while others are complex, multi-part systems integrated deeply into the vehicle's structure. Some have inspection hatches or strategically placed cut-outs, making inspection easier. Others offer no such concessions, making a full removal almost mandatory for a comprehensive check.

The Discretionary Element: Why Standards Differ

This brings us directly to your observation about differing standards between testers. While the MOT manual provides clear guidelines, there is an element of professional discretion and interpretation involved in every test.

One tester might have extensive experience with a particular make or model and know exactly where to look or how to manipulate the undertray to gain a sufficient view. They might be comfortable with a slightly less direct view, relying on their expertise to spot potential issues. Another tester, perhaps less familiar with that specific vehicle, or simply more risk-averse, might insist on a completely unobstructed view, leading to an advisory if the undertray prevents it.

The key is often the tester's confidence that they can make an accurate assessment. If they feel confident that they have seen enough of the critical components, even with the undertray in place, they may pass it without an advisory. If there is any doubt whatsoever, the advisory acts as a safeguard for both the tester and the future safety of the vehicle.

Comparative Approaches to Undertray Inspection

The scenario you described perfectly illustrates the varied approaches:

Understanding MOT Advisories vs. Fails

It's crucial to distinguish between an MOT advisory and a fail. An advisory note means that a component has been identified that "needs attention soon" or "cannot be fully inspected at this time." It is not a reason for the vehicle to fail the MOT. Your car passes the test and is legal to drive with an advisory.

In the case of undertrays, an advisory typically states something like "Undertray fitted obscuring some underside components" or "Engine undertray fitted – unable to fully inspect certain components." This informs you that while the car has passed, certain parts couldn't be thoroughly checked, and it's something to be aware of for future maintenance or inspections. It's a way for the tester to flag potential future issues or limitations of the current inspection without failing the vehicle.

Tips for Motorists: Navigating the Undertray Dilemma

While you can't control a tester's individual approach, there are steps you can take to potentially avoid undertray-related advisories:

1. Know Your Vehicle

Familiarise yourself with your car's undertray. How easily is it removed? Are there specific access panels? Some garages might charge extra for undertray removal if it's particularly difficult.

2. Consider Pre-MOT Removal (If Easy)

If your undertray is easy to remove (e.g., a few accessible bolts), you might consider removing it yourself before taking the car for its MOT. This ensures a completely unobstructed view for the tester and removes any potential for an advisory on that front. Remember to keep all fixings safe!

3. Communicate with the Test Centre

If you're concerned, have a brief chat with the test centre when you book or drop off your car. You could ask their policy on undertrays or if they recommend removing it beforehand. Clear communication can often prevent misunderstandings.

4. Regular Servicing

A well-maintained vehicle that undergoes regular servicing is less likely to have hidden defects. If your service history is robust, it might give the tester more confidence, even if parts are partially obscured.

5. Don't Panic About Advisories

If you do receive an advisory for an undertray, don't panic. It's not a fail. It simply highlights that a comprehensive inspection of certain parts was limited. Use it as a prompt to perhaps have a closer look yourself or mention it during your next service.

Frequently Asked Questions About Undertrays and MOTs

Let's address some common queries:

Is an undertray an MOT fail?

No, not directly. An undertray itself will not cause an MOT fail. However, if the undertray prevents the tester from being able to properly inspect a safety-critical component, it can lead to an advisory note. If a defect is suspected underneath but cannot be confirmed due to the undertray, it could potentially lead to a refusal to test or even a fail if the tester deems it a dangerous obstruction.

Should I remove my undertray before an MOT?

It depends. If your undertray is easily removable and you're comfortable doing it, then yes, it can be beneficial. It ensures the tester has a completely clear view and avoids any potential advisories. However, if it's difficult to remove, or you're unsure, it's often best to leave it to the professionals or discuss it with the test centre.

What if my undertray is damaged?

A damaged undertray itself is not usually an MOT fail unless it's hanging down dangerously or posing a risk of falling off. However, if the damage exposes vital components to potential harm, or if the undertray is missing entirely when it's supposed to be fitted (which is rare to be an issue), it could be noted. The primary concern is if the damage affects the secure fitting or if it's obstructing something.

Can I challenge an undertray advisory?

You can discuss any advisory with the tester. If you feel it's unwarranted because, for example, there are clear inspection points, you can politely point this out. However, ultimately, the tester's professional judgment prevails. Challenging an advisory is generally not worth the effort as it doesn't affect the pass status of your MOT.

Does having an undertray removed affect my car's performance or safety?

Removing an undertray can slightly increase aerodynamic drag, potentially leading to a minuscule decrease in fuel efficiency at higher speeds. It also removes a layer of protection from road debris for your engine and other components. For most daily driving, the impact on performance is negligible, but the protection aspect is worth considering long-term.

Conclusion: Navigating the Nuances of MOT Testing

The frustration born from differing MOT results, particularly concerning undertrays, is understandable. However, it's rarely a sign of incompetence. Instead, it typically stems from the inherent nature of the MOT test: a critical safety inspection that balances rigid guidelines with the professional judgment of the tester. The need for clear visual access to safety-critical components, coupled with time pressures and liability concerns, makes the undertray a challenging element for many.

By understanding the reasons behind these advisories and taking proactive steps like preparation and communication, you can help ensure a smoother MOT experience for your vehicle. Ultimately, the goal of every MOT is road safety, and while an undertray might occasionally complicate the process, it’s all part of ensuring your vehicle is fit for the road ahead.
