CBR125R: FI, Diagnostics & Performance Upgrades

The Honda CBR125R has long been a popular choice for riders in the UK, offering a fantastic blend of reliability, affordability, and a sporty riding experience. As technology advances, so too do the systems within our beloved motorcycles. One significant evolution has been the widespread adoption of Fuel Injection (FI), replacing the older carburettor systems. Understanding whether your CBR125R has FI, how to interpret its warning lights, and how to potentially upgrade its performance with cylinder kits are crucial aspects for any discerning owner.

Fuel Injection on the CBR125R: What You Need to Know

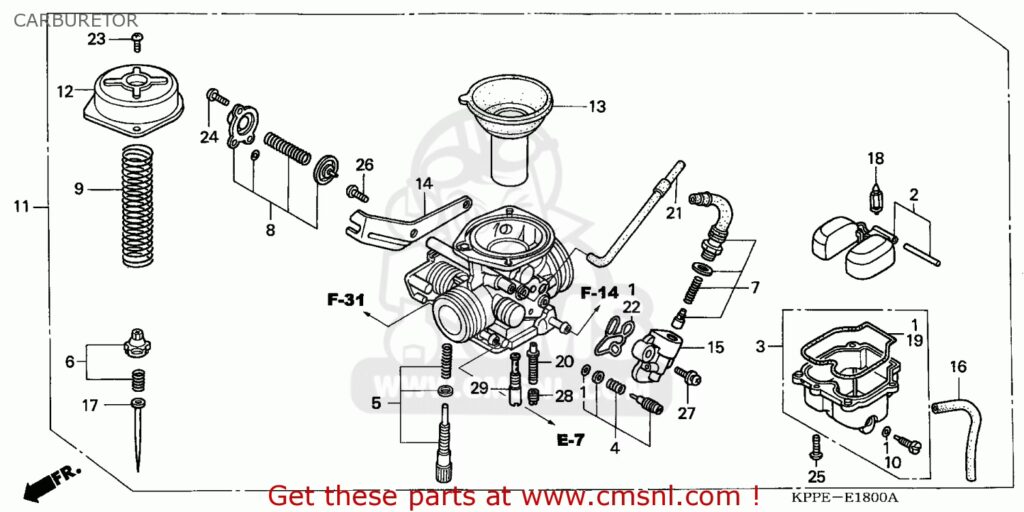

For many riders, the transition from carburettors to fuel injection marked a significant leap forward in engine management, offering improved fuel efficiency, smoother power delivery, and better cold-starting capabilities. When it comes to the Honda CBR125R, it's important to identify which models benefit from this modern technology.

Specifically, all Honda CBR125R models produced from 2007 until the most recent 2015 iteration are equipped with Fuel Injection. This means if you own a CBR125R from these model years, your bike features an electronically controlled fuel delivery system. This system relies on an Electronic Control Unit (ECU) to precisely manage fuel delivery and ignition timing, leading to a more optimised and efficient engine operation.

It's also worth noting the compatibility of certain components. For instance, the ECU module with product code P400210100026 is designed to be compatible with all CBR125R models that feature FI, covering the entire range from 2007 through to 2015. This knowledge can be invaluable when sourcing replacement parts or troubleshooting electronic issues, ensuring you select the correct components for your fuel-injected machine.

Decoding the FI Warning Light: Diagnosis and Fault Codes

One of the key advantages of a fuel injection system is its ability to self-diagnose potential issues and alert the rider. If the Fuel Injection (FI) warning light on your CBR125R's instrument cluster illuminates, it signals that the Engine Control Module (ECM) has detected a fault within the fuel injection or ignition system. Understanding how to interpret these warnings can save you time and money on diagnostics.

Symptoms and Initial Checks

If the FI warning light comes on and stays on while your motorcycle is running, it indicates an active fault. However, the system offers a more detailed diagnostic mode. If the engine can be started, place the motorcycle on its side stand and allow it to idle. While idling and running below 5000 RPM, the FI light will begin to flash. The pattern of these flashes is crucial, as it directly indicates the specific fault code identified by the ECM.

If your engine cannot be started, or if you simply want to check for any stored fault codes even if the FI light isn't currently illuminated, you can access the self-diagnostic mode manually. Begin by removing the seat to gain access to the fuel injection system service check wiring connector. This is typically a white, 3-pin (2-wire), single-sided connector found inside a rubber boot near the tail light.

Reading Fault Codes

To initiate the diagnostic sequence:

1. Ensure the ignition is switched OFF.
2. Bridge the outer terminals of the service check connector using an auxiliary piece of wire.
3. With the terminals connected, ensure the kill switch is in the 'run' position.
4. Turn the ignition ON and observe the FI warning light.

If there are no stored codes, the FI light will simply come on and stay on. If fault codes are stored, the FI light will flash. The system uses a combination of long and short flashes to communicate the codes:

• Long flashes (1.3 seconds): Indicate the first digit of a double-digit fault code (e.g., 10 or above).
• Short flashes (0.5 seconds): Indicate single-digit fault codes (1-9), or the second digit of a double-digit code.

For example, two long flashes followed by five short flashes signify fault code number twenty-five (25). If multiple fault codes are stored, there will be a brief pause between each code, and they will be displayed in ascending order, from the lowest to the highest. The ECM will then continuously cycle through all stored codes until the ignition is turned off.

FI Fault Code Table

Here's a breakdown of common fault codes, their symptoms, and possible causes:

Note 1: Code 10 is only applicable to 1999-2000 X and Y models of certain Honda motorcycles, though mentioned here for completeness if similar systems were cross-referenced.

Clearing Fault Codes

Once you've identified and corrected the underlying fault, it's essential to clear the code from the ECM's memory to reset the system. Follow these steps:

1. Ensure the ignition is switched OFF.
2. Bridge the terminals of the service check connector as you did to read the codes.
3. Turn the ignition ON.
4. Disconnect the bridging wire from the service check connector.
5. The FI light should illuminate for approximately five seconds. During this five-second window, you must reconnect the bridging wire.
6. Upon successful reconnection, the warning light should begin to flash, indicating that all fault codes have been erased.

If the light flashes twenty times instead, it means the memory has not been erased, and you'll need to repeat the procedure. After attempting to clear the codes, turn off the ignition, remove the bridging wire, and then recheck the operation of the warning light. Sometimes, repeating the erasing procedure more than once might be necessary. Finally, replace the seat.

Unleashing Power: Honda CBR125R Cylinder Kit Upgrades

For those seeking to extract more performance from their Honda CBR125R, cylinder kit upgrades, often referred to as 'big bore' kits, are a popular and effective modification. These kits increase the engine's displacement (cc), leading to greater power output. It's important to note that these kits are broadly compatible with Honda CBR125R models from 2004 to 2018, covering both carburettor and fuel-injected variants, though specific considerations apply.

Overview of Available Cylinder Kits

Several options exist, varying in displacement, piston size, and specific components. Here's a comparative look at some common kits:

Detailed Breakdown of Cylinder Kits

Each kit offers a unique set of components and performance characteristics, requiring careful consideration before installation.

Item Code 0101: 156 cc Ecotronic Cylinder Set

This kit provides a significant boost to 156 cc using a 65 mm piston. It's notable for its compatibility across a wide range of CBR125R years (2004-2018) and its claim of an approximate 30% power increase. A critical point for this kit is the requirement to modify the crankcase by 'uploading' the valve gap, which involves machining to ensure proper clearances. Despite the increased displacement, the cylinder house volume remains at 124 cc, which can be beneficial for certain technical inspections or regulations. The kit is comprehensive, including an OEM Honda SF 125 Cylinder, a 65 mm piston with a 13 mm pin, a full piston ring set, join pin and locks, a racing camshaft, and all necessary cylinder head and base gaskets for an oversize piston.

Item Code 0102: 171 cc Gepard Cylinder Set

Stepping up in displacement, this 171 cc kit features a 68 mm high-compression piston. It's designed to work with both standard cylinder heads and those upgraded with 30-34 mm valves, offering flexibility. The kit includes a genuine Honda CBR 125 Cylinder, the 68 mm high-compression piston (13 mm pin), piston rings, join pin and locks, and a racing camshaft, with optional angle choices (280-300-320 degrees) to fine-tune your engine's power band. Accompanying gaskets for both the cylinder head and base are also included.

Item Code 0103: 177 cc Gepard Cylinder Set

Similar to the 171 cc kit but with an even larger 69 mm 'plus compression' piston, this 177 cc option pushes performance further. Like the 0102, it's compatible with standard and 30-34 mm valve cylinder heads and offers optional racing camshaft angles. The contents are identical in type to the 0102 kit, but scaled for the larger displacement: genuine Honda CBR 125 Cylinder, 69 mm piston, rings, pin, locks, racing camshaft, and relevant gaskets.

Item Code 0104: 177 ccm Gepard SF+ Cylinder Set

This 177 ccm kit also uses a 69 mm piston but is described as a 'standard design' piston, suggesting a potentially different compression ratio or material compared to the 'plus compression' type. It includes a genuine Honda SF+ cylinder upgrade with a big barrel design for the CBR125. This kit also works with standard and 30-34 mm valve cylinder heads. It comes with the cylinder, 69 mm piston, rings, pin, locks, and gaskets. Notably, the racing camshaft and a high-compression/reduced-friction racing piston are offered as optional extras for this kit.

Item Code 0105: 182 ccm Gepard SF+ Cylinder Set

Pushing the boundaries further, this 182 ccm kit utilises a 70 mm piston and features a 'genuine Honda SF+ cylinder upgrade extreme barrel'. This extreme barrel requires welding the cylinder sides for proper fitment, indicating a more involved installation process. It works with standard and 30-34 mm valve cylinder heads. The kit includes the cylinder, 70 mm piston, rings, pin, locks, and gaskets, including a Sonic cylinder base gasket. Like the 0104, a racing camshaft and a high-compression/reduced-friction racing piston are available as optional add-ons.

Item Code 0106: 187 cc SF Cylinder Set

This is the largest displacement kit mentioned, reaching 187 cc with a 71 mm high-compression piston. A critical detail for this kit is that it only fits with the 0109 oversize valve 35-31 cylinder head, making it a more specific and potentially more costly upgrade. The kit includes a Honda SF Cylinder, 71 mm high-compression piston, rings, pin, locks, a racing camshaft with optional angles, a cylinder head gasket for oversize piston, and a 'Cylinder gasket "A" set'.

Optimising Your Engine: Cylinder Head Considerations

The cylinder head plays a pivotal role in an engine's performance, especially when undertaking big bore upgrades. Matching the cylinder head to your chosen cylinder kit and desired performance characteristics is essential. The information provided lists three specific cylinder head options:

• Item Code 0107: Cylinder Head Multi-functional (68-70 mm piston fit 30-34 mm valves)
  This is a used, renewed, and upgraded cylinder head. It's compatible in itself for carburettor engines. For fuel-injected bikes, it requires an OSS type exhaust to ensure compatibility. This head is designed to accommodate 68-70 mm pistons and 30-34 mm valves.
• Item Code 0108: Xtreme Head Multi-functional (68-70 mm piston fit 29-33 mm valves)
  Also a used, renewed, and upgraded cylinder head, this 'Xtreme' version features a small combustion chamber and is a modified version. It comes ready for longer valves with extra deep (10 mm valve lift) and cross opening 330 angle camshafts. Like the 0107, it's compatible for carburettor engines on its own, and for injection bikes with an OSS type exhaust.
• Item Code 0109: Big Valve Head Multi-functional (71 mm piston fit 35-31 mm valves)
  This is the largest modified version of the cylinder head, designed specifically for a 71 mm piston and 35-31 mm valves. It also features longer valves with extra deep (10 mm valve lift) and cross opening 320 angle camshaft readiness. Crucially, this is the head required for the 187 cc cylinder kit (Item Code 0106). It shares the same compatibility notes as the others: suitable for carburettor engines by itself, and for injection bikes with an OSS type exhaust.

The choice of cylinder head is paramount for maximising the efficiency and power of your big bore kit. The valve sizes and camshaft compatibility are particularly important for air intake and exhaust flow, directly influencing engine breathing and, consequently, power output.

Frequently Asked Questions About CBR125R Upgrades

Embarking on engine modifications can lead to many questions. Here are some common queries addressed based on the provided information:

Which CBR125R models have Fuel Injection (FI)?

All Honda CBR125R models manufactured from 2007 up to the 2015 model year are equipped with Fuel Injection. Earlier models typically used carburettors.

Can I fit a big bore cylinder kit to my older carburetted CBR125R?

Yes, the cylinder kits listed are compatible with Honda CBR125R models from 2004 to 2018. This means they can be fitted to both carburetted and fuel-injected bikes. However, you must pay close attention to the specific requirements of each kit, such as crankcase modifications or specific cylinder head pairings. For FI bikes, some cylinder heads might also require an OSS type exhaust.

Is the ECU module (P400210100026) compatible with all fuel-injected CBR125R models?

Yes, the ECU module with product code P400210100026 is stated to be compatible with all CBR125R models that have Fuel Injection, covering the years 2007 through to 2015.

What does it mean if the FI warning light comes on and stays on?

If the FI light illuminates and remains steady while the motorcycle is running, it indicates that the Engine Control Module (ECM) has detected a fault in the fuel injection or ignition system. To get a specific fault code, you should place the bike on its side stand and let it idle; the light will then flash a code.

How do I read the fault codes from the FI warning light?

You can read fault codes by bridging the outer terminals of the white 3-pin service check connector (usually near the tail light) with the ignition off, then turning the ignition on. The FI light will then flash a series of long and short flashes to indicate the stored fault codes. Long flashes represent the tens digit, and short flashes represent the units digit.

Do all cylinder kits require crankcase modification?

No, not all kits require crankcase modification. Specifically, the 156 cc Ecotronic Cylinder set (Item Code 0101) explicitly states the need to 'modify crankcase (upload valve gap)'. Other kits may or may not require this, so it's essential to check the instructions for the specific kit you are considering.

What is the benefit of a racing camshaft in these kits?

A racing camshaft is designed with different lobe profiles and timing compared to a standard camshaft. This alters valve lift and duration, optimising the engine's breathing for higher RPMs and increased power output. Optional angles (like 280-300-320 degrees) allow for tuning the power band to suit specific riding styles or race conditions.

Can I use any cylinder head with any big bore kit?

No, careful matching is required. For example, the 187 cc SF Cylinder set (Item Code 0106) explicitly states it only fits with the 0109 oversize valve 35-31 cylinder head. Other kits may offer more flexibility, working with standard or specific aftermarket heads. Always verify compatibility to ensure proper function and avoid damage.

What does 'high compression' or 'plus compression' piston mean?

These terms refer to pistons designed to increase the engine's compression ratio. A higher compression ratio can lead to more efficient combustion and increased power output. However, it may also require higher octane fuel and careful tuning to prevent knocking or pre-ignition.

Conclusion

Whether you're looking to troubleshoot an illuminated FI light or seeking to unleash more power from your Honda CBR125R, understanding the intricacies of its fuel injection system and available cylinder kit upgrades is invaluable. From deciphering complex fault codes to selecting the perfect big bore kit and complementary cylinder head, informed decisions are key to maintaining your bike's reliability and optimising its performance. Always ensure you have the correct parts for your specific model year and, if in doubt about complex installations like crankcase modifications, consult with a qualified mechanic. Happy riding!
