DIY Oil Change: Honda CB500F Engine Oil Drain

Regular engine oil changes are not merely a recommendation; they are the lifeblood of your Honda CB500F. Fresh oil lubricates vital engine components, dissipates heat, and cleans away harmful contaminants, ensuring your motorcycle performs optimally and enjoys a long, healthy life. While many riders opt for professional servicing, performing an oil drain yourself is a rewarding and straightforward task that can save you money and give you a deeper understanding of your machine. This guide will walk you through the entire process, from gathering your tools to proper disposal, ensuring you can confidently tackle this essential maintenance chore at home.

Before you begin, it's crucial to understand that working with engine fluids requires a degree of care and attention to safety. Hot oil can cause severe burns, and used oil is an environmental pollutant that must be disposed of responsibly. Always prioritise safety and ensure you have all the necessary equipment ready before you start.

Why Regular Oil Changes Are Crucial for Your CB500F

Your Honda CB500F's engine is a complex piece of engineering, with numerous moving parts operating at high speeds and temperatures. Engine oil plays several critical roles in its operation:

• Lubrication: It creates a thin film between moving parts, reducing friction and wear. Without proper lubrication, metal-on-metal contact would quickly lead to catastrophic engine damage.
• Cooling: Oil helps to transfer heat away from critical engine components, preventing overheating.
• Cleaning: As the oil circulates, it picks up dirt, sludge, and metallic particles, carrying them to the oil filter. Over time, the oil becomes saturated with these contaminants, reducing its effectiveness.
• Sealing: Oil helps to seal the gap between the piston rings and cylinder walls, maintaining compression and power output.
• Corrosion Protection: Additives in the oil help to prevent rust and corrosion on internal engine parts.

Over time, engine oil breaks down due to heat and contamination, losing its lubricating and protective properties. Old, degraded oil can lead to increased engine wear, reduced fuel efficiency, and ultimately, costly repairs. Regular oil changes, typically every 12,000 km or 12 months (whichever comes first) for the CB500F, are essential to maintain your bike's performance and reliability.

Essential Tools and Materials You'll Need

Having all your tools and materials ready before you start will make the process much smoother and prevent unnecessary delays. Here’s a comprehensive list:

• New Engine Oil: Refer to your Honda CB500F owner's manual for the correct oil specification. Honda typically recommends a JASO MA or MA2, API SG or higher 10W-30 or 10W-40 oil. The CB500F usually requires approximately 2.7 litres (2.9 US qt, 2.4 Imp qt) with a filter change.
• New Oil Filter: It is highly recommended to replace the oil filter every time you change the oil. A new filter ensures that the fresh oil remains clean.
• Oil Drain Pan: A container large enough to hold at least 3 litres of old engine oil.
• Spanner Set or Socket Set: You'll need the correct size for the drain bolt (often a 12mm or 17mm, but always double-check your manual) and the oil filter if it's a cartridge type requiring a specific tool.
• Torque Wrench: Absolutely essential for correctly tightening the drain bolt and oil filter. Overtightening can strip threads, while undertightening can lead to leaks.
• New Crush Washer: A new crush washer (usually aluminium or copper) for the drain bolt is critical to prevent leaks. These are designed to deform and create a tight seal once tightened.
• Oil Filter Wrench: A cap-style or strap-style wrench specifically designed for removing spin-on oil filters.
• Funnel: To neatly pour the new oil into the engine.
• Rags or Shop Towels: For cleaning up spills.
• Gloves: Nitrile or latex gloves protect your hands from hot oil and chemicals.
• Safety Glasses: To protect your eyes from splashes.
• Stand or Paddock Stand: To keep the motorcycle upright and stable.

Safety First: Important Precautions

Your safety is paramount. Follow these precautions diligently:

• Engine Temperature: It's best to drain the oil when the engine is warm, but not hot. A warm engine allows the oil to flow more easily, but a very hot engine can cause severe burns. Run the engine for 5-10 minutes, then let it sit for another 5-10 minutes before starting.
• Stability: Ensure your motorcycle is on a stable, level surface, ideally on a paddock stand or a sturdy centre stand.
• Ventilation: Work in a well-ventilated area.
• Personal Protective Equipment (PPE): Always wear gloves and safety glasses. Long sleeves and trousers are also advisable.
• Spills: Have rags and absorbent material ready for any spills. Oil is slippery and can create a hazard.

Step-by-Step Guide: Draining the Oil

Once you have everything prepared and safety precautions in place, you can begin the oil draining process.

1. Prepare the Motorcycle and Warm the Engine

Place your Honda CB500F on a paddock stand or centre stand on a flat, level surface. Ensure it is stable. Start the engine and let it run for about 5-10 minutes. This warms the oil, making it less viscous and allowing it to drain more completely, carrying more contaminants with it. Turn off the engine and let it sit for another 5-10 minutes to allow the hot oil to settle and cool slightly.

2. Locate the Oil Drain Bolt and Oil Filter

The oil drain bolt on the Honda CB500F is typically located on the underside of the engine, often towards the front or middle. It will be the lowest point of the oil pan. The spin-on oil filter is usually located on the lower right side of the engine (as you sit on the bike).

3. Position the Drain Pan

Place your oil drain pan directly beneath the oil drain bolt. Ensure it is centred and can accommodate the full volume of oil without overflowing. You might want to place some old newspapers or cardboard under the pan to catch any splashes.

4. Remove the Oil Drain Bolt

Using the correct size spanner or socket, carefully loosen the oil drain bolt. Be prepared for the oil to start flowing immediately once the bolt is loose. Once it's loose enough, you can usually unscrew it by hand. Be careful as the oil will be warm. Try to pull the bolt straight out to avoid splashing.

5. Allow the Oil to Drain Completely

Let the old oil drain completely into the pan. This can take several minutes. You might want to slightly tilt the bike from side to side (if safely supported) to help more oil drain out. While the oil is draining, inspect the drain bolt and remove the old crush washer. This washer is designed to deform and create a seal, so it must be replaced with a new one every time to prevent leaks.

6. Remove the Old Oil Filter

Once the oil flow has slowed to a drip, place the drain pan directly under the oil filter. Use your oil filter wrench to loosen the old filter. Be aware that more oil will drain out once the filter is loose. Unscrew the filter by hand and let the remaining oil drain. Once it's empty, remove the old filter and set it aside in the drain pan.

Installing the New Oil Filter and Refilling

1. Prepare the New Oil Filter

Before installing the new filter, apply a thin film of fresh engine oil to the rubber gasket of the new filter. This ensures a good seal and prevents the gasket from tearing during installation. Some mechanics also recommend pre-filling the new filter with a small amount of fresh oil, but this can be messy on a motorcycle and isn't strictly necessary as the oil pump will quickly fill it once the engine starts.

2. Install the New Oil Filter

Screw on the new oil filter by hand until the gasket makes contact with the engine. Then, tighten it an additional 1/4 to 1/2 turn, or as specified by the filter manufacturer or your Honda manual. Do not overtighten, as this can damage the filter or its housing. Refer to your manual for the specific torque wrench setting for the oil filter.

3. Reinstall the Oil Drain Bolt

Install the new crush washer onto the oil drain bolt. Screw the drain bolt back into the oil pan by hand to ensure you don't cross-thread it. Once hand-tight, use your torque wrench to tighten the drain bolt to the manufacturer's specified torque. For the Honda CB500F, this is typically around 30 Nm (22 lb-ft), but always verify with your owner's manual. This is a critical step to prevent leaks and stripped threads.

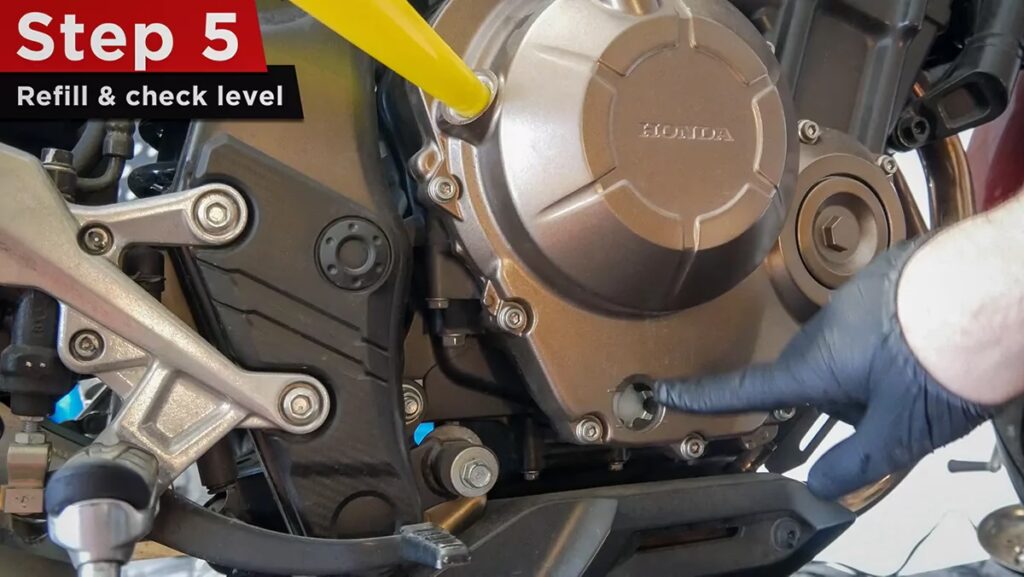

4. Refill with Fresh Engine Oil

Remove the oil filler cap, usually located on the right side of the engine. Place a clean funnel into the filler opening. Slowly pour the recommended amount of new engine oil into the engine. The Honda CB500F typically takes approximately 2.7 litres (2.9 US qt, 2.4 Imp qt) when changing the filter. Pour slowly to avoid air pockets and spills.

5. Check the Oil Level

Once you've added the initial amount of oil, replace the filler cap. Start the engine and let it idle for a minute or two to allow the new oil to circulate and fill the new filter. Turn off the engine and wait a few minutes (e.g., 2-3 minutes) for the oil to settle back into the sump. Place the bike on level ground and check the oil level using the sight glass (on the lower right side of the engine) or dipstick, depending on your model year. The oil level should be between the upper and lower marks. Add small amounts of oil as needed until the level is correct. Do not overfill.

Proper Disposal of Used Oil

This is a crucial final step. Used engine oil is a hazardous waste and must never be poured down drains or onto the ground. Most local council recycling centres or automotive parts stores offer facilities for disposing of used engine oil free of charge. Pour your old oil from the drain pan into a sealed, leak-proof container (the empty new oil bottles work perfectly) and take it to an approved disposal site. Dispose of the old oil filter and oil-soaked rags according to local regulations as well.

Common Questions About CB500F Oil Changes

Here are some frequently asked questions that might arise during your oil change process:

How often should I change the oil on my Honda CB500F?

Honda recommends changing the engine oil and filter every 12,000 km (7,500 miles) or 12 months, whichever comes first. However, if you ride in dusty conditions, frequently in stop-and-go traffic, or in extreme temperatures, more frequent changes (e.g., every 6,000 km or 6 months) might be beneficial.

What type of engine oil should I use for my CB500F?

Always refer to your owner's manual for the exact specifications. Generally, Honda recommends a JASO MA or MA2 motorcycle-specific oil with an API service classification of SG or higher. A common viscosity for the CB500F is 10W-30 or 10W-40, depending on ambient temperatures.

Can I reuse the crush washer?

No, it is highly recommended to use a new crush washer every time you change the oil. The crush washer is designed to deform and create a tight seal when tightened. Reusing an old, compressed washer significantly increases the risk of oil leaks from the drain bolt.

What happens if I overfill the engine oil?

Overfilling the engine oil can be as detrimental as underfilling. Too much oil can cause excessive pressure in the crankcase, leading to oil foaming (aeration), which reduces its lubricating properties. It can also cause seals to fail, leading to leaks, and potentially damage the catalytic converter if the oil is forced into the combustion chamber. If you've overfilled, you'll need to drain some oil out until the level is correct.

How do I know if my oil filter is properly tightened?

Most spin-on oil filters should be tightened by hand until the gasket makes contact, and then an additional 1/4 to 1/2 turn. Some filters have specific torque values printed on them, or you can find them in your motorcycle's service manual. Using an oil filter wrench for the final tightening is acceptable, but avoid excessive force as overtightening can damage the filter or its mounting threads.

Conclusion

Draining the oil and performing an oil change on your Honda CB500F is a fundamental maintenance task that every rider can learn. By following these detailed steps, you ensure your engine receives the clean, fresh lubrication it needs to operate efficiently and reliably. Not only will you extend the life of your motorcycle, but you'll also gain a valuable sense of accomplishment and a deeper connection with your machine. Remember to always consult your specific owner's manual for the most accurate and up-to-date specifications and torque settings for your model year. Happy riding, and keep that oil fresh!
