Rear Brake Caliper Retorquing Guide

Ensuring your vehicle's braking system is in top condition is paramount for safety and performance. A common maintenance task, particularly after replacing brake components like rotors and pads, is the retorquing of the brake caliper bolts. This process guarantees that the caliper is securely fastened, preventing potential issues such as uneven braking, noise, and even premature wear of brake parts. This guide will walk you through the essential steps and considerations for retorquing your rear brake caliper, drawing from practical experience and common automotive practices.

Understanding the Importance of Caliper Torque

When you've recently worked on your rear brakes, whether it was a routine pad and rotor replacement or a more involved repair, it's crucial to ensure all fasteners are tightened to the manufacturer's specified torque. Overtightening can strip threads or damage components, while undertightening can lead to loose parts, vibrations, and ultimately, a compromised braking system. The rear brake caliper bracket bolts, in particular, are critical as they hold the entire caliper assembly in place. Proper torque ensures the caliper can effectively clamp the brake pads onto the rotor, generating the necessary friction for stopping power.

When to Retorque Your Rear Brake Caliper

The most common scenario for needing to retorque your rear brake caliper is immediately after replacing or servicing the brake pads and/or rotors. Even if you've tightened them initially, it's good practice to re-check the torque after a short period of driving – perhaps after 50-100 miles. This is because components can settle slightly, and thermal expansion/contraction can affect fastener tightness. Additionally, if you're experiencing any of the following symptoms, checking your caliper torque might be a necessary step:

• Brake Judder or Vibration: While often caused by warped rotors, loose caliper bolts can also contribute to vibrations felt through the pedal or steering wheel.
• Brake Noise: Squealing, grinding, or clunking noises can sometimes be attributed to a caliper that isn't securely mounted.
• Uneven Pad Wear: If one brake pad wears out significantly faster than the other on the same axle, it could indicate an issue with caliper alignment or mounting.
• Reduced Braking Performance: A caliper that isn't properly torqued might not apply even pressure to the brake pads.

Tools and Materials You'll Need

Before you begin, gather the necessary tools and materials to ensure a smooth and efficient process. Having everything ready will save you time and prevent frustration:

• Torque Wrench: This is the most critical tool. You'll need one that can accurately measure torque in the range specified for your vehicle's caliper bolts (typically in foot-pounds or Newton-metres).
• Socket Set: You'll need the correct size socket to fit your caliper mounting bolts. These are often metric sizes.
• Wrench/Ratchet: To initially loosen or tighten the bolts before using the torque wrench.
• Wire Brush: For cleaning the bolt threads and the mounting surfaces.
• Threadlocker (e.g., Loctite Blue): Many manufacturers recommend a medium-strength threadlocker for caliper bolts to prevent them from loosening due to vibration.
• Brake Cleaner: To clean any grease or debris from the mounting area.
• Safety Glasses: Essential for eye protection.
• Gloves: To keep your hands clean and protected.
• Wheel Chocks: To prevent the vehicle from rolling.
• Vehicle Service Manual: Crucial for obtaining the exact torque specifications for your specific make and model.

Step-by-Step Guide to Retorquing Rear Brake Calipers

Follow these steps carefully to safely and effectively retorque your rear brake caliper bolts. Remember, safety is paramount, so always work on a level surface and ensure the vehicle is securely supported.

Step 1: Prepare the Vehicle

Park your vehicle on a flat, level surface. Engage the parking brake firmly and then place wheel chocks behind the wheels on the opposite end of the vehicle to prevent any accidental rolling. For extra safety, you can also place chocks in front of the front wheels if you are working on the rear brakes.

Step 2: Loosen the Lug Nuts (Slightly)

Before jacking up the vehicle, slightly loosen the lug nuts on the rear wheel you'll be working on. Just a quarter to half a turn is sufficient. This is easier to do while the wheel is still on the ground and provides resistance. Do not remove the lug nuts yet.

Step 3: Jack Up the Vehicle and Remove the Wheel

Locate the correct jacking point for your vehicle's rear end (refer to your owner's manual). Use a reliable jack to lift the rear of the vehicle until the wheel you're working on is off the ground. Place a jack stand securely under a strong point of the chassis or suspension to support the vehicle. Once the vehicle is safely supported, remove the lug nuts completely and take off the rear wheel. Set the wheel aside safely.

Step 4: Locate the Caliper Bolts

With the wheel removed, you'll be able to see the brake caliper assembly. The caliper is the component that straddles the brake rotor and houses the brake pads. It's typically held in place by a caliper bracket. The caliper itself might be attached to the bracket with slider pins, and the bracket is usually bolted directly to the steering knuckle. You are primarily concerned with the bolts that attach the caliper bracket to the knuckle, as these are the primary structural fasteners. Some calipers also have separate bolts that hold the caliper body to the bracket (often called "guide pins" or "slider pins"), and these may also require specific torque. Consult your service manual for clarity.

Step 5: Clean the Bolt Threads and Surfaces

Before applying any torque, it's essential to ensure the bolt threads and the mating surfaces on the knuckle are clean. Use a wire brush to remove any rust, dirt, or old threadlocker. Then, spray the area with brake cleaner and wipe it down with a clean cloth. Clean threads ensure accurate torque readings and proper seating of the bolts.

Step 6: Apply Threadlocker (If Recommended)

Consult your vehicle's service manual to see if threadlocker is recommended for the caliper bracket bolts. If it is, apply a small amount of medium-strength (typically blue) threadlocker to the clean threads of the bolts. Avoid getting threadlocker on the bolt heads or the bolt seating surface, as this can affect torque readings. If your caliper bolts have pre-applied threadlocker, you may need to clean off the old material and reapply.

Step 7: Tighten the Caliper Bolts to Specification

This is the crucial step. Use your socket and ratchet to initially snug up the caliper bracket bolts. Then, attach your torque wrench to the socket. Set your torque wrench to the manufacturer's specified torque value for the caliper bracket bolts. Slowly and steadily apply pressure to the torque wrench until it clicks or indicates that the target torque has been reached. Do not over-tighten. Repeat this for all caliper bracket bolts.

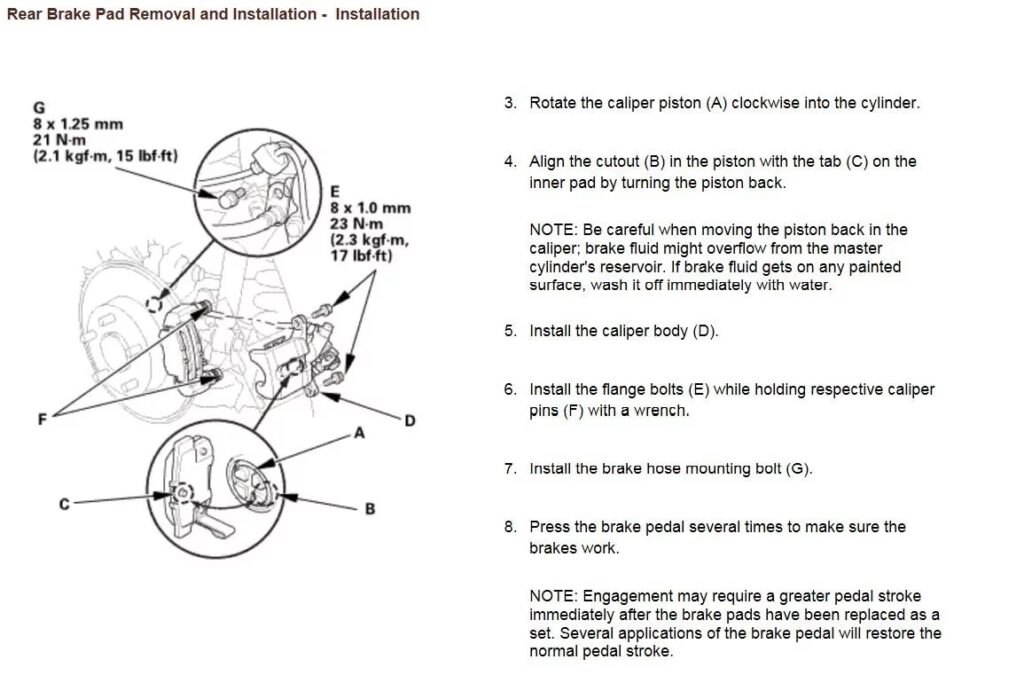

If your caliper has separate guide pins that hold the caliper body to the bracket, these often have lower torque specifications and may require a specific procedure, such as holding the slider pin with a wrench while tightening a bolt or nut. Again, your service manual is the definitive source for this information.

Step 8: Reinstall the Wheel

Once the caliper bolts are torqued correctly, you can reinstall the rear wheel. Place the wheel back onto the studs and thread the lug nuts back on by hand. Tighten the lug nuts in a star pattern to ensure the wheel is seated evenly. Once they are snug, lower the vehicle carefully off the jack stand.

Step 9: Torque the Lug Nuts

With the vehicle's weight back on the wheel, use your torque wrench to tighten the lug nuts to the manufacturer's specified torque. This is also typically done in a star pattern. The torque specification for lug nuts is usually different from caliper bolts, so ensure you use the correct value.

Step 10: Repeat for the Other Side

It's essential to perform the same retorquing procedure on the other rear wheel to ensure consistent braking performance and safety.

Step 11: Test Drive and Re-check

After completing the work on both sides, take your vehicle for a short test drive at a low speed in a safe area. Listen for any unusual noises and feel for any vibrations. It's good practice to re-check the torque on the caliper bolts and lug nuts after approximately 50-100 miles of driving. This allows components to settle, and you can ensure everything remains securely fastened.

Torque Specifications Table (General Example)

Please note that these are general examples and may not apply to your specific vehicle. Always consult your vehicle's service manual for accurate torque values.

Common Pitfalls and How to Avoid Them

Even with a guide, mistakes can happen. Be aware of these common pitfalls:

• Using the Wrong Torque Wrench: Ensure your torque wrench is calibrated and appropriate for the torque range needed. An inaccurate wrench can lead to under or overtightening.
• Incorrect Torque Values: Always refer to your vehicle's service manual. Generic values can be dangerous.
• Dirty Threads: As mentioned, dirt and debris on threads can lead to inaccurate torque readings and potentially damage the threads.
• Overtightening: This can strip threads, break bolts, or warp components. It's better to be slightly under than significantly over.
• Forgetting to Re-check: The 50-100 mile re-check is vital for long-term reliability.
• Not Using Threadlocker When Required: This can lead to bolts loosening over time due to vibration.

Frequently Asked Questions (FAQs)

Q1: Do I need to replace caliper bolts if I remove them?

It's generally recommended to replace caliper bracket bolts if they show any signs of damage, stretching, or if the manufacturer explicitly states they are single-use. If they are in good condition and threadlocker is applied, they can often be reused, but always check your service manual.

Q2: What happens if my rear brake caliper isn't torqued correctly?

Incorrect torque can lead to loose components, resulting in brake noise, vibration, uneven pad wear, and a reduction in braking effectiveness. In severe cases, a loose caliper could detach, leading to a catastrophic brake failure.

Q3: Can I just guess the torque?

Absolutely not. Guessing torque values is extremely dangerous and can compromise your braking system. Always use a calibrated torque wrench and the correct specifications.

Q4: How often should I check my brake caliper torque?

You should always check caliper bolt torque after replacing brake pads or rotors. It's also advisable to re-check them after a short period of driving (50-100 miles) and then as part of your regular brake inspections.

Q5: My steering wheel doesn't vibrate, but the brakes feel a bit off. Could it be the rear calipers?

Yes, it's possible. While steering wheel vibrations are often associated with front brakes, rear brake issues can manifest as pedal pulsing, noise, or a general feeling of the brakes not performing optimally. Checking the torque on the rear caliper bolts is a good diagnostic step.

By following these detailed steps and understanding the importance of proper torque, you can ensure your rear brake calipers are securely fastened, contributing to a safe and reliable braking system. Regular maintenance and attention to detail are key to your vehicle's longevity and your peace of mind on the road.
