Reviving Your Classic Honda ATC 110: A Rebuild Guide

The Honda ATC 110 holds a special place in the hearts of off-road enthusiasts across the UK and beyond. Introduced in 1979, this robust three-wheeler quickly became a staple on beaches, sand dunes, and various challenging terrains. For many, it represents a bygone era of raw, unfiltered adventure. However, like any classic machine, decades of use can take their toll, leading to wear and tear that necessitates a proper restoration. Breathing new life into an ATC 110 often starts with its core: the engine. A comprehensive top end rebuild is frequently the key to restoring its original power and reliability.

This article will delve into the specifics of what a Honda ATC 110 rebuild kit typically includes, where you can source the necessary components, and why these enduring machines continue to captivate riders. Whether you're a seasoned mechanic or a passionate owner looking to tackle a rewarding project, understanding the intricacies of an ATC 110 rebuild is crucial for a successful outcome.

The Enduring Legacy of the Honda ATC110

Before diving into the mechanics, it's worth appreciating the rich history of the Honda ATC 110. Honda had pioneered the All-Terrain Cycle (ATC) genre with the release of the US90 in 1970. This initial model gained unexpected fame through its appearance in the 1971 James Bond film, 'Diamonds Are Forever', cementing the image of the three-wheeler in popular culture. Building on this success, Honda aimed to offer something more powerful and versatile, leading to the introduction of the ATC 110 in 1979.

The ATC 110 was, at its launch, the most potent three-wheeler Honda had ever produced. It was a significant step up from the earlier 90cc and 70cc models, featuring a more robust engine and a larger, sturdier frame. These machines became a common sight wherever off-road riding was popular, sparking an 'arms race' among other motorcycle manufacturers to produce their own versions. However, the unique single front wheel design, coupled with a lack of formal rider training, led to a reputation for injuries, particularly broken collarbones. This ultimately contributed to a shift in the market towards the more stable four-wheeled 'quad bikes' by the late 1980s, marking the end of the three-wheeler era for Honda in 1987. Despite its controversial past, the ATC 110 remains a fascinating piece of motorcycling history, celebrated for its ruggedness and the pure joy it delivers when ridden responsibly.

Understanding the ATC110 Engine: A Powerhouse of Its Time

At the heart of the Honda ATC 110 lies a remarkably simple yet effective engine, designed for durability and ease of maintenance in demanding off-road conditions. The ATC 110 is powered by a 105cc, four-stroke, air-cooled, horizontal OHV (Overhead Valve) single-cylinder engine. This configuration was chosen for its reliability and its ability to withstand the rigours of varied terrains without overheating, thanks to its efficient air-cooling system.

Power from this robust little engine is channelled to the rear wheels via a four-speed dual-range auto-clutch transmission. This auto-clutch system made the ATC 110 particularly user-friendly, allowing riders to focus on steering and throttle control without the added complexity of a manual clutch lever. The dual-range capability provided versatility, offering a lower gear set for climbing steep inclines or tackling difficult terrain and a higher range for faster, flatter sections. This combination of a reliable engine and a forgiving transmission made the ATC 110 an accessible and enjoyable machine for many riders, cementing its status as a true off-road icon.

The Essential Top End Rebuild Kit: What's Included?

When it comes to restoring the performance of your Honda ATC 110, a top end rebuild kit is often the first and most critical component you'll need. The 'top end' of an engine refers to the cylinder, piston, and cylinder head assembly, which are the primary components involved in the combustion process. Over years of operation, these parts inevitably wear down, leading to reduced compression, oil consumption, and a noticeable drop in power. A rebuild kit provides the necessary new components to restore your engine's internal integrity and efficiency.

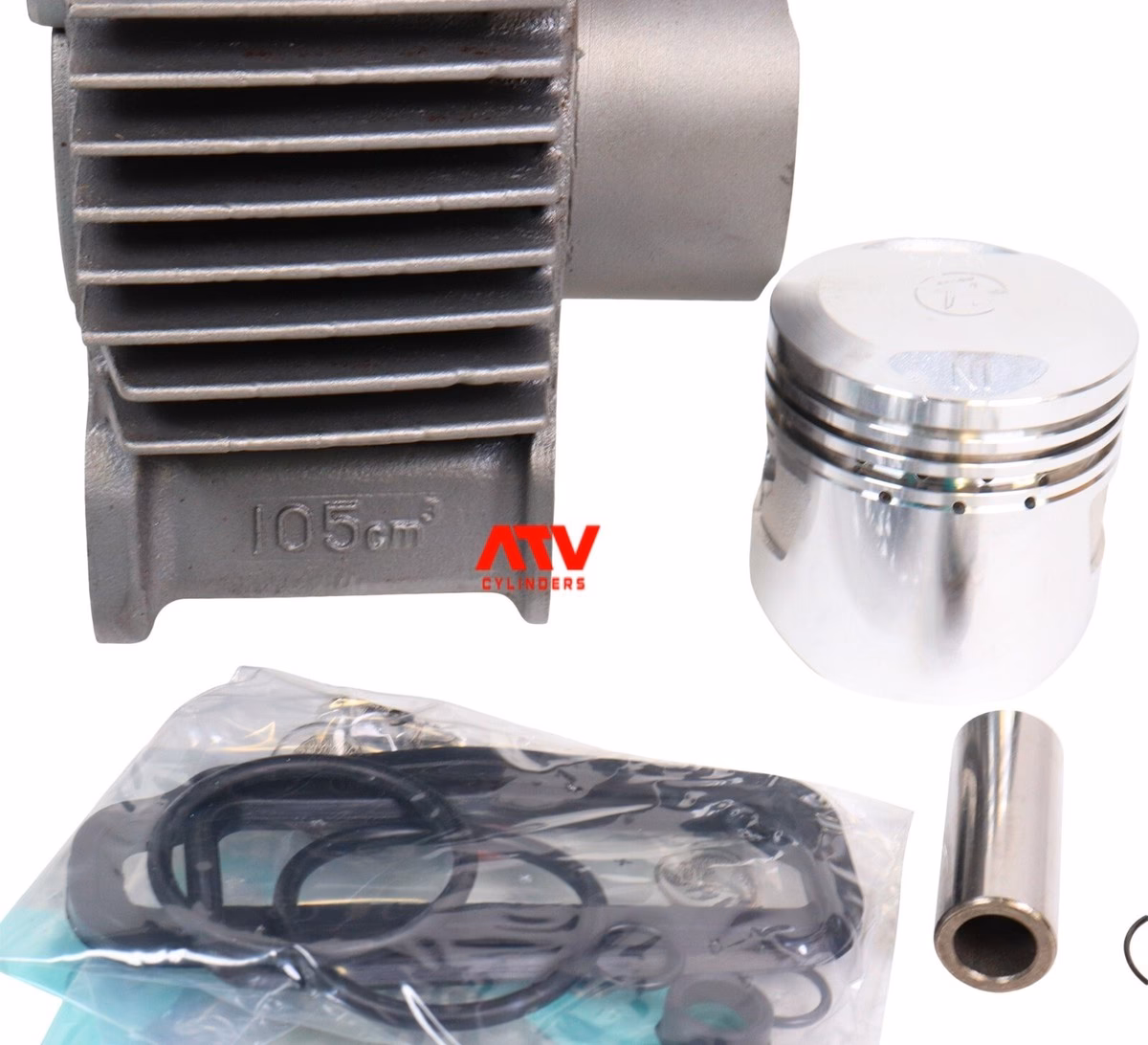

A comprehensive top end rebuild kit for a Honda ATC 110, particularly for models produced between 1981 and 1985, typically includes several key elements, designed to be a ready-to-install solution:

• New Pro-X Piston Kit: This is the core of the rebuild. A high-quality piston kit, such as those from Pro-X, usually comes complete with the new piston itself, a full set of piston rings (compression rings and oil control rings), circlips to secure the wrist pin, and the wrist pin (or gudgeon pin) itself. The piston and rings are critical for maintaining proper compression and preventing oil from entering the combustion chamber.
• Factory Honda OEM Cylinder with New Bore: This is a significant inclusion. Rather than simply providing an oversized piston for your existing cylinder, many kits supply a brand-new Honda OEM cylinder that has already been precision-bored to the correct size for the new piston. This eliminates the need for you to take your cylinder to a machine shop for boring, saving time and ensuring a perfect fit right out of the box. The new bore ensures optimal piston-to-cylinder wall clearance, which is vital for compression and long engine life.
• Complete Top End Gasket Set: No rebuild is complete without fresh gaskets. This set will typically include all the necessary gaskets for the top end assembly, such as the cylinder base gasket, cylinder head gasket, valve cover gasket, and possibly exhaust manifold gaskets. These are crucial for creating a perfect seal between components, preventing oil leaks and maintaining proper compression.

The beauty of such a kit lies in its completeness. It provides all the major wear items for the top end in one package, ensuring compatibility and simplifying the ordering process. This 'ready to install' nature means that, for many enthusiasts, it's a straightforward path to getting their classic ATC 110 back to peak performance.

Sourcing Genuine and Quality Parts for Your ATC110

Once you've identified the need for a rebuild, the next crucial step is sourcing the right parts. Given the age of the Honda ATC 110, finding components can sometimes be a challenge, but it's far from impossible. The key is to seek out reputable suppliers who specialise in vintage ATV and motorcycle parts.

Where to Look:

• Specialist Online Retailers: Websites dedicated to powersports parts are an excellent starting point. Many of these platforms stock an extensive inventory, including specific components for classic models like the ATC 110. They often expand their offerings daily, so persistence pays off.
• Honda Dealerships (for specific OEM parts): While some parts may be discontinued, it's always worth checking with a Honda dealership. They might still have some original equipment manufacturer (OEM) parts in stock or be able to order them.
• Vintage ATV Forums and Communities: The online community for classic Honda ATCs is vibrant. Forums, Facebook groups, and dedicated enthusiast websites are not only great for advice but also for finding parts through classifieds or members who hoard spares.
• Auction Sites and Classifieds: Platforms like eBay or local classifieds can sometimes yield hidden gems, including new old stock (NOS) parts or good used components. Always exercise caution and verify the seller's reputation when buying from these sources.

Importance of Quality:

When rebuilding a classic machine, the temptation might be to opt for the cheapest parts available. However, for critical engine components, quality is paramount. Investing in a reputable brand's piston kit (like Pro-X, as mentioned in the kit description) and ensuring the cylinder is of high quality, ideally OEM or a known aftermarket equivalent, will save you headaches in the long run. Substandard parts can lead to premature wear, poor performance, and even catastrophic engine failure. Always prioritise parts that promise durability and a precise fit.

Beyond the Top End: Other Common ATC110 Maintenance

While the top end rebuild addresses the core of your engine's performance, a complete restoration or ongoing maintenance of your ATC 110 involves looking at other key areas. These machines were built to be rugged, but age and use affect more than just the engine.

• Fuel System: The carburettor is vital. Over time, fuel residue can clog jets and passages. A thorough cleaning or a complete rebuild kit for the carburettor is often necessary to ensure smooth running and proper fuel delivery. Check fuel lines for cracks and replace them if needed.
• Ignition System: Spark plug, ignition coil, and CDI unit (if applicable) should be inspected. A fresh spark plug is a simple and effective maintenance step. Issues with starting or inconsistent running can often be traced back to a faulty ignition component.
• Brakes: Safety first! The ATC 110 typically features drum brakes. Inspect the brake shoes for wear and ensure the cables are not seized or frayed. Lubricating cables and adjusting the brakes will ensure effective stopping power.
• Tyres: The iconic balloon tyres are crucial for the ATC's stability and traction. Check for cracks, punctures, and overall wear. Replacing old, perished tyres with new ones will dramatically improve ride quality and safety.
• Chains and Sprockets: The drive chain and sprockets endure significant stress. Inspect them for wear, stretching, or damage. A worn chain can skip or even break, leading to a loss of power. Keep the chain well-lubricated.
• Wiring Harness: Given the age of these machines, the wiring harness can degrade. Wires can become brittle, insulation can crack, and connections can corrode. While not always a direct performance issue, a failing harness can lead to electrical gremlins, intermittent power, or even fire hazards. If your ATC 110 exhibits erratic electrical behaviour or if the harness looks visibly deteriorated, replacing it might be a wise investment for reliability and safety.

Regular inspection and proactive maintenance of these components will ensure your Honda ATC 110 remains a reliable and enjoyable machine for years to come. It’s about more than just getting it running; it’s about keeping it running safely and efficiently.

The Collectible Nature of the ATC110

In recent years, the Honda ATC 110, along with other vintage Honda trail bikes from the 70s and 80s, has seen a significant surge in value and collectibility. This isn't just a fleeting trend; several factors contribute to their enduring appeal.

• Honda's Reputation for Durability: Honda has always been renowned for building over-engineered, robust machines, and the ATC 110 is no exception. Many of these three-wheelers, even after decades of neglect in barns or sheds, can still be coaxed back to life, a testament to their inherent build quality.
• Unique Design and Nostalgia: The combination of three wheels and huge, low-pressure balloon tyres is distinctive and instantly recognisable. For many, the ATC 110 evokes strong feelings of nostalgia, reminding them of childhood adventures or a simpler time. This emotional connection drives much of the collector market.
• Rarity of Survivors: Despite hundreds of thousands being produced, relatively few ATC 110s have survived in original, unrestored condition. Many were ridden hard, modified, or simply scrapped once their perceived danger led to a decline in popularity. Original survivors are now highly sought after by collectors who appreciate their historical significance.
• The 'Fun Factor': Despite their controversial safety history, when ridden responsibly and with proper training, ATC 110s are undeniably a "hoot and a half." Their unique handling characteristics and go-anywhere capability offer a riding experience unlike modern quad bikes.

While a 'barn find' ATC 110 might fetch around £1,500 to £2,000 in the current market, fully restored examples or those in excellent original condition can command significantly higher prices. This makes restoring an ATC 110 not just a labour of love, but potentially a sound investment too.

Comparing the Icons: US90 vs. ATC110

To fully appreciate the ATC110, it's useful to see how it evolved from its predecessor.

Frequently Asked Questions About the Honda ATC110

What engine does a Honda ATC110 have?

The Honda ATC110 is powered by a 105cc, four-stroke, air-cooled, horizontal OHV (Overhead Valve) single-cylinder engine. This robust and relatively simple engine design contributes to its reliability and ease of maintenance, making it well-suited for its original purpose as an off-road utility and recreational vehicle. Power is delivered through a four-speed dual-range auto-clutch transmission, offering versatility for various terrains.

What is included in a Honda ATC110 rebuild kit?

A comprehensive top end rebuild kit for a Honda ATC110 typically includes a new piston kit (complete with piston, piston rings, circlips, and wrist pin), a new or re-bored OEM cylinder designed to match the new piston, and a complete top end gasket set. These kits are designed to replace the primary wear components in the engine's combustion chamber, restoring compression, power, and efficiency. They often come as 'ready to install' packages, simplifying the rebuild process for enthusiasts.

Are Honda ATC110s dangerous?

The Honda ATC110, and three-wheelers in general, developed a reputation for being dangerous, primarily due to their unique handling characteristics (single front wheel) and the widespread lack of proper rider training. Rollovers were common, especially when climbing steep grades or if riders failed to properly shift their weight to counterbalance the machine. While they can be challenging to ride for inexperienced individuals, in the hands of a skilled and responsible rider who understands their limitations and operates them safely, they can be a highly enjoyable and capable off-road machine. The key is proper training, protective gear, and sensible riding practices.

How much does a Honda ATC110 cost today?

The cost of a Honda ATC110 today varies significantly depending on its condition, originality, and location. Values for these classic Honda trail bikes have been steadily climbing. A 'barn find' or project-status ATC110 that requires significant work might be found for around £1,500 to £2,000. However, well-maintained, running examples, or fully restored machines in excellent original condition, can easily command prices upwards of £3,000 to £5,000, and sometimes even more, especially for highly desirable models or those with historical significance.

Where can I find parts for my ATC110?

Finding parts for a classic Honda ATC110 requires a bit of searching, but it's certainly possible. Your best bet is to look at specialist online retailers who focus on powersports and vintage ATV parts. Many of these sites maintain extensive inventories and some even expand their stock daily. It's also worth checking with Honda dealerships for any remaining original equipment manufacturer (OEM) parts, though these are becoming scarcer. Additionally, online auction sites, classifieds, and dedicated Honda ATC enthusiast forums and social media groups are excellent resources for finding both new and used components, as well as connecting with other owners who might have spare parts.

Conclusion

The Honda ATC 110 is more than just a vintage off-road vehicle; it's a testament to a unique era in powersports history. Its robust design and enduring appeal make it a fantastic machine for restoration. Undertaking a top end rebuild, armed with a quality kit and a clear understanding of the process, is a rewarding endeavour that brings these machines back to life. Whether for nostalgic rides or as a cherished collectible, a well-maintained ATC 110 promises many more years of thrilling adventures on the trails. By sourcing the right parts and committing to comprehensive maintenance, you're not just fixing an engine; you're preserving a piece of motoring heritage.
