A leaking fuel pump is a common yet potentially serious issue that can affect any vehicle. Not only can it lead to a significant drop in fuel pressure, causing performance problems, but the highly flammable nature of petrol (gasoline) or diesel means a leak can also pose a considerable fire risk. Understanding the potential causes of a fuel pump leak is the first step towards diagnosing and rectifying the problem. This article will delve into the common culprits behind fuel pump leaks, how to identify them, and what steps you can take to address them.
What is a Fuel Pump and Why Does it Leak?
The fuel pump is an essential component of your vehicle's fuel system. Its primary job is to draw fuel from the fuel tank and deliver it to the engine's fuel injectors at the correct pressure. Modern vehicles often employ electric fuel pumps, typically located inside the fuel tank, although some older or specialised vehicles might have mechanical pumps driven by the engine.
Leaks can occur in various parts of the fuel pump assembly or its associated lines. These leaks can manifest in several ways, from a noticeable drip under the vehicle to a more insidious seepage that might not be immediately apparent but can still lead to fuel pressure loss and safety hazards. The causes are often related to the wear and tear of components, vibration, or damage from external factors.
Common Causes of Fuel Pump Leaks
Several factors can contribute to a fuel pump leaking. Identifying the specific cause is crucial for an effective repair. Here are some of the most frequent reasons:
1. Worn or Damaged Seals and Gaskets
Fuel pumps, like many automotive components, rely on seals and gaskets to prevent fuel from escaping. Over time, these rubber or synthetic components can degrade due to exposure to fuel, heat, and age. This degradation can lead to cracking, hardening, or shrinking, creating gaps through which fuel can leak. Common areas for seal failure include:
- O-rings: These are used at various connection points, such as where the fuel pump assembly meets the fuel tank or where fuel lines connect to the pump.
- Gaskets: The seal between the fuel pump housing and its mounting points can also fail.
- Diaphragms (in mechanical pumps): If your vehicle has a mechanical fuel pump, the diaphragm within it can develop tears or cracks.
A leak originating from a seal or gasket is often a slow seep initially, but it can worsen over time. You might notice a faint smell of fuel around the vehicle, particularly when it's parked.
2. Cracks in the Fuel Pump Housing
While less common, the plastic or metal housing of the fuel pump itself can develop cracks. This can happen due to:
- Manufacturing defects: Though rare, a faulty housing can crack under normal operating pressures.
- Impact damage: If the underside of the vehicle has been struck by road debris, it could potentially damage the fuel pump housing, especially if it's externally mounted.
- Thermal expansion and contraction: Extreme temperature fluctuations can stress the housing material over many years.
A cracked housing will typically result in a more significant and noticeable leak.
3. Damaged or Loose Fuel Lines and Connections
The fuel pump doesn't operate in isolation. It's connected to the fuel tank and the rest of the fuel system via various fuel lines and fittings. Leaks can occur at these connection points:
- Loose Clamps: The clamps securing the fuel lines to the pump or other fittings can loosen over time due to vibration.
- Corroded Fittings: Metal fittings can corrode, creating small holes or weakening the connection.
- Damaged Fuel Lines: Rubber or plastic fuel lines can become brittle, cracked, or punctured from road debris or age.
A common symptom here is a leak specifically around the points where fuel lines connect to the pump assembly.
4. Fuel Pump Pressure Regulator Issues
Some fuel pump systems incorporate a pressure regulator, often as part of the pump assembly or a separate solenoid. If this regulator malfunctions or its seals fail, it can lead to fuel escaping the system. For instance, a faulty fuel pump pressure regulator solenoid might not maintain the correct pressure, or it could leak internally or externally. As one user experienced, sometimes the issue isn't the solenoid itself but a component within the fuel pump assembly that affects pressure, like a snapped propshaft within a CP3 unit, which can cause performance issues that mimic leaks or pressure loss.
5. Clogged Fuel Filter
While not a direct cause of a fuel pump leak, a severely clogged fuel filter can put excessive strain on the fuel pump. This increased pressure can, in some cases, exacerbate existing weaknesses in seals or the pump housing, leading to leaks. As one anecdote suggests, neglecting to change the fuel filter can lead to various fuel system problems, and replacing it can sometimes resolve issues that might otherwise be misinterpreted as leaks or pump failures. If fuel isn't flowing freely through the filter, the pump has to work harder.

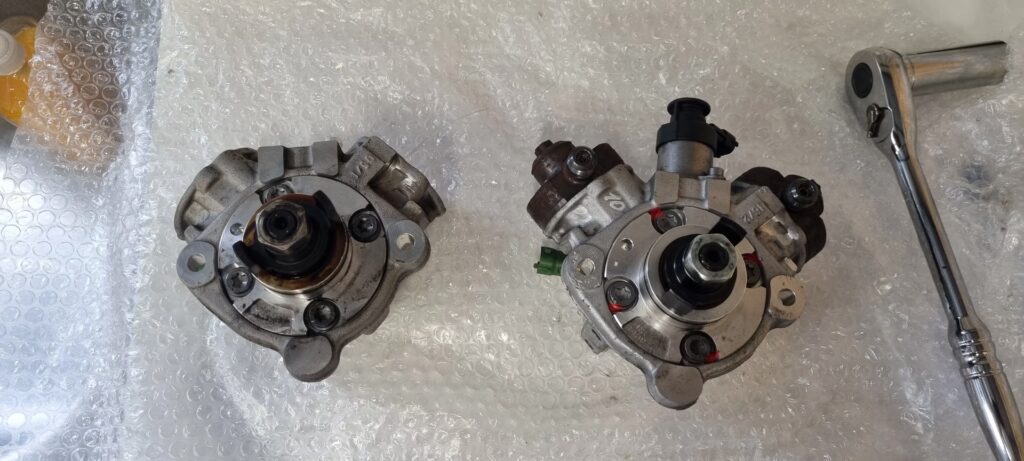

6. Faulty High-Pressure Fuel Pump (HPFP) Relay or Internal Pump Failure
In diesel engines, particularly those with common rail systems, the High-Pressure Fuel Pump (HPFP) is critical. Issues with the HPFP relay or the pump itself can lead to a lack of fuel delivery. While not always a 'leak' in the traditional sense, internal pump failure or issues with components like the camshaft driving the pump can cause symptoms like no fuel from the pump outlet, even when cranking. One user reported a scenario where a replacement HPFP failed immediately, and they suspected air in the system or an issue with the pump's internal components, highlighting that a lack of output isn't always an external leak.
How to Diagnose a Fuel Pump Leak
Diagnosing a fuel pump leak requires a systematic approach. Safety is paramount when dealing with fuel systems.
1. Visual Inspection
Park your vehicle on a level surface and allow the engine to cool completely. Put on safety glasses and gloves. Using a good flashlight, inspect the area around the fuel tank, fuel lines, and where the fuel lines connect to the engine. Look for any signs of wetness, dripping fuel, or fuel stains. Pay close attention to the fuel pump module if it's accessible from underneath the vehicle or if you need to remove a cover to access the top of the fuel tank.
2. Fuel Odour
A strong smell of fuel, especially when the vehicle is stationary or shortly after it's turned off, is a significant indicator of a leak somewhere in the system. Try to pinpoint the source of the odour.
3. Check Engine Light and Performance Issues
A leaking fuel pump can lead to low fuel pressure, which can trigger a Check Engine Light (CEL). The diagnostic trouble codes (DTCs) might indicate issues with fuel pressure (e.g., P1065, P1086 related to fuel pressure). Performance issues like rough idling, stalling, hesitation, or difficulty starting can also be symptoms of a fuel leak causing pressure loss.
4. Fuel Pressure Test
A mechanic can perform a fuel pressure test using a specialised gauge. This involves connecting the gauge to a test port in the fuel rail or a suitable connection point in the fuel line. The gauge will display the current fuel pressure. If the pressure is significantly lower than the manufacturer's specification, it indicates a problem, which could be a leak, a faulty pump, or a clogged filter.
5. Smoke Test
A smoke test involves introducing a small amount of harmless smoke into the fuel system (with the engine off). If there are any leaks, the smoke will escape through the breach, making it visible. Mechanics often perform this test on the fuel tank and lines to find evaporative emission (EVAP) system leaks, but it can also reveal fuel leaks.
Common Leak Locations and Symptoms
Here's a quick reference for common leak points and their typical symptoms:
| Leak Location | Likely Symptoms |
|---|---|
| Fuel Pump Seals/Gaskets (e.g., O-rings) | Fuel smell near the tank, possible wetness around the top of the tank or under the vehicle. Gradual pressure loss. |
| Cracked Fuel Pump Housing | More significant fuel leak, often noticeable under the vehicle. Potential for stalling due to rapid pressure loss. |
| Fuel Lines/Fittings | Visible fuel dripping from lines or connections, strong fuel smell along the length of the fuel line. |
| Fuel Pump Pressure Regulator | May cause both pressure loss and potential external fuel seepage. |
Can You Drive with a Leaking Fuel Pump?
It is strongly advised not to drive a vehicle with a leaking fuel pump. The reasons are twofold:
- Fire Hazard: Fuel is highly flammable. A leak, especially one that allows fuel to drip onto hot engine components or the exhaust system, creates a significant risk of fire.
- Performance Issues: A fuel leak leads to a loss of fuel pressure. This can cause poor engine performance, stalling, and the inability to start the engine, potentially leaving you stranded.
If you suspect a fuel pump leak, the safest course of action is to stop driving the vehicle immediately and have it towed to a qualified mechanic.
How to Fix a Fuel Pump Leak
The repair method depends entirely on the cause of the leak:
1. Replacing Seals and Gaskets
If the leak is due to worn O-rings or gaskets, these components can often be replaced individually. This typically involves removing the fuel pump module from the tank. It's a moderately involved job that requires careful handling of fuel and ensuring the new seals are correctly seated.
2. Replacing the Fuel Pump Assembly
If the fuel pump housing is cracked, or if multiple seals have failed, it's often more cost-effective and reliable to replace the entire fuel pump assembly. This is a common repair for leaking electric fuel pumps. In some cases, the fuel level sender unit is integrated with the pump assembly, so this would be replaced simultaneously.
3. Replacing Fuel Lines or Fittings
If a fuel line is damaged or a fitting is corroded, the affected section of the line or the fitting itself will need to be replaced. Specialised tools are sometimes required for specific types of fuel line connections (e.g., quick-connect fittings).
4. Repairing or Replacing the Pressure Regulator
If the pressure regulator is the source of the leak, it may be replaceable as a separate component, depending on the fuel system design. However, in many modern systems, it's integrated into the fuel pump module, meaning the entire module would need replacement.
5. Addressing Clogged Filters and Other Issues
If a clogged fuel filter contributed to the problem, replacing the filter is a straightforward maintenance task that should be done. If the issue was internal to the HPFP, that component would require diagnosis and potential replacement or repair, which is a more complex job, often requiring specialised knowledge, particularly with Bosch CP3 units as mentioned in user experiences.
Frequently Asked Questions
Q1: How do I know if my injector is leaking?
A1: Injector leaks typically manifest as fuel seeping around the injector base on the engine, a strong fuel smell directly from the engine bay, or rough running and misfires. You might see visible fuel pooling around the injectors. A faulty HPFP relay, airlock in the pump, broken camshaft, or a recently failed replacement pump can cause similar starting/running issues but aren't injector leaks themselves.
Q2: Where is the fuel pump pressure regulator solenoid located?
A2: The location varies by vehicle. In many modern cars with in-tank fuel pumps, the pressure regulator is integrated into the fuel pump module assembly within the fuel tank. In some systems, it might be a separate component located along the fuel rail or on the fuel filter housing. If you suspect a problem, consulting your vehicle's service manual is the best way to locate it.

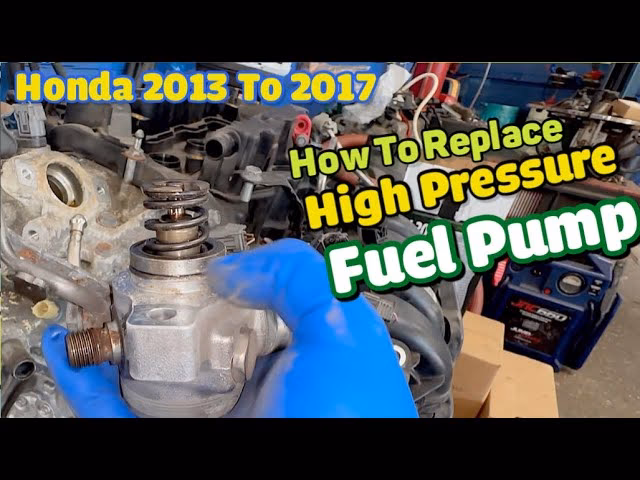

Q3: What causes a fuel lifter pump to leak?
A3: A "fuel lifter pump" might refer to an electric in-tank pump or a low-pressure lift pump in some diesel systems. Causes for leaks are similar to general fuel pump leaks: worn seals and gaskets (especially O-rings at connections), cracks in the pump housing, damage or loose fittings on associated fuel lines, or a malfunctioning integrated pressure regulator.
Q4: My car starts fine but stalls soon after. Could this be a fuel pump leak?
A4: Yes, it could be. A leak causes a loss of fuel pressure. The engine might start using residual pressure, but as soon as it needs consistent fuel delivery, the pressure drop can cause it to stall. Other issues like a faulty fuel pump relay, air in the system, or a failing fuel pressure sensor can also cause similar symptoms. A fuel pressure test is essential for diagnosis.
Conclusion
A leaking fuel pump is a critical issue that demands prompt attention. Ignoring the problem can lead to severe performance issues and a dangerous fire hazard. By understanding the common causes, knowing how to perform a basic inspection, and seeking professional diagnosis when necessary, you can ensure your vehicle's fuel system remains safe and functional. Regular maintenance, including timely replacement of the fuel filter, can also help prevent excessive strain on the fuel pump and contribute to its longevity.
