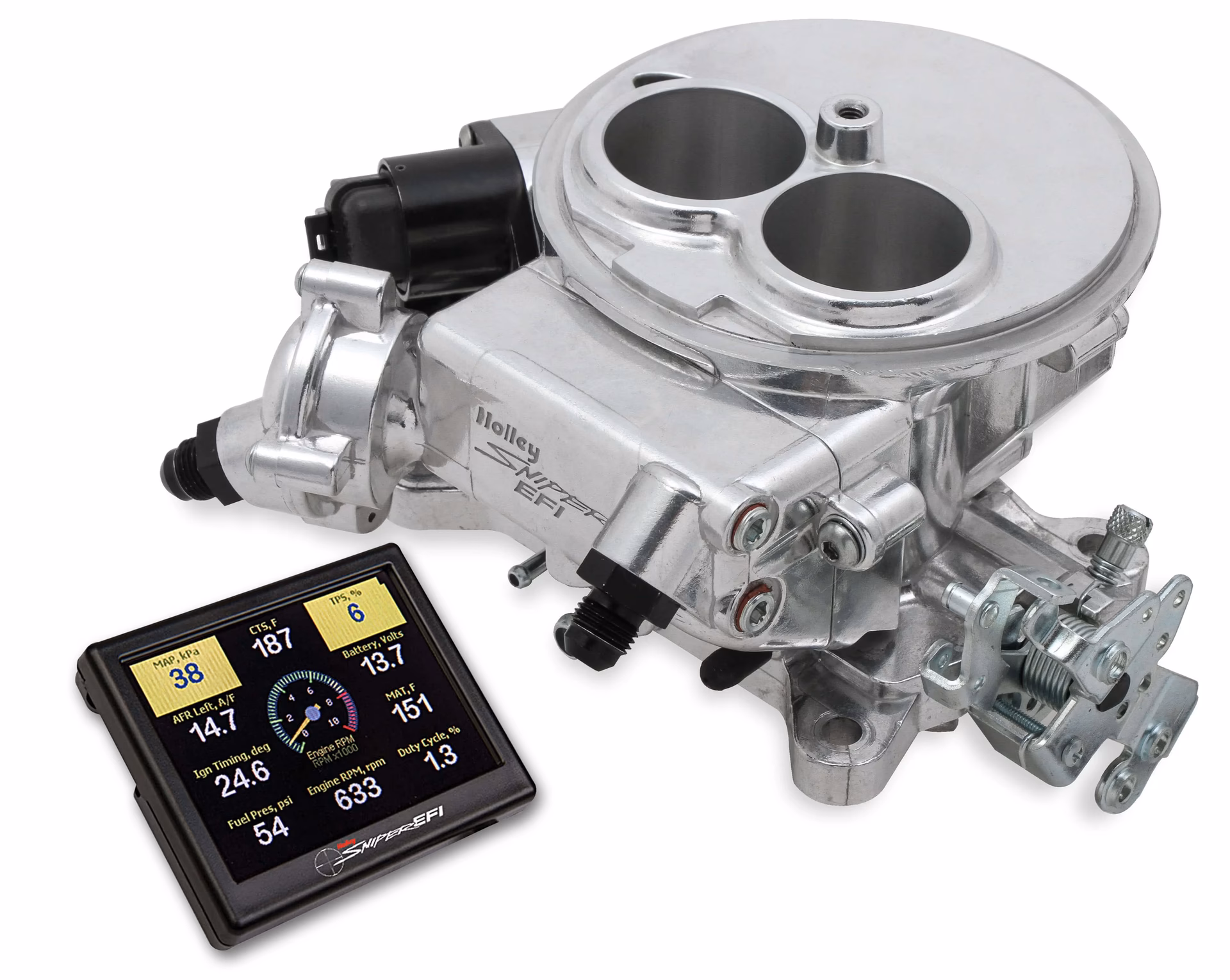

Holley Sniper 2 EFI: Your Ultimate Guide

The world of classic car modification is constantly evolving, and one of the most significant upgrades many enthusiasts consider is the switch from a traditional carburettor to electronic fuel injection (EFI). For those looking to modernise their classic vehicle's fuelling system, Holley's Sniper EFI conversion kits have become a popular choice. The latest iteration, the Sniper 2, builds upon the success of its predecessor, the Sniper 1, introducing a host of refinements and enhancements designed to make the EFI conversion process smoother and more efficient. But what exactly is the Holley Sniper 2 EFI system, and what should you consider when making the switch? We delve into the details, drawing insights from Holley's own experts.

Holley's Rich History with EFI

Holley's journey with electronic fuel injection isn't a new one. Their involvement dates back to the 1980s with the Commander 950 and Pro-Jection 2D/4D products, which were early throttle body (TBI) and multi-port injection systems. These early TBI systems leveraged OEM technology acquired by Holley. As time progressed, Holley introduced the Terminator throttle body EFI system, marking the beginning of their current wave of advanced EFI offerings. The subsequent release of the Sniper 1 was a monumental success, but Holley recognised areas for improvement. The Sniper 2 system is a direct result of listening to customer feedback and addressing the 'pain points' experienced during installation and operation of previous systems.

Learning from the Field: Customer Feedback is Key

Holley's commitment to improving their EFI systems is deeply rooted in understanding real-world user experiences. The company actively engages with customers at trade shows and events. Beyond just listening, Holley technicians often get hands-on, diagnosing issues in real-time under vehicles. This direct interaction provides invaluable feedback on everything from ignition installation and wiring to O2 sensor condensation, transmission kickdown, and throttle linkage challenges. This 'trackside experience' is crucial. Furthermore, Holley actively monitors its dedicated online communities, such as the Holley Sniper EFI Owners & Tech Facebook Group. Every post, whether positive or negative, is reviewed to glean insights that inform future product development and improvements.

Sniper 2 vs. Sniper 1: Key Enhancements

The Sniper 2 represents a significant redesign from the ground up when compared to the Sniper 1, retaining only the fundamental concept of a four-barrel throttle body with a standard 4150 flange. Several key enhancements have been implemented:

Redesigned ECU and Harness

The Engine Control Unit (ECU) has been relocated to the side of the throttle body and completely redesigned with new hardware, firmware, drivers, and internal components. This relocation, as we'll discuss later, offers significant benefits. The wiring harness has also been redesigned for improved reliability and ease of installation. Crucially, the injector clips now feature a positive-lock mechanism, ensuring a secure connection. The throttle position sensor (TPS) has been integrated directly into the ECU. This new non-contact TPS is designed for exceptional longevity, essentially built to last a lifetime.

Improved Throttle Lever and Kickdown

Holley has addressed common issues related to throttle linkage geometry and kickdown. The Sniper 2 utilises a throttle lever design based on the popular 80457 carburetor, a model that has been a strong seller for Holley. A significant addition for Ford enthusiasts is the inclusion of a Ford C4 automatic transmission kickdown lever, a feature that was a notable 'pain point' for many users of the Sniper 1, particularly those with classic Ford vehicles.

Strategic ECU Relocation: Mitigating Electrical Noise

One of the most notable design changes in the Sniper 2 is the relocation of the ECU to the side of the throttle body. In the Sniper 1, the ECU was positioned at the front, directly in the path of potential electrical interference, especially in vehicles with front-mounted distributors like many Ford applications. By moving the ECU away from this 'noisy' area, Holley aims to improve the signal integrity and overall reliability of the system. Keeping sensitive electronics as far as possible from sources of electrical noise is a fundamental principle in automotive electronics design, and this relocation is a prime example of Holley applying that principle.

Essential Upgrades for a Successful EFI Swap

While the Sniper 2 EFI system is designed for a relatively straightforward conversion, Holley strongly recommends considering other supporting components for optimal performance and longevity. These upgrades can prevent future headaches and ensure your EFI system operates at its best.

The Fuel Tank: A Critical Foundation

A new fuel tank is almost always recommended. Old fuel tanks are notorious for accumulating sediment, rust, and other debris. Introducing this particulate matter into the sensitive EFI injectors can lead to blockages and premature failure. A new tank is a relatively inexpensive insurance policy. Furthermore, Holley typically recommends an in-tank fuel pump. These pumps tend to run cooler and quieter than external pumps, contributing to a smoother and more reliable fuel supply.

Ignition System Synergy: The Hyperspark Distributor

For optimal performance and seamless integration with the Sniper ECU, Holley recommends their Hyperspark distributor. The Hyperspark features a Hall effect-based ignition input, which replaces the traditional magnetic pickup found in many older distributors. This Hall effect sensor provides a cleaner, higher-resolution signal to the Sniper ECU, enabling more precise timing control. While the Sniper system can manage timing with a magnetic distributor, the Hall effect system offers superior signal quality for enhanced control and 'self-learning' capabilities.

Return vs. Returnless Fuel Systems: A Crucial Decision

Choosing the correct fuel system configuration is vital for EFI performance. Holley generally advocates for a return-style fuel system. In a return-style system, excess fuel is continuously circulated back to the fuel tank. This constant circulation helps to keep the fuel pump cool and prevents fuel from becoming overly heated, which can degrade its performance. This is particularly important for maintaining consistent fuel pressure. Holley recommends returnless (or dead-headed) fuel systems only for lower horsepower applications, typically those producing less than 350-400 horsepower. For higher-output engines, a return-style system is strongly advised. Returnless systems can sometimes introduce more electrical noise into the system, depending on the mounting location of the fuel pressure regulator, which is often integrated into the pump assembly within the tank or mounted on the frame rail.

Expert Advice for Your EFI Swap Journey

Embarking on an EFI conversion can seem daunting, but with careful planning and adherence to best practices, it can be a rewarding experience. Here's some key advice from Holley's experts:

Prioritise the Fuel System

As highlighted by Holley's tech experts, the fuel system is the absolute backbone of any EFI conversion. Ensure your fuel pickup in the tank is clean and unobstructed. Use the correct fuel filters and, crucially, ensure they are clean. Holley's advice is to 'go a little overkill' on the fuel system. Investing in a robust and reliable fuel system upfront will pay dividends in terms of longevity and future upgradeability. You're unlikely to regret having a fuel system that can handle more than you currently need.

Common Challenges and How to Overcome Them

Several common hurdles can arise during an EFI swap. Addressing these proactively can save significant time and frustration:

• Switched 12-Volt Signal: The number one issue often encountered is an inadequate switched 12-volt power source. It's essential to verify that the power source is 'hot' when the ignition key is on and, critically, that it can supply sufficient amperage. A low-amperage 12-volt signal can cause numerous problems. Holley provides detailed tutorials on verifying this crucial connection in their installation videos. A good quality multimeter is an indispensable tool here.
• Exhaust Sensor Placement: Proper placement of the oxygen (O2) sensor is vital for the EFI system's 'self-learning' capability. The sensor should be installed in a location after the exhaust collectors have merged but before any catalytic converters. This ensures an accurate reading of the exhaust gas mixture. The bung for the O2 sensor must also be sealed properly to prevent leaks, which can lead to false readings.
• Fuel System Integrity: As previously discussed, the fuel system's reliability is paramount. Ensuring clean fuel lines, correct filter installation, and adequate fuel pressure are critical steps.

Understanding the "Self-Learning" Feature

One of the most attractive aspects of the Holley Sniper EFI system is its 'self-learning' capability. This feature allows the system to automatically adjust fuel delivery and ignition timing (if equipped with timing control) to optimise engine performance. Here's how it works:

Initial Calibration and Tuning

The process begins with the handheld controller that comes with the Sniper 2. You'll run through a wizard, inputting essential engine parameters such as cubic inches, wide-open throttle (WOT) timing, idle timing, and target air/fuel ratio. Based on this information, the system generates a base calibration. For most engines with a relatively stock camshaft and vacuum characteristics, this base calibration is often remarkably accurate. For engines with more aggressive camshafts or unique tuning requirements, the handheld's tuning software allows for manual adjustments to fuel delivery and timing to fine-tune the system.

"Close Loop and Learn" Mode

Once the base calibration is loaded, the system enters 'Close Loop and Learn' mode. In this mode, the ECU actively monitors engine operation and makes real-time adjustments. The handheld display will show compensation percentages, typically in the range of 3-12%. If, during the initial driving phase, you observe compensation percentages significantly higher (e.g., 60-70%), it indicates a potential issue. This could be fuel pressure problems, exhaust leaks causing false readings, or other underlying problems. In such cases, it's advisable to stop, diagnose the issue, and potentially re-run the initial setup wizard.

Tips for Your First "Self-Learning" Drive

The initial drive after installing your Sniper 2 EFI system is crucial for the 'self-learning' process. Keep these tips in mind:

• Coolant Temperature: The ECU will only enter 'Learn' mode once the engine coolant temperature reaches approximately 160 degrees Fahrenheit. Ensure your coolant temperature sensor is correctly installed and providing accurate readings on the handheld display.
• Eliminate Leaks: Before you even start driving, meticulously check for any exhaust leaks or fuel leaks. Exhaust leaks can cause the O2 sensor to report incorrect air/fuel ratios, leading the ECU to make erroneous adjustments.
• Leisurely Cruise: Begin with a relaxed drive around your neighbourhood. This allows the system to gather initial data under various light-load conditions. Holley experts often recommend one to two laps of the neighbourhood.
• Controlled Acceleration: After the initial cruise, find a safe, open area to perform some moderate to wide-open throttle (WOT) accelerations. This allows the system to learn your engine's fuel demands at higher RPMs and loads. It's wise to be aware of your engine's rev limiter and avoid exceeding it during this learning phase.

By following these guidelines and understanding the capabilities of the Holley Sniper 2 EFI system, you can confidently upgrade your classic vehicle to modern fuel injection, enjoying improved drivability, performance, and reliability.
