Brake Pad Replacement Guide

Ensuring your motorcycle's braking system is in optimal condition is paramount for safety. Worn brake pads are a common issue that can significantly compromise your stopping power. This guide will walk you through the process of inspecting and replacing your brake pads, a crucial maintenance task for any rider. While some procedures, like wheel removal, are best left to professionals, understanding the steps involved empowers you to better care for your machine.

Understanding Brake Pad Wear

Brake pad wear is influenced by several factors, including the intensity of your riding, the types of roads you frequent, and environmental conditions. For instance, riding on wet and dirty roads will generally accelerate pad wear. It is recommended to inspect your brake pads at every regular maintenance interval. A key indicator for replacement is the wear indicator cutout on each pad. If either the front or rear brake pad is worn down to this cutout, it's time to replace both pads as a set. Attempting to ride with excessively worn pads can lead to reduced braking performance and potential damage to the brake discs.

Brake System Inspection

Before diving into pad replacement, it's wise to conduct a general inspection of your braking system. For models equipped with a Dual Combined Brake System (CBS/ABS/TCS), a specific check is advised. With the motorcycle on its center stand, the engine stopped, and the transmission in neutral, try moving the left brake caliper upwards while slowly rotating the rear wheel. If the rear wheel stops as you do this, your brake system is functioning correctly. However, if the rear wheel continues to rotate freely, it indicates a potential issue that requires professional attention from your authorized Honda dealer.

Front Wheel Removal (Professional Assistance Recommended)

Replacing brake pads often necessitates removing the wheels to gain proper access to the calipers. The process of removing a motorcycle wheel requires specific mechanical skills and specialised tools, such as a floor jack for lifting and a torque wrench for tightening bolts to the correct specifications. Due to the precision involved and the critical nature of wheel security, it is strongly recommended that front wheel removal and reinstallation be performed by an authorized Honda dealer or another qualified mechanic.

Should temporary tyre repairs be necessary, wheel removal might not always be required. However, for brake pad replacement, it's usually unavoidable. When performing wheel removal, it's crucial to be mindful of delicate components like the sensor and pulser ring, especially on models equipped with CBS/ABS/TCS. Care must be taken to avoid damaging these parts.

Important Precautions During Wheel Removal:

• Support the Caliper: To prevent damage to the brake hose, ensure the caliper assembly is adequately supported so it does not hang from the hose. Avoid twisting the brake hose.
• Keep Surfaces Clean: It is vital to prevent grease, oil, or dirt from contaminating the disc or pad surfaces. Such contamination can lead to poor brake performance or accelerated pad wear after reassembly.
• Do Not Depress Brake Lever: Crucially, do not depress the brake lever (or brake lever and pedal on CBS/ABS/TCS models) when the wheel is removed. Doing so can force the caliper pistons out of the cylinder, leading to a loss of brake fluid and necessitating brake system servicing by a professional.

Brake Pad Replacement Steps (General Overview)

While the exact procedure can vary slightly between motorcycle models, the general process for replacing brake pads involves the following steps. Remember, specific torque values and sequences are critical and should be followed precisely as per your motorcycle's service manual.

1. Accessing the Brake Caliper

Once the wheel is removed (or if sufficient access can be gained without full removal, though this is less common for pad changes), you'll need to locate the brake caliper. The caliper is the component that houses the brake pads and clamps down on the brake disc. It's typically mounted to the fork or swingarm.

2. Removing the Caliper Bolts

Brake calipers are usually held in place by a couple of bolts. These bolts often secure the caliper to its mounting bracket. You'll need the appropriate wrench or socket to remove these bolts. Keep these bolts in a safe place, as you'll need them for reassembly.

3. Extracting the Old Brake Pads

With the caliper bolts removed, you may be able to gently pivot or slide the caliper away from the disc. The brake pads are typically held within the caliper by clips or a retaining pin. Carefully remove the old pads. Note their orientation, as the new pads will need to be installed in the same way. If the pads are difficult to remove, a gentle pry with a flathead screwdriver might be needed, but be careful not to damage the caliper body.

4. Cleaning and Inspection

Before installing the new pads, take the opportunity to clean the caliper and the surrounding area. Inspect the caliper for any signs of leaks or damage. Also, examine the brake disc for any scoring, warping, or uneven wear. If the disc is damaged, it should be replaced.

5. Compressing the Caliper Piston(s)

As brake pads wear down, the caliper pistons extend further out. To fit the new, thicker pads, you'll need to retract the pistons back into the caliper body. This is often done using a C-clamp or a dedicated brake caliper piston tool. Place a suitable block of old brake pad material between the C-clamp and the piston to avoid damaging the piston face. Apply slow, steady pressure to push the piston(s) back into the caliper. Monitor the brake fluid reservoir under the fuel tank; you may need to remove a small amount of fluid if it's near the MAX line to prevent overflow.

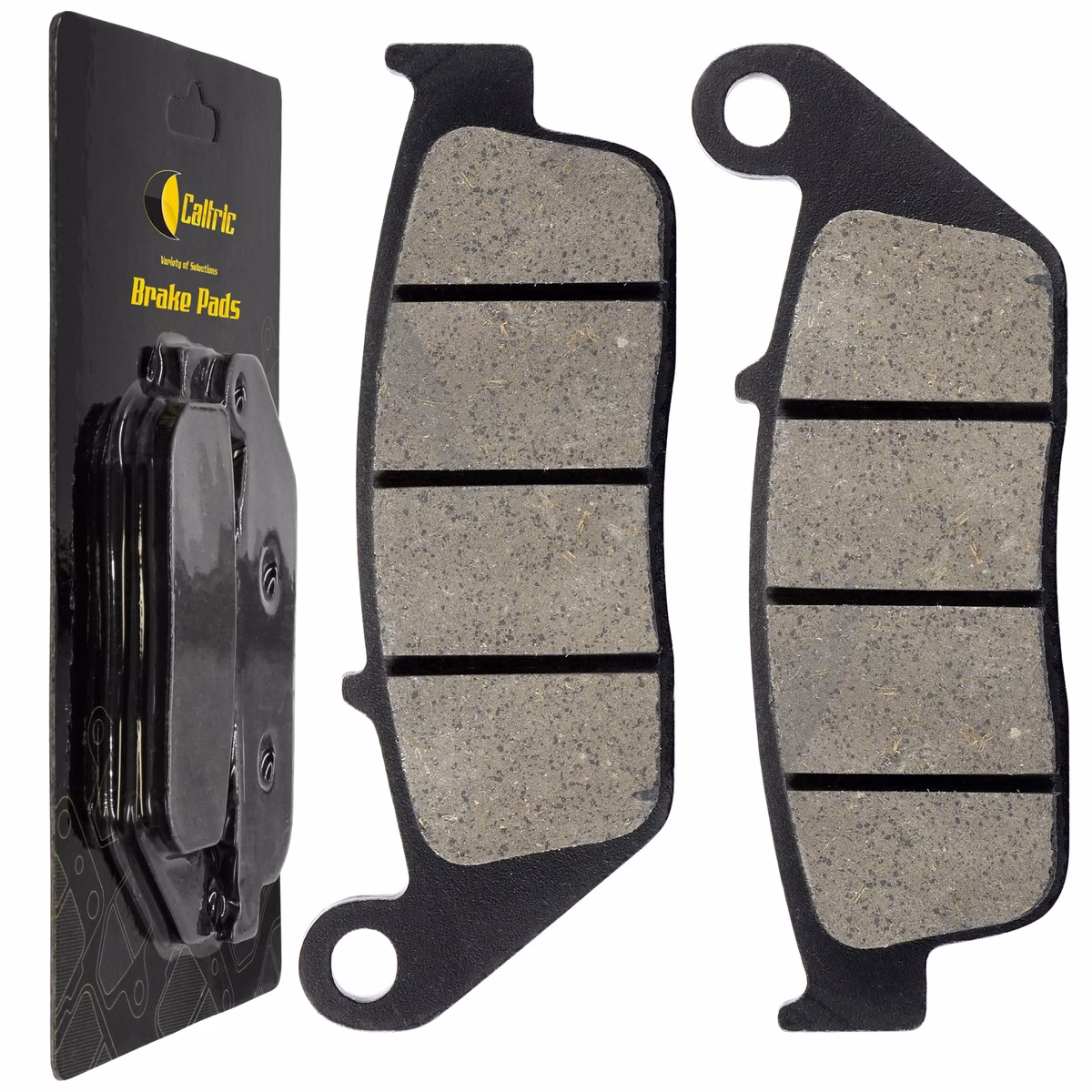

6. Installing the New Brake Pads

Insert the new brake pads into the caliper, ensuring they are oriented correctly and seated firmly. If your new pads came with new hardware (like shims or springs), install those as well, following the manufacturer's instructions. Ensure the pads fit snugly but can still move slightly within the caliper bracket.

7. Reassembling the Caliper

Carefully position the caliper back over the brake disc and align it with the mounting holes. Reinstall the caliper bolts and tighten them to the manufacturer's specified torque. It is essential to use a torque wrench for this step to ensure proper and safe fastening. Overtightening can strip threads or damage components, while undertightening can lead to the caliper coming loose.

8. Reinstalling the Wheel and Final Checks

Reinstall the wheel, following the reverse procedure of removal. Pay close attention to aligning the brake discs correctly between the brake pads. On models with ABS or other electronic systems, ensure sensors and pulser rings are correctly positioned and secured.

Crucial Post-Installation Steps:

• Bedding in the Pads: After installation, it's vital to "bed in" the new brake pads. This process transfers a thin layer of pad material to the disc surface, ensuring optimal braking performance. Typically, this involves a series of moderate stops from a moderate speed, gradually increasing the intensity. Avoid sudden, hard braking immediately after installation.
• Test Brakes: Before riding, pump the brake lever (and pedal, if applicable) several times. This ensures that the brake fluid pressure is built up and the caliper pistons have moved out to meet the new pads.
• Check Clearance: After reassembling the wheel and tightening all fasteners to the correct torque, re-check the clearance between the brake discs and the caliper holder. On some models, specific clearance measurements might be required using a feeler gauge to ensure proper alignment and prevent rubbing.
• Verify Operation: Operate the brakes again, ensuring they feel firm and responsive.

Torque Specifications (Example - Refer to your manual!)

Torque values are critical for safety. Always consult your motorcycle's specific service manual for accurate figures. Below is a hypothetical example:

Consequences of Improper Installation

Failing to use a torque wrench or not verifying proper assembly can have severe consequences. Improper installation can lead to a loss of braking capability, putting you and others at significant risk. If you are unsure about any step or lack the necessary tools, do not hesitate to seek assistance from a qualified professional. The cost of professional service is negligible compared to the potential cost of an accident.

Frequently Asked Questions (FAQs)

Q1: How often should I check my brake pads?
It's recommended to inspect your brake pads at every scheduled maintenance interval. This is typically outlined in your owner's manual.

Q2: Can I just replace one brake pad?
No, you should always replace brake pads in pairs (both front pads or both rear pads) to ensure even braking force and prevent uneven wear.

Q3: What does "bedding in" brake pads mean?
"Bedding in" is a process of transferring a thin, even layer of pad material to the brake disc surface to optimise braking performance and prevent glazing or uneven wear.

Q4: My brake lever feels spongy after changing the pads. What should I do?
A spongy lever usually indicates air in the brake lines. The brake system may need to be bled. This is a task best left to a professional if you are not experienced with it.

Q5: How do I know if my brake discs need replacing?
Inspect your brake discs for deep grooves, scoring, discoloration (blueing from overheating), or if they feel warped or uneven when braking. If you notice any of these, consult a mechanic.

Side Stand System Check

While not directly related to brake pads, a functional side stand is a safety feature. Ensure the side stand spring is not damaged or losing tension, and that the stand moves freely. Also, check the ignition cut-off system: with the engine running, deploy the side stand; the engine should stall. If it doesn't, seek professional service.

By understanding these procedures and adhering to recommended maintenance schedules, you can significantly contribute to the longevity and safety of your motorcycle. Remember, when in doubt, always consult your service manual or a qualified technician.
