Mastering Motorcycle Headlight Adjustment

Properly adjusted motorcycle headlights are not just a matter of convenience; they are absolutely crucial for ensuring your safety and the safety of everyone else on the road. A well-aligned headlight provides superior visibility during nighttime journeys and in adverse weather conditions, allowing you to clearly spot obstacles, road signs, and potential hazards far in advance. Conversely, a misadjusted headlight can be incredibly dangerous, creating blinding glare for oncoming drivers and significantly increasing the risk of accidents. This comprehensive guide will walk you through every step of adjusting your motorcycle's headlight, from preparing your bike and finding the perfect location to meticulously measuring, marking, adjusting both vertically and horizontally, and finally, testing your adjustments in real-world scenarios. Ensuring your headlight is correctly positioned is a fundamental aspect of responsible motorcycle ownership and contributes immensely to a safer riding experience for all.

Understanding Your Motorcycle's Headlights

Before diving into the adjustment process, it's beneficial to understand the role and types of motorcycle headlights. Headlights serve a dual purpose: they illuminate the path ahead in low-light conditions and significantly increase your visibility to other road users. A motorcycle that is easily seen is a safer motorcycle.

Types of Motorcycle Headlights

Motorcycles typically come equipped with one of three main types of headlights, each with its own characteristics:

• Halogen: These are the most common and often the most affordable option. Halogen bulbs produce a satisfactory light output but tend to generate more heat and have a comparatively shorter lifespan.
• LED (Light Emitting Diode): LED headlights are renowned for their energy efficiency, longer lifespan, and bright, crisp white light. Their compact size also offers manufacturers greater flexibility in headlight design. While more expensive upfront, their longevity often justifies the cost.
• HID (High-Intensity Discharge): HID lights deliver a powerful, bright beam that significantly improves visibility over greater distances. They last longer than halogens but not as long as LEDs and typically require a brief warm-up period to reach maximum brightness.

Why Headlight Alignment Matters

The correct alignment of your motorcycle's headlights, often referred to as headlight aim, is paramount. If your headlights point too high, they can blind oncoming drivers or riders, creating a serious hazard. Conversely, if they're aimed too low, they won't adequately illuminate the road ahead, potentially obscuring potholes, debris, or other critical hazards. While motorcycles usually come with a factory-set alignment, this 'average' setting might not be ideal for every rider. Factors such as your individual weight, whether you frequently carry a passenger or heavy luggage, or even subtle changes in tyre pressure can all impact the headlight's angle. Proper alignment not only enhances your visibility but also ensures you're not inadvertently putting others at risk. The good news is that this is typically a straightforward task you can accomplish yourself.

Essential Tools and Materials

Adjusting your motorcycle headlight requires only a few basic tools and materials, most of which you likely already own. Having everything ready before you start will make the process smooth and efficient.

• Screwdriver or Allen Wrench: The specific type and size will depend on your motorcycle's make and model. Check your owner's manual or inspect the adjustment screws on your headlight assembly. Some bikes use Phillips head, flathead, or Allen bolts.
• Measuring Tape: Essential for accurately measuring distances from the ground to your headlight's centre and from your motorcycle to the wall.
• Masking Tape or Chalk: Used to mark precise reference points on the wall, serving as a visual guide for your adjustments.
• Vertical Wall or Garage Door: Provides a flat, vertical surface onto which your headlight beam can be projected for accurate measurement and adjustment.
• Motorcycle Owner's Manual: Your manual is an invaluable resource, providing specific adjustment distances, recommended headlight heights, and instructions unique to your bike.
• Spirit Level (Optional but Recommended): For greater precision in ensuring your markings and the motorcycle's stance are perfectly level.
• Assistant (Optional but Beneficial): Having someone to help hold the motorcycle steady can ensure more accurate measurements and adjustments.

Preparing Your Motorcycle for Adjustment

Before you begin making any adjustments, proper preparation of your motorcycle is crucial for achieving accurate alignment. Skipping these steps can lead to skewed measurements and an incorrectly adjusted headlight.

1. Position on a Level Surface: This is the absolute first step. Park your motorcycle on a completely flat, level surface, such as a driveway, garage floor, or a flat parking lot. An uneven surface will cause your measurements to be inaccurate, leading to an improper headlight adjustment.
2. Check Tyre Pressure: Ensure your tyres are inflated to the manufacturer's recommended pressure. Incorrect tyre pressure can alter your motorcycle's stance and subtly affect the headlight's angle. Refer to your owner's manual for the correct figures and use a reliable gauge to check both front and rear tyres.
3. Remove Excess Load: Any additional weight that isn't typically on the bike during normal riding should be removed. This includes panniers, saddlebags, tank bags, or any other luggage. An overly full fuel tank might also subtly affect the bike's stance. Extra weight can cause the motorcycle to sit lower, which would result in a headlight angle that is too high once the load is removed. Adjust the headlight with the bike in its most common riding configuration – ideally with you sitting on it, or a simulated weight equivalent to your riding gear.

By following these preparatory steps, you'll ensure your motorcycle is in the ideal condition for a precise and effective headlight adjustment.

Finding a Suitable Location

The right location is just as important as the right tools for an accurate headlight adjustment. Choose your spot carefully to ensure reliable results.

1. Flat, Level Area with a Vertical Wall: Look for a flat, level surface with a sturdy, vertical wall, such as a garage door or a clear wall in a parking lot. The flat surface guarantees motorcycle stability and precise measurements, while the vertical wall serves as the essential reference point for marking height and centre lines.
2. Well-Lit Conditions: While you'll be checking the beam in the dark, performing the initial setup and marking in good lighting conditions makes it significantly easier to see your markings on the wall and ensure your motorcycle is correctly positioned.
3. Sufficient Space: Ensure the area is spacious enough to allow your motorcycle to be positioned at the specified distance from the wall, which is typically 25 feet (approximately 7.6 metres). This distance is crucial for accurately assessing the beam pattern.

Measuring and Marking Reference Points

Accurate measurement and marking are the backbone of effective headlight adjustment. Take your time with this step to ensure precision.

1. Positioning the Motorcycle

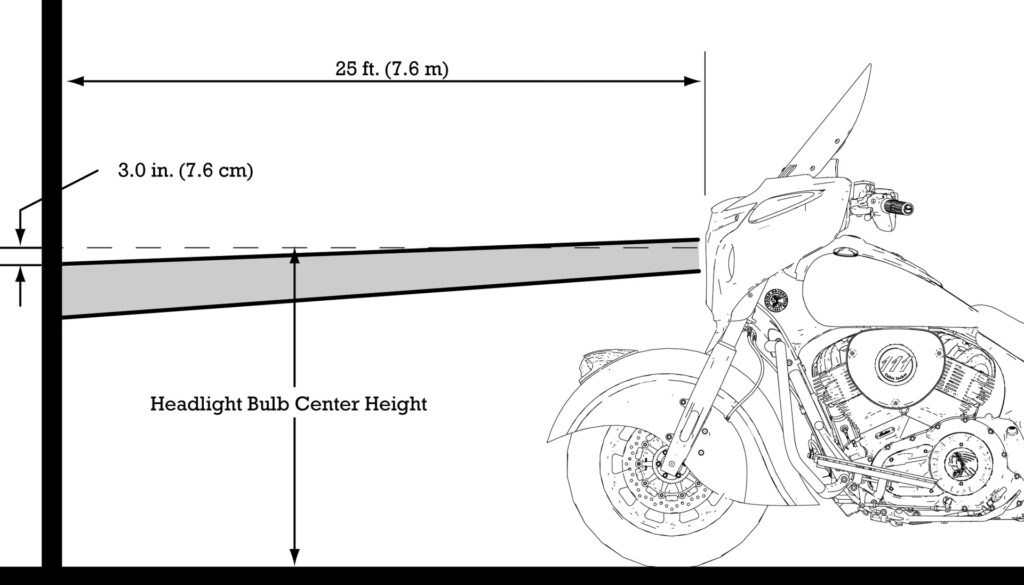

First, position your motorcycle precisely 25 feet (or the specific distance stated in your owner's manual) away from the vertical wall. Use your measuring tape to ensure this distance is exact. It's critical that the motorcycle is positioned straight and perfectly perpendicular to the wall. This perpendicular alignment ensures that the headlight beam will reflect correctly on the wall, making it easier to identify and address any adjustment needs. Double-check that the motorcycle is upright and stable on a level surface to guarantee accurate reference points.

2. Marking Headlight Height

With the motorcycle in position, measure the vertical distance from the ground to the absolute centre of your motorcycle's headlight. Note this measurement carefully. Now, transfer this exact height to the wall using a piece of masking tape or chalk to create a horizontal line. This horizontal line represents the ideal height at which your headlight beam should be aligned. Ensuring this height is accurately marked is paramount, as it will serve as the primary reference for the vertical adjustment of your headlight beam, allowing you to align the beam precisely.

3. Marking the Horizontal Centreline

Once the headlight height is marked, identify the exact centre of your motorcycle's front wheel or the overall centre of the bike. Measure the distance from the centre of the motorcycle to the wall. Transfer this centre point to the wall, creating a vertical line using masking tape. This vertical line will serve as the reference for the horizontal adjustment, ensuring the beam is perfectly centred on the road ahead.

Adjusting the Headlight: Vertical and Horizontal Alignment

Now that your motorcycle is prepared and your reference points are marked, it's time to make the actual adjustments. This involves fine-tuning both the vertical and horizontal aim of your headlight beam to ensure optimal visibility and safety.

Vertical Adjustment

Begin by turning on your motorcycle's headlight and setting it to the low beam. The low beam is the standard setting for headlight alignment, as it provides a more controlled and defined light pattern compared to the high beam. Locate the vertical adjustment screw on your motorcycle's headlight housing. This screw is typically found on the side, top, or sometimes even the bottom of the headlight casing. If your headlight uses a dial instead of a screw, adjust it accordingly.

Using your screwdriver, gently turn the vertical adjustment screw. Your objective is to align the top edge of the headlight beam with the horizontal line you previously marked on the wall. The beam should ideally touch or just fall slightly below this line, but it must not surpass it. This precise adjustment ensures that your light illuminates the road ahead effectively without shining directly into the eyes of oncoming drivers, maintaining excellent nighttime visibility and ensuring on-road safety for everyone.

Horizontal Adjustment

With the vertical adjustment complete, shift your focus to the horizontal alignment. Locate the horizontal adjustment screw, which is usually situated on the side or at the back of the headlight housing. Use your screwdriver to turn this screw, shifting the headlight beam left or right as necessary. The primary goal here is to centre the headlight beam precisely along the vertical line you marked on the wall. It's crucial that the light doesn't point too far to the left or right, as improper horizontal alignment can create dangerous blind spots for you and potentially dazzle other motorists. Adjust the screw slowly and incrementally until the beam is perfectly centred on your vertical reference line. Ensuring the light beam aligns with both the horizontal and vertical lines dramatically enhances both your visibility and overall road safety, contributing to a much safer ride for you and those around you.

Testing the Adjustment in Real-World Conditions

Once you've completed the preliminary headlight adjustments, the final and most crucial step is to test them in real-world conditions. This ensures that your adjustments hold up and provide optimal performance where it matters most – on the road.

1. Choose a Safe, Dark Area: Select a quiet street, an empty car park, or any other safe, dark area where you can ride your motorcycle without traffic. This allows you to clearly assess the headlight beam's performance without distractions.
2. Ride and Observe: Start by riding your motorcycle at a moderate speed, paying close attention to the headlight's performance. Observe how the light beam falls on the road. Does it provide adequate visibility of the path ahead? Are there any dim spots or areas that are too bright? Crucially, ensure the beam illuminates the road without rising too high, which could potentially blind oncoming traffic.
3. Fine-Tune as Needed: If you notice the light is still too high, too low, or veering off to one side, you may need to make minor adjustments to either the vertical or horizontal alignment screws. Stop periodically in a safe spot to fine-tune the settings. You can recheck the alignment against your wall markings if you need a precise reference point again.

By thoroughly testing and carefully fine-tuning your headlight adjustment, you'll ensure a safer, more comfortable, and legally compliant ride every time you hit the road.

Safety Tips and Precautions

While adjusting your motorcycle headlight is a straightforward task, keeping a few safety tips and precautions in mind will protect both your bike and yourself.

• Avoiding Over-Tightening Adjustment Screws: It is paramount to handle the adjustment screws with care. Using excessive force can easily strip the threads or damage the delicate headlight housing, potentially compromising the structural integrity of the entire headlight assembly. Turn the screws gently, applying just enough force to make the adjustment and secure it in place without causing any strain.
• Double-Checking All Adjustments: Once you've made the necessary adjustments, always double-check that the headlight is securely positioned. Visually inspect the alignment and confirm that both vertical and horizontal positions are exactly as intended. Ensure that the headlight beam is stable and unlikely to shift during riding, especially over bumps or rough terrain. This crucial step prevents any alignment issues from arising due to loose adjustments.
• Regularly Checking Headlight Alignment: Proper headlight alignment should be an integral part of your routine motorcycle maintenance. Recheck the alignment periodically, especially after long rides, journeys over rough terrain that could potentially jar the beam, or after carrying unusually heavy loads. Regular inspections will help ensure your visibility remains optimal and that your headlights aren't inadvertently blinding other motorists. This proactive approach contributes significantly to sustained road safety.

Common Mistakes to Avoid

Even with a clear guide, it's easy to make common errors when adjusting motorcycle headlights. Being aware of these pitfalls can save you time and ensure a more accurate adjustment.

1. Incorrect Starting Position: Failing to park your motorcycle on a truly level surface, at the correct distance (25 feet) from the wall, or ensuring it's perfectly perpendicular to the wall, will lead to inaccurate measurements and a flawed adjustment. Always double-check your initial setup.
2. Forgetting to Compensate for Rider Weight: Your weight significantly impacts the motorcycle's stance and, consequently, the headlight's angle. Always sit on the motorcycle (or simulate your weight with ballast) when making adjustments. If you frequently ride with a pillion or heavy gear, consider adjusting with that additional weight to achieve the most accurate everyday alignment.
3. Over-Adjusting: Turning the adjustment screws too much in either direction is a common mistake. Make slow, minor adjustments. Large turns can lead to the beam being drastically too high (dazzling oncoming traffic) or too low (not illuminating enough of the road). Small, precise turns are key.
4. Not Checking Alignment Post-Adjustment: Relying solely on the wall markings isn't enough. A crucial step is to take a short ride in low-light conditions to truly assess if the road ahead is well-lit and if the beam is correctly aligned from the rider's perspective.
5. Neglecting Horizontal Adjustment: While vertical adjustment is often the primary focus, overlooking horizontal alignment can cause the beam to stray significantly to one side, reducing your field of vision and potentially dazzling vehicles in adjacent lanes. Always check and adjust both axes.
6. Failing to Regularly Check Headlight Alignment: Headlight alignment isn't a 'set-it-and-forget-it' task. Changes in riding conditions, such as carrying different loads, or even fluctuations in tyre pressure, can subtly affect the alignment. Make regular checks part of your routine maintenance to ensure optimal alignment is consistently maintained.

Frequently Asked Questions About Adjusting Motorcycle Headlights

Here are some common questions riders have about adjusting their motorcycle headlights:

Q: What tools do I need to adjust a motorcycle headlight?

A: You'll primarily need a screwdriver (either Phillips, flathead, or an Allen wrench, depending on your bike's specific screws), a measuring tape, and masking tape or chalk for marking reference points on a wall. Your motorcycle's owner's manual is also essential for specific distances and instructions.

Q: How often should I check my headlight alignment?

A: It's recommended to check your headlight alignment at least every few months, or whenever you notice a change in road visibility during night rides. Additionally, if you frequently ride on rough terrain, carry heavy loads, or have recently performed maintenance that might affect the front end, it's wise to check more often.

Q: Can I adjust my motorcycle headlight without a wall?

A: While technically possible to make rough adjustments, using a vertical wall at a specific distance is highly recommended for accurate and safe alignment. Without a clear reference point, it's very difficult to ensure the beam is neither too high nor too low for road safety.

Q: Should I sit on the motorcycle when adjusting the headlight?

A: Yes, absolutely. Your weight significantly influences the motorcycle's stance. For the most accurate adjustment, sit on the motorcycle in your typical riding position, or have an assistant simulate your weight, while making the adjustments. This ensures the headlight is aimed correctly under real riding conditions.

Q: What's the ideal height for a motorcycle headlight beam?

A: Generally, the top edge of your low beam should align with or fall just below the marked centreline of your headlight on the wall, when measured at 25 feet. Always refer to your motorcycle's owner's manual for precise manufacturer specifications, as these can vary slightly.

Conclusion

In summary, adjusting your motorcycle headlight is a straightforward yet immensely important task that involves precise vertical and horizontal alignment. By accurately marking your headlight's height and centreline on a wall, then carefully using the adjustment screws to fine-tune the beam to meet these marked lines, you significantly enhance your visibility without blinding other drivers. The final crucial step is a real-world test ride to confirm optimal alignment and make any last minute tweaks. Knowing how to properly adjust motorcycle headlight alignment is truly crucial for safe riding, particularly at night or in low-visibility conditions. Properly adjusted headlights effectively illuminate the road ahead, help you anticipate hazards, and ensure you're clearly visible to other motorists. Make regular checks and adjustments of your headlight alignment a standard part of your routine motorcycle maintenance. This proactive approach will not only enhance your personal safety but also contribute to the safety of everyone sharing the road with you, extending the effective lifespan of your headlight assembly in the process. Ride safe, ride smart!
