Hilborn Nozzle Numbers: Unravelling Fuel Flow

When it comes to high-performance engines, particularly those running mechanical fuel injection (MFI) systems, precision is paramount. Every drop of fuel, every pound of pressure, and every millisecond of delivery contributes to the engine's overall performance. At the heart of many such systems are Hilborn nozzles, tiny components that play a monumental role in fuel delivery. Understanding their unique numbering system and how to calculate fuel requirements is fundamental for anyone looking to optimise their engine's setup.

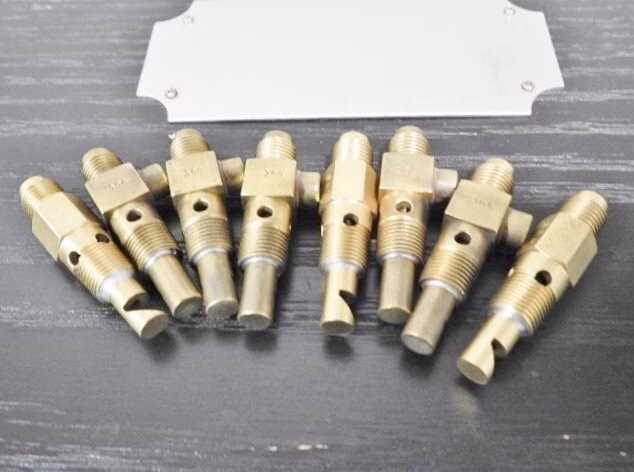

What Exactly is a Hilborn Nozzle Number?

The Hilborn nozzle number isn't just a random identifier; it's a direct indication of the nozzle's flow rate. According to Vern Tomlinson of Fuel Injection Engineering (Hilborn), the Hilborn nozzle number is a designation of its flow in gallons per minute (GPM). This rating is standardised at a fuel pressure of 30 PSI and assumes a fluid with a specific gravity of 0.792.

Let's break this down with a couple of examples:

• A #4 nozzle, for instance, flows 0.04 GPM each. If you have an eight-cylinder engine utilising eight #4 nozzles, the total flow would be 0.32 GPM (8 nozzles * 0.04 GPM/nozzle).
• Moving up the scale, a #20 nozzle flows 0.20 GPM each. For an eight-cylinder setup, this would equate to a substantial 1.60 GPM in total flow (8 nozzles * 0.20 GPM/nozzle).

This straightforward system allows tuners to quickly grasp the potential fuel delivery capacity of a given nozzle size, providing a crucial starting point for their calculations.

How Much Fuel Does a Hilborn Nozzle Need?

Determining the precise fuel requirements for an engine running mechanical fuel injection is a complex art, often requiring a blend of experience, calculation, and a bit of a SWAG (Scientific Wild-Ass Guess), especially when operating without a dyno or at varying altitudes. The goal is always to deliver the optimum amount of fuel for the horsepower being produced, whether it's for a drag engine, a Bonneville land speed racer, or a sprint car.

Initial Horsepower and RPM Estimates

The first step in calculating fuel needs involves establishing a projected horsepower range and the RPMs at which those power figures are expected. For an eight-cylinder engine with eight nozzles, if you anticipate between 500 to 640 horsepower within an RPM range of 5800 to 8000, this translates to roughly 62.5 to 80 horsepower per nozzle (assuming even distribution).

Fuel Consumption Rates (PPH)

Once you have your horsepower estimates, you need to consider the fuel type and its corresponding consumption rate, typically measured in pounds of fuel per horsepower per hour (PPH).

• For Petrol: A good starting point is around 0.5 pounds of fuel per each horsepower per hour (0.5 PPH/HP). This might be slightly rich for some applications but offers a safe initial baseline.
• For Methanol: Methanol requires significantly more fuel due to its lower energy density. A lean starting point would be 1 pound of fuel per horsepower per hour (1 PPH/HP). To ensure a safe and effective tune, it's often recommended to increase this by another 20%, bringing the target to 1.2 PPH/HP.

Let's apply these figures to our example engine (500-640 HP, 8 nozzles):

• Petrol: You'd need approximately 31.25 to 40 pounds of fuel per hour per nozzle (62.5-80 HP/nozzle * 0.5 PPH/HP).
• Methanol: For methanol, the lean requirement per nozzle would be 62.5 to 80 PPH. For a richer, safer tune (adding 20%), this increases to 75 to 96 PPH per nozzle.

Converting GPM to PPH for Hilborn Nozzles

Hilborn nozzles are rated in GPM at 30 PSI, but for precise tuning, especially with methanol, converting this to PPH is essential. For methanol, there are approximately 396 PPH for every GPM. One GPM also equals 60 gallons per hour.

Let's use this conversion:

• A #8 Hilborn nozzle flows 0.08 GPM. Converted to PPH for methanol: 0.08 GPM * 396 PPH/GPM = 31.68 PPH. For an 8-cylinder engine, this means 31.68 PPH/nozzle * 8 nozzles = 253.44 PPH total. At 1 PPH/HP (lean methanol), this setup would support roughly 253 HP. Clearly, a #8 nozzle is far too small for most high-performance methanol applications.
• A #20 Hilborn nozzle flows 0.20 GPM. Converted to PPH for methanol: 0.20 GPM * 396 PPH/GPM = 79.2 PPH. For an 8-cylinder engine, this totals 633.6 PPH. At 1 PPH/HP, this could support approximately 633 HP on methanol, making it a much more suitable choice for higher horsepower engines.

It's worth noting that other manufacturers, like Kinsler, also rate their nozzles at 30 PSI but often specify a different specific gravity (e.g., 0.712 SG for petrol), meaning direct comparisons without conversion maths can be misleading.

The Importance of Flow Dynamics and System Components

Achieving optimal fuel delivery isn't just about nozzle size; it's about the entire fuel system's dynamics. Understanding the square inch areas and flow rates at various pressure points is crucial. This includes:

1. Each individual nozzle's area.
2. The total area of all nozzles combined.
3. The area of the return jet, which dictates bypass flow.
4. The combined total of all relevant square inch areas (nozzles + return jet).

Several fundamental formulas are vital for these calculations:

• Calculating Square Inch Area from Diameter: (Diameter / 2)^2 * 3.1416 = Square Inch Area.
• Calculating Diameter from Square Inch Area: Square Root (Square Inch Area / 3.1416) * 2 = Diameter.
• Calculating New Flow with Pressure Change: Square Root (New PSI / Old PSI) * Old Flow = New Flow.
• Calculating New Pressure with Flow Change: (New Flow / Old Flow)^2 * Old Pressure = New Pressure.
• Flow and Area Relationship: Flow increases in direct proportion to a square inch area change, provided the pressure is held constant.

These formulas underscore the intricate relationship between pressure, flow, and physical dimensions within a fuel system. For serious MFI tuning, having access to a properly calibrated flowbench is invaluable. This allows for precise measurement and adjustment of each component and the system as a whole, moving beyond theoretical calculations to real-world performance.

Table: Hilborn Nozzle Flow Examples (Methanol @ 30 PSI)

Table: Typical Fuel Consumption Rates

Modern Fuel Pressure Considerations

While Hilborn nozzle ratings are based on 30 PSI, it's crucial to understand that actual operating fuel pressures in modern MFI systems are significantly higher. Very few, if any, engines are actually run at 30 PSI these days. More common operating pressures range from a minimum of 60 PSI, often extending to 80 to 120 PSI, depending on the application and tuner preference. Experienced tuners might still favour the lower end of this modern spectrum, around 60 to 80 PSI, as it offers a good balance of atomisation and control. The higher the pressure, the more fuel the nozzle will flow, which must be accounted for in calculations.

Valuable Resources for MFI Tuning

For those delving deep into mechanical fuel injection, several excellent resources can provide invaluable insights:

• Kinsler's Technical Manual: Though perhaps older and sometimes confusing, this manual is highly regarded for teaching the PPH (pounds per hour) methodology, offering a different perspective from the GPM-centric approach.
• Jim Harvey (hre.com): Jim Harvey's manual, available through his website (which often has a subscription fee), is a solid resource, particularly for Enderle-type injectors and blown engines. While it primarily deals in GPM, it contains valuable information for MFI enthusiasts.
• Ken Lowe (Australia): Ken Lowe also offers a comprehensive FI manual/catalogue publication. Despite potential shipping costs and exchange rates for those outside Australia, it's known to be a valuable reference for MFI systems. Searching for 'Ken Lowe fuel injection' online should help locate it, possibly at kenlowe.com.au.

Many experienced tuners also develop their own home-built flowbenches, testing and recording their specific systems at various RPM points with different return jets. This highly individualised approach allows for the most precise and application-specific tuning.

Frequently Asked Questions About Hilborn Nozzles & MFI

What is the standard pressure for Hilborn nozzle ratings?

Hilborn nozzles are rated at 30 PSI (pounds per square inch) with a specific gravity of 0.792 for the fluid.

Do I run my engine at 30 PSI fuel pressure?

No. While 30 PSI is the baseline for nozzle ratings, actual operating fuel pressures in modern MFI systems are typically much higher, often ranging from 60 PSI to 120 PSI, with 60-80 PSI being common for many setups.

What's the difference between GPM and PPH ratings?

GPM (Gallons Per Minute) is a measure of volumetric flow rate. PPH (Pounds Per Hour) is a measure of mass flow rate, often used in the context of pounds of fuel per horsepower per hour (PPH/HP) to describe consumption. Hilborn typically uses GPM for nozzle ratings, while some other MFI specialists, like Kinsler, might use PPH for their flow data.

Why is a flowbench important for MFI tuning?

A flowbench allows tuners to precisely measure the actual flow rate of nozzles and other components at specific pressures. This eliminates guesswork and provides real-world data, enabling highly accurate adjustments to the fuel system for optimal performance and safety.

Can I use these calculated numbers for any engine?

The numbers provided are excellent starting points and guidelines. However, every engine, application, and operating environment (e.g., altitude, specific fuel type, load characteristics) is unique. Final tuning always requires careful observation, testing, and adjustment based on real-world conditions and engine feedback.

What is specific gravity and why does it matter for fuel flow?

Specific gravity is the ratio of the density of a substance to the density of a reference substance (usually water). For fuels, it indicates how dense the fuel is. It matters because flow ratings are often based on a specific fluid's density. Using a fuel with a different specific gravity than the one used for the nozzle rating will alter the actual mass flow rate for a given volumetric flow, requiring conversion calculations for accuracy.

Mastering Hilborn nozzle numbers and the associated fuel calculations is a critical step in optimising any mechanical fuel injection system. It requires a meticulous approach, a solid understanding of fluid dynamics, and often, the right tools and resources. By delving into these details, you can ensure your engine receives the precise fuel delivery it needs to perform at its peak, whether on the drag strip, the salt flats, or the race track.
