High-Pressure Diesel Fuel Injection Tubes: The Backbone of Performance

In the intricate world of diesel engines, precision and durability are paramount. At the heart of efficient fuel delivery lies a component that, while often unseen, is absolutely vital: the high-pressure diesel fuel injection tube. These tubes are the arteries through which fuel, under immense pressure, travels to the combustion chamber, dictating the engine's power, efficiency, and emissions. Understanding what these tubes are, how they're made, and why their quality is so critical can shed light on the sophisticated engineering that powers our vehicles and machinery.

What Exactly Are High-Pressure Diesel Fuel Injection Tubes?

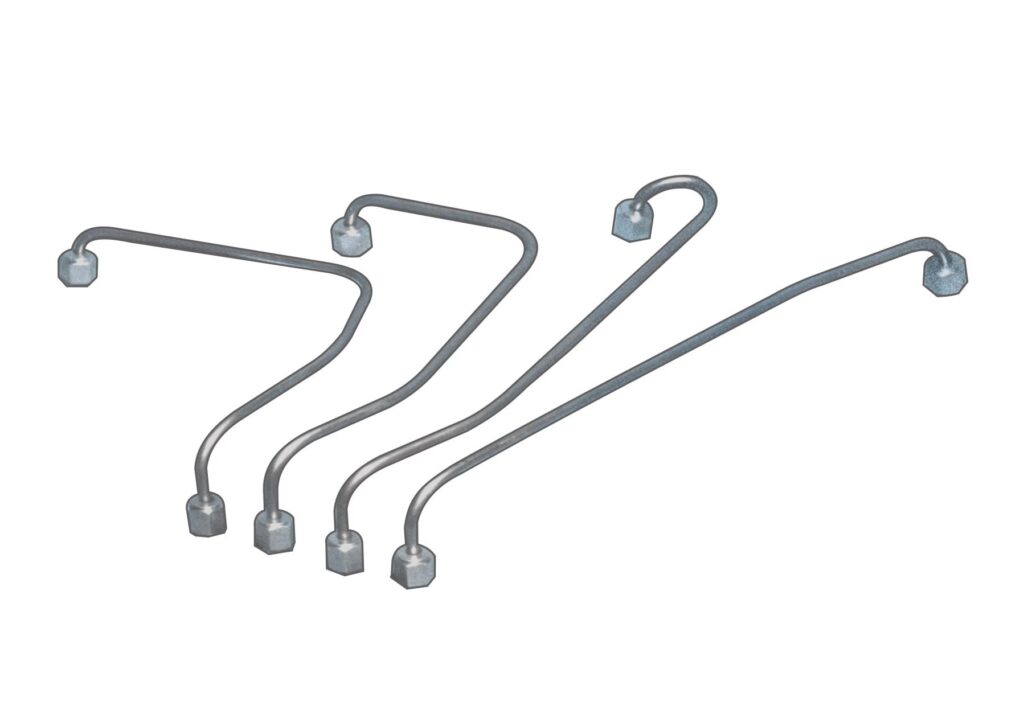

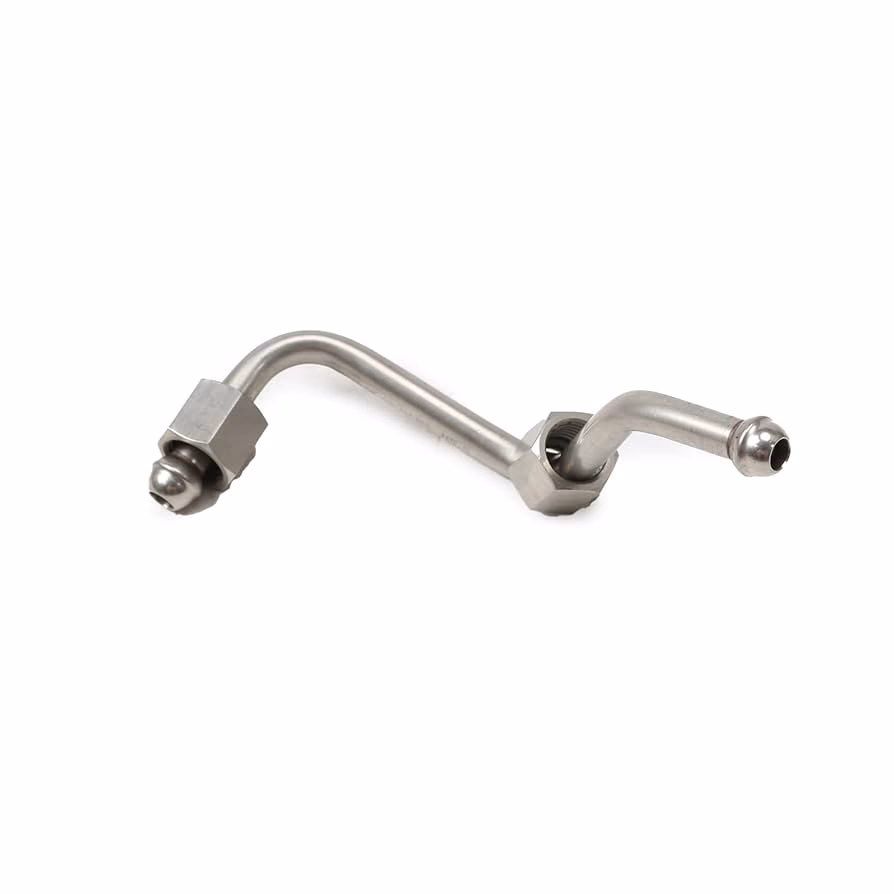

High-pressure diesel fuel injection tubes, often referred to as fuel injection pipes or nozzle tubes, are robust, seamless tubes specifically engineered to transport diesel fuel from the injection pump or common rail to the fuel injectors. The term 'high-pressure' is key here; these components must withstand pressures that can easily exceed 2,000 bar (approximately 29,000 psi) in modern common rail diesel systems. This extreme pressure is necessary to atomise the fuel into a fine spray, allowing for efficient combustion and optimal engine performance.

The construction of these tubes is a testament to precision engineering. They are typically manufactured from high-quality steel, often a fully aluminium killed steel. This specific type of steel is chosen to prevent 'ageing' – a phenomenon that can lead to embrittlement and cracking over time, compromising the tube's integrity under repeated stress. The manufacturing process involves cold drawing and bright annealing the seamless tubes. This process, carried out above the upper critical transformation temperature, results in a scale-free, bright, soft, and ductile product. Crucially, the internal surface roughness is meticulously controlled, often well below 2 microns Ra value, ensuring unimpeded fuel flow and preventing any potential blockage or degradation of fuel atomisation.

The Crucial Role in Diesel Engine Performance

The function of these tubes is directly linked to the overall performance of a diesel engine. They are not merely conduits; they are precision instruments:

• Fuel Delivery: They ensure that fuel reaches the injectors at the correct pressure and volume, precisely when needed.
• Atomisation: The high pressure maintained by these tubes, along with the injector nozzle, is what breaks the diesel fuel into a fine mist. This fine mist is essential for complete and efficient combustion.
• Engine Power and Efficiency: Consistent and accurate fuel delivery directly impacts the engine's power output and its fuel economy. Any compromise in the integrity or flow characteristics of the injection tubes can lead to reduced performance and increased fuel consumption.
• Emissions Control: Proper fuel atomisation and combustion are vital for minimising harmful emissions. Well-functioning injection tubes contribute to cleaner burning diesel fuel.
• Durability: Under constant high pressure and vibration, the tubes must maintain their structural integrity to prevent leaks or failures, which could have severe consequences for the engine.

Applications Across Industries

The demand for high-pressure diesel fuel injection tubes is substantial, driven by their critical role in a wide array of diesel-powered applications:

• Automobiles: From light commercial vehicles to heavy-duty trucks, modern diesel cars and lorries rely on these tubes for their fuel injection systems.
• Construction Equipment: Excavators, bulldozers, cranes, and other heavy machinery often utilise diesel engines that require robust and reliable fuel injection systems, including high-pressure tubes.
• Agricultural Machinery: Tractors, harvesters, and other farm equipment depend on the efficient operation of diesel engines, making these tubes essential.
• Marine Engines: Diesel engines powering boats and ships also utilise these critical fuel delivery components.
• Generators: Diesel generators, used for backup power or primary energy sources in various settings, incorporate these tubes in their fuel systems.

Manufacturers of these engines and their ancillary components rely on suppliers who can meet stringent quality requirements and substantial volume demands. The ability to cater to major vehicle and diesel engine manufacturers, along with their supply chain partners, highlights the importance of these specialized components.

The Manufacturing Process: A Closer Look

The production of high-quality fuel injection tubes is a complex, multi-stage process that demands precision at every step. Leading manufacturers often emphasize the following aspects:

The Importance of Specific Requirements

Customers often have highly specific requirements that go beyond standard specifications. These can include:

• Tight Tolerances: Extremely precise dimensional accuracy is often required.
• Specific Lengths: Tubes may need to be cut to exact lengths for specific engine layouts.
• Material Properties: Variations in carbon equivalent, corrosion resistance, or density might be specified.
• Technical Delivery Conditions (TDC): Detailed documentation outlining the manufacturing and testing standards applied.
• Certifications: Materials supplied must often be from manufacturers certified to ISO and PED (Pressure Equipment Directive) or CE standards, with documentation like Certificates 3.1 or 3.2 as per EN 10204.

Reputable suppliers can offer technical advice on product specifications and identify value-creating solutions to meet these diverse needs. They may also provide additional services such as shot blasting, coating, or varnishing, along with various packing options (loose or bundled).

Advanced Capabilities: Bending, Autofrettage, and Assembly

Some manufacturers, like Dynamic Tube, have developed advanced capabilities specifically for producing diesel fuel injection lines. These include:

• Mandrel Bending: Allows for precise bending of tubes without collapsing the internal diameter, maintaining fuel flow integrity. This can include multiple radius bends on a single line.
• Pipe Welding and Brazing: For creating complex assemblies or attaching specific fittings.
• Light Assembly: Grouping several parts together, installing clamps or brackets to create complete fuel assemblies.
• Auto-Frettage: A process where the tube is subjected to extremely high internal pressure (up to 140,000 PSI). This pre-stresses the material, significantly enhancing its strength and fatigue resistance, making it more robust under operational pressures.
• Rigorous Cleaning and Inspection: Ensuring absolute cleanliness is paramount in fuel systems. Parts undergo automated flushing and inspection to meet stringent clean specifications.

These advanced capabilities, often backed by ISO 9001:2015 quality assurance, ensure that the final product is not only dimensionally accurate but also possesses superior mechanical properties and is free from contaminants.

Sourcing and Supply Chain Considerations

When sourcing high-pressure diesel fuel injection tubes, reliability and consistent quality are key. A strong supplier base, both domestic and international, is crucial for meeting customer demand promptly and at competitive prices. This often involves maintaining stock for fast delivery and having the capacity for 'make-to-order' production to offer competitive pricing.

Companies that act as global steel distributors and agents for manufacturing mills play a vital role. They leverage their strong supplier networks, technical expertise, and integrated teams to provide an efficient and competitive supply chain. Their commitment to continuous upgrading and a solid customer focus aims to deliver excellent value, top-quality products, and outstanding service.

Frequently Asked Questions (FAQs)

Q1: Why is the internal surface roughness of fuel injection tubes so important?
A1: A smooth internal surface (low Ra value) ensures optimal fuel flow, prevents premature wear on injector components, reduces the risk of cavitation, and contributes to precise fuel atomisation, all critical for engine performance and longevity.

Q2: What is 'ageing' in steel, and why is it a concern for fuel injection tubes?
A2: Ageing in steel refers to a gradual increase in hardness and decrease in ductility over time, particularly at elevated temperatures. For fuel injection tubes, this can lead to embrittlement and susceptibility to cracking under the high pressures and vibrations they experience.

Q3: Can I use standard steel tubing for high-pressure diesel fuel injection?
A3: No, standard steel tubing is not designed to withstand the extreme pressures and operational stresses of a diesel fuel injection system. Specialised, seamless tubes made from specific steel grades with controlled properties are required to ensure safety and reliable performance.

Q4: What does 'cold drawn' mean in the context of tube manufacturing?
A4: Cold drawing is a process where steel tubing is pulled through a die at room temperature. This process improves the material's mechanical properties, such as strength and toughness, and results in a very smooth internal and external surface finish and precise dimensional control.

Q5: How is the quality of high-pressure diesel fuel injection tubes assured?
A5: Quality assurance involves rigorous control over raw materials, precise manufacturing processes (like cold drawing and annealing), strict adherence to dimensional and surface finish specifications, and comprehensive testing (e.g., dimensional checks, pressure tests, material analysis). Certifications like ISO 9001:2015 are also crucial indicators of a manufacturer's commitment to quality.

Conclusion

High-pressure diesel fuel injection tubes are indispensable components in the vast majority of diesel engines. Their robust construction, precise manufacturing, and adherence to stringent quality standards are fundamental to ensuring optimal engine performance, fuel efficiency, and emissions control. Whether in a passenger car, a heavy-duty truck, or industrial machinery, these tubes are the unsung heroes that enable the power and reliability diesel engines are known for. For engine manufacturers and operators, understanding the critical nature of these components and partnering with reputable, quality-focused suppliers is essential for maintaining the integrity and efficiency of their diesel powerplants.
