High Performance Fuel Injectors: The Ultimate Guide

Understanding High Performance Fuel Injectors

When you're looking to squeeze every last drop of performance out of your vehicle, upgrading your fuel injectors is often a critical step. These small but mighty components play a vital role in your engine's operation, dictating how much fuel is delivered to the combustion chamber and when. High-performance fuel injectors are engineered to deliver more fuel, more precisely, and often at higher pressures, leading to significant improvements in power, throttle response, and overall engine efficiency.

This guide will delve into what makes a fuel injector 'high performance', explore the key specifications you need to consider, and help you understand how to choose the right ones for your specific needs. We'll cover everything from flow rates and resistance to different injector styles and the benefits they offer.

What Exactly Are High Performance Fuel Injectors?

At their core, fuel injectors are sophisticated electro-mechanical valves. They receive a signal from your engine's control unit (ECU) and, in response, spray a precisely measured amount of atomised fuel into the intake manifold or directly into the combustion chamber. High-performance injectors are essentially uprated versions of standard injectors, designed to handle increased fuel demands typically associated with:

• Engine Tuning and Modifications: When an engine is tuned for more power (e.g., turbocharging, supercharging, camshaft upgrades), it requires more fuel to maintain the correct air-fuel ratio.
• Racing Applications: Competition vehicles often operate at higher RPMs and under more extreme conditions, necessitating a greater fuel supply.
• Performance Enhancement: Even without major modifications, upgrading to higher-flow injectors can provide a noticeable boost in power and responsiveness.

The primary difference lies in their capacity. High-performance injectors are typically rated for a higher flow rate, meaning they can deliver more fuel per unit of time. They are also built to withstand higher fuel pressures and operate reliably under demanding conditions.

Key Specifications: Flow Rate and Resistance

When selecting high-performance fuel injectors, two crucial specifications stand out: flow rate and resistance. Understanding these will help you make an informed decision.

Flow Rate

The flow rate of a fuel injector is a measure of how much fuel it can deliver within a specific timeframe. It's typically measured in two ways:

• Pounds per hour (lbs/hr): This is a common unit of measurement, especially in North America.
• Cubic centimetres per minute (cc/min): This is another widely used metric, particularly in Europe and for more precise tuning.

The relationship between these two units is generally:

1 lb/hr ≈ 10.5 cc/min

Higher flow rates are essential when your engine requires more fuel than stock injectors can provide. For example, if your tuned engine demands 30% more fuel, you'll need injectors with at least a 30% higher flow rate than your stock ones.

Resistance (Impedance)

Fuel injectors are essentially small electromagnetic solenoids. The resistance of this solenoid coil determines how much electrical current is required to open and close the injector. Injectors are generally classified as either low impedance (dead or saturated) or high impedance (peak and hold).

• Low Impedance (2-5 Ohms): These injectors require more current to open and have a faster response time. They typically require an additional ballast resistor or a specialized ECU driver to prevent damage to the ECU.
• High Impedance (9-16 Ohms): These injectors require less current and are generally considered 'safer' for most ECUs as they don't typically require additional resistors. They have a slightly slower response time but are perfectly adequate for most performance applications and are the standard for modern engines.

We exclusively carry high impedance injectors, as they offer a balance of performance, reliability, and compatibility with a wide range of vehicle ECUs without the need for complex wiring modifications.

A Wide Range of High Performance Injectors

We offer a comprehensive selection of high-performance fuel injectors to cater to virtually any performance requirement. Our range includes injectors with flow rates from:

This extensive selection ensures that whether you're building a mild street-performance car or a dedicated track machine, you can find injectors that precisely match your engine's fuel needs.

Popular Injector Styles and Brands

Beyond flow rate and impedance, fuel injectors also come in various physical styles and are produced by reputable manufacturers known for their quality and performance.

Common Injector Styles:

• Bosch: A globally recognised manufacturer, Bosch injectors are known for their reliability and consistent performance. Many aftermarket injectors are designed to be direct replacements for Bosch OE injectors.
• Deka: Often referred to as "Seimens Deka" injectors, these are popular for their high flow rates and robust design, making them a favourite for many performance builds.
• FIC (Fuel Injector Clinic): FIC is a specialist in fuel injector manufacturing and testing, offering high-quality, precisely matched sets for various applications.
• LS Injectors: Specifically designed for General Motors LS engines, these are often upgraded from factory specifications for improved performance.
• Injector Dynamics: A leading name in high-performance fuel injectors, known for their precise matching, extensive testing, and advanced spray patterns.

Injector Cleaning and Servicing:

Even the best fuel injectors can become clogged over time due to fuel deposits. We also offer injector cleaning services, which can restore clogged injectors to their optimal performance, ensuring consistent fuel delivery and improved engine operation. This is a cost-effective alternative to replacement if your injectors are not severely damaged.

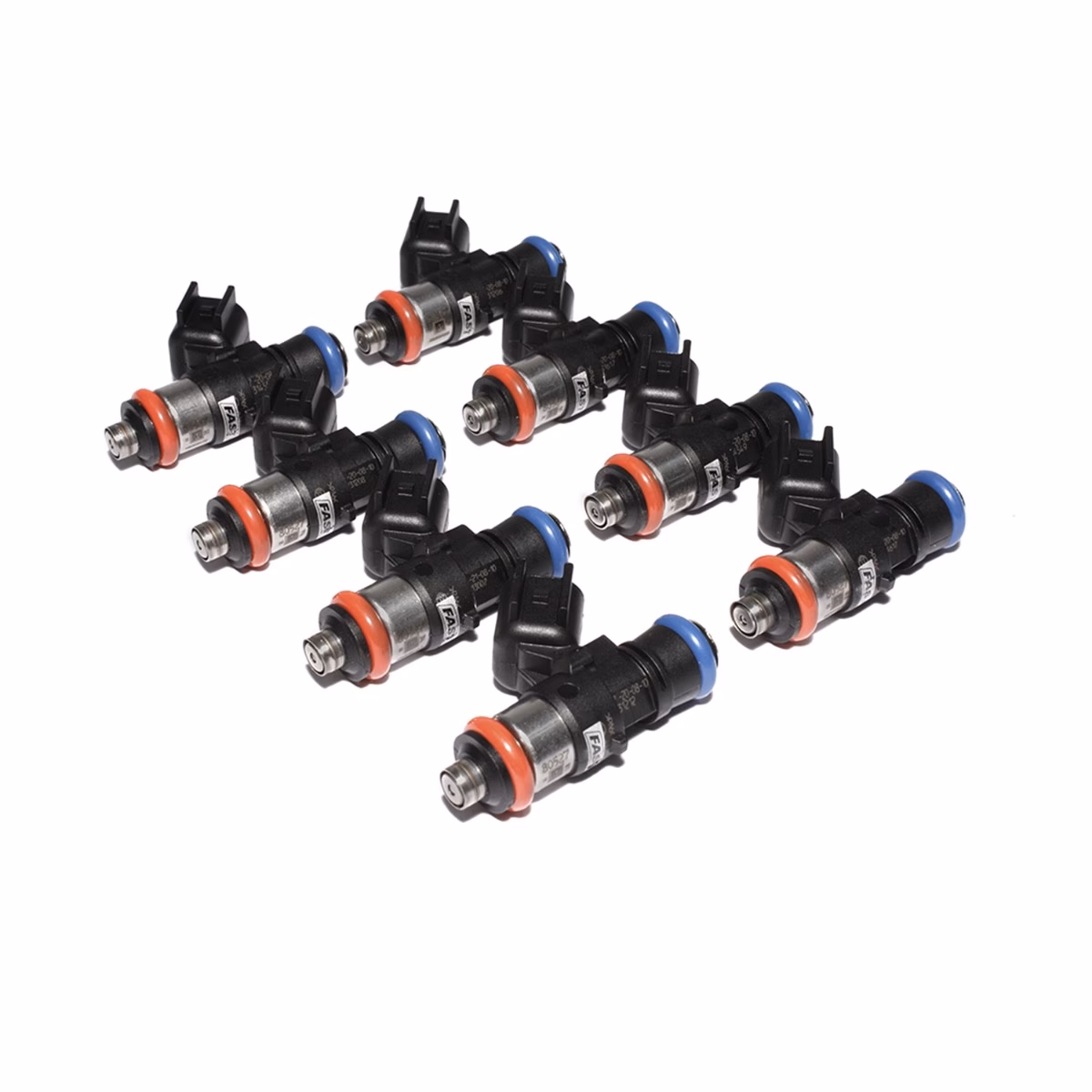

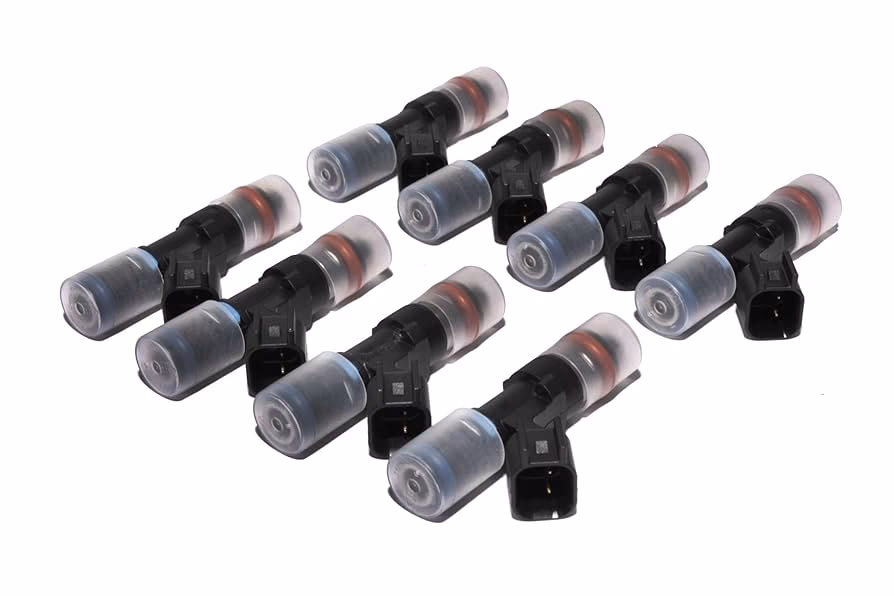

The Impact of High-Pressure Injection on Engine Performance

While the term "high-pressure injection" can refer to several concepts, in the context of modern engines, it often relates to the pressure at which fuel is delivered into the combustion chamber. This is particularly relevant in diesel engines, but the principles of fuel atomisation and air-fuel mixing are universal.

As highlighted in research on diesel engines, increasing fuel injection pressure leads to:

• Finer Atomisation: Higher pressure breaks the fuel into smaller droplets.
• Improved Air-Fuel Mixing: Smaller droplets evaporate and mix with air more effectively.
• More Complete Combustion: Better mixing leads to a more efficient burn.
• Reduced Emissions: Particularly soot (particulate matter) and NOx, due to more controlled combustion.
• Increased Fuel Efficiency: A more complete burn extracts more energy from the fuel.

While gasoline direct injection (GDI) systems also operate at high pressures, the concept of performance injectors for naturally aspirated or forced-induction gasoline engines primarily focuses on increasing the volume of fuel delivered, rather than necessarily the pressure itself (though the system must be capable of maintaining pressure). However, the underlying principle of efficient atomisation and mixing remains key.

Mechanical Hazards and Safety

It's important to note that working with fuel systems, especially high-pressure ones, involves inherent mechanical hazards. These can include:

• Moving Parts: Engines have numerous moving components that can cause entanglement or crushing injuries.
• High-Pressure Fluids: Fuel lines can contain fuel under significant pressure. A rupture or leak can cause high-pressure injection injuries, where fuel penetrates the skin. This is a serious medical emergency and requires immediate attention.
• Sharp Edges and Hot Surfaces: Engine components can be sharp or extremely hot.

Always ensure that you follow proper safety procedures, use appropriate personal protective equipment (PPE) such as safety glasses and gloves, and disconnect the battery before working on the fuel system. If you are unsure about any procedure, it is best to consult a qualified mechanic.

Choosing the Right Injectors for Your Vehicle

Selecting the correct fuel injectors is crucial for optimal performance and engine health. Here’s a simplified approach:

1. Determine Your Fueling Needs: Calculate the required fuel flow based on your engine's power target, air-fuel ratio (AFR) requirements, and injector duty cycle (ideally, you want to operate injectors at no more than 80-85% duty cycle for reliability). Use online fuel injector calculators as a starting point.
2. Consider Injector Style and Fitment: Ensure the injectors you choose are compatible with your vehicle's fuel rail, intake manifold, and ECU. Many performance injectors are designed as direct replacements ('plug and play'), while others may require adapters.
3. Match Impedance: As mentioned, we focus on high impedance injectors, which are generally compatible with most modern ECUs. If your vehicle requires low impedance injectors, consult with a specialist or ensure you have the necessary supporting components.
4. Brand Reputation: Opt for reputable brands like Bosch, Deka, FIC, Injector Dynamics, or others known for quality and accurate flow matching.

Frequently Asked Questions

Q1: Do I need to upgrade my ECU or fuel pump when fitting high-performance injectors?

A1: It depends on the size of the injectors and the extent of your engine modifications. Larger injectors may require the ECU to be re-tuned to correctly meter the fuel. If you're significantly increasing fuel delivery, a higher-capacity fuel pump and potentially upgraded fuel lines might also be necessary to ensure adequate fuel pressure and volume.

Q2: How do I know if my current injectors are insufficient?

A2: Signs of insufficient fuel delivery include a lean air-fuel ratio under load (often indicated by engine knocking or detonation), a significant loss of power, or error codes related to fuel trim or misfires. Data logging during driving can provide definitive AFR readings.

Q3: Can I mix and match injector brands or flow rates?

A3: It is strongly recommended to use a matched set of injectors from the same manufacturer and with the same flow rate. Mismatched injectors can lead to uneven fuel distribution between cylinders, causing poor running, reduced performance, and potential engine damage.

Q4: What is the benefit of injector cleaning?

A4: Injector cleaning can restore clogged injectors to their original flow rate and spray pattern. This improves fuel atomisation, leading to better combustion, increased efficiency, smoother idling, and reduced emissions. It's a cost-effective way to maintain engine performance.

Conclusion

Upgrading to high-performance fuel injectors is a powerful way to enhance your vehicle's capabilities. By understanding the critical specifications like flow rate and impedance, choosing the right style and brand, and always prioritising safety, you can unlock significant improvements in power, responsiveness, and efficiency. Whether you're aiming for track-day dominance or just a more spirited driving experience, the right set of injectors is a cornerstone of any serious performance build.
