Pinpoint Precision: HPCRS Diesel Engine Control

Diesel engines have long been the workhorses of industry, powering everything from heavy machinery to vast marine vessels. Their formidable combination of high thermal efficiency, unwavering reliability, and broad power output makes them indispensable. However, this power comes with an environmental footprint, as diesel engines are known emitters of various pollutants. In response to tightening global environmental regulations, engineers have tirelessly sought innovative solutions to reduce these emissions without sacrificing performance. At the forefront of this technological evolution lies the High Pressure Common Rail System (HPCRS), a sophisticated fuel injection technology that is absolutely crucial for modern diesel engines to meet stringent environmental standards and achieve optimal efficiency. But what makes this system so vital, and why is precise control of its fuel injection such a paramount concern?

The Backbone of Modern Diesel: High Pressure Common Rail Systems

The HPCRS stands as the core technology for energy conservation and emission reduction in contemporary diesel engines. Unlike older, less flexible injection systems, the common rail design allows for unprecedented control over the fuel injection process. Fuel is stored at extremely high pressures in a common rail, ready to be injected into each cylinder at precisely the right moment. This system boasts several key advantages:

• High Injection Pressure: Enabling finer atomisation of fuel, leading to more complete combustion.
• Flexible Injection Timing: The ability to inject fuel precisely when needed, independent of engine speed.
• Multiple Injections: The capacity to deliver several small bursts of fuel within a single combustion cycle.

These features collectively allow for a highly optimised combustion process, which is fundamental to both reducing harmful emissions and maximising fuel economy. The level of control offered by HPCRS is a game-changer, but it also introduces new complexities that demand extraordinary precision.

The Art of Multiple Injections: Precision for Performance and Purity

One of the most significant advancements enabled by HPCRS is the concept of multiple injections within a single combustion cycle. This isn't just a minor improvement; it fundamentally reshapes the in-cylinder combustion process, leading to substantial gains in efficiency and drastic reductions in pollutants. Let's break down the roles of these various injection events:

• Pilot Injection: A small, initial burst of fuel injected before the main event. Its primary role is to preheat the combustion chamber, preparing it for the main injection. This minimises the tendency for harsh, uncontrolled combustion (knocking) and significantly reduces combustion noise, leading to a smoother, more stable combustion process.
• Main Injection: This is the primary fuel delivery, determining the engine's power output and heat release rate. Precise control over the main injection optimises the mixing of fuel and air, leading to higher combustion efficiency. This improved combustion directly translates to reduced generation of Nitrogen Oxides (NOx) and Particulate Matter (PM), two of the most harmful diesel emissions.
• Post Injection: Occurring after the main combustion event, a post injection is typically used to assist in the oxidation of incompletely burned hydrocarbons (HC) and carbon monoxide (CO). By raising the exhaust gas temperature, it enhances the efficiency of exhaust after-treatment devices, such as catalytic converters, further cleaning the exhaust gases before they leave the tailpipe.

Through the strategic sequencing and precise control of these multiple injections, modern diesel engines can achieve a remarkably smooth and even combustion process. This holistic approach not only improves the engine's overall performance and fuel economy but also represents the most advanced and effective technical means for energy saving and emission reduction in diesel powerplants.

The Critical Challenge: Fluctuation and Its Fallout

While the benefits of HPCRS and multiple injections are clear, achieving their full potential hinges on absolutely precise control over every drop of fuel injected. Even minor fluctuations in the fuel injection quantity can have far-reaching negative consequences:

• Decreased Engine Economy: Inconsistent fuel delivery directly impacts fuel consumption, leading to higher running costs.
• Exhaust Temperature Instability: Fluctuations in combustion efficiency cause variations in exhaust gas temperature, which can adversely affect the performance and longevity of exhaust after-treatment devices.
• Reduced Catalyst Conversion Efficiency: After-treatment systems, like Diesel Particulate Filters (DPFs) and Selective Catalytic Reduction (SCR) systems, operate optimally within specific temperature windows. Unstable exhaust temperatures reduce their effectiveness in converting pollutants.
• Increased Pollutant Emissions: Ultimately, any deviation from the ideal injection strategy leads to less efficient combustion and less effective after-treatment, resulting in a direct increase in harmful pollutant emissions.

Therefore, ensuring precise injection control, especially under the dynamic conditions of multiple injections, is not merely desirable; it is a fundamental requirement and a key challenge in the contemporary HPCRS technology landscape.

Navigating Complexity: Why Predicting Injection Quantity is Tough

Achieving real-time precise control necessitates accurate and rapid prediction of fuel injection quantity. This is where significant engineering challenges arise. Traditional simulation models, while highly accurate due to their detailed physical processes, are often too computationally intensive and slow for real-time application within an engine's electronic control unit (ECU). They simply cannot keep pace with the rapid changes occurring within the engine.

The Water Hammer Effect: A Multi-Injection Menace

The complexity escalates dramatically when dealing with multiple injections. Unlike a single, isolated injection event, subsequent injections in a multi-injection sequence are heavily influenced by what came before. The rapid opening and closing of the injector needle valve during a previous injection creates high-frequency pressure waves—known as the water hammer effect. These expansion and compression waves propagate, reflect, and superimpose within the high-pressure fuel pipe of the common rail system.

This dynamic interplay of pressure waves causes significant fluctuations in the injection pressure during subsequent injection stages. Consequently, the actual quantity of fuel injected in these later events can deviate considerably from the intended amount. This phenomenon makes predicting fuel injection quantity under multiple injections far more complicated than under single injection conditions. Existing control strategies, which often rely on open-loop control modes based on pre-established 'MAP diagrams' derived from numerous single-injection experiments, simply do not account for these multi-injection induced pressure fluctuations. This inherent limitation means they struggle to achieve accurate control of subsequent fuel injection volumes.

The table below highlights some key differences in the challenges of managing single versus multiple injection events:

The Quest for Accuracy: Advancements in Control Technology

Recognising the critical need for improved accuracy, particularly in multi-injection scenarios, researchers are turning to advanced computational methods. One promising avenue involves leveraging machine learning and deep learning techniques. These methods excel at processing large-scale, high-dimensional data and can effectively model the complex, non-linear interactions inherent in fuel injection dynamics. By developing sophisticated data-driven models, engineers can achieve rapid and accurate prediction of fuel injection quantities, even under the challenging conditions of multiple injections.

This approach allows for the development of real-time correction methods. Imagine an electronic control unit that can not only predict the ideal injection quantity but also rapidly adjust it on the fly to compensate for the real-world pressure fluctuations caused by the water hammer effect. This adaptive control is vital for maintaining optimal engine performance, ensuring consistent exhaust temperatures for after-treatment systems, and ultimately, significantly reducing pollutant emissions.

Beyond Diesel: Fuel Injection Pressure Advancements

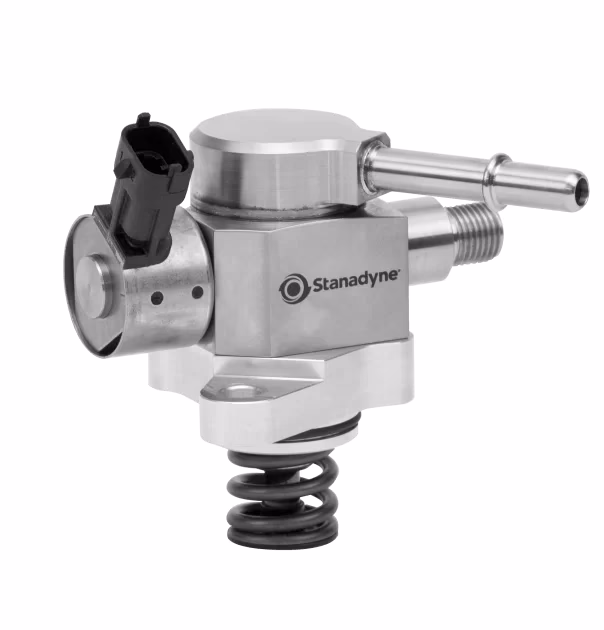

While this article focuses on the intricacies of HPCRS in diesel engines, it's worth noting that the drive for higher injection pressures and finer control is a broader trend across automotive engineering. For instance, in Gasoline Direct Injection (GDi) technology, there's a continuous push for even higher pressures, with systems now developing beyond 500 bar. These advancements aim to achieve similar benefits: improved fuel atomisation, more efficient combustion, and reduced emissions, albeit in a different engine context. These high-pressure solutions are designed to minimise stress on engine components while delivering class-leading performance. It underscores the industry-wide commitment to pushing the boundaries of fuel injection technology for greater efficiency and environmental responsibility.

Why Precision Matters: A Summary

In essence, precise injection control in High Pressure Common Rail Systems is the cornerstone of modern diesel engine efficiency and environmental compliance. It allows for the intricate dance of multiple injection events that optimises combustion, reduces noise, and minimises harmful emissions. Without this microscopic control, the benefits of HPCRS would be severely compromised, leading to increased fuel consumption, unstable after-treatment performance, and higher pollutant output. The ongoing research into advanced prediction and control methodologies, particularly those leveraging data-driven and machine learning approaches, is crucial for unlocking the full potential of these powerful and sophisticated systems.

Frequently Asked Questions (FAQs)

What is the 'water hammer effect' in HPCRS?

The 'water hammer effect' in HPCRS refers to the rapid pressure waves (both expansion and compression) generated within the high-pressure fuel lines. These waves occur when the injector needle valve opens and closes very quickly, especially during multiple injection events. These waves propagate and reflect, causing significant and often unpredictable fluctuations in the fuel pressure available for subsequent injections, making precise control challenging.

Why can't single injection models predict multiple injections accurately?

Single injection models are typically calibrated based on isolated injection events, where the fuel pressure in the common rail is relatively stable. However, during multiple injections, the 'water hammer effect' from previous injections causes dynamic pressure fluctuations that these simpler models don't account for. This means predictions based on single injection data will likely deviate from the actual fuel quantity delivered during complex multi-injection sequences.

How do modern systems aim to achieve greater precision in multiple injections?

Modern systems are increasingly employing advanced computational techniques, such as machine learning and deep learning. These data-driven models can analyse vast amounts of real-world injection data to learn the complex, non-linear relationships between various engine parameters and the actual fuel injection quantity under dynamic conditions. This allows for rapid and accurate prediction, enabling real-time correction of injection quantities to compensate for pressure fluctuations and other variables.

What are the practical benefits of precise injection control for a vehicle owner?

For a vehicle owner, precise injection control translates directly into several tangible benefits: improved fuel economy due to more efficient combustion, reduced exhaust emissions contributing to a cleaner environment, smoother engine operation with less noise and vibration, and potentially longer lifespan for exhaust after-treatment components due to stable operating temperatures. Ultimately, it means a more efficient, cleaner, and pleasant driving experience.

Is HPCRS only for diesel engines?

The term 'Common Rail System' is most commonly associated with diesel engines, where it revolutionised fuel injection. However, the principle of a common, high-pressure fuel reservoir feeding individual injectors is also applied in some modern gasoline engines, particularly those with Gasoline Direct Injection (GDi). While the specifics differ (e.g., fuel type, pressure levels), the core concept of precise, electronically controlled injection is shared across both fuel types.
