Understanding Brake Pad Friction Coefficients

Demystifying Brake Pad Friction Coefficients: A Key to Optimal Braking

When it comes to the critical performance of your vehicle's braking system, the humble brake pad plays an undeniably significant role. While many drivers might overlook the nuances of brake pad technology, understanding the underlying principles, particularly the coefficient of friction (COF), is paramount for ensuring effective stopping power and longevity. This article delves into what high-coefficient brake pads are, the various friction materials available, and how their properties directly impact your braking experience.

What is the Coefficient of Friction (COF)?

At its core, the coefficient of friction is a dimensionless number that quantises the interaction between two surfaces in contact. As explained by W.C. Branham VP of Engineering and General Manager, Chad Randleman, the COF is calculated as the ratio of the resistive force of friction (Fr) to the normal or perpendicular force (N) pressing the objects together. This can be expressed with the simple yet powerful equation: μ = Fr / N.

In layman's terms, the COF tells us how readily one surface will slide against another when pressed together. Consider the intuitive examples provided: a block of ice on steel exhibits very little resistance to movement, indicating a low COF. Conversely, rubber on pavement demonstrates significant resistance, signifying a high COF. This fundamental concept is directly applicable to brake pads, where the friction material on the pad interacts with the brake disc (or drum) to generate the stopping force.

The Spectrum of Friction Coefficients

The range of coefficients of friction can vary significantly depending on the materials involved and whether they are operating in dry or lubricated conditions. In dry environments, most materials typically fall within a COF range of 0.21 to 0.55. While exceptions exist, this range serves as a useful benchmark. A lower COF, such as 0.21, is often suitable for applications requiring minimal tangential force or controlled, constant drag, such as in some tensioning mechanisms. On the other hand, high-coefficient materials are highly desirable for static holding applications where the primary goal is to maximise the braking force and prevent any unwanted movement.

Friction Material Options for Disc Brakes

The selection of friction material for your brake pads is a crucial decision that directly influences performance characteristics such as wear rate, the coefficient of friction, and the material's energy capacity. The three primary categories of friction materials commonly found in caliper disc brakes are:

1. Organic Brake Pads

Often referred to as Non-Asbestos Organic (NAO) pads, these are typically made from a blend of fibres (such as fibreglass, aramid, or carbon), fillers, and bonding agents.

Pros:

• Generally quieter operation.
• Tend to be gentler on brake discs, leading to less disc wear.
• More affordable than other types.
• Good initial bite and feel in moderate conditions.

Cons:

• Lower energy capacity, meaning they can fade more quickly under heavy braking or high temperatures.
• Higher wear rate compared to semi-metallic or sintered pads, requiring more frequent replacement.
• Can produce more dust.

2. Semi-Metallic Brake Pads

These pads incorporate a significant percentage of metallic fibres, such as steel, copper, or iron, mixed with fillers and bonding agents.

Pros:

• Offer a good balance of performance and cost.
• Higher heat resistance and better fade resistance than organic pads.
• More durable and longer-lasting than organic pads.
• Provide a more consistent friction coefficient across a wider temperature range.

Cons:

• Can be noisier than organic pads.
• Tend to produce more dust, which can be more abrasive.
• Can cause slightly more wear on brake discs compared to organic pads.

3. Sintered Metal Brake Pads

These are the most robust option, manufactured by fusing metal powders together under high heat and pressure. They often contain a high percentage of metals like bronze, iron, or copper, along with friction modifiers.

Pros:

• Excellent high-temperature performance and fade resistance, making them ideal for heavy-duty applications, racing, or towing.
• Extremely durable and offer the longest lifespan.
• Provide a very consistent and high coefficient of friction, even under extreme conditions.
• Less affected by water and debris.

Cons:

• Typically the most expensive option.
• Can be significantly noisier than organic or semi-metallic pads.
• Can cause accelerated wear on brake discs due to their hardness.
• May require a bedding-in period to achieve optimal performance.

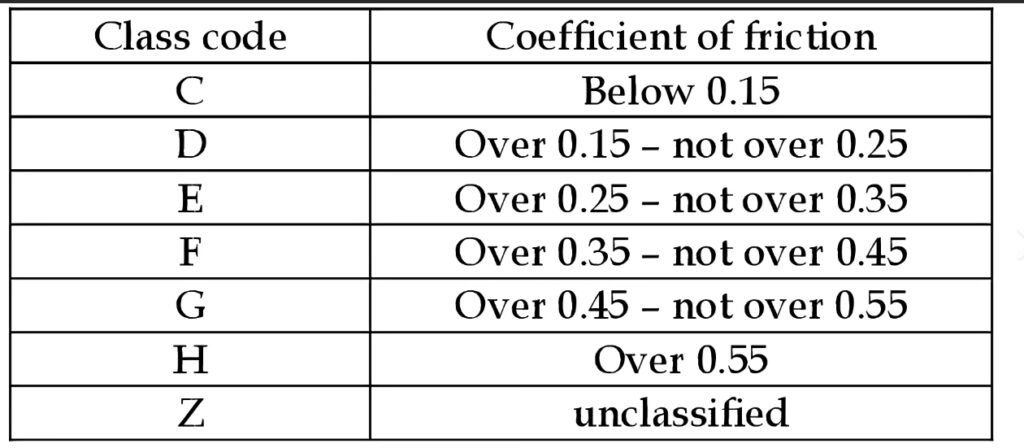

Comparing Friction Material Attributes

To make an informed decision, it's essential to consider how these materials stack up against each other in terms of their key attributes:

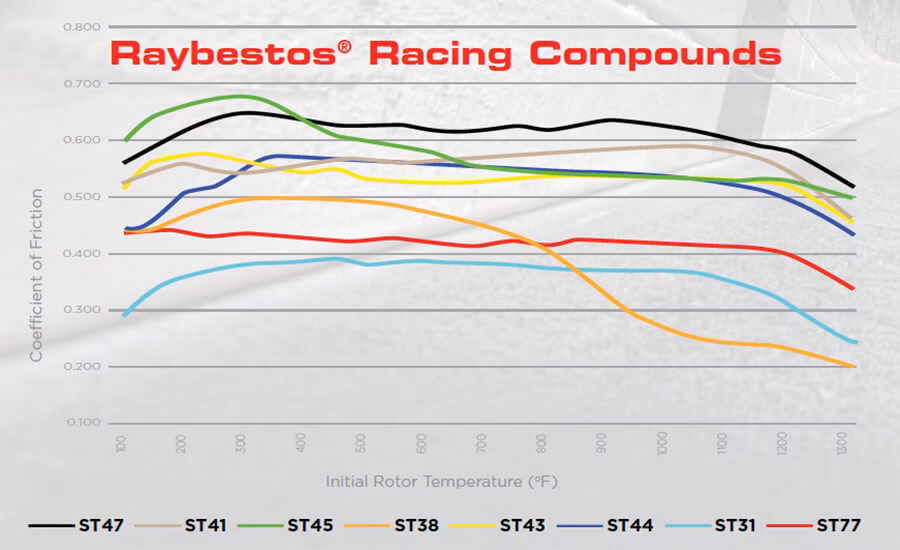

What Does a High Coefficient of Friction Mean for You?

A high coefficient of friction in your brake pads translates directly to enhanced stopping power. When you apply the brakes, a higher COF means that the brake pad material grips the brake disc more effectively, generating greater frictional force. This results in shorter stopping distances and a more confident braking experience, especially in emergency situations. For applications where holding static loads is crucial, such as in industrial machinery or heavy-duty vehicles, a high COF is paramount for safety and stability.

Choosing the Right Brake Pads for Your Application

The 'best' brake pad material isn't a one-size-fits-all answer. The ideal choice depends heavily on your specific needs and the intended use of the vehicle or equipment.

• Everyday Driving: For typical passenger cars and light commercial vehicles, organic or semi-metallic pads often provide a good balance of comfort, performance, and cost.
• Performance Driving / Heavy Duty: If you frequently engage in spirited driving, tow heavy loads, or operate in demanding conditions, semi-metallic or sintered metal pads will offer superior heat resistance and durability.
• Industrial Machinery: Applications requiring consistent holding force and high energy dissipation often benefit from the robust performance of sintered metal pads.

It is always advisable to consider the energy dissipation required for your specific application. Over-specifying with a high-performance material when not needed can lead to unnecessary noise, increased disc wear, and higher costs. Conversely, under-specifying can compromise safety and lead to premature component failure.

Frequently Asked Questions (FAQs)

Q1: What is a 'high-coefficient' brake pad?

A high-coefficient brake pad is one made from friction materials that exhibit a strong grip against the brake disc, meaning they have a higher coefficient of friction (COF). This results in more effective braking force and better holding capabilities.

Q2: Which type of brake pad is best for everyday driving?

For most everyday driving scenarios, organic or semi-metallic brake pads are typically recommended. They offer a good compromise between comfort, performance, and longevity without being overly aggressive on the brake discs or excessively noisy.

Q3: Can high-coefficient brake pads cause more wear on my brake discs?

Yes, materials with a higher coefficient of friction, particularly sintered metal pads due to their hardness, can potentially cause accelerated wear on brake discs compared to softer organic compounds. However, this is often a trade-off for increased stopping power and durability.

Q4: How do I know which friction material is right for my needs?

Consider your typical driving conditions, the weight of your vehicle or load, and your performance expectations. If you're unsure, consulting with a qualified mechanic or referring to your vehicle's manufacturer specifications is highly recommended.

Conclusion

Understanding the coefficient of friction and the various friction materials available for brake pads is crucial for making informed maintenance and upgrade decisions. Whether you prioritise quiet operation, longevity, or maximum stopping power, there is a brake pad material designed to meet your needs. By carefully considering the attributes of organic, semi-metallic, and sintered metal pads, you can ensure your braking system performs optimally, providing the safety and reliability you depend on.
