High CO Emissions: Decoding Your MOT Failure

A failed MOT can be incredibly frustrating, especially when it's down to something as specific as high carbon monoxide (CO) emissions. You've done your best, perhaps even invested in new components, yet the numbers just aren't adding up. Understanding what high CO means, why it happens, and how to fix it is crucial for getting your vehicle back on the road and ensuring it meets environmental standards. This isn't just about passing a test; it's about your car's health and its impact on the air we breathe.

When your MOT tester informs you that your vehicle has failed due to excessive CO, it indicates an issue with the combustion process or the exhaust gas treatment system. Carbon monoxide is a byproduct of incomplete combustion, meaning your engine isn't burning fuel as efficiently as it should. It's a colourless, odourless, and highly toxic gas, which is why strict limits are imposed on vehicle emissions. Let's delve deeper into what these high readings signify and the common culprits behind them.

Understanding Carbon Monoxide (CO) Emissions

Carbon monoxide (CO) is formed when there isn't enough oxygen to fully burn the carbon in the fuel during the combustion process. Instead of producing harmless carbon dioxide (CO2), the engine creates CO. In a properly functioning engine, especially one fitted with a catalytic converter, CO levels should be very low. An MOT test for petrol vehicles typically checks CO at both 'fast idle' (around 2,500-3,000 rpm) and 'natural idle' (engine's normal idling speed).

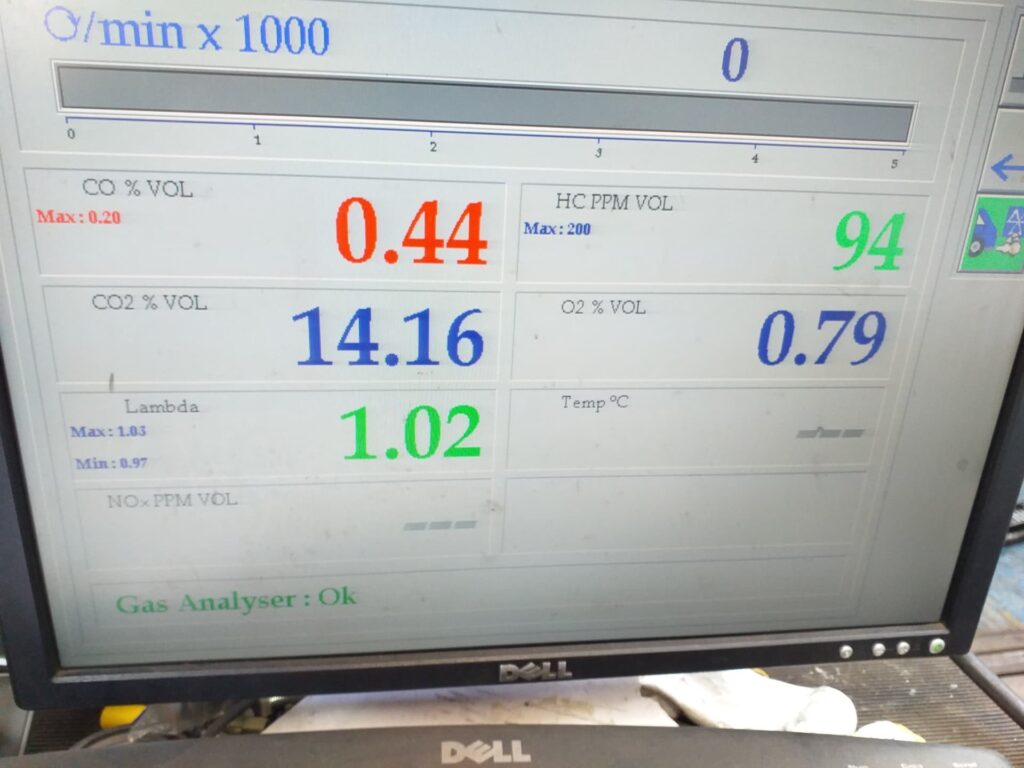

For modern vehicles (generally those registered after 1 August 1992), the MOT CO limit at fast idle is usually 0.2% and at natural idle, 0.3%. However, specific limits can vary depending on the exact make, model, and year of manufacture, as detailed in the Department for Transport (DOT) database or emissions handbook that MOT testers consult. The 0.3% limit you encountered is a common standard for many contemporary petrol engines. Your readings of 0.44% and 0.45% clearly exceed this, indicating a problem that needs immediate attention.

Why High CO is a Problem

• MOT Failure: This is the most immediate consequence, preventing your vehicle from being legally driven on UK roads.
• Environmental Impact: CO is a potent greenhouse gas and contributes to air pollution, impacting human health and the environment.
• Fuel Inefficiency: High CO often signifies a rich fuel mixture, meaning your engine is burning more fuel than necessary, leading to increased running costs.
• Engine Damage: While not always direct, persistently rich mixtures can lead to carbon build-up, spark plug fouling, and premature catalytic converter failure, potentially causing more significant engine issues over time.

Common Causes of Excessive CO Emissions

Identifying the root cause of high CO can sometimes feel like detective work, but focusing on the systems directly involved in combustion and emissions control will narrow down the possibilities. Here are the primary culprits:

1. Rich Fuel Mixture

This is perhaps the most common reason for high CO. A rich mixture means there's too much fuel for the amount of air entering the engine. Your engine's ECU (Engine Control Unit) relies on various sensors to determine the correct air-fuel ratio (AFR). If any of these sensors provide inaccurate readings, the ECU might mistakenly enrich the mixture.

• Faulty Oxygen (O2) Sensor: Even new O2 sensors can be faulty, incorrect for the application, or not heating up properly. A malfunctioning O2 sensor might incorrectly report a lean condition, causing the ECU to add more fuel.
• Leaking Fuel Injectors: Injectors that are stuck open or leaking will continuously spray fuel into the cylinder, leading to an overly rich mixture.
• Faulty Engine Coolant Temperature (ECT) Sensor: If this sensor falsely reports a cold engine, the ECU will apply 'cold start enrichment' even when the engine is warm, resulting in excess fuel.
• High Fuel Pressure: An issue with the fuel pressure regulator can cause too much fuel to be delivered to the injectors.
• Blocked Air Filter: A restricted air filter limits the amount of air entering the engine, effectively making the mixture rich.
• Mass Air Flow (MAF) Sensor Issues: A dirty or faulty MAF sensor can incorrectly measure the incoming air, leading to the ECU miscalculating fuel delivery.
• ECU Mapping Issues: If your car has been remapped, especially for performance, the tune might be overly rich for emissions compliance, particularly at idle or light load.

2. Inefficient Catalytic Converter

The catalytic converter is designed to convert harmful gases like CO into less harmful ones (CO2). If the cat isn't working efficiently, it won't be able to process the CO effectively, leading to high readings.

• Damaged or Contaminated Catalytic Converter: Over time, cats can become clogged with carbon deposits, contaminated by oil or antifreeze, or suffer internal structural damage, reducing their efficiency.
• Incorrect Catalytic Converter: This is a highly relevant point for your situation. Aftermarket 'performance' catalytic converters, such as your 200-cell units, have fewer cells per inch than standard OEM (typically 400-cell or higher). While this reduces exhaust backpressure and can boost power, it significantly compromises their ability to convert emissions. A 200-cell cat simply offers less surface area for the chemical reactions to occur, making it much less effective at reducing CO, especially at idle, compared to a higher cell count OEM unit.
• Insufficient Operating Temperature: The catalytic converter needs to reach a high operating temperature (several hundred degrees Celsius) to function efficiently. Short journeys or a faulty thermostat can prevent it from getting hot enough.

3. Ignition System Problems

A weak or inconsistent spark can lead to incomplete combustion, directly resulting in higher CO emissions.

• Worn or Incorrect Spark Plugs: Old, fouled, or improperly gapped spark plugs can cause misfires or incomplete burning of the fuel.
• Faulty Ignition Coils or Leads: Issues with these components can lead to a weak spark.
• Incorrect Ignition Timing: If the ignition timing is off, combustion will be inefficient.

4. Exhaust Leaks (Post-Lambda Sensor)

While an exhaust leak *before* the oxygen sensor can lead to a lean reading and thus a rich mixture, a leak *after* the lambda sensor (but before the cat or even post-cat) can draw in ambient air, which, while not directly causing high CO, can affect the efficiency of the cat by altering exhaust gas flow or temperature. However, for a direct CO failure, a rich mixture or inefficient cat is usually the primary suspect.

Troubleshooting High CO: A Step-by-Step Approach

Given your situation, with new O2 sensors, exhaust, and 200-cell cats, the focus needs to be on validating these new components and scrutinising the fuel system and engine management.

1. Verify Engine Management System (ECU) Data

Hooking up to EFILive is an excellent step. Pay close attention to:

• Fault Codes: Even if the check engine light isn't on, pending or historical codes can offer clues.
• Fuel Trims (Short Term Fuel Trim - STFT & Long Term Fuel Trim - LTFT): These values indicate how much the ECU is adding or subtracting fuel to maintain the ideal AFR. Positive trims mean the ECU is adding fuel (indicating a lean condition), while negative trims mean it's removing fuel (indicating a rich condition). Consistently negative fuel trims, especially at idle, would strongly suggest an over-fuelling issue.
• Oxygen Sensor Readings: Monitor the O2 sensor voltages. For a healthy engine in closed-loop operation, the voltage should fluctuate rapidly between approximately 0.1V (lean) and 0.9V (rich). If the voltage is consistently high (e.g., above 0.8V), it indicates a rich condition. Ensure both pre-cat O2 sensors are switching correctly and that the post-cat O2 sensor shows a relatively steady, higher voltage, indicating the cat is working. If it mirrors the pre-cat sensor, the cat is likely ineffective.
• Engine Coolant Temperature (ECT) Sensor Reading: Ensure it's reporting accurate engine temperature.
• MAF Sensor Readings: Check if the MAF is reporting plausible airflow values at idle and under load.

2. Evaluate the Catalytic Converter's Efficiency

This is a critical area for your LS1 engine with 200-cell cats. While they might reduce backpressure, they are inherently less efficient at emissions reduction than the OEM 400-cell units. The MOT test is quite stringent, and these cats might simply not be capable of meeting the required conversion rates, especially for CO at idle. The lower cell count means less surface area for the chemical reaction to occur, leading to a higher percentage of unburnt CO passing through.

You might need to consider temporarily fitting higher cell count catalytic converters (e.g., 400-cell) for the MOT, or even the factory OEM units if you still have them, to pass the emissions test. While performance cats are great for power, they often fall short on emissions compliance.

3. Inspect Fuel System Components

• Fuel Pressure: Verify fuel pressure is within factory specifications.
• Injector Health: While more difficult without specialised equipment, a professional could check injector spray patterns and flow rates.

4. Check Ignition Components

• Spark Plugs: Even if relatively new, pull them out and inspect their condition. Fouling or incorrect gapping can impact combustion.
• Ignition Coils: Look for signs of damage or arcing.

5. Air Intake System

• Air Filter: Ensure it's clean and unobstructed.

6. Driving Cycle Before Test

Ensure the engine and catalytic converter are thoroughly warm before the re-test. A good 20-30 minute drive at varying speeds, including some motorway driving, helps to get the cat up to optimal operating temperature and burn off any deposits. The RedX fuel system cleaner is a good idea for clearing minor injector or fuel system deposits, and the 200-mile drive should certainly help warm everything up, but it's unlikely to rectify a fundamental issue like an inefficient catalytic converter or a significant over-fuelling problem.

Specific Considerations for LS1 Engines and Aftermarket Components

LS1 engines are robust, but when combined with aftermarket modifications, they can present unique challenges for MOT emissions. Your 200-cell cats are the most likely primary suspect for high CO in your scenario. While they are technically catalytic converters, their lower cell density means they provide less conversion efficiency than the original equipment. The MOT tester's 0.3% limit is a standard target for modern petrol engines, and your 200-cell cats may simply not be capable of achieving this stringent level of CO reduction.

Your EFILive check is crucial. Pay particular attention to your fuel trims and O2 sensor readings. If the car is running in an open-loop state at idle or during the fast idle test (which can happen if certain parameters aren't met or if the tune forces it), the ECU won't be using the O2 sensor feedback to adjust the fuel mixture, potentially leading to a fixed, rich condition. Ensure your tune allows for proper closed-loop operation at idle and during the fast idle test.

Frequently Asked Questions (FAQs)

Q: Can a cheap fuel cleaner fix high CO?

A: Fuel system cleaners like RedX can help with minor deposits on injectors and in the fuel system, potentially improving fuel atomisation and combustion. However, they are unlikely to fix a significant underlying issue like an inefficient catalytic converter or a major sensor failure causing a rich mixture. They are more of a preventative or minor corrective measure.

Q: Does engine temperature affect CO emissions?

A: Absolutely. A cold engine runs on a richer fuel mixture to aid starting and warm-up, producing higher CO. The catalytic converter also needs to be at its optimal operating temperature (typically 400-800°C) to efficiently convert CO. Driving the car for a good period (at least 20-30 minutes, including some higher speed driving) before the MOT test is crucial to ensure everything is up to temperature.

Q: What's the difference between CO and HC emissions?

A: CO (Carbon Monoxide) results from incomplete combustion due to insufficient oxygen. HC (Hydrocarbons) are unburnt fuel, indicating misfires, poor combustion, or issues with valve seals/piston rings. While both point to inefficient combustion, their specific causes can differ. High CO often points to a rich mixture, whereas high HC can indicate misfires or mechanical wear.

Q: How long should I drive before an MOT emissions test?

A: A minimum of 20-30 minutes of varied driving, including some time at motorway speeds, is recommended. This ensures the engine is fully warmed up, and crucially, that the catalytic converter has reached its optimal operating temperature, allowing it to work at peak efficiency during the test.

Q: Are aftermarket catalytic converters legal for MOT?

A: Yes, aftermarket catalytic converters are legal for MOT, provided they meet the required emissions standards for the specific vehicle. The challenge with 'performance' cats (like your 200-cell units) is that while they are technically catalytic converters, their reduced cell count often means they cannot achieve the same level of emissions reduction as OEM units, particularly for CO, making it difficult to pass the MOT. It's not about being 'legal' in principle, but about meeting the specific emissions limits.

Q: What are 'fuel trims' and how do they relate to CO?

A: Fuel trims are adjustments the ECU makes to the fuel delivery based on feedback from the oxygen sensors to maintain the ideal air-fuel ratio. Short Term Fuel Trim (STFT) are immediate adjustments, while Long Term Fuel Trim (LTFT) are learned, cumulative adjustments. If the fuel trims are consistently negative (e.g., -10% or more), it means the ECU is trying to remove fuel because it's detecting an overly rich condition. This rich condition is a primary cause of high CO emissions.

Conclusion

A high CO MOT failure can seem daunting, but by systematically approaching the issue, you can diagnose and rectify the problem. Given your specific setup with 200-cell catalytic converters, this is a very strong candidate for the cause of your high CO readings. While they offer performance benefits, they often struggle to meet stringent MOT emissions standards compared to higher cell count OEM units. Combining this with a thorough EFILive diagnostic to ensure your fuel trims are healthy and your O2 sensors are functioning correctly will give you the best chance of passing your re-test. Remember, a healthy engine is not just about power, but also about efficiency and environmental responsibility.
