HEUI Injectors: The Powerhouse of Modern Diesel

The realm of diesel engine technology has seen numerous advancements over the years, each aiming to improve performance, efficiency, and emissions. Among these innovations, the Hydraulic Electronic Unit Injector (HEUI) system stands out as a particularly significant development. Unlike conventional fuel injection systems that rely on a separate high-pressure fuel pump and injectors, the HEUI system integrates these functions into a single unit, driven by the engine's high-pressure oil. This ingenious design allows for precise control over fuel delivery, leading to enhanced combustion and a host of other benefits for modern diesel engines.

Understanding the HEUI System

At its core, a HEUI system represents a shift in how diesel fuel is delivered into the combustion chamber. Traditional systems often use a camshaft-driven injection pump to generate high fuel pressure, which is then distributed to individual injectors. The HEUI, however, revolutionises this by using the engine's own lubricating oil, pressurised to extremely high levels by a dedicated high-pressure oil pump (HPOP), to actuate the fuel injection process. This hydraulic pressure, coupled with precise electronic control signals from the Engine Control Module (ECM), allows for unparalleled control over the timing, duration, and quantity of fuel injected.

Key Components of a HEUI System

To fully appreciate the sophistication of HEUI technology, it's crucial to understand its constituent parts. The system is a carefully orchestrated interplay of several critical components:

• The HEUI Injector: This is the heart of the system. It's a self-contained unit that houses both the fuel injection mechanism and the hydraulic actuation system. When high-pressure oil enters the injector, it moves a plunger that, in turn, pressurises the diesel fuel. The ECM then electronically signals the injector to open and spray fuel into the cylinder at the precise moment required for optimal combustion.
• High-Pressure Oil Pump (HPOP): This specialised pump is responsible for generating the immense hydraulic pressure needed to operate the HEUI injectors. It draws oil from the engine's lubrication system and boosts its pressure significantly before sending it to the injectors. The HPOP is a vital component, as its output directly dictates the maximum injection pressure achievable.
• Fuel Pump: While the HEUI system uses oil pressure for actuation, a conventional low-pressure fuel pump is still required to supply diesel fuel to the injectors. This pump ensures a steady and adequate supply of fuel to be pressurised by the HEUI injector itself.
• Engine Control Module (ECM): The 'brain' of the operation. The ECM receives data from various sensors around the engine (such as engine speed, load, temperature, and manifold pressure) and uses this information to precisely control the timing and duration of fuel injection by sending electronic signals to each HEUI injector. This electronic control is what gives the HEUI system its remarkable flexibility and responsiveness.
• Oil Manifold: A network of passages that distributes the high-pressure oil from the HPOP to each HEUI injector.
• Fuel Rail: Similar to other injection systems, a fuel rail ensures a consistent supply of fuel to the injectors.

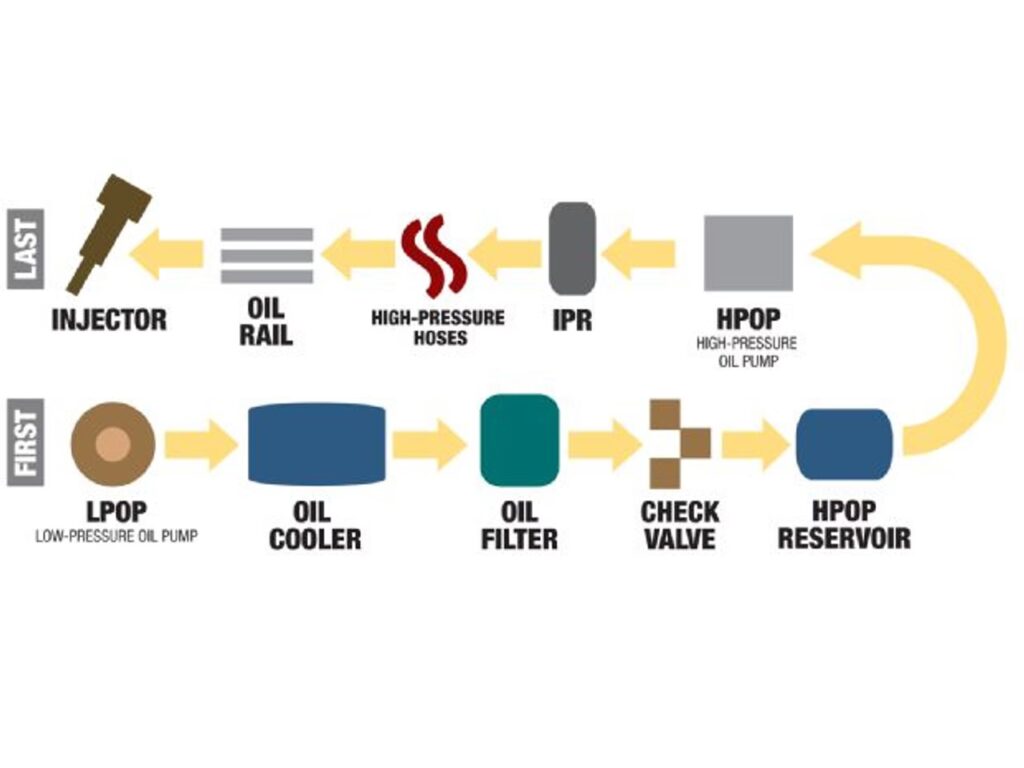

How HEUI Injectors Work: A Step-by-Step Breakdown

The operation of a HEUI injector is a marvel of engineering. Let's break down the process:

1. Oil Pressurisation: The HPOP draws engine oil and pressurises it to a very high level, typically ranging from 500 to 4,500 psi (or even higher in some applications).
2. Oil Delivery: This high-pressure oil is then routed through the oil manifold to each HEUI injector.
3. Electronic Signal: The ECM, based on engine operating conditions, sends an electrical signal to the solenoid on the HEUI injector.
4. Actuation: The electrical signal energises the solenoid, which opens a valve allowing the high-pressure oil to enter the injector's high-pressure pumping section.
5. Fuel Pressurisation: The incoming high-pressure oil acts on a plunger (or multiple plungers) within the injector. This plunger then pressurises the diesel fuel that has been supplied to the injector. The amount of oil that enters the injector and the duration for which it acts determines the fuel pressure and the amount of fuel injected.
6. Fuel Injection: Once the fuel pressure exceeds the opening pressure of the injector nozzle, the nozzle opens, and the atomised fuel is sprayed into the combustion chamber.
7. De-energisation and Return: When the ECM de-energises the solenoid, the oil passage closes. The internal springs and the return flow of oil relieve the pressure within the injector, allowing the plunger to return to its initial position, ready for the next injection cycle.

Advantages of HEUI Systems

The HEUI system offers several significant advantages over older fuel injection technologies:

• Precise Fuel Control: The electronic control allows for highly accurate management of fuel injection timing, duration, and pressure. This leads to more efficient combustion, reducing fuel consumption and exhaust emissions.
• Higher Injection Pressures: HEUI systems can achieve very high injection pressures, which are essential for good atomisation of diesel fuel and efficient combustion, especially in modern, high-performance diesel engines.
• Improved Performance: The precise control over fuel delivery translates into better engine response, increased power output, and smoother operation.
• Reduced Engine Noise: By optimising injection timing and pressure, HEUI systems can help to reduce the characteristic diesel knock, leading to a quieter engine.
• No High-Pressure Fuel Pump Drive: Unlike mechanical systems that require a dedicated drive for the high-pressure fuel pump, the HEUI relies on the engine's oil pressure, simplifying the engine's mechanical design.
• Excellent Cold Starting: The ability to precisely control injection timing and pressure can significantly improve cold-starting capabilities.

Potential Disadvantages and Maintenance Considerations

While HEUI systems are highly advanced, they also come with their own set of considerations:

• Complexity: The integration of hydraulic and electronic components makes HEUI injectors complex pieces of machinery.
• Sensitivity to Oil Quality: As the system relies on engine oil for actuation, the quality and condition of the engine oil are paramount. Contaminated or degraded oil can lead to premature wear and failure of the HPOP and injectors. Regular oil and filter changes are crucial.
• Cost of Repair: Due to their complexity, repairs or replacements of HEUI injectors and associated components can be more expensive than those for simpler injection systems.
• HPOP Reliability: The high-pressure oil pump is a critical component. If it fails, the entire HEUI system will cease to function.

HEUI vs. Common Rail: A Comparison

It's useful to compare HEUI systems with another prominent modern diesel injection technology: Common Rail. Both aim for precise fuel delivery, but their methodologies differ:

Frequently Asked Questions (FAQs)

Q1: What are the signs of a failing HEUI injector?

Signs of a failing HEUI injector can include rough idling, loss of power, increased fuel consumption, excessive smoke from the exhaust, and the illumination of the "check engine" light. You might also notice a significant drop in oil pressure if the HPOP is failing.

Q2: Can HEUI injectors be rebuilt?

Yes, HEUI injectors can be rebuilt by specialised shops. However, this requires specific knowledge, tools, and precision to ensure they function correctly after the rebuild.

Q3: What is the importance of engine oil in a HEUI system?

Engine oil is absolutely critical. It's not just for lubrication; it's the hydraulic fluid that powers the entire injection process. Any compromise in oil quality, pressure, or cleanliness will directly affect the performance and longevity of the HEUI system.

Q4: Are HEUI systems still common in new vehicles?

While HEUI systems were revolutionary and are found in many robust diesel engines, newer generations of diesel engines, particularly in passenger vehicles and light trucks, have largely transitioned to Common Rail systems due to advancements in pressure capabilities and efficiency gains. However, HEUI technology remains prevalent in many heavy-duty and industrial applications.

Conclusion

The Hydraulic Electronic Unit Injector (HEUI) system represents a significant leap forward in diesel fuel injection technology. By ingeniously harnessing the engine's oil pressure and combining it with precise electronic control, HEUI systems deliver superior performance, efficiency, and emissions control. While they demand meticulous maintenance, particularly concerning oil quality, their impact on the development of powerful and responsive diesel engines is undeniable. Understanding the intricate workings of HEUI injectors provides valuable insight into the evolution of diesel power and the engineering prowess behind it.
