Keeping your commercial vehicles on the road and operating in peak condition is paramount for the success of many businesses, organisations, and government entities. An issue that goes unrecognised or is misdiagnosed can have a significant impact on safety and performance, ultimately resulting in costly repairs. This is where diesel truck diagnostic software becomes an indispensable tool. It's critical to have truck engine diagnostic tools capable of scanning components and fault codes, providing all the necessary information to fix the problem effectively and efficiently. For those searching for sophisticated diesel engine diagnostic software to aid in quickly and efficiently troubleshooting and completing repairs, advanced connected vehicle solutions are readily available. These tools are designed to maximise vehicle uptime, improve decision-making, and increase profitability. Regardless of the size of your fleet or the unique challenges you face, the right diagnostic software can help you get the job done right.
What Exactly is Diesel Truck Diagnostic Software?
Diesel truck diagnostic software is a specialised computer program designed to interface with a truck's onboard computer systems, specifically the Engine Control Unit (ECU) or Engine Control Module (ECM). This software allows technicians to communicate with the truck's various electronic systems, retrieve information, and perform a range of diagnostic tests. Think of it as a digital stethoscope for your diesel engine, enabling a deeper understanding of its health and performance. Modern diesel trucks are incredibly complex, featuring numerous sensors, actuators, and electronic control units that manage everything from fuel injection and exhaust gas recirculation to transmission shifting and braking systems. The diagnostic software acts as the bridge, translating the complex electronic signals from these components into human-readable data. This data includes diagnostic trouble codes (DTCs), sensor readings, live data streams, and system statuses.
How Does Heavy-Duty Engine Diagnostic Software Work?

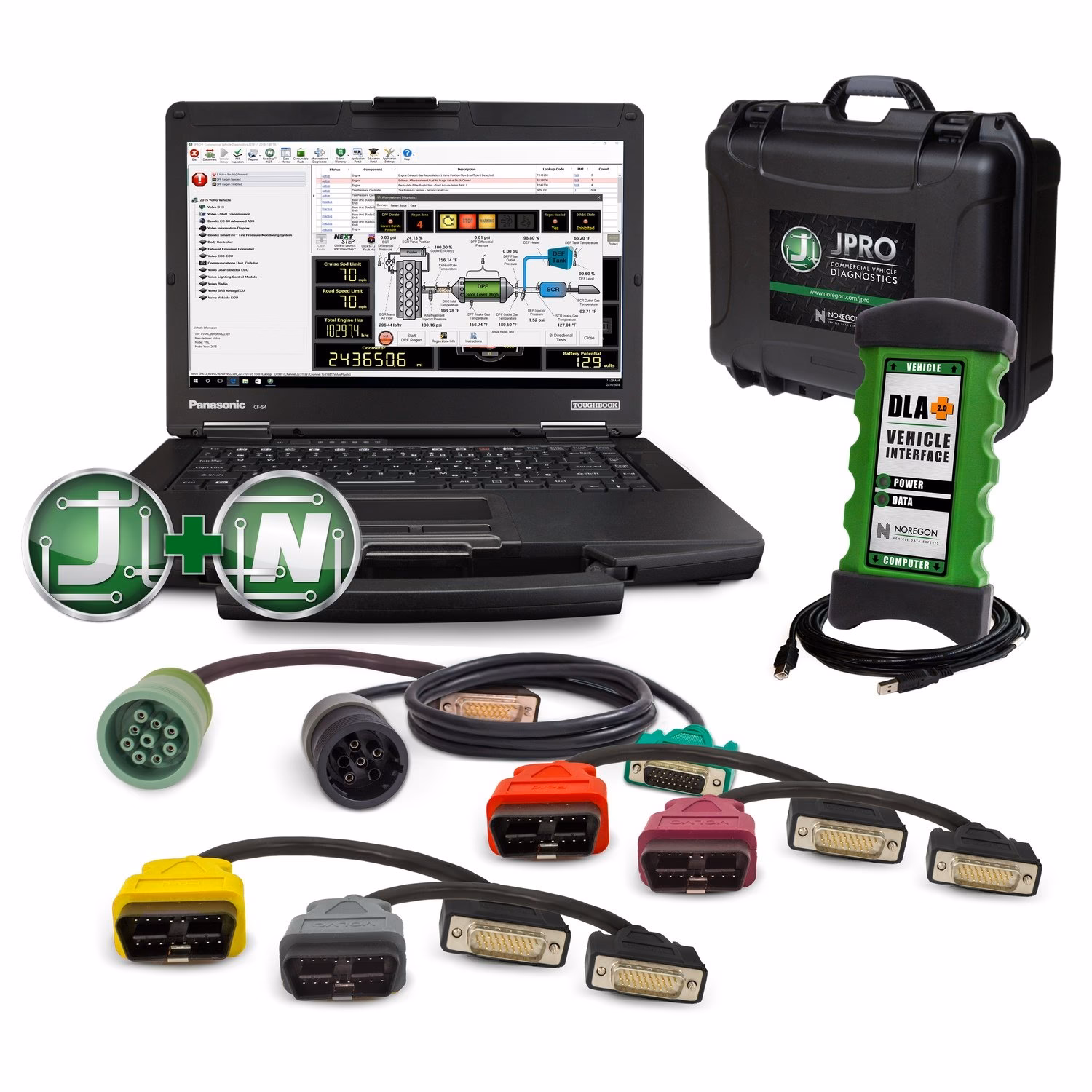

The fundamental principle behind heavy-duty engine diagnostic software is its ability to communicate with the vehicle's ECM via the On-Board Diagnostics (OBD) port, typically located within the driver's cabin. This communication is usually established through a diagnostic interface tool, often referred to as a scanner or a diagnostic adapter, which connects to the OBD port and then to a laptop, tablet, or dedicated diagnostic device running the software. Once connected, the software initiates a communication handshake with the ECM. It can then request and receive data related to the engine's operation. This data can be broadly categorised as follows: * Diagnostic Trouble Codes (DTCs): When a sensor detects a parameter outside its normal operating range, or if there's a fault in a system, the ECM will store a DTC. The diagnostic software reads these codes, providing a specific reference number (e.g., P0300, SPN 1077 FMI 3) that points to the area of the problem. Often, these codes come with a brief description of the potential cause. * Live Data Streams (PIDs): This is perhaps the most powerful feature. The software can display real-time data from various sensors and engine parameters as the engine is running. This includes information like engine RPM, coolant temperature, oil pressure, fuel rail pressure, boost pressure, exhaust gas temperature, injector pulse width, and much more. By observing these values, a technician can identify anomalies or deviations from expected performance. * Freeze Frame Data: When a DTC is set, the ECM often captures a snapshot of critical operating parameters at the exact moment the fault occurred. This 'freeze frame' data is invaluable for understanding the conditions under which the fault happened, providing crucial context for diagnosis. * Actuator Tests: Many diagnostic software packages allow technicians to command specific components (actuators) to operate, even if they are not being triggered by the ECM under normal driving conditions. This could include turning on the radiator fan, cycling the EGR valve, or commanding a specific injector to fire. This helps isolate whether a component is faulty or if the issue lies within the control system. * Component Information and Specifications: Advanced software may also provide access to technical service bulletins (TSBs), wiring diagrams, component locations, and repair procedures, all integrated within the diagnostic platform. This consolidated information streamlines the repair process.
Key Benefits of Using Diesel Diagnostic Software
Investing in robust diesel truck diagnostic software offers a multitude of advantages for fleet managers and owner-operators alike:
| Benefit | Description | Impact on Operations |
|---|---|---|
| Faster Troubleshooting | Quickly identifies fault codes and provides real-time data, reducing the time spent diagnosing issues. | Minimises vehicle downtime, gets trucks back on the road sooner. |
| Accurate Diagnosis | Provides precise information on component performance and system status, leading to more accurate identification of the root cause. | Prevents misdiagnosis and unnecessary part replacements, saving on repair costs. |
| Reduced Downtime | Efficient diagnostics and proactive identification of potential issues mean fewer unexpected breakdowns and extended periods of vehicle availability. | Maximises fleet utilisation, improves delivery schedules, and boosts customer satisfaction. |
| Cost Savings | By enabling accurate diagnosis and preventing incorrect repairs, the software directly contributes to lower labour and parts expenses. | Increases profitability and operational efficiency. |
| Preventive Maintenance | Monitoring live data and identifying subtle performance degradations can alert you to issues before they become critical failures. | Reduces the likelihood of catastrophic failures and costly emergency repairs. |
| Improved Performance | Understanding engine parameters allows for fine-tuning and optimisation, ensuring the engine runs at its most efficient. | Can lead to better fuel economy and extended engine life. |
| Compliance | Some software can assist with emissions testing and reporting, ensuring vehicles meet regulatory standards. | Avoids fines and penalties, maintains legal operational status. |
Types of Diesel Diagnostic Software
Diesel diagnostic software can vary significantly in scope and capability: * OEM (Original Equipment Manufacturer) Software: These are the official diagnostic tools provided by truck manufacturers (e.g., Cummins INSITE, Detroit Diesel Diagnostic Link, CAT ET). They offer the most comprehensive access to the vehicle's systems but are often expensive and may require manufacturer-specific hardware. * Aftermarket Diagnostic Tools: These tools are developed by third-party companies and aim to provide broad compatibility across multiple makes and models. They can range from basic code readers to advanced integrated diagnostic suites. Noregon's solutions fall into this category, offering advanced capabilities for diverse fleets. * Generic OBD-II Scanners: While primarily designed for light-duty vehicles, some generic scanners can read basic powertrain fault codes on diesel trucks. However, their capabilities are very limited when it comes to the complex systems found in heavy-duty applications.
What to Look for in Diesel Truck Diagnostic Software
When selecting diagnostic software for your diesel trucks, consider the following factors: 1. Vehicle Coverage: Ensure the software supports the specific makes, models, and engine types in your fleet. Comprehensive coverage is crucial for a diverse fleet. 2. Functionality: Does it offer DTC reading/clearing, live data streaming, freeze frame data, actuator tests, and component data? The more advanced the features, the more thorough the diagnosis. 3. Ease of Use: The interface should be intuitive and user-friendly, allowing technicians to navigate and interpret data efficiently. Clear presentation of information is key. 4. Data Logging and Reporting: The ability to log diagnostic sessions and generate reports can be valuable for tracking repairs and performance trends. 5. Updates: Regular software updates are essential to keep pace with new vehicle models, updated ECUs, and evolving diagnostic protocols. 6. Support: Reliable technical support from the software provider can be a lifesaver when encountering complex issues. 7. Integration: Consider if the software can integrate with your existing fleet management software or maintenance systems.
Frequently Asked Questions
Q1: Can I use a car OBD-II scanner on my diesel truck?A1: While some basic OBD-II scanners might read generic powertrain fault codes on newer diesel trucks equipped with the OBD-II standard, they will not provide the in-depth diagnostics necessary for heavy-duty applications. Heavy-duty trucks use a different set of protocols (like J1939) and have far more complex systems that require specialised software. Q2: How often should I use diagnostic software on my trucks?A2: It's beneficial to run diagnostics periodically as part of your regular preventive maintenance schedule. Additionally, always perform a diagnostic scan whenever a check engine light illuminates or if you notice any performance issues. Q3: Is diesel diagnostic software expensive?A3: The cost varies widely. OEM software can be very expensive, while aftermarket solutions offer a range of price points depending on their capabilities. Investing in quality software often pays for itself through reduced downtime and repair costs. Q4: What is the difference between an ECM and an ECU?A4: While often used interchangeably, ECU is a more general term for any electronic control unit. The ECM specifically refers to the Engine Control Unit, which manages the engine's operation. In modern trucks, the ECM is a sophisticated computer that controls numerous engine functions. Q5: Can diagnostic software help with fuel economy?A5: Yes, by monitoring parameters like injector timing, fuel pressure, and exhaust gas conditions, technicians can identify issues that might be negatively impacting fuel efficiency. Optimising these parameters can lead to improved fuel economy. In conclusion, diesel truck diagnostic software is an essential tool for maintaining the health, performance, and profitability of any fleet of commercial vehicles. By providing deep insights into the complex electronic systems of modern diesel engines, this software empowers technicians to diagnose issues quickly, accurately, and efficiently, ultimately minimising downtime and keeping your business moving forward.
