It's a common, yet incredibly frustrating, problem: you turn the dial for your car's heater, expecting a blast of warm air, only to be met with a meagre trickle or, worse, cold air. A faulty heater control can turn even the mildest of winter drives into an arctic expedition. Fortunately, many of these issues are resolvable with a bit of know-how and some basic tools. This guide will walk you through diagnosing and rectifying common problems with your car's heater control system, ensuring you can reclaim that much-needed warmth.

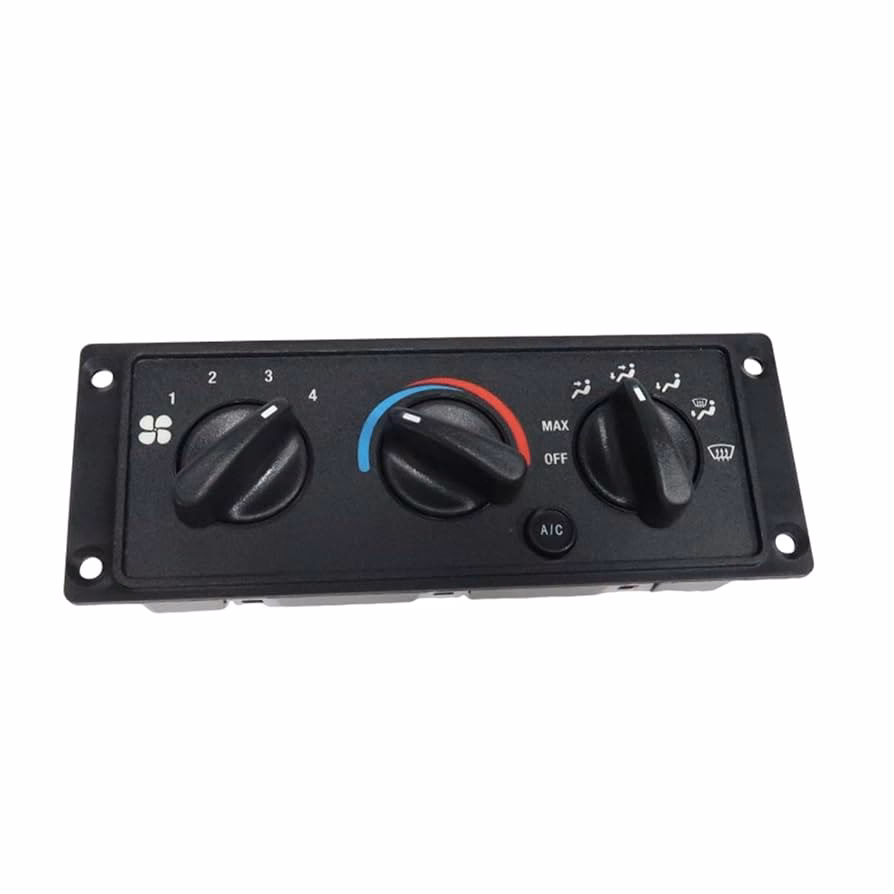

Understanding Your Heater Controls
Before diving into repairs, it's helpful to understand the basic mechanics at play. Most older vehicles, and even some modern ones, utilise a system of cables and levers connected to your heater control knobs. When you rotate a knob, it actuates a mechanical arm or pulls a cable, which in turn moves a flap or lever within the heater matrix or ventilation system. This movement directs airflow and controls whether that air is heated or cooled, and from where it is drawn (recirculated or fresh air). Sometimes, the issue isn't with the heater core itself, but with the actuation mechanism that controls the air direction.
Common Faults and Diagnosis
The most frequent culprit for a malfunctioning heater control is a physical obstruction or a dislodged component within the control panel itself. As mentioned, a knob being rotated while detached from the dash can easily misalign the internal linkage. Let's break down the common issues:
Stuck or Restricted Movement
This is often the primary symptom of a problem. You might find that a particular knob is stiff, won't turn at all, or feels loose and disconnected. The advice to remove the heater controls and inspect for restriction is sound. Here's a more detailed approach:
- Accessing the Controls: This can vary significantly between car models. You might need to remove trim panels around the dashboard, often held in place by clips or small screws. Consult your vehicle's manual or search online for model-specific guides.
- Inspection: Once you have access to the back of the heater control unit, you'll likely see the cables or linkages connecting the knobs to the flaps. Look for any obvious signs of damage, such as frayed cables, bent levers, or plastic components that have snapped.
- Identifying Obstructions: The most common obstruction, as you rightly pointed out, is the mechanical arm being out of sync. If a knob has been rotated forcefully while disconnected, the internal mechanism can become jammed. Gently try to manipulate the arms and levers. If you find a point of resistance, try to carefully realign it. Sometimes, a slight wiggling is all that's needed.
- Lubrication: Dry or corroded linkages can also cause stiffness. A small amount of silicone spray or white lithium grease applied to the moving parts can often free them up. Be sparing with lubricants, as too much can attract dirt.
Broken Cables or Linkages
Over time, the cables that operate the heater flaps can stretch, fray, or snap. The plastic linkages can also become brittle and break. If you find a cable that feels completely slack, or a lever that is loose and unresponsive, it's likely that the cable or linkage is damaged.
| Symptom | Potential Cause | Action |
|---|---|---|
| Knob stiff or won't turn | Misaligned internal mechanism, lack of lubrication, or debris | Inspect and realign mechanism, lubricate moving parts |
| Knob feels loose and disconnected | Broken cable or linkage, or knob detached from its shaft | Inspect for damage, reattach knob if loose, replace cable/linkage if broken |
| No air movement or incorrect air direction | Stuck flap, broken cable, or faulty control unit | Inspect flaps, check cables and linkages, consider control unit replacement |
Faulty Control Unit
In some cases, the problem might lie within the control unit itself. The internal gears or electronic components (in more modern vehicles with electronic controls) can fail. If you've inspected the linkages and cables and found no obvious issues, and lubrication doesn't help, the control unit itself may need replacing.
Repair and Replacement
Once you've identified the fault, the next step is to repair or replace the affected part.
Realigning the Mechanism
If the issue is a simple misalignment, carefully rotate the knob while observing the mechanical arms. You're looking for the point where the arm can move freely without resistance. This might involve rotating the knob back to a neutral position and then reattaching it to the shaft correctly. If the knob itself is loose, it might just need to be pushed firmly back onto its splined shaft.
Replacing Cables and Linkages
This is where sourcing replacement parts becomes crucial. As you suggested, eBay and car breakers are excellent sources for these components. You'll need to identify the specific part number for your vehicle. The process of replacing a cable or linkage can be fiddly, often involving disconnecting it from both the control unit and the flap it operates. Patience is key here.
Replacing the Control Unit
If the entire control unit needs replacing, you'll need to disconnect all the cables and electrical connectors (if any) from the old unit and transfer them to the new one. Ensure the new unit is compatible with your vehicle's make, model, and year.
Tips for a Smooth Repair
- Take Photos: Before you disconnect anything, take clear photos of the existing setup. This will be invaluable when it comes to reassembling everything correctly.
- Organise Parts: Keep any screws, clips, or small components organised. Using a magnetic tray or labelled containers can prevent them from getting lost.
- Test Before Reassembly: Once you've made a repair, and before you put all the trim panels back, test the heater controls to ensure they are functioning correctly.
- Don't Force It: If something feels excessively stiff or won't budge, don't force it. You risk breaking something else. Re-examine the area for obstructions or misalignments.
Frequently Asked Questions
Q1: How do I know if it's the heater control or the heater core?
A1: If your heater controls move freely but you still get no heat, the problem is likely with the heater core, thermostat, or coolant system. If the controls are stiff, jammed, or feel disconnected, the issue is almost certainly with the control mechanism itself.
Q2: Can I bypass the faulty heater control?
A2: In most cases, no. The heater control unit is integral to directing airflow and temperature. Attempting to bypass it would likely result in a permanent state of either full heat or no heat, and potentially the inability to control fan speed or air direction.
Q3: How much does it typically cost to get a heater control fixed by a professional?
A3: The cost can vary widely depending on the complexity of the repair and your location. For simple cable replacements, it might be a couple of hundred pounds. If the entire control unit needs replacing, especially on newer vehicles with integrated electronic systems, it could run into several hundred pounds or more.
Q4: Where can I find replacement heater control parts if eBay doesn't have them?
A4: Besides eBay, try specialist automotive parts suppliers, online forums dedicated to your specific car model, or reputable car part retailers. Always ensure the part is compatible with your vehicle.
Dealing with a faulty heater control can be a nuisance, but by understanding the system and following these diagnostic steps, you can often resolve the issue yourself. Remember, patience and a methodical approach are your best allies when tackling car repairs. Enjoy a toasty drive!
