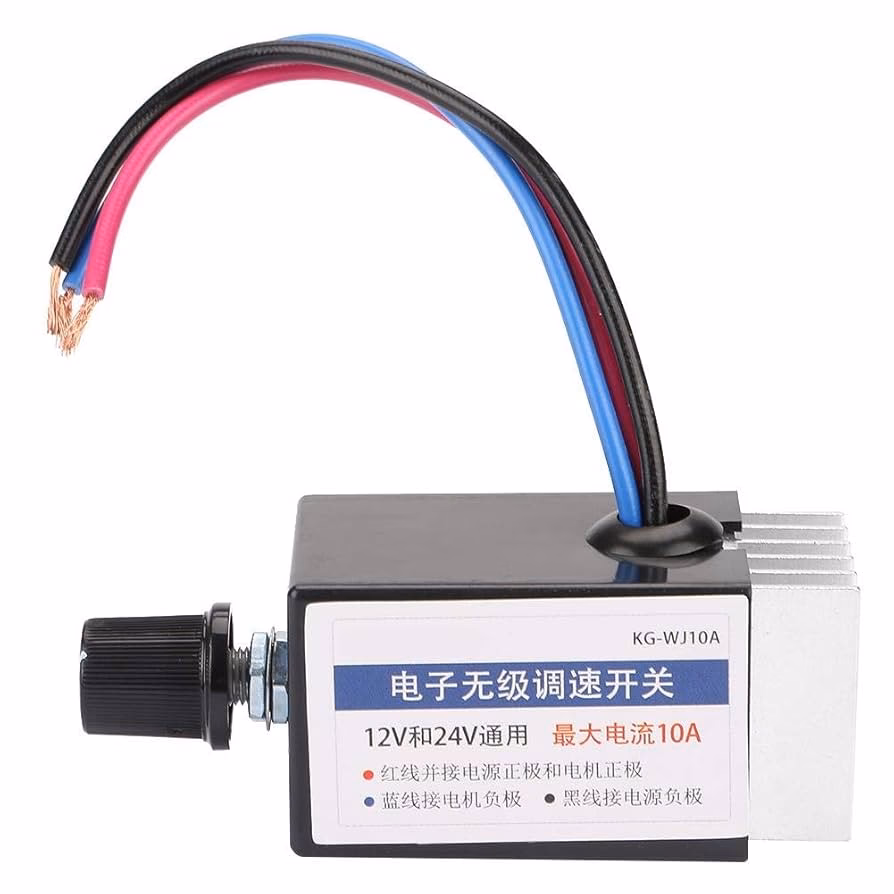

The heater blower motor is a vital component in your vehicle’s climate control system, responsible for circulating air through the cabin, whether for heating, cooling, or just ventilation. While often taken for granted, its proper functioning is paramount for comfort, especially during extreme weather conditions. At the heart of many automotive climate control systems, particularly older or more budget-friendly models, lies the resistor-based blower motor control. This clever yet simple device is responsible for regulating the speed of your blower fan, allowing you to adjust the airflow from a gentle breeze to a powerful gust. Understanding how it works and what can go wrong is key to maintaining a comfortable and functional cabin environment.
A resistor-based blower motor control system operates on a fundamental principle of electricity: resistance. The blower motor itself is designed to run at full speed when it receives the full battery voltage. To achieve lower fan speeds, the voltage supplied to the motor needs to be reduced. This is where the blower motor resistor comes into play. It contains a series of resistors, typically coils of wire with different resistance values. When you select a lower fan speed on your control dial, the electrical current is routed through one or more of these resistors. The added resistance reduces the voltage reaching the blower motor, thus slowing it down. The lowest speeds utilise the highest resistance, while the highest speed bypasses the resistor entirely, sending full voltage to the motor.
- How a Resistor-Based System Regulates Fan Speed
- Why Blower Motor Resistors Fail: Common Culprits
- Symptoms of a Failing Blower Motor Resistor
- Diagnosing a Faulty Blower Motor Resistor
- Replacing a Blower Motor Resistor
- Preventative Maintenance Tips
- Resistor-Based Control vs. Pulse Width Modulation (PWM)
- Frequently Asked Questions (FAQs)
How a Resistor-Based System Regulates Fan Speed
Imagine your car's electrical system as a water pipe. The battery provides the water pressure (voltage), and the blower motor is a water wheel that spins faster with more pressure. To make the water wheel spin slower, you'd partially block the pipe. In an electrical circuit, resistors act as those blocks. A typical blower motor resistor unit will have multiple terminals, each connected to a different resistor coil. When you select 'speed 1' on your fan control, the current flows through the resistor with the highest resistance. For 'speed 2', it might flow through a slightly lower resistance, and so on. For the highest speed, the current bypasses all the resistors, directly powering the motor with the full 12 volts, allowing it to operate at its maximum revolutions per minute (RPM). This simple design is effective and cost-efficient, which is why it has been a staple in vehicle manufacturing for decades.
Why Blower Motor Resistors Fail: Common Culprits
Despite their straightforward design, blower motor resistors are prone to failure. Given their constant use and the demanding electrical environment they operate in, it's perhaps no surprise that these components often wear out. However, simple wear and tear isn't the only factor. Several other issues can lead to a resistor's demise:
Damaged Wiring and Connectors
The wiring and connectors associated with heater resistors draw a significant amount of power from the vehicle’s electrical system. This high current flow inevitably generates a considerable amount of heat. Over time, this sustained heat can cause the wiring insulation to degrade, leading to brittle wires and melted, corroded, or burnt connectors. A poor connection due to damage increases resistance at the connection point itself, generating even more heat and accelerating the damage cycle. This is often visible as blackened or discoloured plastic around the terminals.
Failed Blower Motor
Ironically, the component the resistor controls can also be its undoing. A failing or seized blower motor can draw an excessive amount of current from the electrical system. This 'overcurrent' situation forces the resistor to work much harder than intended, dissipating more heat than it's designed for. This excessive heat build-up can quickly overheat and burn out the resistor coils or the thermal fuse within the resistor pack, leading to its failure. If you replace a resistor without addressing an underlying faulty motor, the new resistor is likely to fail again very quickly.
Coolant Leakages
In some unfortunate cases, the heater core, which is typically located nearby, can develop a leak. If coolant leaks onto the blower motor resistor or the blower motor itself, it can cause significant damage. Coolant is electrically conductive and corrosive. When it comes into contact with the electrical components, it can short-circuit the resistor, corrode its terminals, or damage the internal electronics. This type of failure often leaves a distinctive sticky residue or a sweet smell of coolant in the cabin.
Corrosion and Moisture
Beyond coolant leaks, general moisture or humidity can also contribute to the corrosion of the resistor's electrical contacts and wiring. This is particularly true in vehicles that are frequently exposed to damp environments or have issues with water ingress into the cabin or engine bay. Corrosion increases resistance at the connections, leading to localised heating and eventual failure.
Clogged Cabin Air Filter
While not directly damaging the resistor, a severely clogged cabin air filter can restrict airflow to the blower motor. This forces the motor to work harder to push air through the obstruction, drawing more current and generating more heat. Over time, this increased load can contribute to the premature failure of the blower motor and, consequently, the resistor.
Symptoms of a Failing Blower Motor Resistor
Recognising the symptoms of a failing blower motor resistor can save you from uncomfortable journeys. The most common indicators include:
- Fan Only Works on Certain Speeds: This is the classic symptom. Often, only the highest speed works, as this bypasses the resistor entirely. Lower speeds might stop working one by one as individual resistor coils fail.
- Fan Doesn't Work at All: If the thermal fuse within the resistor pack blows, or if the highest resistance coil fails, the entire unit might stop functioning, leading to no fan operation whatsoever.
- Intermittent Operation: The fan might work sometimes and not others, especially when hitting bumps or driving over rough terrain. This often points to loose connections or a resistor that is on its last legs.
- Burning Smell: A distinct burning plastic or electrical smell coming from the dashboard area is a strong indicator of an overheating or burnt-out resistor.
- Visible Damage: Upon inspection, you might see melted plastic, discoloured wires, or corroded terminals on the resistor or its connector.
Diagnosing a Faulty Blower Motor Resistor
Before rushing to replace parts, a proper diagnosis is crucial. Here's a basic approach:
- Visual Inspection: Locate the blower motor resistor (often found near the blower motor, behind the glovebox or under the dashboard). Look for obvious signs of damage: burnt spots, melted plastic, corrosion on the terminals, or damaged wiring.
- Check Power and Ground: Use a multimeter to check for power and ground at the resistor's connector. Ensure the control switch is sending the correct signals for different fan speeds.
- Test Resistance: If possible, remove the resistor and test the resistance across its terminals using a multimeter. Compare readings to specifications (if available) or look for open circuits (infinite resistance) which indicate a break in the resistor coil.
- Bypass Test (Caution Advised): In some cases, you can temporarily bypass the resistor by directly applying 12V to the blower motor to see if it spins at full speed. If it does, the motor is likely fine, pointing towards the resistor or control switch.
Replacing a Blower Motor Resistor
Replacing a blower motor resistor is often a DIY-friendly task, though access can vary significantly between vehicle models. Always disconnect the battery's negative terminal before starting any electrical work. Once located, it typically involves unplugging the electrical connector(s) and removing a few screws or clips. Install the new resistor, reconnect the wiring, and test the fan at all speeds before reassembling any trim panels. Remember, if an underlying issue like a faulty blower motor or a coolant leak caused the resistor to fail, address that problem first to prevent immediate recurrence.
Preventative Maintenance Tips
While some failures are inevitable due to age, you can take steps to prolong the life of your blower motor resistor:
- Regular Cabin Air Filter Replacement: A clean filter ensures optimal airflow, reducing the strain on the blower motor and, by extension, the resistor.
- Address Coolant Leaks Promptly: If you notice any signs of a coolant leak, particularly near the dashboard or footwells, get it investigated and repaired immediately.
- Inspect Wiring: During routine maintenance, a quick visual check of the blower motor and resistor wiring for signs of heat damage or corrosion can catch issues before they escalate.
Resistor-Based Control vs. Pulse Width Modulation (PWM)
While resistor-based systems are common, modern vehicles often employ Pulse Width Modulation (PWM) for blower motor control. Here's a brief comparison:
| Feature | Resistor-Based Control | Pulse Width Modulation (PWM) |
|---|---|---|
| Method of Control | Varies voltage using fixed resistors | Varies the 'on-time' of a constant voltage signal |
| Efficiency | Less efficient (heat generated by resistors) | More efficient (less energy wasted as heat) |
| Heat Generation | Significant, especially at lower speeds | Minimal, as it's a switching operation |
| Smoothness of Control | Stepped speeds (typically 3-5 settings) | Continuously variable speeds, much smoother |
| Complexity | Simple, mechanical contacts/resistors | More complex, electronic module required |
| Cost | Generally lower initial cost | Generally higher initial cost |
| Common Failure Mode | Resistor burnout, connector melting | Module failure (though less common due to efficiency) |
As you can see, while PWM offers advantages in efficiency and control, the resistor-based system remains a robust and straightforward solution, albeit with its own set of common failure points.
Frequently Asked Questions (FAQs)
Q: Can I drive with a faulty blower motor resistor?
A: Yes, you can typically drive your car with a faulty blower motor resistor. However, you will lose control over your cabin fan speed, or it might not work at all. This means no heating, air conditioning, or defrosting, which can be a significant safety issue in extreme weather conditions (e.g., fogging windscreen) or simply very uncomfortable.
Q: Is replacing a blower motor resistor an expensive repair?
A: The resistor part itself is usually quite inexpensive, often ranging from £15 to £50. Labour costs can vary depending on how difficult it is to access the component in your specific vehicle. Some are very easy to reach, while others require extensive dashboard disassembly.
Q: Where is the blower motor resistor located?
A: The blower motor resistor is almost always located near the blower motor itself. This is typically found behind the glovebox on the passenger side, or sometimes under the dashboard in the footwell area. Consult your vehicle's service manual or an online diagram for its exact location.
Q: How long does a blower motor resistor typically last?
A: The lifespan of a blower motor resistor can vary greatly. Some can last the entire life of the vehicle, while others might fail after just a few years. Factors like frequent use, exposure to high temperatures, and underlying issues (like a failing blower motor or coolant leaks) can significantly shorten its lifespan.
Q: Can a bad blower motor resistor drain my car's battery?
A: It's highly unlikely that a faulty blower motor resistor would directly drain your car's battery. Its failure usually means an open circuit, preventing current flow. However, if the resistor fails in a way that creates a short circuit (which is rare), or if it's drawing excessive current due to a fault, it could contribute to battery drain, but this is not a typical failure mode.
Understanding the humble blower motor resistor provides insight into a crucial part of your car's comfort system. While it's a relatively simple component, its failure can significantly impact your driving experience. By knowing the symptoms, understanding the causes, and taking preventative measures, you can keep your cabin climate control working efficiently and ensure comfortable journeys for years to come.
