Your Guide to Automotive Brake Maintenance

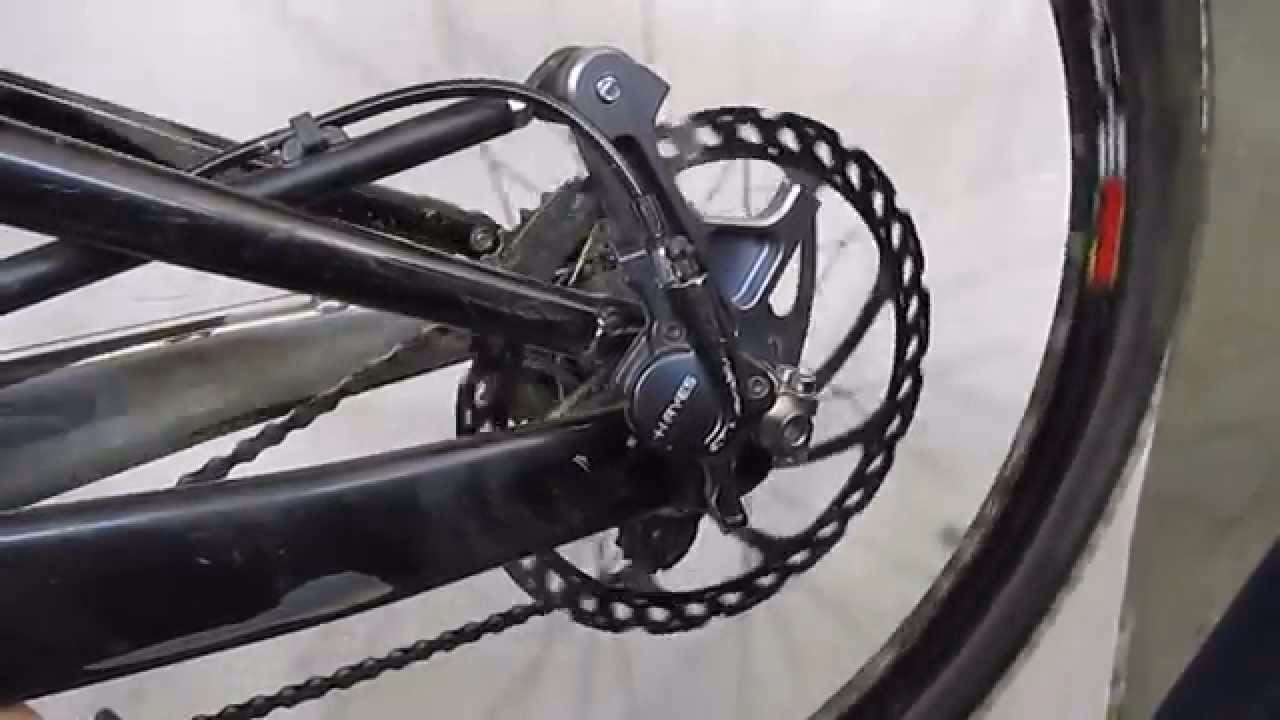

It sounds like you're trying to find a manual for 'Hayes Sole' brakes and are encountering some rather confusing advice about single pistons, resetting, and 'dead pad sides'. It's important to clarify right from the start that Hayes Sole is a brand and model of hydraulic disc brake primarily designed for bicycles, not motor vehicles. While the fundamental principles of hydraulic braking share similarities across bicycles and cars, the specific components, maintenance procedures, and design philosophies are quite different. As an automotive maintenance and mechanics writer, I cannot provide a manual for a bicycle component. However, I can certainly shed light on how automotive hydraulic disc brakes work, address common misconceptions, and guide you through the essential maintenance that keeps your car's stopping power reliable and safe. Understanding your vehicle's braking system is paramount for road safety, so let's delve into the world of automotive brakes.

The Heart of Stopping Power: Automotive Hydraulic Disc Brakes

Modern cars predominantly use hydraulic disc brake systems on all four wheels, though some might still feature drum brakes on the rear, especially older or smaller models. A hydraulic disc brake system is remarkably effective at converting the kinetic energy of a moving vehicle into heat through friction, thus slowing or stopping it. The system begins with the brake pedal, which, when pressed, actuates a master cylinder. This master cylinder pressurises brake fluid, typically a glycol-ether based fluid (DOT 3, DOT 4, DOT 5.1), which is then transmitted through rigid brake lines and flexible hoses to the calipers at each wheel. Each caliper houses one or more pistons that, when pressurised by the fluid, push the brake pads against a spinning metal disc called the rotor. This friction is what slows your car down.

The efficiency of this system relies on a few key factors: the mechanical advantage provided by the pedal and master cylinder, the incompressibility of the brake fluid, and the friction material of the brake pads. It's a closed system, meaning the fluid is contained and should not leak. Any reduction in fluid level, unless due to pad wear, indicates a leak that requires immediate attention.

Caliper Designs: Single Piston vs. Multi-Piston in Cars

The mention of a 'one piston' issue with bicycle brakes brings up a valid point regarding caliper design in automotive applications. In cars, we primarily encounter two types of disc brake calipers: fixed calipers and floating (or sliding) calipers.

• Floating Calipers: These are the most common type found on everyday road cars. A floating caliper typically has one or two pistons located on only one side of the brake rotor. When the brake fluid pressurises these pistons, they push the inner brake pad against the rotor. Simultaneously, the entire caliper body is designed to slide or 'float' on guide pins, pulling the outer pad into contact with the other side of the rotor. This design is cost-effective to manufacture and provides sufficient braking force for most driving conditions. The 'dead pad side' concept you heard might relate to the fixed inner pad in some bicycle designs, but in automotive floating calipers, both pads are actively engaged due to the caliper's ability to slide.
• Fixed Calipers: These calipers are rigidly mounted to the vehicle's suspension. They contain pistons on both sides of the brake rotor. When the brake pedal is pressed, these pistons simultaneously push both the inner and outer brake pads against the rotor. Fixed calipers often have multiple pistons (two, four, six, or even more) to distribute clamping force more evenly across the pad surface and provide greater stopping power. They are typically found on performance vehicles, sports cars, and heavy-duty vehicles where superior braking performance and heat dissipation are critical. While more expensive, they offer better modulation and feel.

Neither a single-piston floating caliper nor a multi-piston fixed caliper is inherently 'garbage' in the automotive world; their suitability depends on the vehicle's design and intended use. A well-maintained single-piston setup on a family hatchback is perfectly adequate and safe.

Brake Pads: The Critical Contact

Brake pads are the sacrificial components of your braking system. Made from various friction materials, they are designed to wear down over time. There are generally three main types:

• Organic Non-Metallic (NAO): These are quieter and produce less dust but wear faster and are less tolerant of high temperatures.
• Semi-Metallic: Containing between 30-65% metal, these offer good stopping power and are more resistant to fade but can be noisier and harsher on rotors.
• Ceramic: Made from ceramic fibres and filler materials, these are quiet, produce very little dust, and offer excellent performance across a wide range of temperatures. They are often found on luxury and performance vehicles due to their higher cost.

Brake pads typically have wear indicators – either a metal tab that squeals when the pads are low, or a sensor that triggers a warning light on your dashboard. Ignoring these warnings can lead to metal-on-metal contact, which severely damages your rotors and dramatically reduces braking effectiveness, posing a serious safety risk.

Rotor Ruminations: Discs and Drums

The brake rotor (or disc) is the large metal disc that the brake pads clamp onto. Rotors must be able to dissipate a tremendous amount of heat generated during braking. They come in various designs, including solid, vented (with fins between two plates to aid cooling), drilled, and slotted (for improved gas and dust dispersion). Over time, rotors can become worn, warped, or develop grooves, all of which compromise braking performance. They have a minimum thickness specification, and if worn beyond this, they must be replaced, not machined or 'skimmed', as this further reduces their heat capacity and structural integrity.

While less common on modern front axles, many vehicles, especially smaller or older models, still utilise drum brakes on the rear. In a drum brake system, brake shoes press outwards against the inside of a spinning drum. They are effective for parking brakes and provide adequate stopping power for the rear wheels, which typically bear less braking load.

The Lifeblood of Your Brakes: Brake Fluid

Often overlooked, brake fluid is arguably the most vital component after the pads and rotors. It's a non-compressible fluid that transmits the force from your pedal to the calipers. However, brake fluid is hygroscopic, meaning it absorbs moisture from the air over time. Water in the brake fluid lowers its boiling point. Under heavy braking, the fluid can get very hot, and if water in the fluid boils, it creates compressible vapour bubbles. This leads to a 'spongy' pedal feel and a significant loss of braking power, a dangerous condition known as 'brake fade'.

Manufacturers typically recommend flushing and replacing brake fluid every two to three years, regardless of mileage, to ensure its integrity. Regular checks of the fluid level in the reservoir are also crucial; a low level can indicate a leak or severely worn pads.

Common Automotive Brake Issues and Troubleshooting

Understanding what your brakes are telling you can save you from costly repairs or, more importantly, an accident. Here are some common symptoms and what they might indicate:

• Squealing or Chirping: Often the first sign of worn brake pads, activating the wear indicator. Could also be due to glazed pads or rotors, or even simply dirt.
• Grinding Noise: A much more serious sound, indicating metal-on-metal contact. Your brake pads are completely worn, and the backing plate is grinding against the rotor. This requires immediate attention.
• Vibrations or Pulsations through the Pedal: Usually a sign of warped brake rotors. Uneven rotor thickness or surface can cause this.
• Spongy or Soft Pedal: This typically indicates air in the brake lines, boiling brake fluid, or a problem with the master cylinder. It means the force from your foot isn't being fully transmitted to the calipers.
• Car Pulling to One Side When Braking: This suggests uneven braking force, often due to a seized caliper piston, a collapsed brake hose, or unevenly worn pads on one side.
• Hard Pedal: If the pedal feels unusually stiff and requires excessive force to stop, it could be an issue with the brake booster (a vacuum-operated assist mechanism) or a blockage in the brake lines.

Routine Brake Maintenance: Keeping Your Car Safe

Regular maintenance is key to ensuring your braking system performs optimally when you need it most. Here's what you should be doing:

• Regular Inspections: Have your brakes inspected at least once a year, or every 10,000-12,000 miles. A qualified mechanic will check pad thickness, rotor condition, brake fluid level and condition, and inspect hoses and lines for leaks or damage.
• Brake Pad Replacement: Replace pads when they reach their minimum thickness, as indicated by the wear sensors or visual inspection. It's often advisable to replace pads on both sides of an axle at the same time to ensure even braking.
• Rotor Checks: While pads are replaced, rotors should be inspected for wear, run-out (wobble), and minimum thickness. If they are worn beyond specification or warped, they should be replaced.
• Brake Fluid Flush: Adhere to your manufacturer's recommendations for brake fluid replacement, typically every 2-3 years. This ensures the fluid's integrity and prevents brake fade.
• Caliper Maintenance: During pad replacement, ensure caliper pistons retract smoothly and guide pins are clean and lubricated. This prevents calipers from seizing, which can lead to uneven pad wear or the car pulling to one side. The 'resetting pistons' advice you heard is indeed a crucial step when fitting new, thicker pads into a caliper – the pistons must be pushed back into their bores to create space.

Comparative Table: Automotive Caliper Types

Frequently Asked Questions About Car Brakes

• How often should I check my brake fluid?
  You should visually check the brake fluid level in the reservoir during your regular under-bonnet checks, typically when checking engine oil. The fluid itself should be flushed and replaced every 2-3 years, regardless of mileage.
• What does a grinding noise mean when I brake?
  A grinding noise almost always means your brake pads are completely worn down, and the metal backing plates are rubbing against the brake rotors. This is a serious issue that requires immediate attention as it damages rotors and significantly reduces braking effectiveness.
• Can I replace my brake pads myself?
  While it is possible for a mechanically inclined individual to replace brake pads, it requires specific tools, knowledge of the correct procedures (including retracting pistons and bleeding if necessary), and an understanding of safety protocols. If done incorrectly, it can lead to brake failure. For critical safety components like brakes, it's often best to consult a qualified mechanic if you're not fully confident.
• Why is my brake pedal soft or spongy?
  A soft or spongy pedal often indicates air in the hydraulic system, which makes the fluid compressible. This can happen after a brake component replacement, a fluid leak, or if the brake fluid has boiled due to excessive heat and moisture contamination. It requires bleeding the brake system to remove the air.
• What's the difference between ABS and regular brakes?
  ABS (Anti-lock Braking System) is an advanced safety feature, not a different type of brake. It works in conjunction with your hydraulic braking system. ABS prevents the wheels from locking up during hard braking, allowing the driver to maintain steering control. It does this by rapidly modulating brake pressure to individual wheels.

Conclusion

While your initial query concerned a bicycle brake, the principles of hydraulic braking are fundamental to both two-wheeled and four-wheeled vehicles. Understanding your car's braking system, recognising the signs of wear, and adhering to a strict maintenance schedule are absolutely critical for your safety and the safety of others on the road. Don't let confusing advice deter you from learning about this vital system. Always ensure your vehicle's brakes are in top condition. If you ever feel uncertain about any aspect of your car's braking performance or maintenance, it is always best to consult a professional mechanic. They have the expertise and specialised tools to diagnose and rectify any issues, ensuring your car stops safely every time.
